DiscreteGeometry

Discrete 2-D or 3-D geometry description

Description

DiscreteGeometry describes a 2-D or 3-D geometry in the form of a discrete geometry object. PDEModel, StructuralModel, and ThermalModel objects have a Geometry property, which can be an AnalyticGeometry or DiscreteGeometry object.

Creation

Create a discrete geometry for your model by using one of the following approaches:

• Use importGeometry to import a 2-D or 3-D geometry from an STL file or a 3-D geometry from a STEP file and attach it to the model.

• Use geometryFromMesh to reconstruct a 2-D or 3-D geometry from mesh and attach it to the model.

• Use multicuboid, multicylinder, or multisphere to create a 3-D geometry. Then assign the resulting geometry to the Geometry property of the model. For example, create a PDE model and add the following geometry formed by three spheres to the model.

  model = createpde;
  gm = multisphere([1,2,3]);
  model.Geometry = gm;

• Use extrude to create a 3-D geometry by vertically extruding a 2-D geometry.

Properties

NumCells — Number of geometry cells

nonnegative integer

Number of geometry cells, specified as a nonnegative integer.

Data Types: double

NumFaces — Number of geometry faces

positive integer

Number of geometry faces, specified as a positive integer.

Data Types: double

NumEdges — Number of geometry edges

nonnegative integer

Number of geometry edges, specified as a nonnegative integer.

Data Types: double

NumVertices — Number of geometry vertices

nonnegative integer

Number of geometry vertices, specified as a nonnegative integer.

Data Types: double

Vertices — Coordinates of geometry vertices

N-by-2 numeric matrix | N-by-3 numeric matrix

Coordinates of geometry vertices, specified as an N-by-2 or N-by-3 numeric matrix for a 2-D or 3-D geometry, respectively. Here, N is the number of vertices.

Data Types: double

Object Functions

addCell	Combine two geometries by adding one inside a cell of another
addFace	Fill void regions in 2-D and split cells in 3-D geometry
addVertex	Add vertex on geometry boundary
addVoid	Create void regions inside 3-D geometry
cellEdges	Find edges belonging to boundaries of specified cells
cellFaces	Find faces belonging to specified cells
extrude	Vertically extrude 2-D geometry or specified faces of 3-D geometry
faceEdges	Find edges belonging to specified faces
facesAttachedToEdges	Find faces attached to specified edges
mergeCells	Merge geometry cells
nearestEdge	Find edges nearest to specified point
nearestFace	Find faces nearest to specified point
rotate	Rotate geometry
scale	Scale geometry
translate	Translate geometry

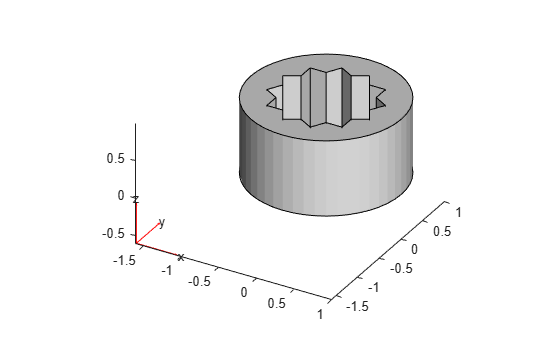

Examples

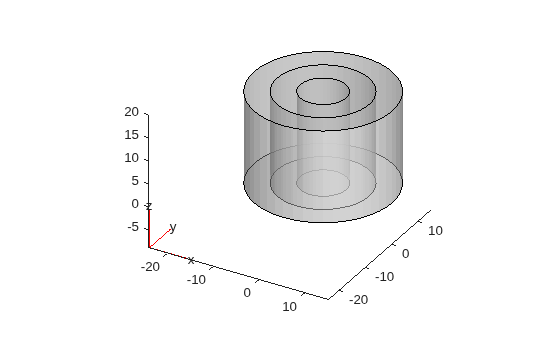

Nested Cylinders Geometry

Create the geometry consisting of three cylinders of the same height by using the multicylinder function.

gm = multicylinder([5 10 15],20)

gm =
  DiscreteGeometry with properties:

       NumCells: 3
       NumFaces: 9
       NumEdges: 6
    NumVertices: 6
       Vertices: [6×3 double]

Plot the geometry.

pdegplot(gm,FaceAlpha=0.5)

Geometry from STL File

Import a geometry from an STL geometry file.

gm = importGeometry("ForearmLink.stl")

gm =
  DiscreteGeometry with properties:

       NumCells: 1
       NumFaces: 147
       NumEdges: 329
    NumVertices: 213
       Vertices: [213×3 double]

Plot the geometry,

pdegplot(gm)

Version History

Introduced in R2015a
