Create void regions inside 3-D geometry
creates void regions inside
g3 = addVoid(
g1 using all cells of
g2. All cells of the geometry
g2 must be
contained inside one cell of the geometry
g1. Ensure that the
geometries do not have enclosed cavities and do not intersect one another.
Added void regions modify a geometry, but they do not modify the corresponding mesh.
After modifying a geometry, always call
generateMesh to ensure a
proper mesh association with the new geometry.
Add Void Regions Inside Cube

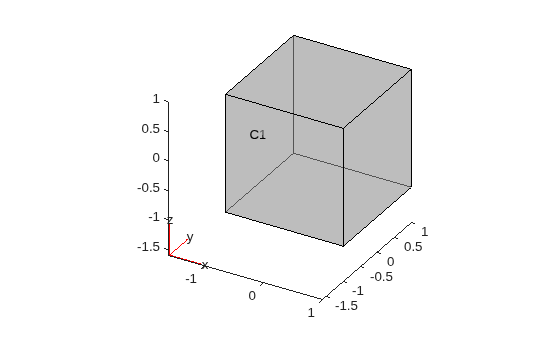

Create and plot a geometry.
g1 = multicuboid(2,2,2,"Zoffset",-1); pdegplot(g1,"CellLabels","on","FaceAlpha",0.5)

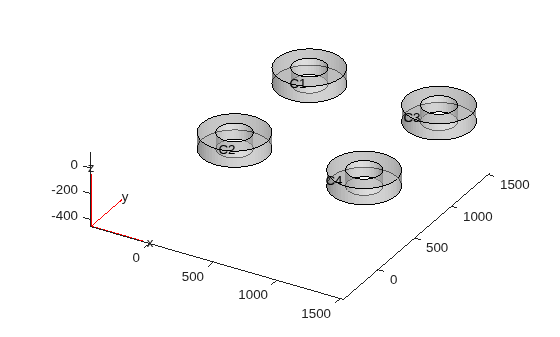

Import and plot another geometry.
g2 = importGeometry("DampingMounts.stl"); pdegplot(g2,"CellLabels","on","FaceAlpha",0.5)

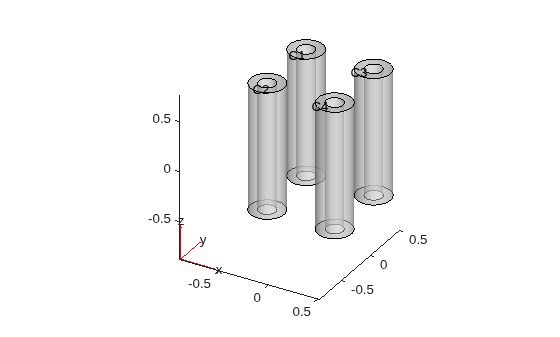

Scale and move the second geometry to fit entirely within the cube
g2 = scale(g2,[1/1500 1/1500 1/100]); g2 = translate(g2,[-0.5 -0.5 -0.5]);
Plot the result.

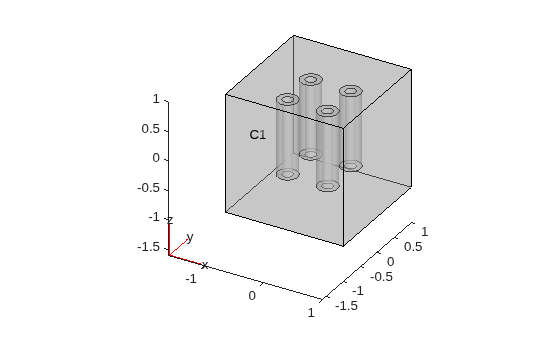

Create void regions inside the cube using the cells of the geometry
g2. Plot the result.
g3 = addVoid(g1,g2); pdegplot(g3,"CellLabels","on","FaceAlpha",0.4)
g1 — 3-D geometry
Introduced in R2021a
