dipoleCycloid
Create cycloid dipole antenna
Description

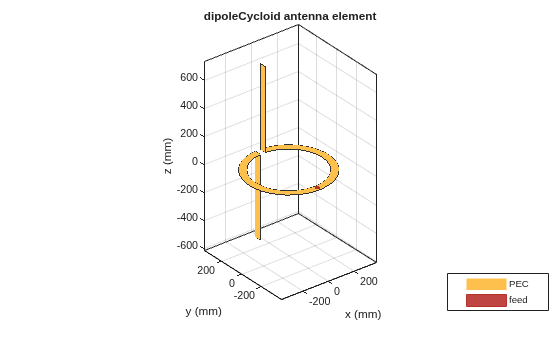

The dipoleCycloid
object is a half-wavelength cycloid
dipole antenna. For the default cycloid dipole, the feed point is on the loop section.
The default length is for an operating frequency of 48 MHz.
The width of the dipole is related to the circular cross-section by the equation
, where:
d is the diameter of equivalent cylindrical pole
r is the radius of equivalent cylindrical pole
For a given cylinder radius, use the cylinder2strip
utility function to calculate the equivalent width.
Creation
Description
creates a
half-wavelength cycloid dipole antenna oriented along Z-axis.dc
= dipoleCycloid
creates a half-wavelength cycloid dipole antenna, with additional properties
specified by one or more name-value pair arguments. dc
= dipoleCycloid(Name,Value)Name
is the property name and Value
is the corresponding
value. You can specify several name-value pair arguments in any order as
Name1
, Value1
,
...
, NameN
,
ValueN
. Properties not specified retain their default
values.
Properties
Object Functions
axialRatio | Calculate and/or plot axial ratio of antenna or array |
bandwidth | Calculate and/or plot absolute bandwidth of antenna |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |
current | Current distribution on antenna or array surface |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |

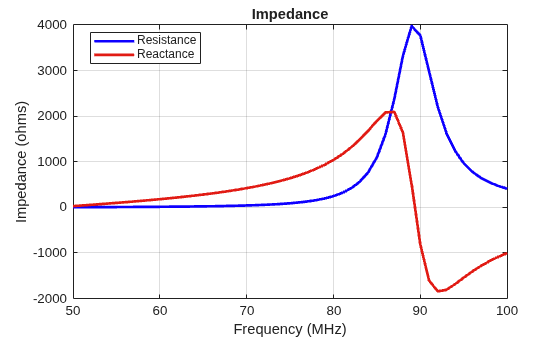

impedance | Input impedance of antenna or scan impedance of array |
info | Display information about antenna, array, or platform |
memoryEstimate | Estimate memory required to solve antenna or array mesh |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |

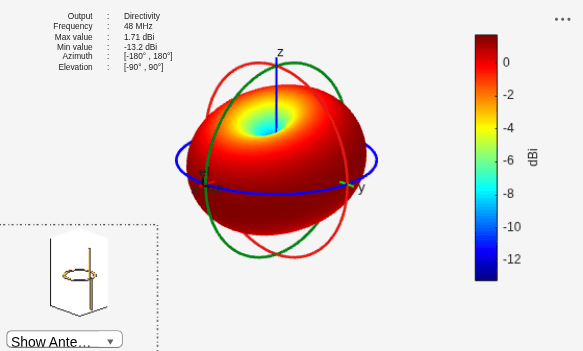

pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array |
resonantFrequency | Calculate and/or plot resonant frequency of antenna |
returnLoss | Return loss of antenna or scan return loss of array |
show | Display antenna, array structures, shapes, or platform |
sparameters | Calculate S-parameters for antennas and antenna arrays |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |
wireStack | Create single or multi-feed wire antenna |
Examples
References
[1] Balanis, C.A. Antenna Theory: Analysis and Design. 3rd Ed. New York: Wiley, 2005.
[2] Volakis, John. Antenna Engineering Handbook. 4th Ed. New York: McGraw-Hill, 2007.
Version History
Introduced in R2017a
