MetalCatalog

Catalog of metals

    Description

    example

    mc = MetalCatalog creates an object handle for the metal catalog.

    • To open the metal catalog, use open(mc)

    • To see the properties of a metal from the metal catalog, use s = find(mc,name).

    Examples

    collapse all

    Open the metal catalog.

    mc = MetalCatalog;
    open(mc)

    {"String":"Figure Metal Materials contains objects of type uimenu, uitoolbar, uitable.","Tex":[],"LaTex":[]}

    List the properties of the metal material Brass.

    s = find(mc,'Brass')
    s = struct with fields:
                Name: 'Brass'
        Conductivity: 15900000
           Thickness: 0.6800
               Units: 'mm'
            Comments: ''



    Use the material Brass as a metal in a corrugated horn antenna.

    m = metal('Brass');
    ant = hornCorrugated('Conductor',m)
    ant =
      hornCorrugated with properties:

                   FlareLength: 0.0428
                    FlareWidth: 0.0900
                   FlareHeight: 0.0800
                        Length: 0.0229
                         Width: 0.0102
                        Height: 0.0075
                     FeedWidth: 8.0000e-05
                    FeedHeight: 0.0037
                    FeedOffset: [-0.0020 0]
        FirstCorrugateDistance: 0.0160
                CorrugateDepth: [0.0050 0.0100]
                CorrugateWidth: 0.0030
                         Pitch: 0.0060
                     Conductor: [1x1 metal]
                          Tilt: 0
                      TiltAxis: [1 0 0]
                          Load: [1x1 lumpedElement]



    View the antenna using show function.

    figure;
    show(ant)

    Figure contains an axes object. The axes object with title hornCorrugated antenna element contains 3 objects of type patch, surface. These objects represent Brass, feed.

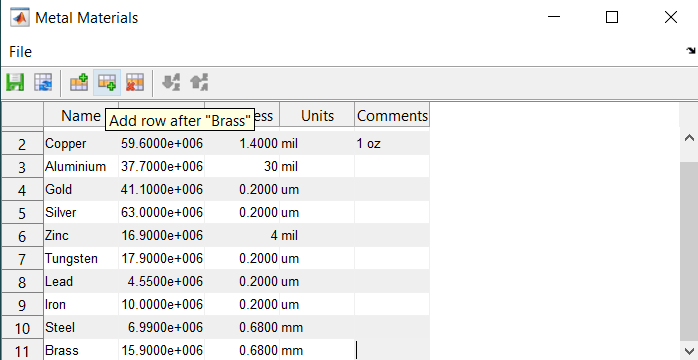

    Open the metal catalog using MetalCatalog function. To add a new material to the metal catalog, click on the row addition icon.

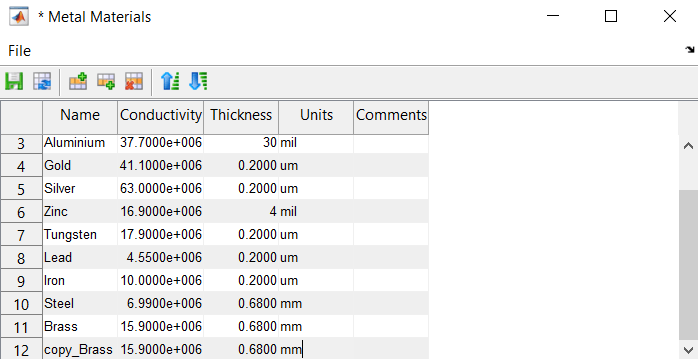

    A duplicate record of the metal material appears below the selected row.

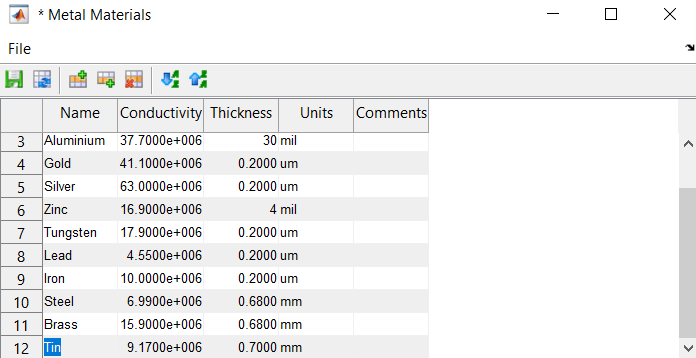

    You can change the record by setting a desired name, conductivity and thickness of the material to customize.


    You can access the new added metal material by using metal object.

    Input Arguments

    collapse all

    Name of the metal from the metal catalog, specified as a character vector.

    Example: 'Copper'

    Data Types: char

    Metal catalog, specified as an object.

    Data Types: char

    Output Arguments

    collapse all

    Metal catalog, returned as an object.

    Parameters of the specified metal from the metal catalog, returned as a structure.

    Version History

    Introduced in R2021a
