dipoleCylindrical
Description
The dipoleCylindrical
object creates a center-fed cylindrical
dipole antenna resonating around 70 MHz. The length of the cylindrical dipole corresponds to
half of the wavelength at the operating frequency. These antennas are used in wireless
communication applications requiring thicker dipoles due to their simple
design.
Creation
Description
creates a center-fed
cylindrical dipole antenna with default property values. The default dimensions are
chosen for an operating frequency of around 70 MHz.ant
= dipoleCylindrical
sets properties
using one or more name-value arguments. ant
= dipoleCylindrical(Name=Value
)Name
is the property name and
Value
is the corresponding value. You can specify several
name-value arguments in any order as Name1=Value1,...,NameN=ValueN
.
Properties that you do not specify, retain their default values.
For example, ant = dipoleCylindrical(Radius=0.04)
creates a
cylindrical dipole antenna with radius of 0.04 meters.
Properties
Object Functions
axialRatio | Calculate and plot axial ratio of antenna or array |
bandwidth | Calculate and plot absolute bandwidth of antenna or array |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |

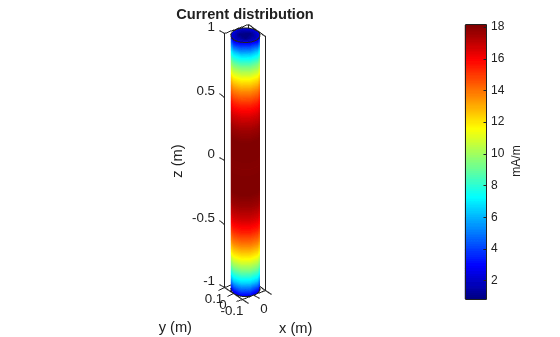

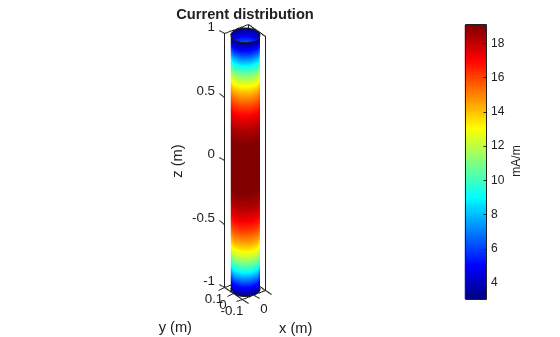

current | Current distribution on antenna or array surface |
cylinder2strip | Cylinder equivalent width approximation |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Calculate and plot radiation efficiency of antenna or array |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |
feedCurrent | Calculate current at feed for antenna or array |

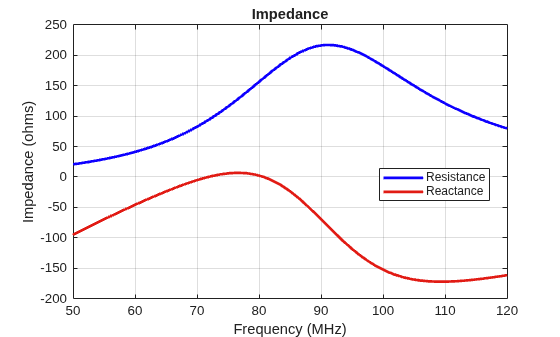

impedance | Calculate and plot input impedance of antenna or scan impedance of array |
info | Display information about antenna, array, or platform |
memoryEstimate | Estimate memory required to solve antenna or array mesh |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
msiwrite | Write antenna or array analysis data to MSI planet file |
optimize | Optimize antenna or array using SADEA optimizer |
pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
peakRadiation | Calculate and mark maximum radiation points of antenna or array on radiation pattern |
rcs | Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array |
resonantFrequency | Calculate and plot resonant frequency of antenna |
returnLoss | Calculate and plot return loss of antenna or scan return loss of array |
show | Display antenna, array structures, shapes, or platform |
sparameters | Calculate S-parameters for antenna or array |
stlwrite | Write mesh information to STL file |
strip2cylinder | Calculate equivalent radius approximation for strip |
vswr | Calculate and plot voltage standing wave ratio (VSWR) of antenna or array element |

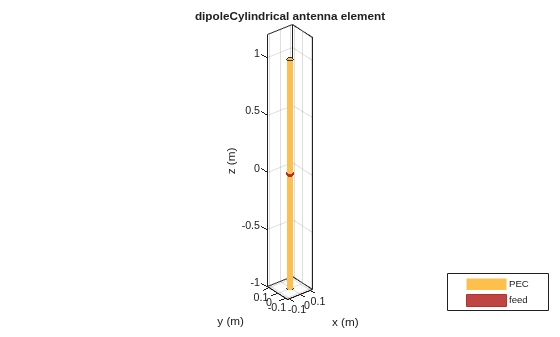

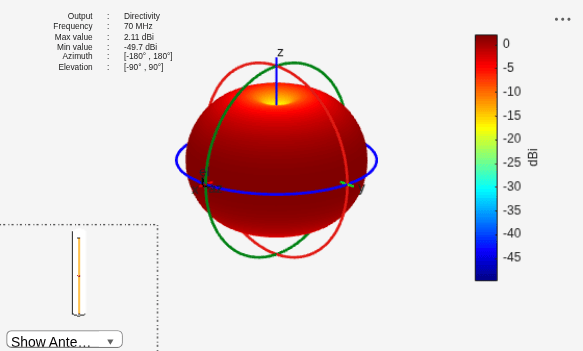

Examples
More About
References
[1] King Ronald W.P. Characteristics of Cylindrical Dipoles and Monopoles. Boston, MA: Springer, 1971.
Version History
Introduced in R2021a
