modifybins
Modify predictor’s bins
Description
manually modifies predictor bins for numeric predictors or categorical
predictors using optional name-value pair arguments. For numeric predictors,
minimum value, maximum value, and cut points can be specified. For categorical
predictors, category groupings can be specified. Bin labels can be specified for
both types of predictors.sc
= modifybins(sc
,PredictorName
,Name,Value
)
Examples
Modify Predictor Bins for Numeric Data
Create a creditscorecard
object using the CreditCardData.mat
file to load the data
(using a dataset from Refaat 2011).
load CreditCardData
sc = creditscorecard(data);
The predictor CustIncome
is numeric. By default, each value of a predictor is placed in a separate bin.
bi = bininfo(sc,'CustIncome')
bi=46×6 table
Bin Good Bad Odds WOE InfoValue
_________ ____ ___ _______ _________ __________
{'18000'} 2 3 0.66667 -1.1099 0.0056227
{'19000'} 1 2 0.5 -1.3976 0.0053002
{'20000'} 4 2 2 -0.011271 6.3641e-07
{'21000'} 6 3 2 -0.011271 9.5462e-07
{'22000'} 4 2 2 -0.011271 6.3641e-07
{'23000'} 4 4 1 -0.70442 0.0035885
{'24000'} 5 5 1 -0.70442 0.0044856
{'25000'} 4 9 0.44444 -1.5153 0.026805
{'26000'} 4 11 0.36364 -1.716 0.038999
{'27000'} 6 6 1 -0.70442 0.0053827
{'28000'} 13 11 1.1818 -0.53736 0.0061896
{'29000'} 11 10 1.1 -0.60911 0.0069988
{'30000'} 18 16 1.125 -0.58664 0.010493
{'31000'} 24 8 3 0.39419 0.0038382
{'32000'} 21 15 1.4 -0.36795 0.0042797
{'33000'} 35 19 1.8421 -0.093509 0.00039951
⋮
Use modifybins
to set a minimum value of 0, and cut points every 10000, from 20000 to 60000. Display updated bin information, including cut points.
sc = modifybins(sc,'CustIncome','MinValue',0,'CutPoints',20000:10000:60000); [bi,cp] = bininfo(sc,'CustIncome')
bi=7×6 table
Bin Good Bad Odds WOE InfoValue
_________________ ____ ___ _______ _________ _________
{'[0,20000)' } 3 5 0.6 -1.2152 0.010765
{'[20000,30000)'} 61 63 0.96825 -0.73668 0.060942
{'[30000,40000)'} 324 173 1.8728 -0.076967 0.0024846
{'[40000,50000)'} 304 123 2.4715 0.20042 0.013781
{'[50000,60000)'} 103 32 3.2188 0.46457 0.022144
{'[60000,Inf]' } 8 1 8 1.375 0.010235
{'Totals' } 803 397 2.0227 NaN 0.12035
cp = 5×1
20000
30000
40000
50000
60000
The first and last bins contain very few points. To merge the first bin into the second one, remove the first cut point. Similarly, to merge the last bin into the second-to-last one, remove the last cut point. Then use modifybins
to update the scorecard, and display updated bin information.
cp(1)=[]; cp(end)=[]; sc = modifybins(sc,'CustIncome','CutPoints',cp); bi = bininfo(sc,'CustIncome')
bi=5×6 table
Bin Good Bad Odds WOE InfoValue
_________________ ____ ___ _______ _________ _________
{'[0,30000)' } 64 68 0.94118 -0.76504 0.070065
{'[30000,40000)'} 324 173 1.8728 -0.076967 0.0024846
{'[40000,50000)'} 304 123 2.4715 0.20042 0.013781
{'[50000,Inf]' } 111 33 3.3636 0.5086 0.028028
{'Totals' } 803 397 2.0227 NaN 0.11436
Modify Predictor Bins for Categorical Data
Create a creditscorecard
object using the CreditCardData.mat
file to load the data
(using a dataset from Refaat 2011).
load CreditCardData
sc = creditscorecard(data);
The binning map or rules for categorical data are summarized in a "category grouping" table, returned as an optional output. By default, each category is placed in a separate bin. Here is the information for the predictor ResStatus
.
[bi,cg] = bininfo(sc,'ResStatus')
bi=4×6 table
Bin Good Bad Odds WOE InfoValue
______________ ____ ___ ______ _________ _________
{'Home Owner'} 365 177 2.0621 0.019329 0.0001682
{'Tenant' } 307 167 1.8383 -0.095564 0.0036638
{'Other' } 131 53 2.4717 0.20049 0.0059418
{'Totals' } 803 397 2.0227 NaN 0.0097738
cg=3×2 table
Category BinNumber
______________ _________
{'Home Owner'} 1
{'Tenant' } 2
{'Other' } 3
To group categories 'Tenant'
and 'Other'
, modify the category grouping table cg
, so the bin number for 'Other'
is the same as the bin number for 'Tenant'
. Then use modifybins
to update the scorecard.
cg.BinNumber(3) = 2; sc = modifybins(sc,'ResStatus','CatGrouping',cg);
Display the updated bin information. Note that the bin labels has been updated and that the bin membership information is contained in the category grouping cg
.
[bi,cg] = bininfo(sc,'ResStatus')
bi=3×6 table
Bin Good Bad Odds WOE InfoValue
__________ ____ ___ ______ _________ __________
{'Group1'} 365 177 2.0621 0.019329 0.0001682
{'Group2'} 438 220 1.9909 -0.015827 0.00013772
{'Totals'} 803 397 2.0227 NaN 0.00030592
cg=3×2 table
Category BinNumber
______________ _________
{'Home Owner'} 1
{'Tenant' } 2
{'Other' } 2
Merge Bins for Numerical and Categorical Predictors
Create a creditscorecard
object (using a dataset from Refaat 2011).
load CreditCardData sc = creditscorecard(data,'IDVar','CustID','GoodLabel',0);
For the numerical predictor CustAge
, use the modifybins
function to set the following cut points:
cp = [25 37 49 65]; sc = modifybins(sc,'CustAge','CutPoints',cp,'MinValue',0,'MaxValue',75); bininfo(sc,'CustAge')
ans=6×6 table
Bin Good Bad Odds WOE InfoValue
___________ ____ ___ ______ _________ _________
{'[0,25)' } 9 8 1.125 -0.58664 0.0052464
{'[25,37)'} 125 92 1.3587 -0.39789 0.030268
{'[37,49)'} 340 183 1.8579 -0.084959 0.0031898
{'[49,65)'} 298 108 2.7593 0.31054 0.030765
{'[65,75]'} 31 6 5.1667 0.93781 0.022031
{'Totals' } 803 397 2.0227 NaN 0.0915
Use the modifybins
function to merge the 2nd and 3rd bins.
sc = modifybins(sc,'CustAge','CutPoints',cp([1 3 4])); bininfo(sc,'CustAge')
ans=5×6 table
Bin Good Bad Odds WOE InfoValue
___________ ____ ___ ______ ________ _________
{'[0,25)' } 9 8 1.125 -0.58664 0.0052464
{'[25,49)'} 465 275 1.6909 -0.17915 0.020355
{'[49,65)'} 298 108 2.7593 0.31054 0.030765
{'[65,75]'} 31 6 5.1667 0.93781 0.022031
{'Totals' } 803 397 2.0227 NaN 0.078397
Display bin information for the categorical predictor ResStatus
.
[bi,cg] = bininfo(sc,'ResStatus');
disp(bi)
Bin Good Bad Odds WOE InfoValue ______________ ____ ___ ______ _________ _________ {'Home Owner'} 365 177 2.0621 0.019329 0.0001682 {'Tenant' } 307 167 1.8383 -0.095564 0.0036638 {'Other' } 131 53 2.4717 0.20049 0.0059418 {'Totals' } 803 397 2.0227 NaN 0.0097738
Use the modifybins
function to merge categories 2 and 3.
cg.BinNumber(3) = 2; sc = modifybins(sc,'ResStatus','CatGrouping',cg); bininfo(sc,'ResStatus')
ans=3×6 table
Bin Good Bad Odds WOE InfoValue
__________ ____ ___ ______ _________ __________
{'Group1'} 365 177 2.0621 0.019329 0.0001682
{'Group2'} 438 220 1.9909 -0.015827 0.00013772
{'Totals'} 803 397 2.0227 NaN 0.00030592
Split Bins for Numerical and Categorical Predictors
Create a creditscorecard
object (using a dataset from Refaat 2011).
load CreditCardData sc = creditscorecard(data,'IDVar','CustID','GoodLabel',0)
sc = creditscorecard with properties: GoodLabel: 0 ResponseVar: 'status' WeightsVar: '' VarNames: {'CustID' 'CustAge' 'TmAtAddress' 'ResStatus' 'EmpStatus' 'CustIncome' 'TmWBank' 'OtherCC' 'AMBalance' 'UtilRate' 'status'} NumericPredictors: {'CustAge' 'TmAtAddress' 'CustIncome' 'TmWBank' 'AMBalance' 'UtilRate'} CategoricalPredictors: {'ResStatus' 'EmpStatus' 'OtherCC'} BinMissingData: 0 IDVar: 'CustID' PredictorVars: {'CustAge' 'TmAtAddress' 'ResStatus' 'EmpStatus' 'CustIncome' 'TmWBank' 'OtherCC' 'AMBalance' 'UtilRate'} Data: [1200x11 table]
For the numerical predictor TmAtAddress
, use the modifybins
function to set the following cut points:
cp = [30 80 120]; sc = modifybins(sc,'TmAtAddress','CutPoints',cp,'MinValue',0,'MaxValue',210); bininfo(sc,'TmAtAddress')
ans=5×6 table
Bin Good Bad Odds WOE InfoValue
_____________ ____ ___ ______ _________ __________
{'[0,30)' } 330 154 2.1429 0.057722 0.0013305
{'[30,80)' } 379 201 1.8856 -0.070187 0.0024086
{'[80,120)' } 78 36 2.1667 0.068771 0.00044396
{'[120,210]'} 16 6 2.6667 0.27641 0.0013301
{'Totals' } 803 397 2.0227 NaN 0.0055131
Use the modifybins
function to split the 2nd bin.
sc = modifybins(sc,'TmAtAddress','CutPoints',[cp(1) 50 cp(2:end)]); bininfo(sc,'TmAtAddress')
ans=6×6 table
Bin Good Bad Odds WOE InfoValue
_____________ ____ ___ ______ _________ __________
{'[0,30)' } 330 154 2.1429 0.057722 0.0013305
{'[30,50)' } 211 104 2.0288 0.0030488 2.4387e-06
{'[50,80)' } 168 97 1.732 -0.15517 0.005449
{'[80,120)' } 78 36 2.1667 0.068771 0.00044396
{'[120,210]'} 16 6 2.6667 0.27641 0.0013301
{'Totals' } 803 397 2.0227 NaN 0.0085559
Display bin information for the categorical predictor ResStatus
.
[bi,cg] = bininfo(sc,'ResStatus')
bi=4×6 table
Bin Good Bad Odds WOE InfoValue
______________ ____ ___ ______ _________ _________
{'Home Owner'} 365 177 2.0621 0.019329 0.0001682
{'Tenant' } 307 167 1.8383 -0.095564 0.0036638
{'Other' } 131 53 2.4717 0.20049 0.0059418
{'Totals' } 803 397 2.0227 NaN 0.0097738
cg=3×2 table
Category BinNumber
______________ _________
{'Home Owner'} 1
{'Tenant' } 2
{'Other' } 3
Use the modifybins
function to merge categories 2 and 3.
cg.BinNumber(3) = 2; sc = modifybins(sc,'ResStatus','CatGrouping',cg); bininfo(sc,'ResStatus')
ans=3×6 table
Bin Good Bad Odds WOE InfoValue
__________ ____ ___ ______ _________ __________
{'Group1'} 365 177 2.0621 0.019329 0.0001682
{'Group2'} 438 220 1.9909 -0.015827 0.00013772
{'Totals'} 803 397 2.0227 NaN 0.00030592
Use the modifybins
function to split bin 2 and put Other
under bin 3.
cg.BinNumber(3) = 3; sc = modifybins(sc,'ResStatus','CatGrouping',cg); [bi,cg] = bininfo(sc,'ResStatus')
bi=4×6 table
Bin Good Bad Odds WOE InfoValue
______________ ____ ___ ______ _________ _________
{'Home Owner'} 365 177 2.0621 0.019329 0.0001682
{'Tenant' } 307 167 1.8383 -0.095564 0.0036638
{'Other' } 131 53 2.4717 0.20049 0.0059418
{'Totals' } 803 397 2.0227 NaN 0.0097738
cg=3×2 table
Category BinNumber
______________ _________
{'Home Owner'} 1
{'Tenant' } 2
{'Other' } 3
Modify Bin Labels
Create a creditscorecard
object using the CreditCardData.mat
file to load the data
(using a dataset from Refaat 2011).
load CreditCardData
sc = creditscorecard(data);
Use modifybins
to reset the minimum value and create three bins for the predictor CustIncome
and display updated bin information.
sc = modifybins(sc,'CustIncome','MinValue',0,'CutPoints',[30000 50000]); bi = bininfo(sc,'CustIncome')
bi=4×6 table
Bin Good Bad Odds WOE InfoValue
_________________ ____ ___ _______ ________ _________
{'[0,30000)' } 64 68 0.94118 -0.76504 0.070065
{'[30000,50000)'} 628 296 2.1216 0.047762 0.0017421
{'[50000,Inf]' } 111 33 3.3636 0.5086 0.028028
{'Totals' } 803 397 2.0227 NaN 0.099836
Modify the bin labels and display updated bin information.
NewLabels = {'Up to 30k','30k to 50k','50k and more'}; sc = modifybins(sc,'CustIncome','BinLabels',NewLabels); bi = bininfo(sc,'CustIncome')
bi=4×6 table
Bin Good Bad Odds WOE InfoValue
________________ ____ ___ _______ ________ _________
{'Up to 30k' } 64 68 0.94118 -0.76504 0.070065
{'30k to 50k' } 628 296 2.1216 0.047762 0.0017421
{'50k and more'} 111 33 3.3636 0.5086 0.028028
{'Totals' } 803 397 2.0227 NaN 0.099836
Bin labels should be the last bin-modification step. As in this example, user-defined bin labels often contain information about the cut points, minimum, or maximum values for numeric data, or information about category groupings for categorical data. To prevent situations where user-defined labels and cut points are inconsistent (and labels are misleading), the creditscorecard
object overrides user-defined labels every time the bins are modified using modifybins
.
To illustrate modifybins
overriding user-defined labels every time the bins are modified, reset the first cut point to 31000 and display updated bin information. Note that the bin labels are reset to their default format and accurately reflect the change in the cut points.
sc = modifybins(sc,'CustIncome','CutPoints',[31000 50000]); bi = bininfo(sc,'CustIncome')
bi=4×6 table
Bin Good Bad Odds WOE InfoValue
_________________ ____ ___ _______ ________ _________
{'[0,31000)' } 82 84 0.97619 -0.72852 0.079751
{'[31000,50000)'} 610 280 2.1786 0.074251 0.0040364
{'[50000,Inf]' } 111 33 3.3636 0.5086 0.028028
{'Totals' } 803 397 2.0227 NaN 0.11182
Modify Bin Information When Using Missing Data
Create a creditscorecard
object using the CreditCardData.mat
file to load the dataMissing
with missing values.
load CreditCardData.mat
head(dataMissing,5)
CustID CustAge TmAtAddress ResStatus EmpStatus CustIncome TmWBank OtherCC AMBalance UtilRate status ______ _______ ___________ ___________ _________ __________ _______ _______ _________ ________ ______ 1 53 62 <undefined> Unknown 50000 55 Yes 1055.9 0.22 0 2 61 22 Home Owner Employed 52000 25 Yes 1161.6 0.24 0 3 47 30 Tenant Employed 37000 61 No 877.23 0.29 0 4 NaN 75 Home Owner Employed 53000 20 Yes 157.37 0.08 0 5 68 56 Home Owner Employed 53000 14 Yes 561.84 0.11 0
fprintf('Number of rows: %d\n',height(dataMissing))
Number of rows: 1200
fprintf('Number of missing values CustAge: %d\n',sum(ismissing(dataMissing.CustAge)))
Number of missing values CustAge: 30
fprintf('Number of missing values ResStatus: %d\n',sum(ismissing(dataMissing.ResStatus)))
Number of missing values ResStatus: 40
Use creditscorecard
with the name-value argument 'BinMissingData'
set to true
to bin the missing data in a separate bin.
sc = creditscorecard(dataMissing,'IDVar','CustID','BinMissingData',true); sc = autobinning(sc); disp(sc)
creditscorecard with properties: GoodLabel: 0 ResponseVar: 'status' WeightsVar: '' VarNames: {'CustID' 'CustAge' 'TmAtAddress' 'ResStatus' 'EmpStatus' 'CustIncome' 'TmWBank' 'OtherCC' 'AMBalance' 'UtilRate' 'status'} NumericPredictors: {'CustAge' 'TmAtAddress' 'CustIncome' 'TmWBank' 'AMBalance' 'UtilRate'} CategoricalPredictors: {'ResStatus' 'EmpStatus' 'OtherCC'} BinMissingData: 1 IDVar: 'CustID' PredictorVars: {'CustAge' 'TmAtAddress' 'ResStatus' 'EmpStatus' 'CustIncome' 'TmWBank' 'OtherCC' 'AMBalance' 'UtilRate'} Data: [1200x11 table]

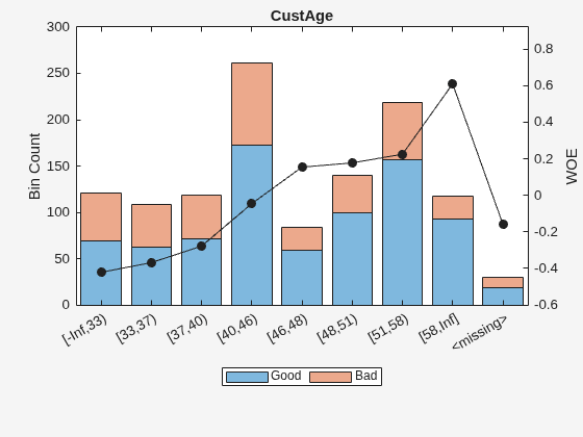

Display bin information for numeric data for 'CustAge'
that includes missing data in a separate bin labelled <missing>
.
[bi,cp] = bininfo(sc,'CustAge');
disp(bi)
Bin Good Bad Odds WOE InfoValue _____________ ____ ___ ______ ________ __________ {'[-Inf,33)'} 69 52 1.3269 -0.42156 0.018993 {'[33,37)' } 63 45 1.4 -0.36795 0.012839 {'[37,40)' } 72 47 1.5319 -0.2779 0.0079824 {'[40,46)' } 172 89 1.9326 -0.04556 0.0004549 {'[46,48)' } 59 25 2.36 0.15424 0.0016199 {'[48,51)' } 99 41 2.4146 0.17713 0.0035449 {'[51,58)' } 157 62 2.5323 0.22469 0.0088407 {'[58,Inf]' } 93 25 3.72 0.60931 0.032198 {'<missing>'} 19 11 1.7273 -0.15787 0.00063885 {'Totals' } 803 397 2.0227 NaN 0.087112
plotbins(sc,'CustAge')
For the numeric predictor CustAge
, remove cut points 48
and 51
and then use modifybins
to define a 'MinValue'
of 0
to manually change the binning and notice that this does not affect the data in the <missing>
bin and the <missing>
bin remains at the end.
cp(cp==48) = []; cp(cp==51) = []; sc = modifybins(sc,'CustAge','CutPoints',cp,'MinValue',0); bi = bininfo(sc,'CustAge'); disp(bi)
Bin Good Bad Odds WOE InfoValue _____________ ____ ___ ______ ________ __________ {'[0,33)' } 69 52 1.3269 -0.42156 0.018993 {'[33,37)' } 63 45 1.4 -0.36795 0.012839 {'[37,40)' } 72 47 1.5319 -0.2779 0.0079824 {'[40,46)' } 172 89 1.9326 -0.04556 0.0004549 {'[46,58)' } 315 128 2.4609 0.19612 0.013701 {'[58,Inf]' } 93 25 3.72 0.60931 0.032198 {'<missing>'} 19 11 1.7273 -0.15787 0.00063885 {'Totals' } 803 397 2.0227 NaN 0.086808
plotbins(sc,'CustAge')
Display bin information for categorical data for 'ResStatus'
that includes missing data in a separate bin labelled <missing>
.
[bi,cg] = bininfo(sc,'ResStatus');
disp(bi)
Bin Good Bad Odds WOE InfoValue ______________ ____ ___ ______ _________ __________ {'Tenant' } 296 161 1.8385 -0.095463 0.0035249 {'Home Owner'} 352 171 2.0585 0.017549 0.00013382 {'Other' } 128 52 2.4615 0.19637 0.0055808 {'<missing>' } 27 13 2.0769 0.026469 2.3248e-05 {'Totals' } 803 397 2.0227 NaN 0.0092627

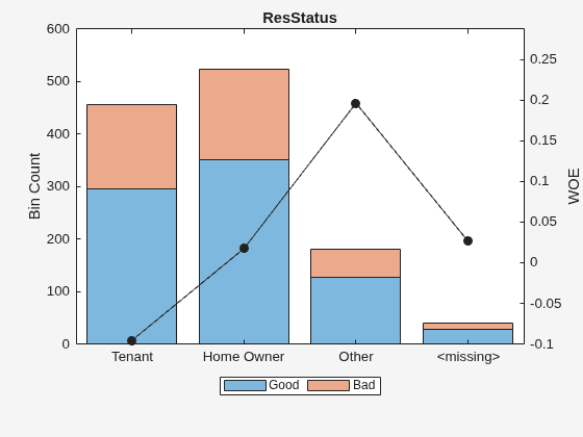

plotbins(sc,'ResStatus')
For the categorical predictor ResStatus
, use modifybins
to manually merge 'HomeOwner'
and 'Other'
into a single group by assigning the same bin number to these categories. Notice that this does not affect the data in the <missing>
bin and the <missing>
bin remains at the end.
cg.BinNumber(3) = 2; sc = modifybins(sc,'ResStatus','CatGrouping',cg); [bi,cg] = bininfo(sc,'ResStatus'); disp(bi)
Bin Good Bad Odds WOE InfoValue _____________ ____ ___ ______ _________ __________ {'Group1' } 296 161 1.8385 -0.095463 0.0035249 {'Group2' } 480 223 2.1525 0.062196 0.0022419 {'<missing>'} 27 13 2.0769 0.026469 2.3248e-05 {'Totals' } 803 397 2.0227 NaN 0.00579
disp(cg)
Category BinNumber ______________ _________ {'Tenant' } 1 {'Home Owner'} 2 {'Other' } 2
Input Arguments
sc
— Credit scorecard model
creditscorecard
object
Credit scorecard model, specified as a
creditscorecard
object. Use creditscorecard
to create
a creditscorecard
object.
PredictorName
— Name of predictor
character vector
Name of predictor, specified as a character vector containing the name
of the predictor. PredictorName
is
case-sensitive.
Data Types: char
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: sc =
modifybins(sc,PredictorName,'MinValue',10,'CutPoints',[23, 44, 66,
88])
MinValue
— Minimum acceptable value (numeric predictors only)
-Inf
(default) | numeric
Minimum acceptable value, specified as the comma-separated pair
consisting of 'MinValue'
and a numeric value (for
numeric predictors only). Values below this number are considered out of
range.
Data Types: double
MaxValue
— Maximum acceptable value (numeric predictors only)
Inf
(default) | numeric
Maximum acceptable value, specified as the comma-separated pair
consisting of 'MaxValue'
and a numeric value (for
numeric predictors only). Values above this number are considered out of
range.
Data Types: double
CutPoints
— Split points between bins
each observed value of the predictor is placed in
a separate bin (default) | nondecreasing numeric array
Split points between bins, specified as the comma-separated pair
consisting of 'CutPoints'
and a nondecreasing numeric
array. If there are NumBins
bins, there are
n = NumBins
–
1
cut points so that C1, C2,...,
Cn describe the bin boundaries with the following
convention:
Note
Cut points do not include MinValue
or
MaxValue
.
By default, cut points are defined so that each observed value of the predictor is placed in a separate bin. If the sorted observed values are V1, …, VM, the default cut points are V2, …, VM, which define M bins.
Data Types: double
CatGrouping
— Table with two columns named Category
and BinNumber
each category is placed in a separate bin (default) | table with two columns named Category
and
BinNumber
Table with two columns named Category
and
BinNumber
, specified as the comma-separated pair
consisting of 'CatGrouping'
and a table, where the
first column contains an exhaustive list of categories for the
predictor, and the second column contains the bin number to which each
category belongs.
By default, each category is placed in a separate bin. If the
observed categories are
'
Cat1'
…,'
CatM'
,
the default category grouping is as follows.
Category | BinNumber |
---|---|
' Cat1' | 1 |
' Cat2' | 2 |
... | ... |
' CatM’' | M |
Data Types: double
BinLabels
— Bin labels for each bin
automatically generated bin labels depending on
the predictor’s type (default) | cell array of character vectors
Bin labels for each bin, specified as the comma-separated pair
consisting of 'BinLabels'
and a cell array of
character vectors with bin label names.
Note
'BinLabels'
does not support a value of
<missing>
.
Bin labels are used to tag the bins in different object functions such
as bininfo
, plotbins
, and displaypoints
. A
creditscorecard
object automatically sets default
bins whenever bins are modified. The default format for bin labels
depends on the predictor’s type.
The format for BinLabels
is:
Numeric data — Before any manual or automatic modification of the predictor bins, there is a bin for each observed predictor value by default. In that case, the bin labels simply show the predictor values. Once the predictor bins have been modified, there are nondefault values for
MinValue
orMaxValue
, or nondefault cut points C1, C2,..., Cn. In that case, the bin labels are:Bin 1 label:
'[
MinValue
,C1
)'
Bin 2 label:
'[C1
,C2
)'
Last bin label:
'[Cn
,MaxValue
]'
For example, if there are three bins,
MinValue
is 0 andMaxValue
is 40, and cut point 1 is 20 and cut point 2 is 30, then the corresponding three bin labels are:'[0,20)' '[20,30)' '[30,40]'
Categorical data — For categorical data, before any modification of the predictor bins, there is one bin per category. In that case, the bin labels simply show the predictor categories. Once the bins have been modified, the labels are set to
'Group1'
,'Group2'
, and so on, for bin 1, bin 2, and so on, respectively. For example, suppose that we have the following category groupingCategory BinNumber '
Cat1'
1 '
Cat2'
2 '
Cat3'
2 Bin 1 contains
'Cat1'
only and its bin label is set to'Group1'
. Bin 2 contains'Cat2'
and'Cat3'
and its bin label is set to'Group2'
.
Tip
Using BinLabels
should be the last
step (if needed) in modifying bins.
BinLabels
definitions are
overridden each time that the bins are modified using the
modifybins
or autobinning
functions.
Data Types: cell
Output Arguments
sc
— Credit scorecard model
creditscorecard
object
Credit scorecard model, returned as an updated
creditscorecard
object. For more information on
using the creditscorecard
object, see creditscorecard
.
References
[1] Anderson, R. The Credit Scoring Toolkit. Oxford University Press, 2007.
[2] Refaat, M. Credit Risk Scorecards: Development and Implementation Using SAS. lulu.com, 2011.
Version History
Introduced in R2014b
See Also
creditscorecard
| autobinning
| bininfo
| predictorinfo
| modifypredictor
| bindata
| plotbins
| fitmodel
| displaypoints
| formatpoints
| score
| setmodel
| probdefault
| validatemodel
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
