zp2ctf

Convert zero-pole-gain filter parameters to cascaded transfer function form

Since R2024a

Syntax

[B,A] = zp2ctf(z,p)

[B,A] = zp2ctf(z,p,k)

[B,A] = zp2ctf(___,Name=Value)

[___,gS] = zp2ctf(___)

Description

[B,A] = zp2ctf(z,p) computes the second-order Cascaded Transfer Functions (CTF) of a filter system described by its zeros z and poles p.

[B,A] = zp2ctf(z,p,k) specifies the scalar gain of the system.

[B,A] = zp2ctf(___,Name=Value) specifies additional options using name-value arguments.

[___,gS] = zp2ctf(___) also returns the overall gain of the system.

Examples

Cascaded Transfer Function from Zeros and Poles

Compute the cascaded transfer function of a discrete-time system from its zeros and poles.

z = [-1 -0.5+0.5i -0.5-0.5i];
p = [0.77 0.9i -0.9i -0.3+0.4i -0.3-0.4i];

[b,a] = zp2ctf(z,p)

b = 3×3

         0    1.0000         0
         0    1.0000    1.0000
    1.0000    1.0000    0.5000

a = 3×3

    1.0000   -0.7700         0
    1.0000    0.6000    0.2500
    1.0000         0    0.8100

Convert Zero-Pole-Gain Filter to Cascaded Transfer Function

Convert a stopband filter represented with zeros, poles, and gain to cascaded transfer-function form.

Get the zeros, poles, and gain of a 16th-order stopband Butterworth filter with stopband normalized frequencies of 0.35$\pi$rad/sample and 0.5$\pi$rad/sample.

[z,p,k] = butter(16,[0.35 0.5],"stop");

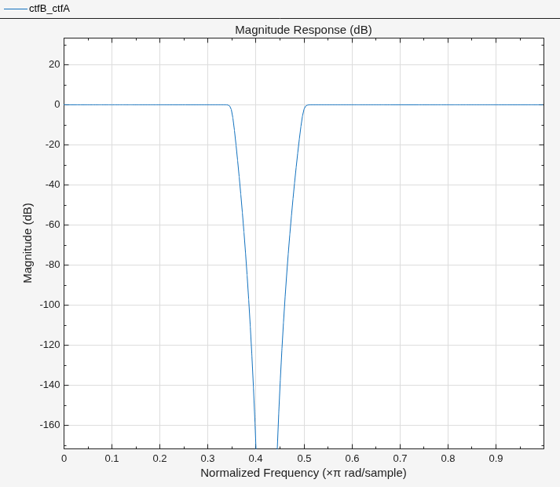

Compute the second-order cascaded transfer function coefficients. Plot the filter frequency response.

[ctfB,ctfA] = zp2ctf(z,p,k);

filterAnalyzer(ctfB,ctfA)

Customized Cascaded Transfer Function from Highpass Filter

Design a highpass filter and compute the zeros, poles, and gain. Convert a zero-pole-gain filter representation to cascaded transfer function. Customize the conversion with pole sorting and gain scaling options.

Design a 10th-order type-II Chebyshev highpass filter sampled at 2000 Hz, with a cutoff frequency of 600 Hz and a stopband attenuation of 50 dB. Observe the z-plane showing five pairs of poles with a distance from the origin that ranges from 0 to 1.

[z,p,k] = cheby2(10,50,600/(2000/2),"high");

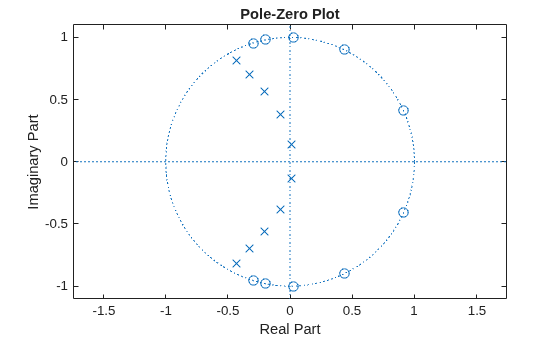

zplane(z,p,k)

Convert the zero-pole-gain filter representation to cascaded transfer function form. Sort the filter sections in descending order using the distance between the poles and the origin. Specify the gain scaling of the filter sections using the infinity norm. List the pole-origin distances for all the filter sections.

[ctfBs,ctfAs] = zp2ctf(z,p,k,Direction="down",Scale="inf")

ctfBs = 5×3

    0.6705    0.3993    0.6705
    0.6851    0.2758    0.6851
    0.5190   -0.0281    0.5190
    0.3424   -0.3002    0.3424
    0.2235   -0.4075    0.2235

ctfAs = 5×3

    1.0000    0.8652    0.8531
    1.0000    0.6592    0.5958
    1.0000    0.4056    0.3591
    1.0000    0.1474    0.1505
    1.0000   -0.0262    0.0189

% Pole-Origin Distances for all Filter Sections.
numSections = size(ctfBs,1);
poleRadius = zeros(numSections,2);
for iter = 1:numSections
    poleRadius(iter,:) = abs(roots(ctfAs(iter,:))');
end
table((1:numSections)',poleRadius, ...
    VariableNames=["Section" "Pole-Origin Distances"])

ans=5×2 table
    Section    Pole-Origin Distances
    _______    _____________________

       1        0.92363    0.92363
       2        0.77188    0.77188
       3        0.59926    0.59926
       4        0.38792    0.38792
       5        0.13735    0.13735

The cascade sections are sorted in descending order by pole-origin distance.

Cascaded Transfer Function of Lowpass Filter

Convert the zero-pole-gain representation of a Butterworth filter to cascaded transfer function form.

Design a 6th-order Butterworth lowpass filter with a normalized cutoff frequency of 0.2$\pi$rad/sample.

[z,p,k] = butter(6,0.2);

Obtain the numerator and denominator coefficients of the cascaded transfer function in the form of second-order and fourth-order cascaded transfer functions. Plot the frequency response of both cascaded transfer functions. Observe that both cascaded transfer functions yield the same frequency response.

% Second-order
[num2,den2,g2] = zp2ctf(z,p,k)

num2 = 3×3

     1     2     1
     1     2     1
     1     2     1

den2 = 3×3

    1.0000   -1.0321    0.2757
    1.0000   -1.1430    0.4128
    1.0000   -1.4044    0.7359

g2 =
3.4054e-04

% Fourth-order
[num4,den4,g4] = zp2ctf(z,p,k,SectionOrder=4)

num4 = 2×5

     1     2     1     0     0
     1     4     6     4     1

den4 = 2×5

    1.0000   -1.0321    0.2757         0         0
    1.0000   -2.5474    2.7539   -1.4209    0.3038

g4 =
3.4054e-04

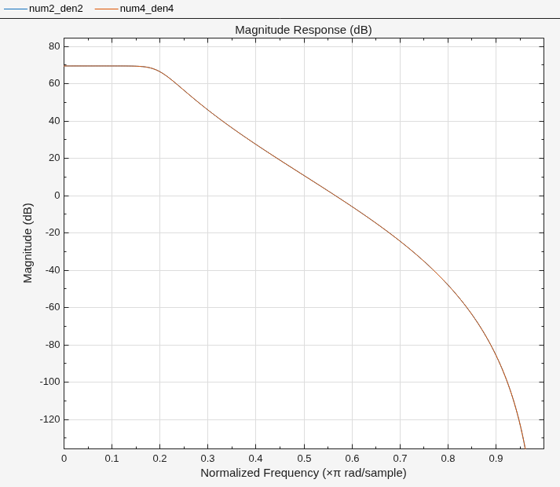

% Frequency response
filterAnalyzer(num2,den2,num4,den4)

Input Arguments

z,p — System zeros and poles

vector

System zeros and poles, specified as vectors.

The vectors z and p contain the n zeros and m poles of the transfer function H(z), respectively.

$$H(z)=k\frac{(z-z_1)(z-z_2)\cdots (z-z_n)}{(z-p_1)(z-p_2)\cdots (z-p_m)}.$$

Example: zp2ctf([-1 -1],[0.5+0.5i 0.5-0.5i]) specifies [-1 -1] as zeros and [0.5+0.5i 0.5-0.5i] as poles.

Data Types: single | double
Complex Number Support: Yes

k — System gain

1 (default) | real scalar

System gain, specified as a real scalar.

The scalar k represents the gain of the transfer function H(z).

$$H(z)=k\frac{(z-z_1)(z-z_2)\cdots (z-z_n)}{(z-p_1)(z-p_2)\cdots (z-p_m)}.$$

If you request the output argument gS, then the zp2ctf function assigns the value of k to gS.

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: zp2ctf(-1,[0.6+0.4i 0.6-0.4i],Direction="down") converts a system with a zero in -1, poles in 0.6+0.4i and 0.6-0.4i, and a stacking order in descending distances between the poles and the origin of the z-plane.

SectionOrder — Order of section transfer functions

2 (default) | 4

Order of the section transfer functions, specified as either 2 or 4. Depending on the value that you specify for SectionOrder, the zp2ctf function returns either the second-order or the fourth-order cascaded transfer function form.

• 2 —The zp2ctf function returns second-order cascaded transfer function form matrices B and A with three columns each.

• 4 —The zp2ctf function returns fourth-order cascaded transfer function form matrices B and A with five columns each.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Direction — Stacking order of transfer function sections

"up" (default) | "down"

Stacking order of the transfer function sections, specified as either "up" or "down". The zp2ctf function sorts the rows of A as a function of the distance between the poles and the origin, depending on the value you specify in Direction:

• "up" — The first row of A contains the poles closest to the origin.

• "down" — The first row of A contains the poles closest to the unit circle.

The zp2ctf function sorts the rows of B so that the zeros in each section are paired with their closest poles associated with the rows of A.

Data Types: char | string

Scale — Gain scaling

"none" (default) | "inf" | "l2"

Gain scaling, specified as either "none", "inf", or "l2". The zp2ctf scales the gain and the numerator coefficients of all sections using the filternorm function, depending on the value you specify to "Scale":

• "none" — No scaling

• "inf" — Infinity-norm scaling

• "l2" — L2-norm scaling

Note

• Infinity-norm and L2-norm scaling are appropriate only for direct-form II implementations, and they are supported only for stable systems.

• Using infinity-norm scaling in conjunction with "up" directional ordering minimizes the probability of overflow when implementing the filter system. On the other hand, using L2-norm scaling in conjunction with "down" directional ordering minimizes the peak round-off noise.

Data Types: char | string

Output Arguments

B,A — Cascaded transfer function coefficients

L-by-3 matrix (default) | L-by-5 matrix

Cascaded transfer function coefficients, returned as either L-by-3 or L-by-5 matrices, where L is the number of sections. The number of columns depends on the value you specify in SectionOrder.

The matrices B and A list the numerator and denominator coefficients of the cascaded transfer function, respectively. See Return Digital Filters in CTF Format for more information.

gS — Overall system gain

real-valued scalar

Overall system gain, returned as a real-valued scalar.

• If you specify to return gS, the zp2ctf function normalizes the numerator coefficients with respect to the system gain k and returns this gain in gS.

• If you do not specify to return gS, the zp2ctf function uniformly distributes the system gain k across all system sections using the scaleFilterSections function.

More About

Cascaded Transfer Functions

Partitioning an IIR digital filter into cascaded sections improves its numerical stability and reduces its susceptibility to coefficient quantization errors. The cascaded form of a transfer function H(z) in terms of the L transfer functions H₁(z), H₂(z), …, H_L(z) is

$$H(z)={\displaystyle \prod _{l=1}^L{H}_l(z)}=H_1(z)\times H_2(z)\times \cdots \times H_L(z).$$

Return Digital Filters in CTF Format

Specify B and A to return the filter coefficients. You can also specify gS to return the overall system gain of the filter. By specifying these output arguments, you can design digital filters in the CTF format for analysis, visualization, and signal filtering.

Filter Coefficients

When you specify to return the numerator and denominator coefficients in the CTF format, the L-row matrices B and A are returned as

$$B=\left[\begin{array}{cccc}{b}_{11}& b_{12}& \cdots & b_{1,m+1}\\ b_{21}& b_{22}& \cdots & b_{2,m+1}\\ ⋮& ⋮& \ddots & ⋮\\ b_{L1}& b_{L2}& \cdots & b_{L,m+1}\end{array}\right],A=\left[\begin{array}{cccc}1& a_{12}& \cdots & a_{1,n+1}\\ 1& a_{22}& \cdots & a_{2,n+1}\\ ⋮& ⋮& \ddots & ⋮\\ 1& a_{L2}& \cdots & a_{L,n+1}\end{array}\right],$$

such that the full transfer function of the filter is

$$H\left(z\right)=\frac{b_{11}+b_{12}{z}^{-1}+\cdots +b_{1,m+1}{z}^{-m}}{1+a_{12}{z}^{-1}+\cdots +a_{1,n+1}{z}^{-n}}\times \frac{b_{21}+b_{22}{z}^{-1}+\cdots +b_{2,m+1}{z}^{-m}}{1+a_{22}{z}^{-1}+\cdots +a_{2,n+1}{z}^{-n}}\times \cdots \times \frac{b_{L1}+b_{L2}{z}^{-1}+\cdots +b_{L,m+1}{z}^{-m}}{1+a_{L2}{z}^{-1}+\cdots +a_{L,n+1}{z}^{-n}},$$

where m ≥ 0 is the numerator order of the filter and n ≥ 0 is the denominator order.

Note

• To filter signals using cascaded transfer functions, use the ctffilt function.

• To analyze filters represented as cascaded transfer functions, use the Filter Analyzer app. You can also use these Signal Processing Toolbox™ functions to visualize and analyze filters in CTF format:

  • Time-Domain Responses — impzlength, impz, and stepz

  • Frequency-Domain Responses — freqz, grpdelay, phasedelay, phasez, zerophase, and zplane

  • Filter Exploration — filtord, islinphase, ismaxphase, isminphase, and isstable

Coefficients and Gain

You can specify to return the coefficients and overall system gain using the output argument triplet [B,A,gS]. In this case, the numerator coefficients are normalized, returning the filter coefficient matrices and gain as

$$B=\left[\begin{array}{cccc}1& {\beta }_{12}& \cdots & {\beta }_{1,m+1}\\ 1& {\beta }_{22}& \cdots & {\beta }_{2,m+1}\\ ⋮& ⋮& \ddots & ⋮\\ 1& {\beta }_{L2}& \cdots & {\beta }_{L,m+1}\end{array}\right],A=\left[\begin{array}{cccc}1& a_{12}& \cdots & a_{1,n+1}\\ 1& a_{22}& \cdots & a_{2,n+1}\\ ⋮& ⋮& \ddots & ⋮\\ 1& a_{L2}& \cdots & a_{L,n+1}\end{array}\right],g_{\text{S}},$$

so that the transfer function is

$$H\left(z\right)=g_{\text{S}}\left(\frac{1+{\beta }_{12}{z}^{-1}+\cdots +{\beta }_{1,m+1}{z}^{-m}}{1+a_{12}{z}^{-1}+\cdots +a_{1,n+1}{z}^{-n}}\times \frac{1+{\beta }_{22}{z}^{-1}+\cdots +{\beta }_{2,m+1}{z}^{-m}}{1+a_{22}{z}^{-1}+\cdots +a_{2,n+1}{z}^{-n}}\times \cdots \times \frac{1+{\beta }_{L2}{z}^{-1}+\cdots +{\beta }_{L,m+1}{z}^{-m}}{1+a_{L2}{z}^{-1}+\cdots +a_{L,n+1}{z}^{-n}}\right).$$

This transfer function is equivalent to the one defined in the Filter Coefficients section, where g_S = b₁₁×b₂₁×...×b_L1, and β_li = b_li/b_l1 for i = 1,2,…,m and l = 1,2,…,L.

Algorithms

The zp2ctf function computes the numerator and denominator coefficients of the cascaded-transfer-function sections from the zeros, poles, and gain of the filter system. For an Nth-order filter system, there are (L!)² possible combinations [1]. The variable L is the nearest integer greater than or equal to N/2 or N/4 for second-order or fourth-order sections, respectively.

Customize the sorting criteria for pairing of the zeros and poles in the cascaded sections by specifying Direction to start with the poles and zeros closest to the origin of the z-plane ("up"), or closest to the unit circle ("down"). Perform gain scaling across the cascaded sections by specifying Scale. Customize the order of the cascaded sections by setting SectionOrder to either 2 or 4 to generate either second-order or fourth-order cascaded sections, respectively.

The output arguments B and A contain the second-order or fourth-order cascaded transfer function coefficients of the filter system distributed in L rows.

• Each row of A and B lists the coefficients in each section.

  • The function returns the first column of A as 1, thus A(1)=1 when A is a row vector.

  • If you specify to return gS, zp2ctf normalizes the numerator coefficients so that the first column of B is 1, and returns the overall system gain in gS. Thus, B(1)=1 when B is a row vector.

  • If you do not specify to return gS, zp2ctf first normalizes the numerator coefficients so that the first column of B is 1, and then uniformly multiplies sgn(gS)*gS^(1/L) to the normalized numerator coefficients, so that the first column of B is sgn(gS)*gS^(1/L). Thus, B(1)=gS when B is a row vector.

• If you specify second-order sections or do not specify SectionOrder, the zp2ctf function returns the L-by-3 matrices B and A, where the last two columns correspond to the z^–1 and z^–2 terms for each cascaded section of the filter system.

• If you specify fourth-order sections, the zp2ctf function returns the L-by-5 matrices B and A, where the last two columns correspond to the z^–3 and z^–4 terms for each cascaded section of the filter system.

References

[1] Lyons, Richard G. Understanding Digital Signal Processing. Upper Saddle River, NJ: Prentice Hall, 2004.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

This function fully supports GPU arrays. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2024a
