Inverse Kinematics Designer
Description
The Inverse Kinematics Designer enables you to design an inverse kinematics solver for a URDF robot model. You can adjust the inverse kinematics solver and add constraints to achieve the desired behavior. Using this app you can:
Import URDF robot models from URDF files or the MATLAB Workspace.
Adjust inverse kinematics solvers and constraints.
Create joint configurations and export waypoints.
Export solver settings, constraints, and joint configurations to the MATLAB^{®} workspace.
Open the Inverse Kinematics Designer App
MATLAB Toolstrip: On the Apps tab, under Robotics And Autonomous Systems, click Inverse Kinematics Designer .
MATLAB command prompt: Enter
inverseKinematicsDesigner
.
Examples
Create Inverse Kinematics Designer Session
This example shows how to create, load, and save an Inverse Kinematics Designer session in addition to loading a robot into the session. The completed file is attached for reference as iksessiondata.mat
. Load the session with the inverseKinematicsDesigner
function or follow along with this example to create it.
Create Session
Open Inverse Kinematics Designer by using the inverseKinematicsDesigner
function.
inverseKinematicsDesigner
Load Robot into Session
Use loadrobot
from the Command Window to load a rigidBodyTree
such as a Universal UR5e into the Workspace. importrobot
can also be used to import a rigidBodyTree
object from any robot URDF file.
uniUR5e = loadrobot("universalUR5e");
Click New Session and select uniUR5e
from the table in the dialog and click OK. This table contains all of the rigidBodyTree
objects in the workspace. If you do not see your object in the table, verify that it is in your workspace and click Refresh.

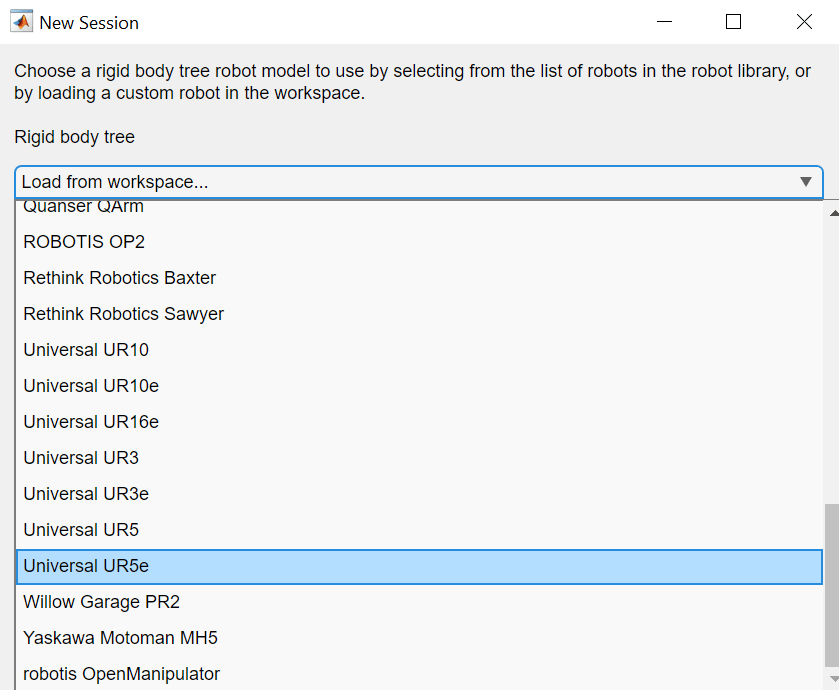

Alternatively, you can load a robot by selecting from a list of robot models that come with the Robotics System Toolbox™ using the Rigid body tree drop down dialog and clicking OK.

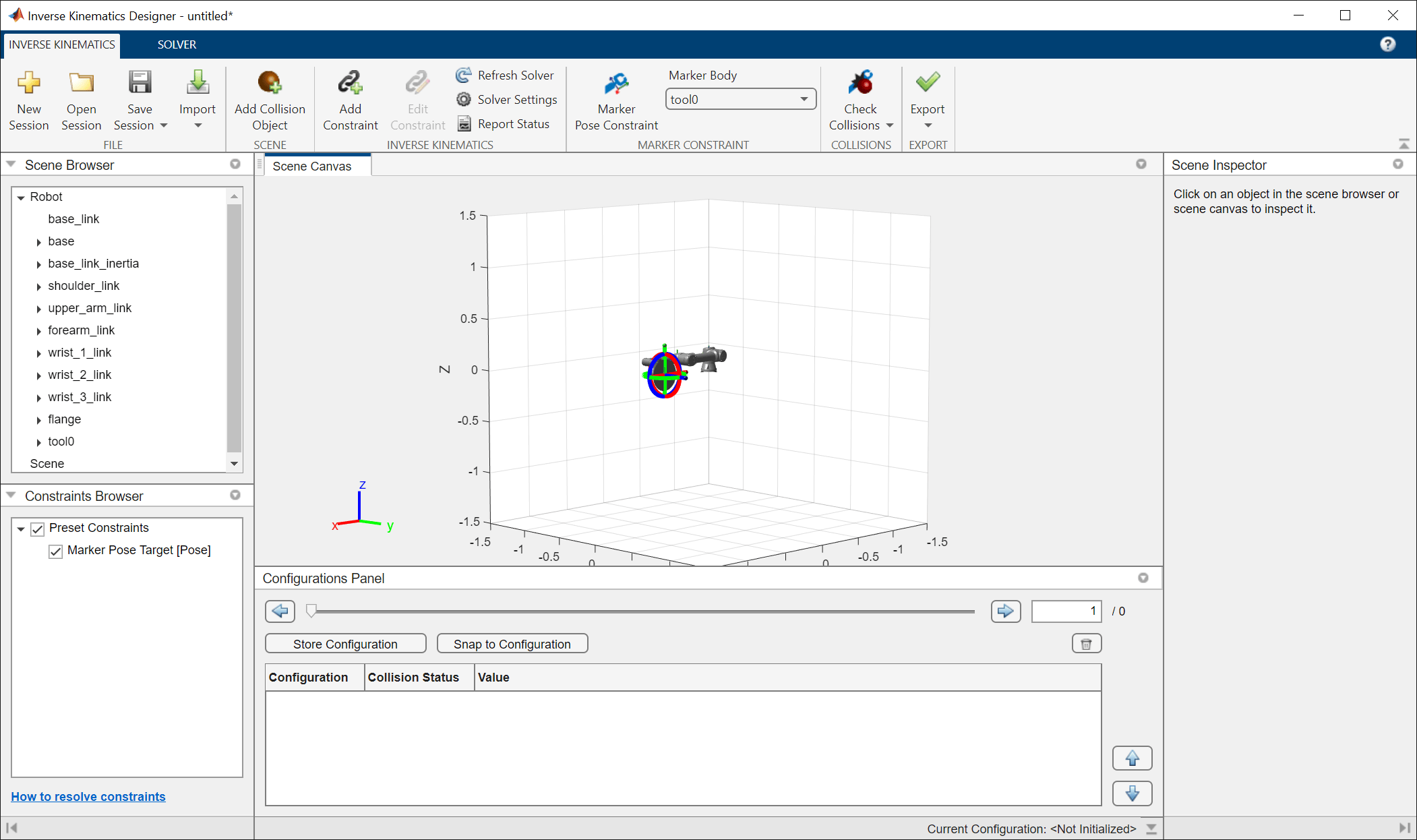

The Scene Canvas now contains the robot model, and the Scene Browser now displays all of the rigid bodies of the robot.
Add Collision Objects
To add a collision object into the Scene Canvas, a collision object must be in the Workspace. For convenience, this example provides a simple box to use. For more information about creating collision objects, see collisionMesh
, collisionBox
,
collisionSphere
, and collisionCylinder
.
Load the collisionobject
MAT file which will save a collisionBox
named box

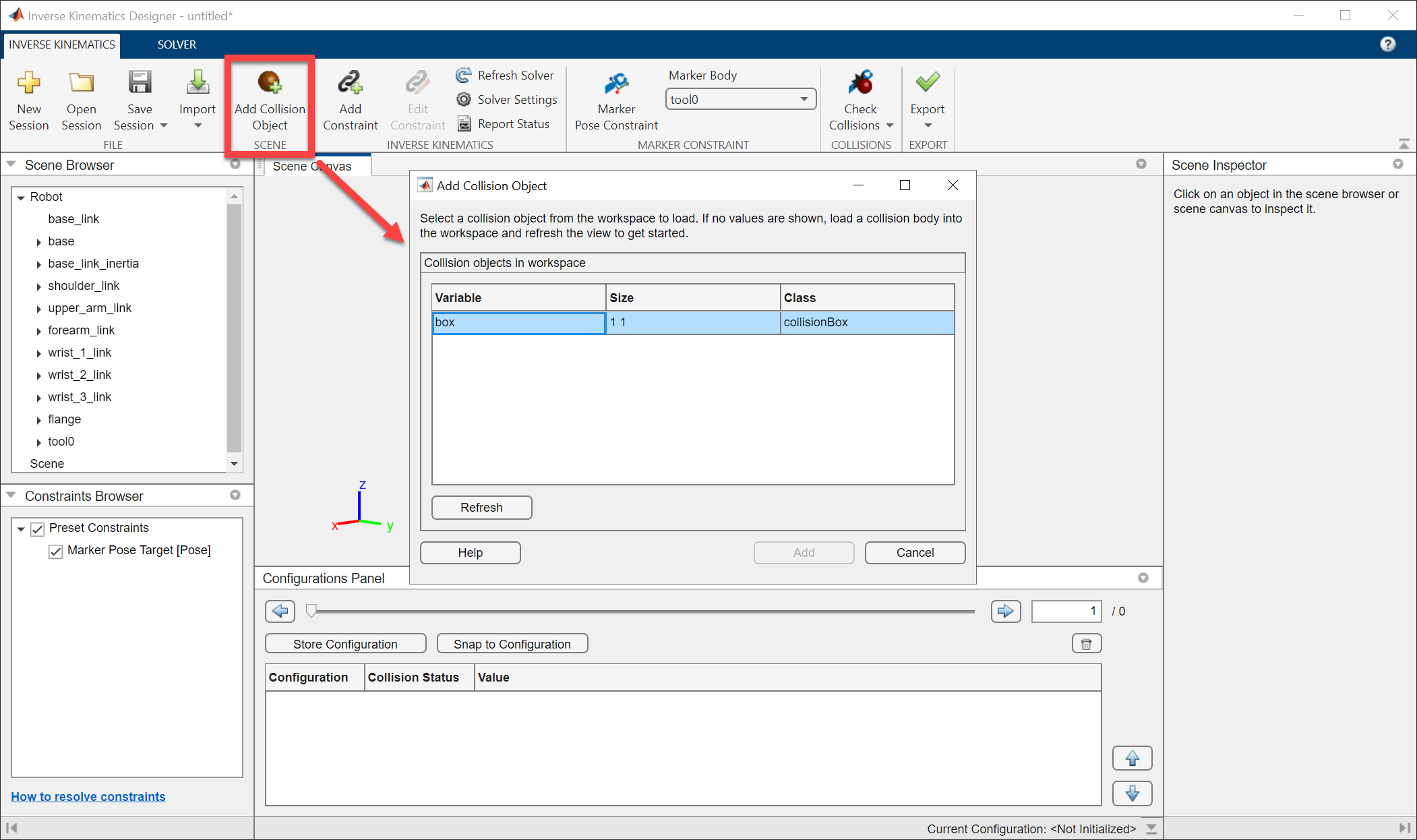

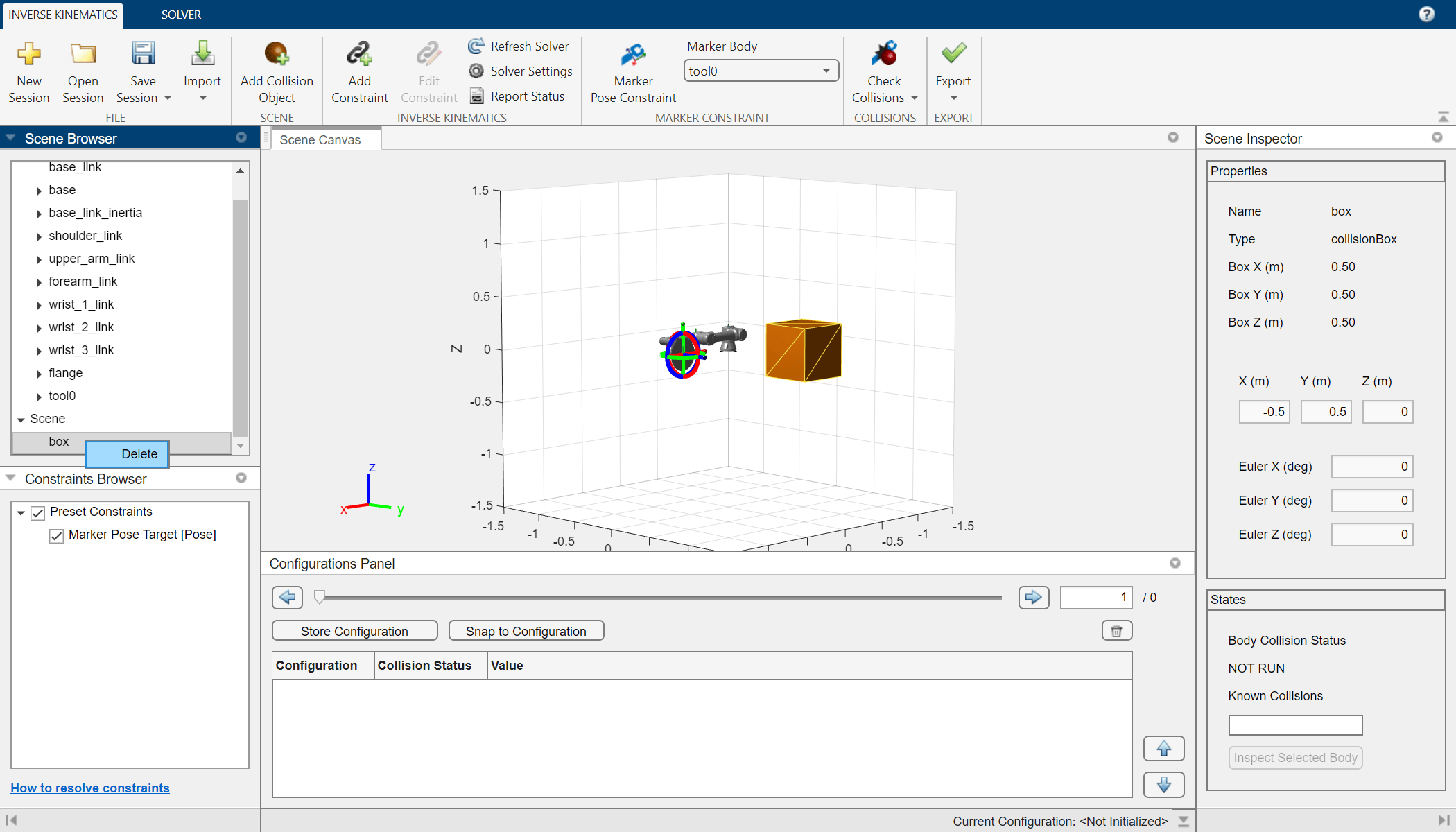

to your Workspace. Click Add Collision Object, and select box
, from the table. Click OK to add it to the Scene Canvas.
The Scene Canvas now contains both the robot and the collision object. We will keep the object in this example, but if you want to delete the collision object, find the collision object in the Scene Browser under Scene, rightclick the name of the collision object and click Delete.
The position and Euler orientation of the object can viewed using the Scene Inspector when the object is selected in either the Scene Canvas or Scene Browser. The properties listed will change depending on the type of the collision object selected.
Save Session

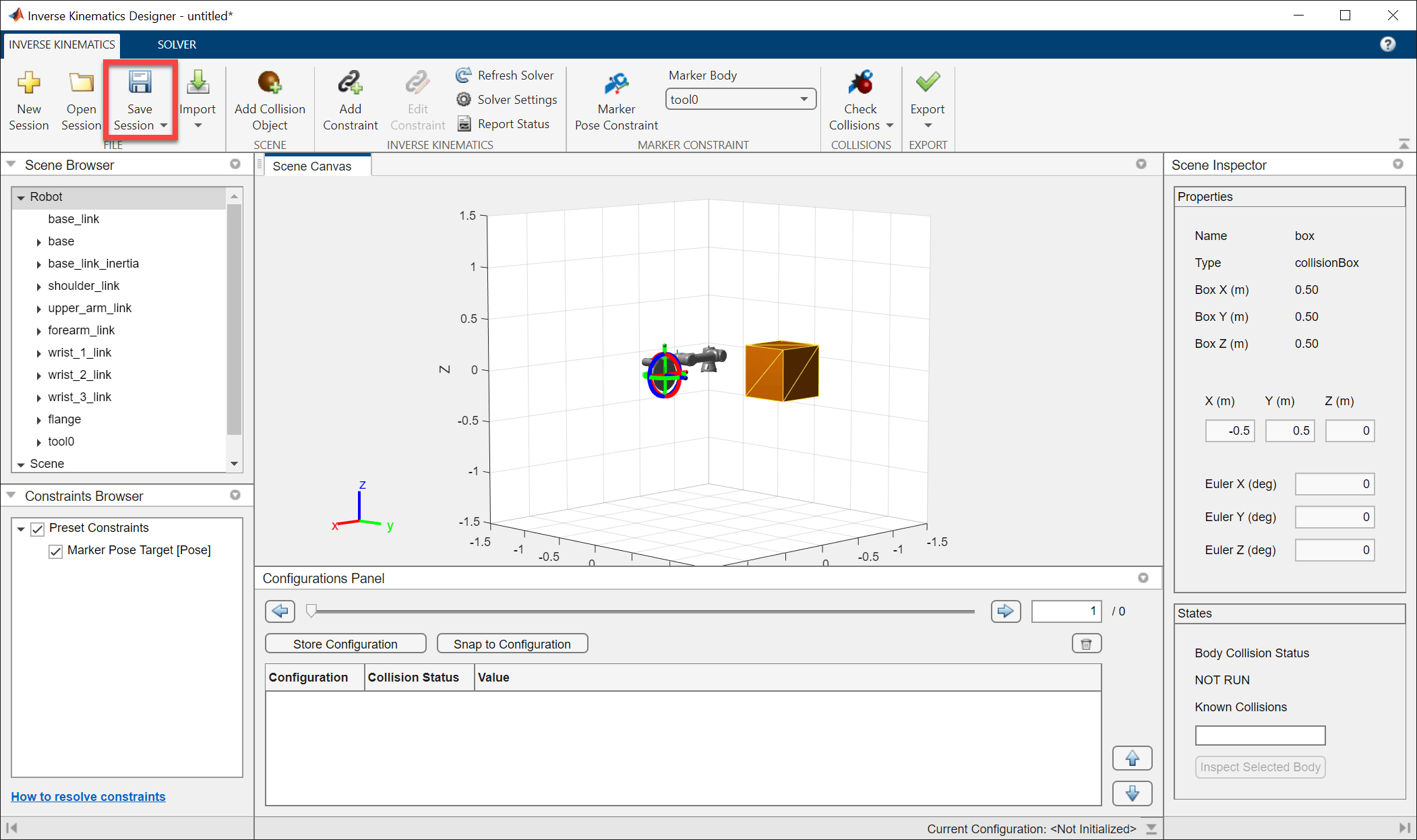

To save this session, click Save Session. If this is the first time saving the session, name the file and select a location to save it. The file will be saved as a MAT (*.mat) file containing all session data and settings.
Load Saved Session

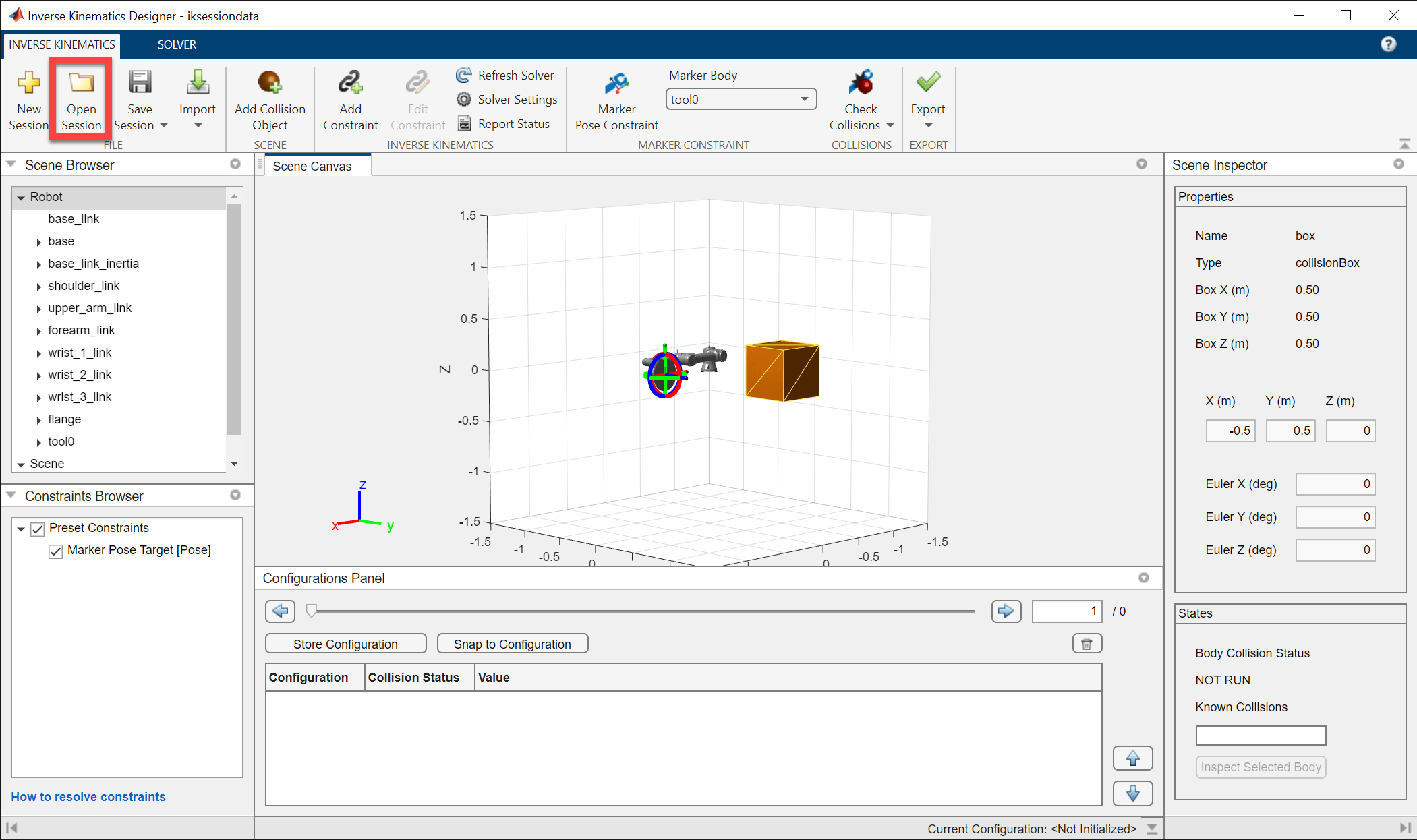

To load a session file, click Open Session from the Inverse Kinematics Designer app or specify the MAT file as a string to the inverseKinematicsDesigner
. An example of this session has been provided in this example as iksessiondata.mat
.
inverseKinematicsDesigner("iksessiondata.mat")
Use Scene Canvas and Move Robot
This example shows how to use the Scene Canvas and move a robot in it using the Inverse Kinematics Designer app.
Load an existing session (iksessiondata.mat
) or refer to the Create Inverse Kinematics Designer Session example to create a session.
inverseKinematicsDesigner
Scene Canvas Controls
Use the axes toolbar in the Scene Canvas to control the view.

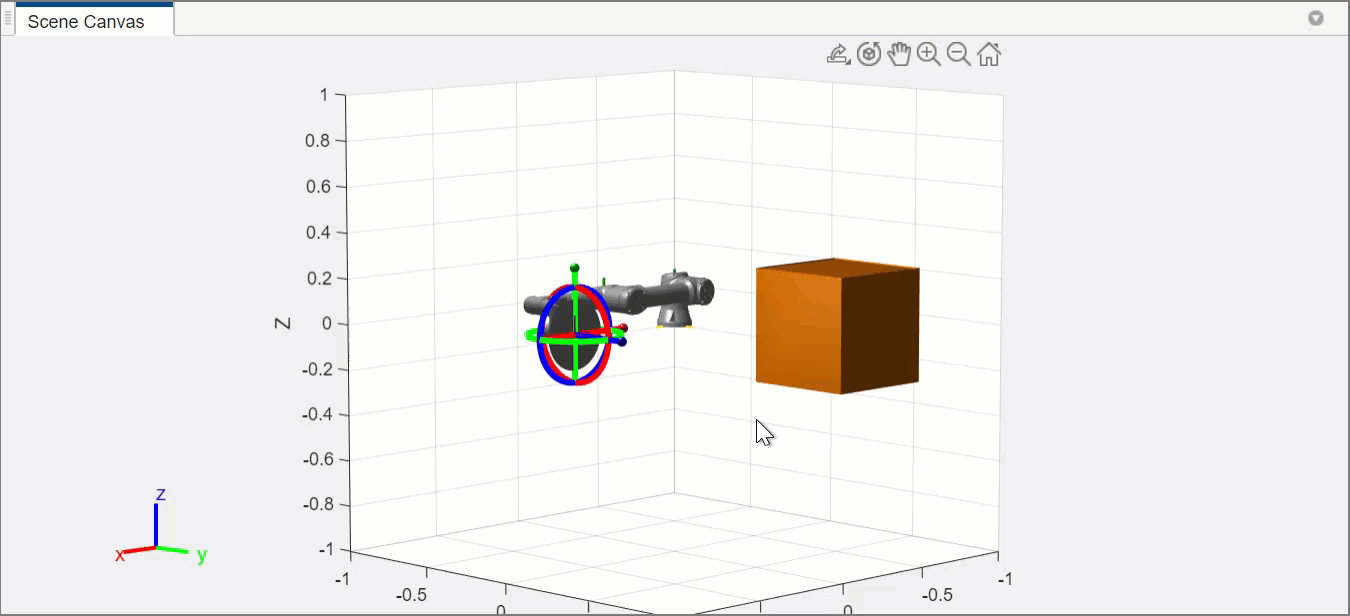

To rotate the Scene Canvas, select the Rotate 3D button and click and drag within the scene.
Click the Pan button and click and drag within the scene to pan within the Scene Canvas.
Select the Zoom In, or Zoom Out buttons and click and drag up or down to zoom in or out of an area within the Scene Canvas respectively.
Click the Restore View button to revert to the original default view.
Move Robot
Move the robot using constraints such as the preset Marker Pose Target constraint. The Marker Pose Target constraint is the simplest constraint to use to move the robot. This constraint sets a target pose on the last body in the robot model. In this case the marker body is set to tool0
. The marker is visualized on top of the selected marker body with the red, green, and blue linear and circular indicators in the Scene Canvas. Clicking and dragging the linear or circular indicators will change the target position and Euler orientation respectively. The colors correspond to the axes colors indicated in the bottom left of the Scene Canvas.

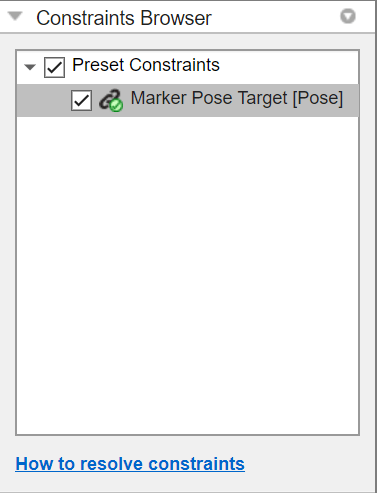

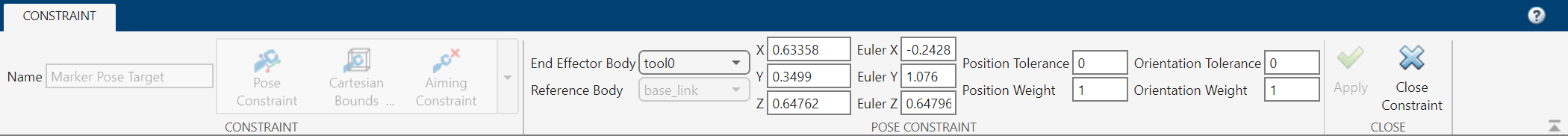

Click Marker Pose Constraint to open the Constraint tab. From the Constraint tab, set Cartesian position in meters, Euler orientation in degrees, and the weights and tolerances of the position and orientation. The marker body can be changed in either the Constraint tab under End Effector Body list or in the Marker Body list in the Inverse Kinematics tab. Click Apply to save any changes, and click Close Constraint to exit the Constraint tab. Note that the specified Euler angles are computed using XYZ sequence.
The Marker Pose Target constraint can also be toggled on or off by using clearing or selecting the check box next to the Marker Pose Target constraint in the Constraints Browser.
Solution Details
When the Marker Pose Target is moved, it sets the target pose and the inverse kinematics solver solves for a configuration where the selected marker body reaches the target pose. If it cannot find a solution to the target pose, the robot will move to the best available solution and the marker body will not move to the Marker Pose Target. This kind of solution can be identified visually by the constraint icon in the Constraints Browser. The icon with red x shows that the constraint is not met, while the green check shows that the constraint is being met.

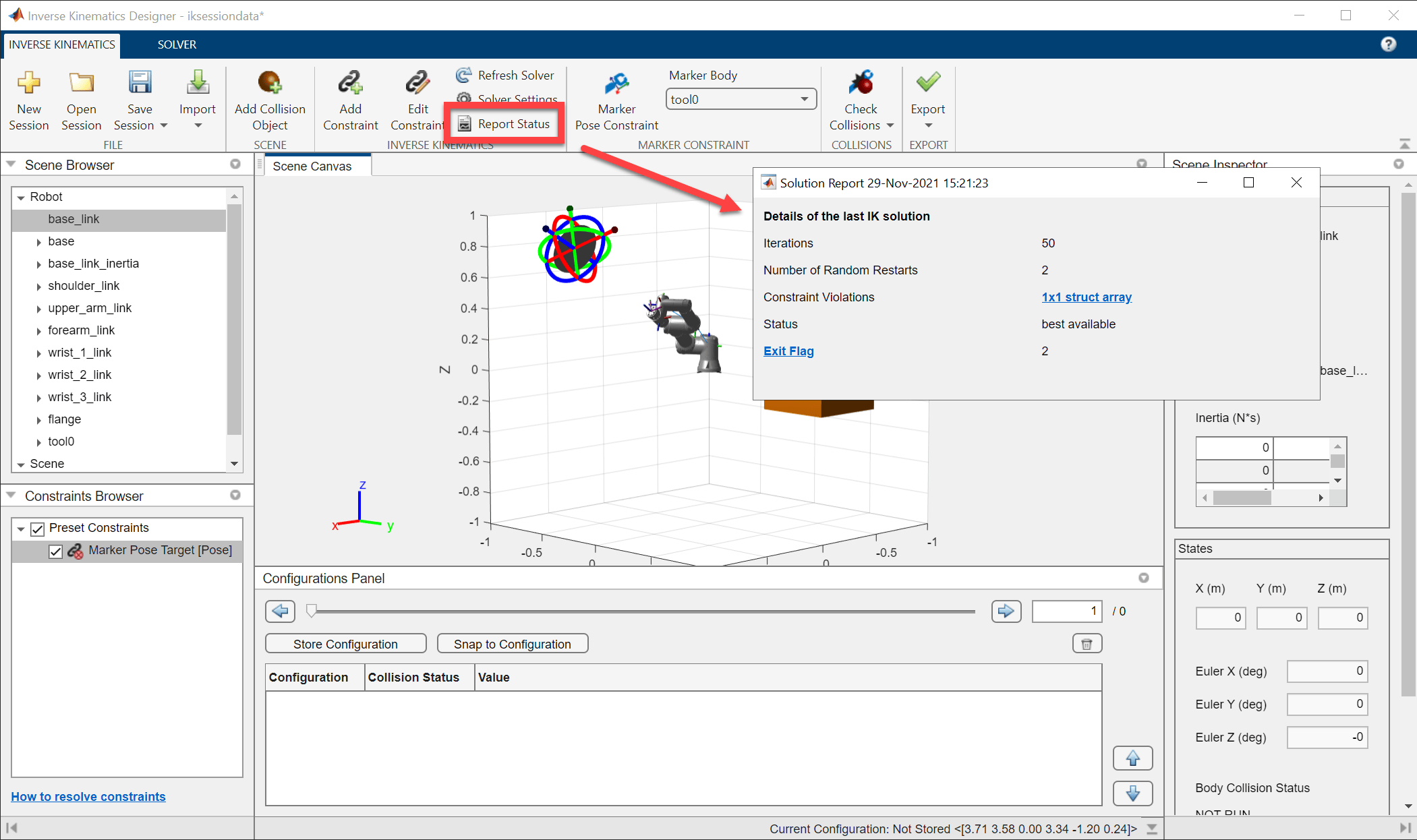

To find more information about why the solver failed to reach the solution, click the Report Status to see the details of the solver's solution. The number of Iterations and Number of Random Restarts list the number of times that the solver executed each respectively. The Constraints Violations shows structure array of all the conflicts that can be displayed in the command window. The status will show success
if the solver successfully solves for the target pose, or best available
if the solver is showing the best available solution it found if it could not reach the target pose. Exit Flag provides more detail on the execution of the specific solver algorithm. See Inverse Kinematics Algorithms for more information about the different exit flag types.
To troubleshoot why a solver failed to reach a solution, see Resolving Constraint Conflict for some tips.
Create CollisionFree Configurations and Export Waypoints
This example shows how to use Inverse Kinematics Designer to create joint configurations and check for collisions using the Scene Inspector. This example uses data and skills from Create Inverse Kinematics Designer Session, and Use Scene Canvas and Move Robot. Refer to those examples before continuing.
Load Session
Use inverseKinematicsDesigner
with the iksessiondata.mat
session file to load a robot with a basic collision object in the scene.
inverseKinematicsDesigner
Create Configurations
Use the Configurations Panel to create, modify, and view configurations.

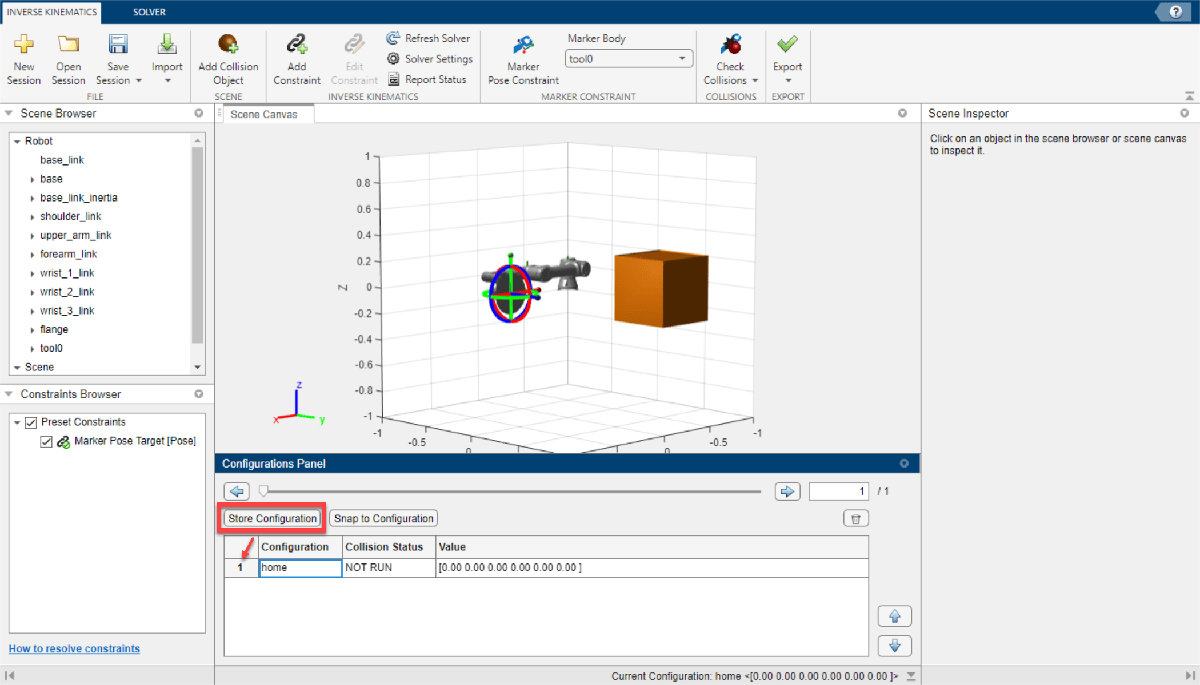

Before moving the robot, click Store Configuration to save the current joint configuration of the robot as shown in the Scene Canvas. This adds the configuration to the table in the Configurations Panel with a default configuration name, the Collision Status, and Value of each joint as a vector. Both the name and value of each configuration can be edited by doubleclicking the respective element. Rename this configuration to home
and leave its Value at [0.00 0.00 0.00 0.00 0.00 0.00]
.

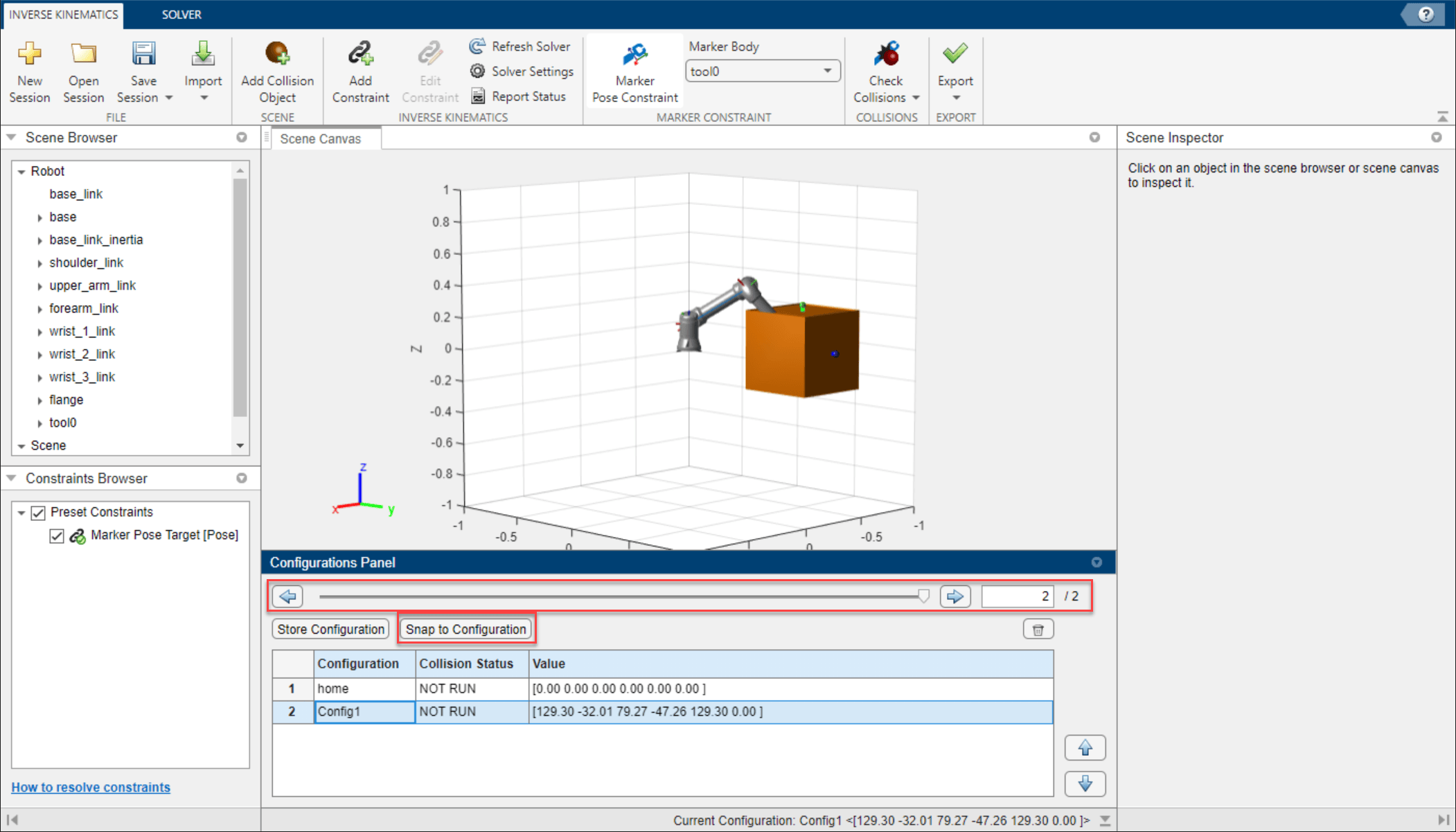

Create another configuration, but this time making it collide with the box. Set the endeffector into the center of the box at [0.5 0.5 0]
using the Marker Pose Constraint, and store the configuration. To switch the view between multiple configurations, select a configuration, click Snap to Configuration or click the forward or backward step buttons to step to switch the current configuration.
Check Collisions

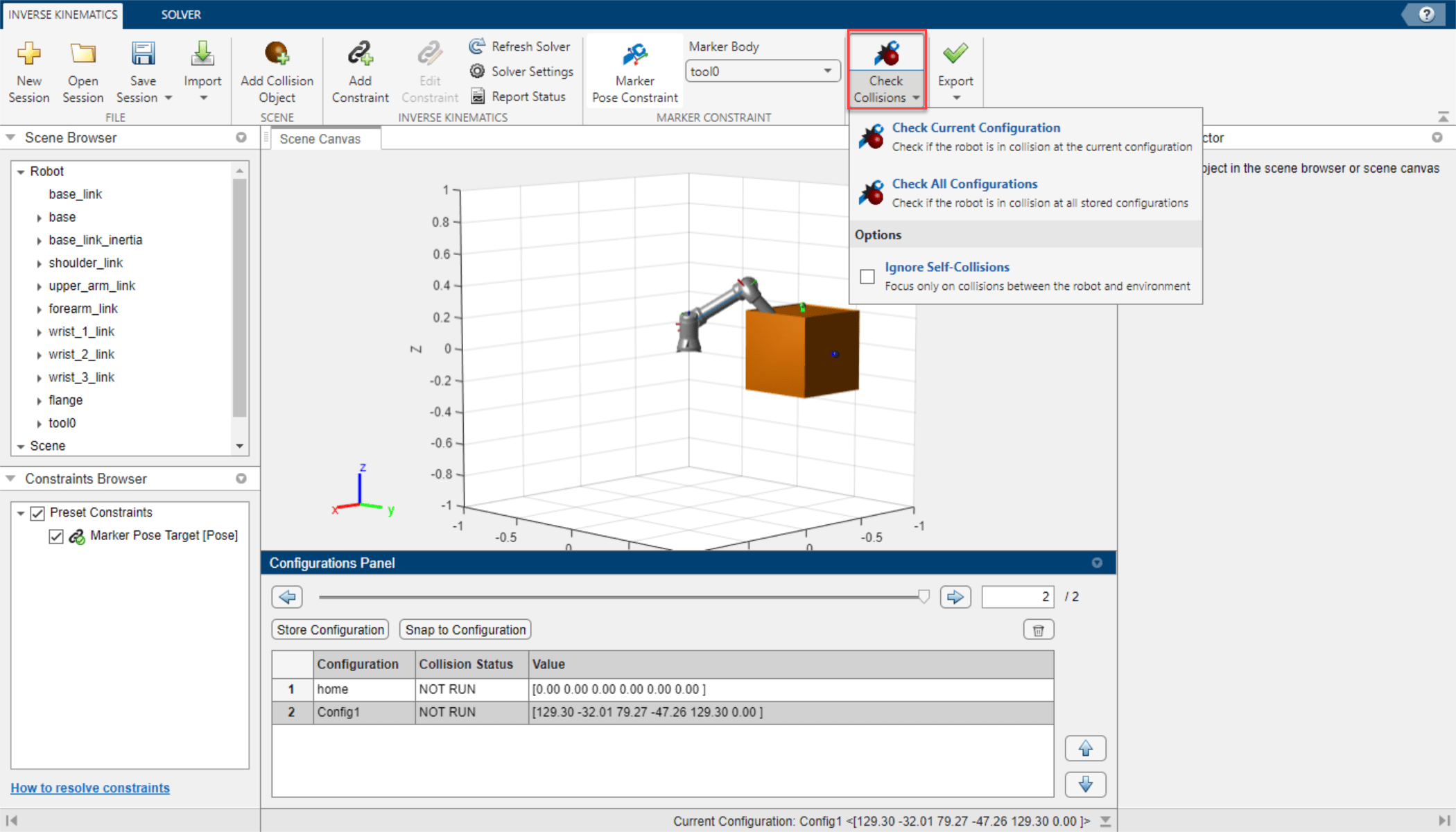

Click Check Collisions > Check All Configurations to update the Collision Status of all the stored configurations. To check one configuration, select desired configuration, click Snap to Configuration, and click Check Collisions > Check Current Configuration to update the Collision Status of the currently selected configuration.

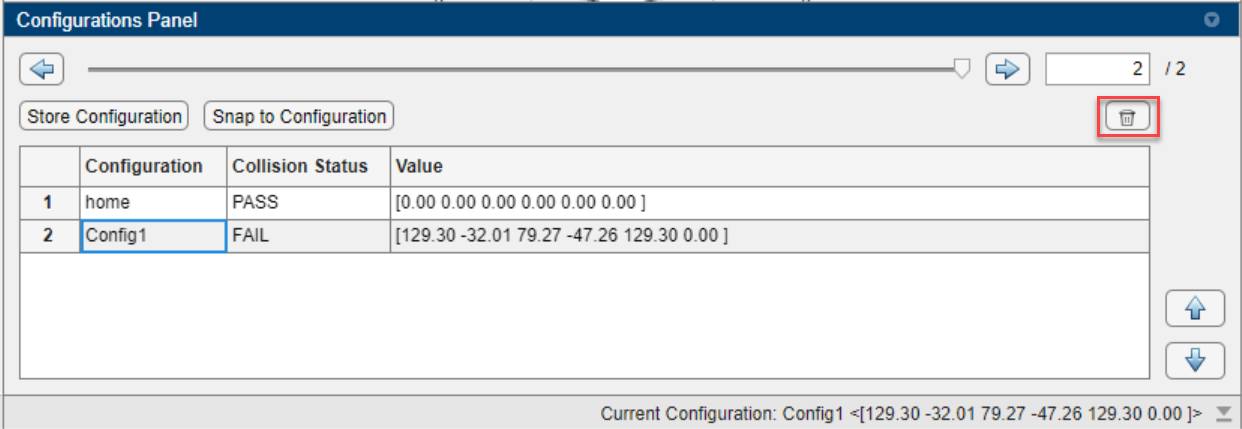

After the collision checking, the Collision Status of the first and second configuration contain PASS
and FAIL

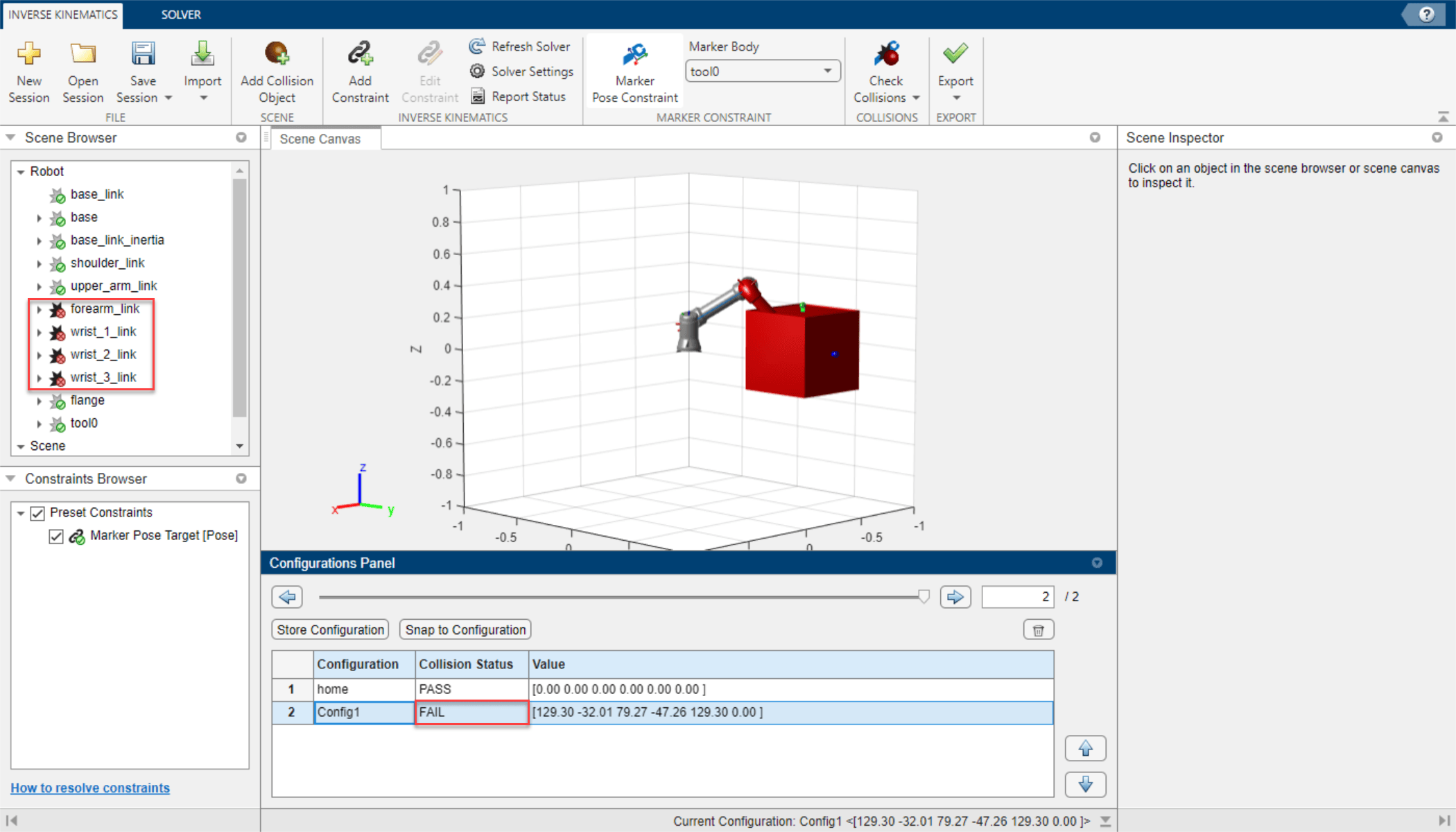

respectively. Select the configuration that failed the collision check. The bodies in the Scene Browser update for the selected configuration to display an red x or green check icon, indicating that the body is incollision or collisionfree respectively. The bodies marked as incollision will also be highlighted in red in the Scene Canvas. Note that flange
and tool0
are indicated to be collisionfree even though they appear to be positionally incollision. This is because those bodies are just frames and do not contain collision meshes. If you intend to check for collisions, ensure before importing any robot that the physical bodies of your robot contain collision meshes.

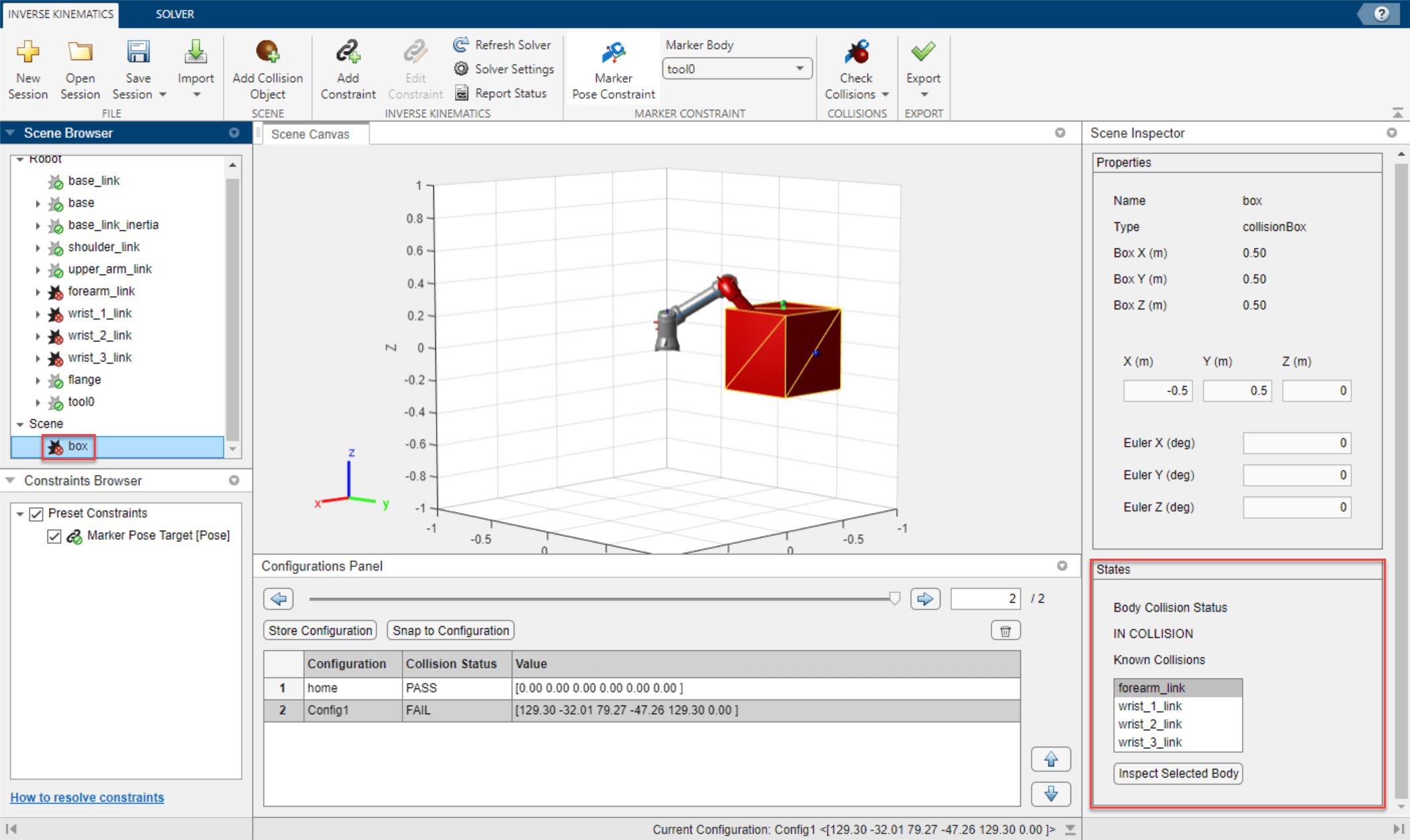

Select the box, either by clicking on it in the Scene Browser, or in the Scene Canvas, and then inspect the States pane. The States pane contains the position, orientation, collision status, and a list of all the known collisions since the last collision check. The Known Collisions list shows all of the bodies colliding with the selected body. Selecting any of the bodies from the list and clicking Inspect Selected Body will switch the Scene Inspector to that body.
Create Configuration Path

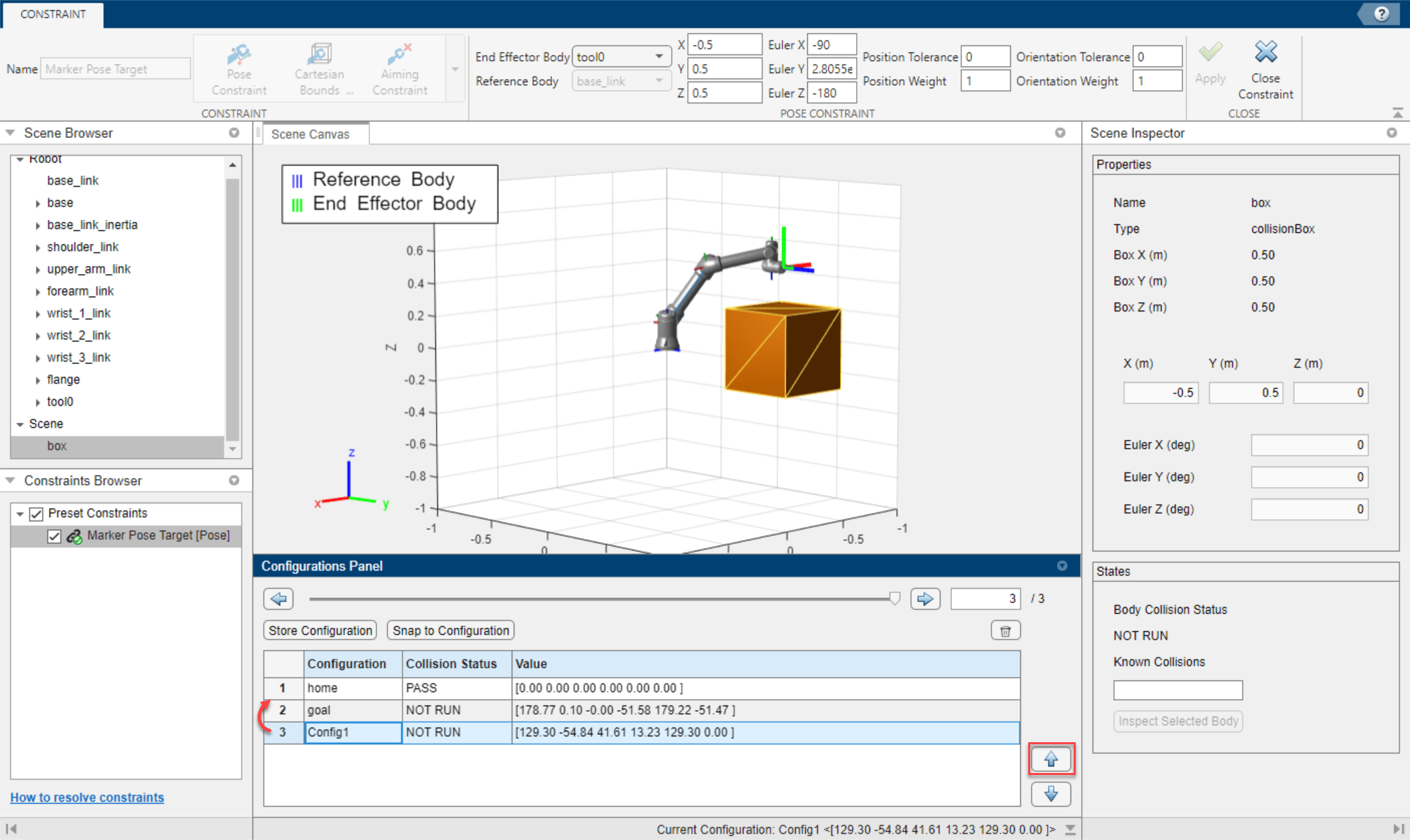

To create a path, add configurations to the table sequential sequentially. Since the second configuration is incollision with the box, select it and click delete.

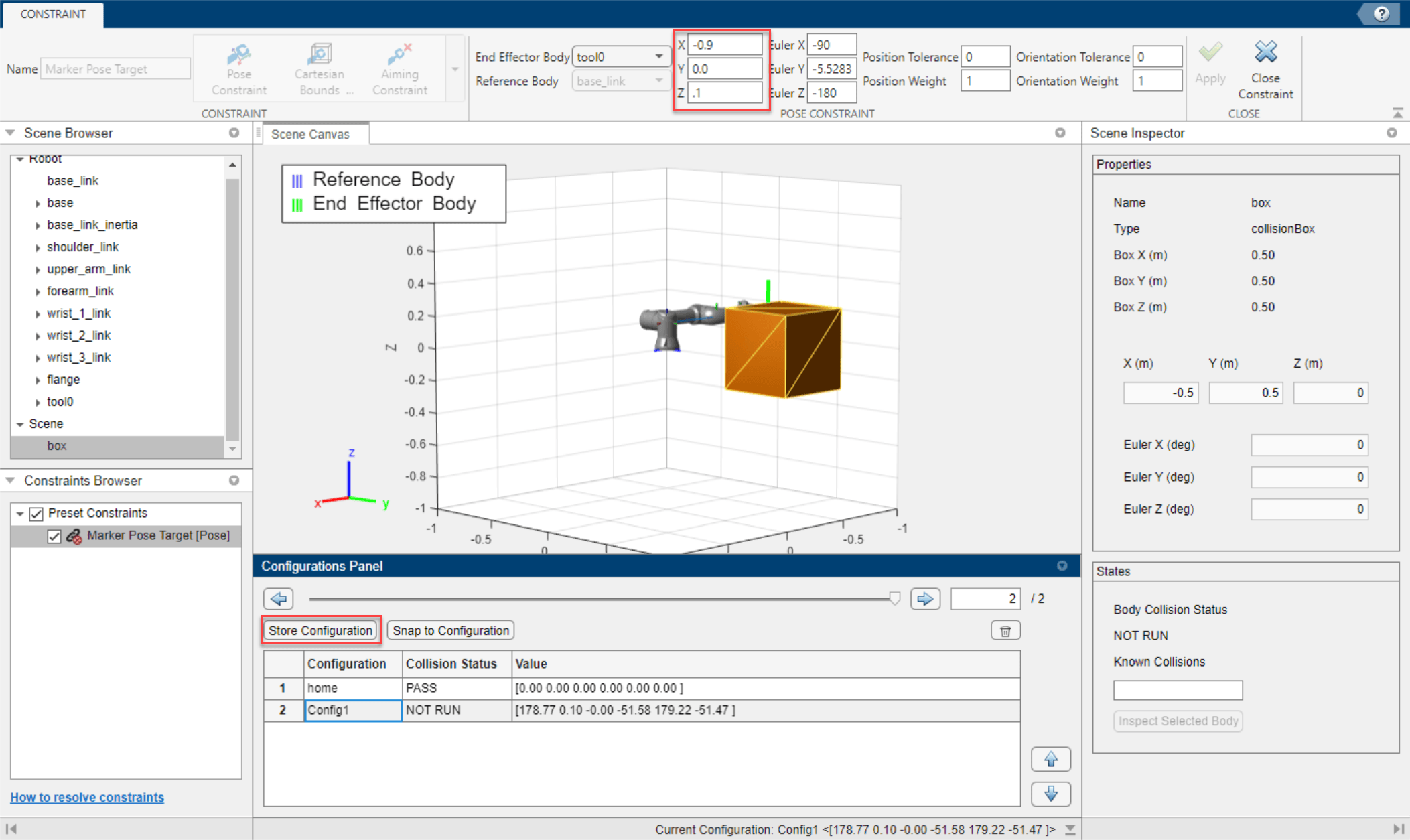

Set the target marker pose to behind the box at [0.9 0.0 0.1]
, and store the configuration. This configuration will the be goal configuration so rename it as goal
.
Snap to configuration home
and add an additional configuration over the box at [0.5 0.5 0.5]
to act as an intermediate configuration between home
and goal
. If a configuration needs to be modified, snap to that configuration, adjust the target marker pose, save a new configuration, and delete the old configuration. Click the move configuration buttons to move the new configuration between the home
and goal
configurations.
Click Check Collisions > Check All Configurations to check all the configurations for collisions. If a configuration does not pass, adjust it as necessary.

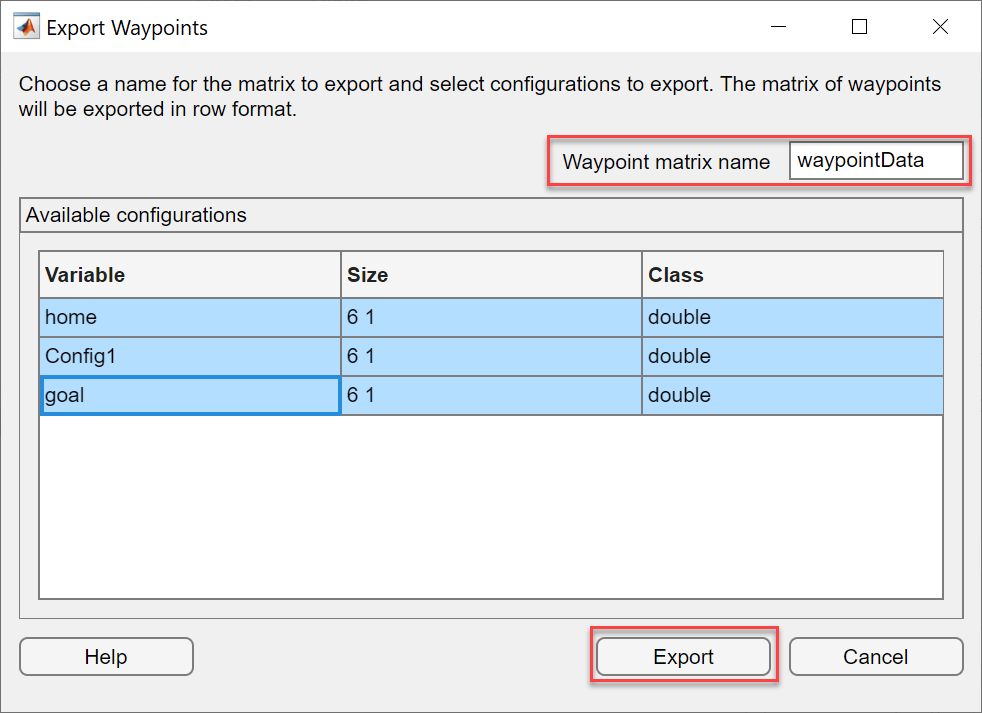

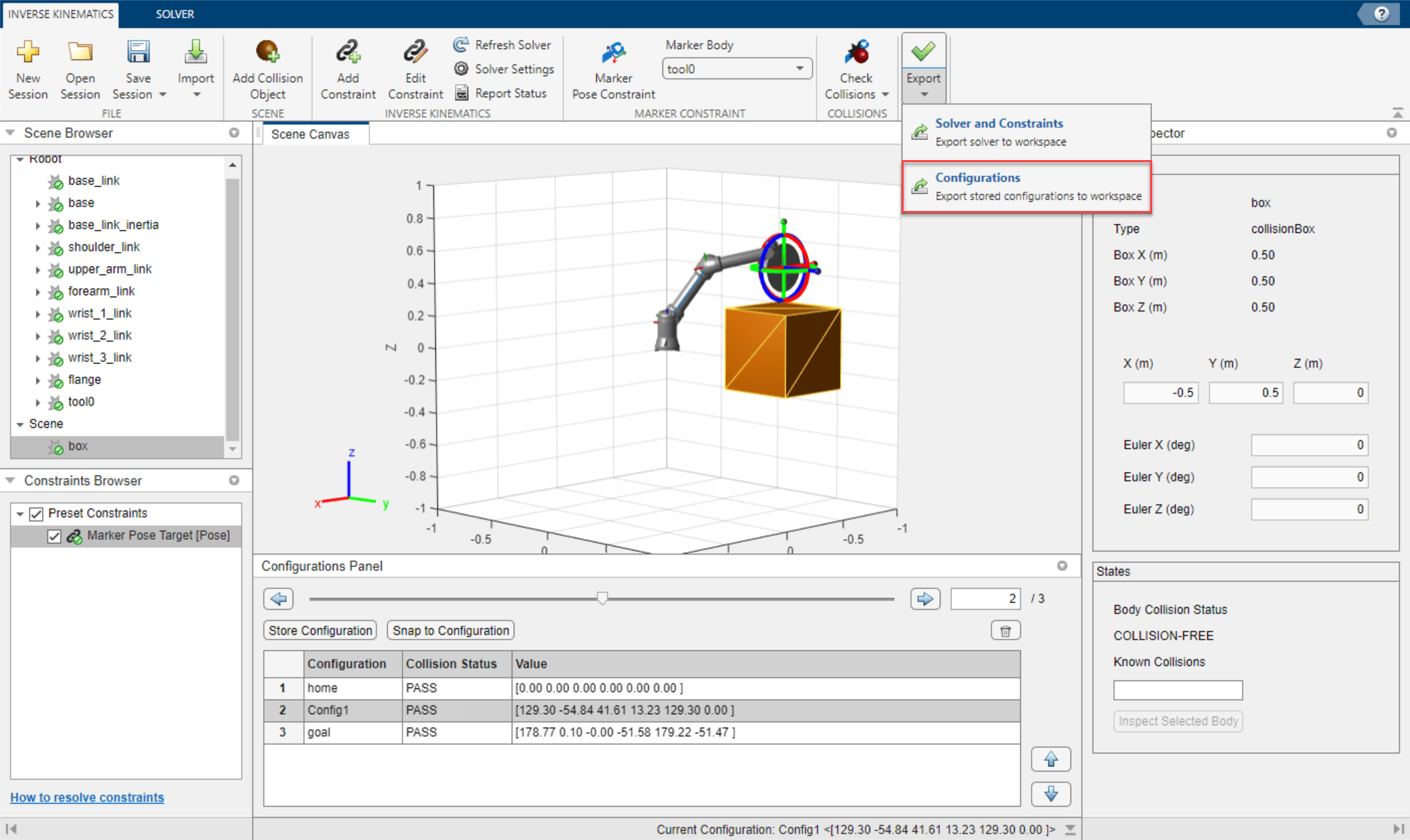

Export Configurations as Waypoints
Saving the session will also save the stored configurations within the session, but to export the configurations as waypoints to the MATLAB™ Workspace, click Export > Configurations. Select all of the configurations to export, specify the name of the waypoint matrix in Waypoint matrix name and click Export. Check your workspace for a matrix containing waypoints. Note that the size of the waypoint matrix is dependent on the number of configurations exported and the number of joints of the robot, and will be exported in row format. The dimensions of the waypoint matrix for this example is 3x6.
Related Examples
Parameters
Inverse Kinematics
— Manage session, check collisions, import and export
solver/constraints/configurations
tab
Use the Inverse Kinematics tab to manage session, add and edit constraints, check collisions for configurations, and import and export solvers, constraints, and configurations. The parameters and buttons in this tab are usable only after a session has been created or loaded.
Parameters/Buttons  Description

New Session  Click New Session to load a specified robot from the workspace or from the lists of robots in the robot library using the New Session dialog box.
Open Session  Click Open Session to load a saved session MATfile.
Save Session  Click Save Session to save the current session as a MATfile.
Import

Add Collision Object  Click Add Collision Object to add collision objects to the scene from the workspace using the Add Collision Object dialog box.
Add Constraint  Click Add Constraint to add a constraint to the inverse kinematics solver using the Constraint tab.
Edit Constraint  Click Edit Constraint to edit the selected solver constraint using the Constraint tab.
Refresh Solver  Click Refresh Solver to run the inverse kinematics solver using the current configuration as the initial guess.
Solver Settings  Click Solver Settings to edit the inverse kinematics solver settings using the Solver tab.
Report Status  Click Report Status to view the status of the most recent inverse kinematics solver solution using the Solution Report dialog box.
Marker Pose Constraint  Click Marker Pose Constraint to edit the Marker Pose Target from the Constraint tab.
Marker Body  Select a body from the list of bodies in the loaded robot model to be constrained by the marker pose target constraint. By default, Marker Body is set to the last body in the robot model.
Check Collisions

Export

Solver
— Solver settings
tab
These parameters specify settings for the inverse kinematics solver. To access these parameters, open the Solver tab. To open the Solver tab, on the Inverse Kinematics tab, select Solver Settings.
Parameters  Description

Solver Algorithm  Inverse kinematics solver algorithm, specified as one of these options:
For more information on how to select a solver, see Choose an Algorithm.
Max Iterations  Maximum number of iterations for the inverse kinematics solver to run,
specified as a positive integer. The default value is
50 .
Max Time  Maximum time that the inverse kinematics solver can search for a
solution, specified as a positive scalar in seconds. The default value is

Enforce Joint Limits  Select to set the inverse kinematics solver to enforce joint limits
from the robot model. The default value is
For more details about enforcing joint limits, see Solver Parameters.
Allow Random Restart  Select to allow the inverse kinematics solver to restart with a
different randomly generated initial guess if the algorithm approaches a
solution that does not satisfy the constraints. The default value is
For more details about enforcing joint limits, see Solver Parameters.
Click Reset Settings > Reset Settings and Reset Settings > Reset To Default Settings to reset the inverse kinematics solver settings to the last stored value and default settings respectively.
After editing the solver settings, click Apply to Solver to apply changes to the current inverse kinematics solver.
Constraint
— Add or edit constraint
tab
To open the Constraint tab and create a constraint, on the Inverse Kinematics tab, select Add Constraint. Set the name of the constraint and select the type of constraint. The Constraint tab also contains a section with parameters for the selected constraint:
Pose Constraint — Constraint that assigns a target pose to a body. See the corresponding tab section Pose Constraint, and MATLAB object
constraintPoseTarget
, for more information.Cartesian Bounds Constraint — Constraint that defines a bounded target region for an endeffector pose. See the corresponding tab section Cartesian Bounds Constraint, and MATLAB object
constraintCartesianBounds
, for more information.Aiming Constraint — Constraint that assigns custom joint limits. See the corresponding tab section, Aiming Constraint, and MATLAB object
constraintAiming
for more information.Joint Bounds Constraint — Constraint that assigns custom joint limits. See the corresponding tab section, Joint Bounds Constraint, and MATLAB object
constraintJointBounds
for more information.Distance Bounds Constraint — Constraint that defines a minimum and maximum distance that two bodies can be from each other. See the corresponding tab section, Distance Bounds Constraint, and MATLAB object
constraintDistanceBounds
for more information.Fixed Joint Constraint — Constraint that fixes the position and orientation between two bodies. See the corresponding tab section, Fixed Joint Constraint, and MATLAB object
constraintFixedJoint
for more information.Revolute Joint Constraint — Constraint that simulates revolute motion between two bodies. See the corresponding tab section Revolute Joint Constraint, and MATLAB object
constraintRevoluteJoint
, for more information.Prismatic Joint Constraint — Constraint that simulates prismatic motion between two bodies. See the corresponding tab section, Prismatic Joint Constraint, and MATLAB object
constraintPrismaticJoint
for more information.
After setting the constraint parameters, click Apply to save your changes and select Close Constraint to return to the Inverse Kinematics tab. If you do not click Apply before closing the Constraint tab, Inverse Kinematics Designer does not save your changes..
New Session
— Start new session and select robot model
dialog box
Start new session and select robot model as a rigidBodyTree
either from the Rigid body tree list or
the MATLAB workspace. To import a robot into the workspace, use either the loadrobot
function or importrobot
function.
For more information about how to create a rigid body tree, see Build Basic Rigid Body Tree Models.
For a full list of all the rigid body trees included with the Robotics System Toolbox™, see the robotname
input of loadrobot
.
Add Collision Object
— Add collision meshes from workspace
dialog box
Add collision meshes from the MATLAB workspace, specified as collisionBox
, collisionCylinder
, collisionSphere
, or collisionMesh
objects. The Add Collision Object dialog
box is accessible by clicking Add Collision Object in the
Inverse Kinematics tab.
Solution Report
— Details of most recent inverse kinematics solution
dialog box
View the details of the most recent inverse kinematics solution in the Solution Report dialog box. To access these parameters, on the Inverse Kinematics tab, select Report Status.
These parameters are readonly.
Parameter  Description

Iterations  Number of iterations needed to achieve the solution result.
Number of Random Restarts  Number of times that the solution randomly restarted. Random restarts are triggered when the algorithm approaches a solution that does not satisfy the constraints. The solver restarts with a randomly generated initial guess.
Constraint Violations  Constraint violations, indicated as a 1byN
structure array, where N is the number of enabled
constraints in the session. Select
Status  Status of the solution, indicated as either

Exit Flag  Exit flag of the solver. See Exit Flags for more information.
Pose Constraint
— Pose constraint settings
tab section
Click Pose Constraint in the Constraint tab to open the Pose Constraint tab section to create a constraint.
Parameter  Description

End Effector Body  Endeffector body, specified as a selection from a list of bodies in the loaded robot model. The default value is set to the last body in the loaded robot model.
Reference Body  Reference body, specified as a selection from a list of bodies in the loaded robot model. The default value is set to the first body in the loaded robot model.
X  Target x position of the end effector in the reference
frame of the Reference Body, specified as a scalar in
meters. The default value is 0 .
Y  Target y position of the end effector in the reference
frame of the Reference Body, specified as a scalar in
meters. The default value is 0 .
Z  Target z position of the end effector in the reference
frame of the Reference Body, specified as a scalar in
meters. The default value is 0 .
Euler X  Target Euler x rotation of the endeffector body in the
reference frame of the Reference Body, specified as a
scalar in degrees. The default value is 0 .
Euler Y  Target Euler y rotation of the endeffector body in the
reference frame of the Reference Body, specified as a
scalar in degrees. The default value is 0 .
Euler Z  Target Euler z rotation of the endeffector body in the
reference frame of the Reference Body, specified as a
scalar in degrees. The default value is 0 .
Position Tolerance  Tolerance for the endeffector position, specified as a nonnegative scalar
in meters. The default value is 0.01 .
Position Weight  Weight for the endeffector position, specified as a nonnegative scalar.
The default value is 1 .
Orientation Tolerance  Tolerance for the endeffector orientation, specified as a nonnegative
scalar in degrees. The default value is 1 .
Orientation Weight  Weight for the endeffector orientation, specified as a nonnegative scalar.
The default value is 1 .
Cartesian Bounds Constraint
— Cartesian bounds constraint settings
tab section
Click Cartesian Bounds Constraint in the Constraint tab to open the Cartesian Bounds Constraint tab section to create a constraint.
Parameter  Description

End Effector Body  Endeffector body, specified as a selection from a list of bodies in the loaded robot model. The default value is set to the last body in the loaded robot model.
Reference Body  Reference body, specified as a selection from a list of bodies in the loaded robot model. The default value is set to the first body in the loaded robot model.
X  Target x position of the end effector in the reference
frame of the Reference Body, specified as a scalar in
meters. The default value is 0 .
Y  Target y position of the end effector in the reference
frame of the Reference Body, specified as a scalar in
meters. The default value is 0 .
Z  Target z position of the end effector in the reference
frame of the Reference Body, specified as a scalar in
meters. The default value is 0 .
Euler X  Target Euler x rotation of the endeffector body in the
reference frame of the Reference Body, specified as a
scalar in degrees. The default value is 0 .
Euler Y  Target Euler y rotation of the endeffector body in the
reference frame of the Reference Body, specified as a
scalar in degrees. The default value is 0 .
Euler Z  Target Euler z rotation of the endeffector body in the
reference frame of the Reference Body, specified as a
scalar in degrees. The default value is 0 .
X Min  Minimum x bound on endeffector position relative to the
reference frame of the Reference Body, specified as a
scalar in meters. The default value is 0.5 .
Y Min  Minimum y bound on endeffector position relative to the
reference frame of the Reference Body, specified as a
scalar in meters. The default value is 0.5
Z Min  Minimum z bound on endeffector position relative to the
reference frame of the Reference Body, specified as a
scalar in meters. The default value is 0.5
X Max  Maximum x bound on endeffector position relative to the
reference frame of the Reference Body, specified as a
scalar in meters. The default value is 0.5
Y Max  Maximum y bound on endeffector position relative to the
reference frame of the Reference Body, specified as a
scalar in meters. The default value is 0.5
Z Max  Maximum z bound on endeffector position relative to the
reference frame of the Reference Body, specified as a
scalar in meters. The default value is 0.5
X Weight  Weight of the constraint on x bound, specified as a
scalar. The default value is 1 .
Y Weight  Weight of the constraint on y bound, specified as a
scalar. The default value is 1 .
Z Weight  Weight of the constraint on z bound, specified as a
scalar. The default value is 1 .
Aiming Constraint
— Aiming constraint settings
tab section
Click Aiming Constraint in the Constraint tab to open the Aiming Constraint tab section to create a constraint.
Parameter  Description

End Effector Body  Endeffector body, specified as a selection from a list of bodies in the loaded robot model. The default value is set to the last body in the loaded robot model.
Reference Body  Reference body, specified as a selection from a list of bodies in the loaded robot model. The default value is set to the first body in the loaded robot model.
X Target  Target x position relative to Reference
Body, specified as a scalar in meters. The default value is
0 .
Y Target  Target y position relative to Reference
Body, specified as a scalar in meters. The default value is
0 .
Z Target  Target z position relative to Reference
Body, specified as a scalar in meters. The default value is
0 .
Angular Tolerance  Maximum allowed angular tolerance, specified as a nonnegative scalar in
degrees. The default value is 1 .
Constraint Weight  Weight of constraint, specified as a scalar. The default value is
1 .
Joint Bounds Constraint
— Joint bounds constraint settings
tab section
Click Joint Bounds Constraint in the Constraint tab to open the Joint Bounds Constraint tab section to create a constraint.
Parameter  Description

Upper Joint Limits  Upper joint limit angles, specified as a Nelement row
vector of angles in degrees, where N is the number of moving
joints in the robot model. The default value is
180*ones(1,N) .
Lower Joint Limits  Lower joint limit angles, specified as a Nelement row
vector of angles in degrees, where N is the number of moving
joints in the robot model. The default value is
180*ones(1,N) .
Joint Limit Weights  Joint limit weights, specified as a Nelement row vector
where N is the number of moving joints in the robot model.
The default value is ones(1,N) .
Distance Bounds Constraint
— Distance bounds constraint settings
tab section
On the Constraint tab, select Distance Bounds Constraint in the Constraint tab to create a distance bounds constraint and open the Distance Bounds Constraint section.
Parameter  Description

End Effector Body  Endeffector body, selected from a list of bodies in the loaded robot model. The default value is the last body in the loaded robot model.
Reference Body  Reference body, selected from a list of bodies in the loaded robot model. The default value is the first body in the loaded robot model.
Max Distance  Maximum distance bound on the endeffector position relative to the
reference frame of the Reference Body, specified as a
scalar in meters. The default value is 0 .
Min Distance  Minimum distance bound on endeffector position relative to the reference
frame of the Reference Body, specified as a scalar in
meters. The default value is 0 .
Distance Weight  Weight for the endeffector position, specified as a nonnegative scalar.
The default value is 1 .
Fixed Joint Constraint
— Fixed joint constraint settings
tab section
On the Constraint tab, select Fixed Joint Constraint in the Constraint tab to create a fixed joint constraint and open the Fixed Joint Constraint section.
Parameter  Description

Successor Body  Successor body, selected from a list of bodies in the loaded robot model. The default value is the last body in the loaded robot model
Predecessor Body  Predecessor body, selected from a list of bodies in the loaded robot model. The default value is the first body in the loaded robot model.
Position Tolerance  Tolerance for the endeffector position, specified as a nonnegative scalar
in meters. The default value is 0.01 .
Position Weight  Weight for the endeffector position, specified as a nonnegative scalar.
The default value is 1 .
Orientation Tolerance  Tolerance for the endeffector orientation, specified as a nonnegative
scalar in degrees. The default value is 1 .
Orientation Weight  Weight for the endeffector orientation, specified as a nonnegative scalar.
The default value is 1 .
To set the successor and predecessor transforms, select Successor Transform or Predecessor Transform, respectively:
Parameter  Description

X  Target xposition of the successor or predecessor
transform in the reference frame of the corresponding body. specified as a
scalar in meters. The default value is 0 .
Y  Target yposition of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in meters. The default value is 0 .
Z  Target zposition of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in meters. The default value is 0 .
Euler X  Target Euler xrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Euler Y  Target Euler yrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Euler Z  Target Euler zrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Import from workspace  Import a transform from the workspace as an se3
transformation object.
Prismatic Joint Constraint
— Prismatic joint constraint settings
tab section
On the Constraint tab, select Prismatic Joint Constraint in the Constraint tab to create a prismatic joint constraint and open the Prismatic Joint Constraint tab.
Parameter  Description

Successor Body  Successor body, selected from a list of bodies in the loaded robot model. The default value is the last body in the loaded robot model
Predecessor Body  Predecessor body, selected from a list of bodies in the loaded robot model. The default value is the first body in the loaded robot model.
Position Tolerance  Tolerance for the position of the aligned successor and predecessor
transforms, specified as a nonnegative scalar in meters. The default value is
0.01 .
Position Weight  Weight for the position of the aligned successor and predecessor
transforms, specified as a nonnegative scalar. The default value is
1 .
Orientation Tolerance  Tolerance for the orientation of the aligned successor and predecessor
transforms, specified as a nonnegative scalar in degrees. The default value is
1 .
Orientation Weight  Weight for the orientation of the aligned successor and predecessor
transforms, specified as a nonnegative scalar. The default value is
1 .
Joint Limits  Position limits of the joint constraint, specified as a twoelement row
vector of the form [minimum maximum] , in meters. The default
value is [1 1] .
Joint Limits Weight  Weight for the joint position limits, specified as a nonnegative scalar.
The default value is 1 .
To set the successor and predecessor transforms, select Successor Transform or Predecessor Transform, respectively:
Parameter  Description

X  Target xposition of the successor or predecessor
transform in the reference frame of the corresponding body. specified as a
scalar in meters. The default value is 0 .
Y  Target yposition of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in meters. The default value is 0 .
Z  Target zposition of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in meters. The default value is 0 .
Euler X  Target Euler xrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Euler Y  Target Euler yrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Euler Z  Target Euler zrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Import from workspace  Import a transform from the workspace as an se3
transformation object.
Revolute Joint Constraint
— Revolute joint constraint settings
tab section
On the Constraint tab, select Revolute Joint Constraint in the Constraint tab to create a revolute joint constraint and open the Revolute Joint Constraint tab.
Parameter  Description

Successor Body  Successor body, selected from a list of bodies in the loaded robot model. The default value is the last body in the loaded robot model
Predecessor Body  Predecessor body, selected from a list of bodies in the loaded robot model. The default value is the first body in the loaded robot model.
Position Tolerance  Tolerance for the position of the aligned successor and predecessor
transforms, specified as a nonnegative scalar in meters. The default value is
0.01 .
Position Weight  Weight for the position of the aligned successor and predecessor
transforms, specified as a nonnegative scalar. The default value is
1 .
Orientation Tolerance  Tolerance for the orientation of the aligned successor and predecessor
transforms, specified as a nonnegative scalar in degrees. The default value is
1 .
Orientation Weight  Weight for the orientation of the aligned successor and predecessor
transforms, specified as a nonnegative scalar. The default value is
1 .
Joint Limits  Position limits of the joint constraint, specified as a twoelement row
vector of the form [minimum maximum] , in degrees. The default
value is [180 180] .
Joint Limits Weight  Weight for the joint position limits, specified as a nonnegative scalar.
The default value is 1 .
To set the successor and predecessor transforms, select Successor Transform or Predecessor Transform, respectively:
Parameter  Description

X  Target xposition of the successor or predecessor
transform in the reference frame of the corresponding body. specified as a
scalar in meters. The default value is 0 .
Y  Target yposition of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in meters. The default value is 0 .
Z  Target zposition of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in meters. The default value is 0 .
Euler X  Target Euler xrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Euler Y  Target Euler yrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Euler Z  Target Euler zrotation of the successor or predecessor
transform in the reference frame of the corresponding body, specified as a
scalar in degrees. The default value is 0 .
Import from workspace  Import a transform from the workspace as an se3
transformation object.
Import Inverse Kinematics Solver
— Import inverse kinematics solver
dialog box
Import an inverse kinematics solver from the MATLAB workspace, specified as either a generalizedInverseKinematics
, or inverseKinematics
object. Solvers in the Workspace appear in the
Available solvers table. Select a solver and click
Import to import the solver into the Inverse Kinematics
Designer app. If a solver from the Workspace does not appear in the
Available solvers table, click
Refresh.
Import Joint Configurations
— Import joint configurations
dialog box
Import joint configurations from the MATLAB workspace, specified as an MbyN matrix of doubles where M is the number of configurations, and N is the number of moveable joints in the robot. Configuration data in the Workspace appear in the Configurations in the workspace table. Select configuration data and click Import to import the configuration data into the Inverse Kinematics Designer app.
If a configuration in the Workspace does not appear in the Configurations in the workspace table, click Refresh.
Import Inverse Kinematics Constraints
— Import inverse kinematics constraints
dialog box
Import inverse kinematics constraints from the Workspace, specified as a constraintAiming
, constraintPoseTarget
, constraintCartesianBounds
, or constraintJointBounds
object. Constraint objects in the Workspace appear in
the Configurations in the workspace table. Select the desired
constraint objects and click Import to import the constraints
into the Inverse Kinematics Designer app.
If a configuration in the Workspace does not appear in the Constraint objects in the workspace table, click Refresh.
Import Transform
— Import transform
dialog box
Import a transform from the workspace to use as a successor or predecessor
transform, specified as an se3
object.
Transforms in the workspace appear in the SE(3) objects in the
workspace table. Select the desired transform and click
Import to import the transform into the Inverse Kinematics
Designer app.
If a transform in the workspace does not appear in the SE(3) objects in the workspace table, click Refresh.
Export Solver and Constraints
— Solver and constraint export settings
dialog box
Change solver and constraint export settings, and export the solver and constraints to the MATLAB. To access these parameters, on the Inverse Kinematics tab, select Export > Solver and Constraints. When all settings and selections are complete, click Export to export the solver and constraints to the workspace.
Parameter  Description

Export solver  Select to include the inverse kinematics solver when exporting. The default
value is on .
Solver name  Name of the inverse kinematics solver. The default value is
ikSolver .
Export constraints  Select to include the solver constraints when exporting. The default value
is on .
Constraints cell array name  Name of the solver constraints cell array, specified as a string. The
default value is To enable this parameter, select the Export constraints parameter.
Available constraints  Table containing solver constraints, listing the name, size, and class of each constraint. Select constraints from this table and click Export to export the constraints to the workspace. To enable this parameter, select the Export constraints parameter.
Export Waypoints
— Export configurations as waypoints
dialog box
Export configurations as waypoints using the Export Waypoints dialog box. To access
these parameters, on the Inverse Kinematics tab, select Export >
Configurations. When selections are complete, click
Export to export the waypoints as an
MbyN matrix of data type
double
to the MATLAB workspace, where M is the number of waypoints, and
N is the number of movable joints in the robot.
Parameter  Description

Waypoint matrix name  Name of waypoint matrix. The default value is
waypointData .
Available configurations  Table containing available configurations, listing the name, size, and class of each constraint. Select configurations from this table and click Export to export the configurations to the workspace as waypoints.
Programmatic Use
inverseKinematicsDesigner
inverseKinematicsDesigner
opens the Inverse Kinematics
Designer app.
inverseKinematicsDesigner(sessionFileName
)
sessionFileName
)inverseKinematicsDesigner(
opens the Inverse Kinematics Designer app and loads the specified inverse
kinematics session MAT file that was previously saved from the app.sessionFileName
)
More About
Resolving Constraint Conflict
Constraint conflicts occur when constraints cannot be met by the solver. They are indicated in the Constraints Browser with a red symbol next to the corresponding constraint. When the constraint is met during the most recent solution, the Constraints Browser indicates this with a green symbol next to the corresponding constraint. To solve these conflicts, troubleshoot your constraints based on the last action you performed:
If you moved the marker pose constraint, check if the pose you specified is within the bounds of the robot. If it is not within the bounds, try moving it to somewhere within the bounds and see if this resolves the conflict. If the constraint conflict does not resolve, the constraint may be in conflict with joint limits or another constraint. In this case, consider modifying the parameters of the marker pose constraint, such as the weights.
Note
The solver assumes priority using the assigned weights of each constraint when attempting to satisfy each constraint.
If you added a constraint, verify if it is causing the conflict by clearing that constraint in the Constraints Browser and clicking Refresh Solver. If all other constraints resolve, edit the parameters of this constraint, or ensure that the existing unresolved constraints have the desired parameter values, to resolve the conflict.
If you modified a constraint, change the parameters of that constraint, if applicable, or edit the parameters of other unresolved constraints. Consider modifying the solver weights of each constraint, or disabling constraints to see if some constraint conflicts can be resolved independently.
Constraint Violation Format
When you select the constraint violations structure array from the Solution Report dialog box, the Inverse Kinematics Designer prints the type, violation magnitude, and name of each enabled constraint in the Constraints Browser to the MATLAB Command Window. The structure contains these fields for each constraint:
Type
— Type of constraint, represented as:'pose'
— Pose constraint.'aiming'
— Aiming constraint.'joint'
— Joint constraint.'cartesian'
— Cartesian constraint.'distance'
— Distance bounds constraint.'fixedjoint'
— Fixed joint constraint.'revolutejoint'
— Revolute joint constraint.'prismaticjoint'
— Prismatic joint constraint.
Violation
— Magnitude of the violation along each weighted part of the constraint during optimization. A violation magnitude of0
indicates no violation, and that the constraint has been met. The format of the magnitude changes depending on theType
:'pose'
— Twoelement row vector of the form [position orientation], where position is the magnitude of the position violation, and orientation is the magnitude of the orientation violation.'aiming'
— Scalar indicating the magnitude of the orientation violation.'joint'
— Nelement row vector indicating the magnitude of the joint bound violation for each of the N joints in the rigid body tree.'cartesian'
— Threeelement row vector of the form [xBound yBound zBound], where xBound indicates the magnitude of the violation in the xbound, yBound indicates the magnitude of the violation in the ybound, and zBound indicates the magnitude of the violation in the zbound.'distance'
— Scalar indicating the magnitude of the distance violation.'fixedjoint'
— Twoelement row vector of the form [position orientation], where position is the magnitude of the position violation, and orientation is the magnitude of the orientation violation.'revolutejoint'
— Threeelement row vector of the form [xEul yEul zEul], where xEul, yEul, and zEul are the magnitudes of the orientation violations in the x, y, and zaxes, respectively.'prismaticjoint'
— Threeelement row vector of the form [xPosition yPosition zPosition], where xPosition, yPosition, and zPosition are the magnitudes of the position violation in the x, y, and zaxes, respectively.
Note
Positive magnitudes that are close to
0
can still indicate success. For example,1e10
indicates almost no constraint violation.Name
— Name of the constraint in the Constraints Browser.
For example, the constraint violations structure prints information for a pose
constraint named PoseConstraint
, with violations in position and
orientation, as:
*** Type: 'pose' Violation: [0.2638 0.8253] Name: "PoseConstraint" ***
Version History
Introduced in R2022aR2023a: Inverse Kinematics Designer supports additional constraints
Inverse Kinematics Designer supports now supports these additional constraints:
See Also
analyticalInverseKinematics
 generalizedInverseKinematics
 inverseKinematics
 constraintAiming
 constraintOrientationTarget
 constraintCartesianBounds
 constraintJointBounds
 constraintDistanceBounds
 constraintPoseTarget
 constraintPositionTarget
 constraintFixedJoint
 constraintPrismaticJoint
 constraintRevoluteJoint
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
