Array stored on GPU
gpuArray object represents an array stored on the GPU. To
gpuArray objects, use any GPU-enabled MATLAB® function. You can use the array for direct calculations or in CUDA kernels that
execute on the GPU. For more information, see Run MATLAB Functions on a GPU.
If you want to retrieve the array from the GPU, for example when using a function that
does not support
gpuArray objects, use the
You can load MAT files containing gpuArray data as in-memory arrays when a GPU is not
available. A gpuArray loaded without a GPU is limited and you cannot use it for
computations. To use a gpuArray loaded without a GPU, retrieve the contents using
gpuArray to convert an array in the MATLAB workspace into a
gpuArray object. Many MATLAB functions also allow you to create
gpuArray objects directly.
For more information, see Establish Arrays on a GPU.
Array to transfer to the GPU, specified as a numeric or logical array. The GPU
device must have sufficient free memory to store the data. If
is already a
You can also transfer sparse arrays to the GPU.
supports only sparse arrays of double-precision.
G = gpuArray(magic(3));
Complex Number Support: Yes
There are several methods for examining the characteristics of a
gpuArray object. Most behave like the MATLAB functions of the same name.
|Determine if gpuArray or CUDAKernel is available on GPU|
|Determine array equality|
|Determine whether input is numeric array|
|Determine whether input is sparse|
|Determine whether input has specified underlying data type|
|Length of largest array dimension|
|Number of array dimensions|
|Type of underlying data determining array behavior|
Other methods for
gpuArray objects are too numerous to list here. Most
resemble and behave the same as the MATLAB functions of the same name. See Run MATLAB Functions on a GPU.
This example shows how to use GPU-enabled MATLAB functions to operate with gpuArrays. You can check the properties of your GPU using the
ans = CUDADevice with properties: Name: 'GeForce GTX 1080' Index: 1 ComputeCapability: '6.1' SupportsDouble: 1 DriverVersion: 10.1000 ToolkitVersion: 10.1000 MaxThreadsPerBlock: 1024 MaxShmemPerBlock: 49152 MaxThreadBlockSize: [1024 1024 64] MaxGridSize: [2.1475e+09 65535 65535] SIMDWidth: 32 TotalMemory: 8.5899e+09 AvailableMemory: 6.9012e+09 MultiprocessorCount: 20 ClockRateKHz: 1733500 ComputeMode: 'Default' GPUOverlapsTransfers: 1 KernelExecutionTimeout: 1 CanMapHostMemory: 1 DeviceSupported: 1 DeviceSelected: 1
Create a row vector that repeats values from -15 to 15. To transfer it to the GPU and create a gpuArray, use the
X = [-15:15 0 -15:15 0 -15:15]; gpuX = gpuArray(X); whos gpuX
Name Size Bytes Class Attributes gpuX 1x95 4 gpuArray
To operate with gpuArrays, use any GPU-enabled MATLAB function. MATLAB automatically runs calculations on the GPU. For more information, see Run MATLAB Functions on a GPU. For example, use a combination of
gpuE = expm(diag(gpuX,-1)) * expm(diag(gpuX,1)); gpuM = mod(round(abs(gpuE)),2); gpuF = gpuM + fliplr(gpuM);

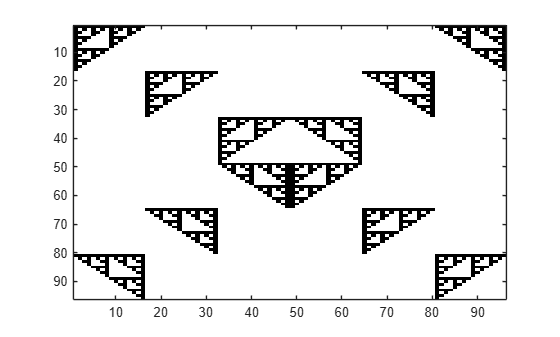

Plot the results.
If you need to transfer the data back from the GPU, use
gather. Gathering back to the CPU can be costly, and is generally not necessary unless you need to use your result with functions that do not support gpuArray.
result = gather(gpuF); whos result
Name Size Bytes Class Attributes result 96x96 73728 double
In general there can be differences in the results if you run the code on the CPU, due to numerical precision and algorithmic differences between GPU and CPU. Answers on CPU and GPU are both equally valid floating point approximations to the true analytical result, having been subjected to different roundoff during computation. In this example, the results are integers and
round eliminates the roundoff errors.
This example shows how to use MATLAB functions and operators with gpuArrays to compute the integral of a function, using the Monte Carlo integration method.
Define the number of points to sample. Sample points in the domain of the function, the interval
[-1,1] in both
x and y coordinates, by creating random points with the
rand function. To create a random array directly on the GPU, use the
rand function and specify
'gpuArray'. For more information, see Establish Arrays on a GPU.
n = 1e6; x = 2*rand(n,1,'gpuArray')-1; y = 2*rand(n,1,'gpuArray')-1;
Define the function to integrate, and use the Monte Carlo integration formula on it. This function approximates the value of by sampling points within the unit circle. Because the code uses GPU-enabled functions and operators on gpuArrays, the computations automatically run on the GPU. You can perform binary operations such as element-wise multiplication using the same syntax as MATLAB arrays use. To learn more about GPU-enabled functions, see Run MATLAB Functions on a GPU.
f = x.^2 + y.^2 <= 1; result = 4*1/n*f'*ones(n,1,'gpuArray')
result = 3.1403
This example shows how to use GPU-enabled MATLAB functions to compute a well-known mathematical construction: the Mandelbrot set. Check your GPU using the
Define the parameters. The Mandelbrot algorithm iterates over a grid of real and imaginary parts. The following code defines the number of iterations, grid size, and grid limits.
maxIterations = 500; gridSize = 1000; xlim = [-0.748766713922161, -0.748766707771757]; ylim = [ 0.123640844894862, 0.123640851045266];
You can use the
gpuArray function to transfer data to the GPU and create a
gpuArray, or you can create an array directly on the GPU.
gpuArray provides GPU versions of many functions that you can use to create data arrays, such as
linspace. For more information, see Create GPU Arrays Directly.
x = gpuArray.linspace(xlim(1),xlim(2),gridSize); y = gpuArray.linspace(ylim(1),ylim(2),gridSize); whos x y
Name Size Bytes Class Attributes x 1x1000 4 gpuArray y 1x1000 4 gpuArray
Many MATLAB functions support gpuArrays. When you supply a gpuArray argument to any GPU-enabled function, the function runs automatically on the GPU. For more information, see Run MATLAB Functions on a GPU. Create a complex grid for the algorithm, and create the array
count for the results. To create this array directly on the GPU, use the
ones function, and specify
[xGrid,yGrid] = meshgrid(x,y); z0 = complex(xGrid,yGrid); count = ones(size(z0),'gpuArray');
The following code implements the Mandelbrot algorithm using GPU-enabled functions. Because the code uses gpuArrays, the calculations happen on the GPU.
z = z0; for n = 0:maxIterations z = z.*z + z0; inside = abs(z) <= 2; count = count + inside; end count = log(count);
When computations are done, plot the results.
imagesc(x,y,count) colormap([jet();flipud(jet());0 0 0]); axis off
If you need increased performance, or if a function is not available for GPU,
gpuArray supports the following options:
To precompile and run purely element-wise code on
objects, use the
To run C++ code containing CUDA® device code or library calls, use a MEX-function. For more information, see Run MEX-Functions Containing CUDA Code.
To run existing GPU kernels written in CUDA C++, use the MATLAB CUDAKernel interface. For more information, see Run CUDA or PTX Code on GPU.
To generate CUDA code from MATLAB code, use GPU Coder™. For more information, see Get Started with GPU Coder (GPU Coder).
You can control the random number stream on the GPU using
None of the following can exceed
The number of elements of a dense array.
The number of nonzero elements of a sparse array.
The size in any given dimension. For example,
zeros(0,3e9,'gpuArray') is not allowed.
You can also create a
gpuArray object using some MATLAB functions by specifying a
gpuArray output. The following
table lists the available MATLAB functions that can create
gpuArray objects directly.
For class-specific help on the functions with the
functionname is the name of the method. For example, to
get help on
