# RayTracing

## Description

`RayTracing`

objects are propagation models that compute
propagation paths using 3-D environment geometry [1][2]. Represent a ray tracing model by
using a `RayTracing`

object.

This ray tracing model:

Is reasonable from 100 MHz to 100 GHz.

Computes multiple propagation paths. Other propagation models compute only single propagation paths.

Supports 3-D outdoor and indoor environments.

Determines the path loss and phase shift of each ray using electromagnetic analysis, including tracing the horizontal and vertical polarizations of a signal through the propagation path. The path loss calculations include free-space loss, reflection losses, and diffraction losses. For each reflection and diffraction, the model calculates losses on the horizontal and vertical polarizations by using the Fresnel equation, the Uniform Theory of Diffraction (UTD), the geometric angle, and the complex permittivity of the interface materials [3][4] at the specified frequency.

You can create ray tracing models that use either the shooting and bouncing rays (SBR) method or the image method.

## Creation

Create a `RayTracing`

object by using the `propagationModel`

function.

## Properties

### Ray Tracing

`Method`

— Ray tracing method

`"sbr"`

(default) | `"image"`

Ray tracing method, specified as one of these values:

`"sbr"`

— Use the shooting and bouncing rays (SBR) method, which supports up to ten path reflections and two edge diffractions. The SBR method calculates an approximate number of propagation paths with exact geometric accuracy. The SBR method is generally faster than the image method. The model calculates path loss from free-space loss, reflection and diffraction losses due to interactions with materials, and antenna polarizations.`"image"`

— Use the image method, which supports up to two path reflections. The image method calculates an exact number of propagation paths with exact geometric accuracy. The model calculates path loss from free-space loss plus reflection losses due to material and antenna polarizations.

Specify the maximum number of path reflections by using the `MaxNumReflections`

property. Specify the maximum number of edge diffractions by using the `MaxNumDiffractions`

property.

When both the image and SBR methods find the same path, the points along the path are the same within a tolerance of machine precision for single-precision floating-point values. For more information about differences between the image and SBR methods, see Choose a Propagation Model.

**Data Types: **`char`

| `string`

`AngularSeparation`

— Average number of degrees between launched rays

`"medium"`

(default) | `"high"`

| `"low"`

| numeric scalar in degrees in the range [0.05, 10]

Average number of degrees between launched rays, specified as
`"high"`

, `"medium"`

, `"low"`

, or
a numeric scalar in degrees in the range [0.05, 10]. If you specify a numeric value,
then the ray tracing algorithm might use a lower value than the value you
specify.

This table describes the behavior of the `"high"`

,
`"medium"`

, and `"low"`

options.

Option | Approximate Numeric Equivalent | Range of Numeric Values | Number of Launched Rays |
---|---|---|---|

`"high"` | 1.0781 | [0.9912, 1.1845] | 40,962 |

`"medium"` | 0.5391 | [0.4956, 0.5923] | 163,842 |

`"low"` | 0.2695 | [0.2478, 0.2961] | 655,362 |

To improve the accuracy of the number of paths found by the SBR method, decrease
the value of `AngularSeparation`

. Decreasing the value of
`AngularSeparation`

increases the amount of time MATLAB^{®} requires to perform the analysis.

When you first use a given value of `AngularSeparation`

in a
MATLAB session, MATLAB caches the geodesic sphere associated with that value for the duration
of the session. As a result, the first use of that value of
`AngularSeparation`

takes longer than subsequent uses within the
same session. For more information about geodesic spheres, see Shooting and Bouncing Rays Method.

#### Tips

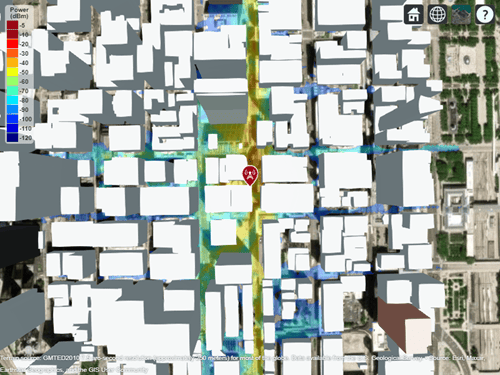

When you perform ray tracing with diffractions or create coverage maps using the
`coverage`

function, you can speed up the calculations by choosing a lower angular separation
and maximum number of reflections.

#### Dependencies

To enable this argument, the value of the `Method`

property
must be `"sbr"`

(the default).

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

| `char`

| `string`

`MaxNumReflections`

— Maximum number of path reflections

`2`

(default) | integer in the range [0,10]

Maximum number of path reflections to search for using ray tracing, specified as
an integer. Supported values depend on the value of the `Method`

property.

When

`Method`

is`"image"`

, supported values are`0`

,`1`

, and`2`

.When

`Method`

is`"sbr"`

, supported values are in the range [0, 10].

`MaxNumDiffractions`

— Maximum number of edge diffractions

`0`

(default) | `1`

| `2`

Maximum number of edge diffractions to search for using ray tracing, specified as
`0`

, `1`

, or `2`

.

When you use a `RayTracing`

object as input to the `coverage`

or
`sinr`

function, the
value of this property must be `0`

or `1`

.

#### Dependencies

To enable `MaxNumDiffractions`

, the value of the `Method`

property
must be `"sbr"`

.

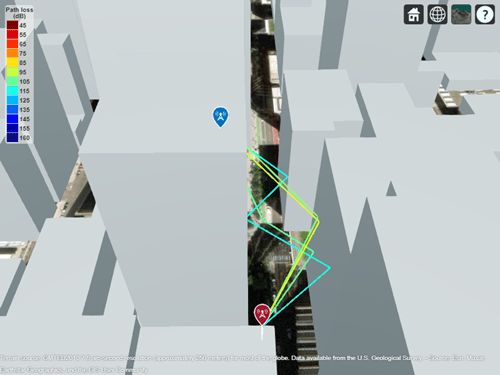

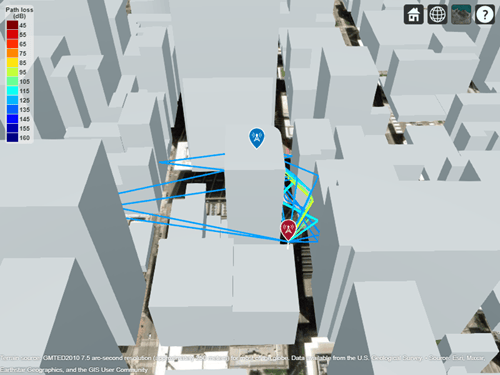

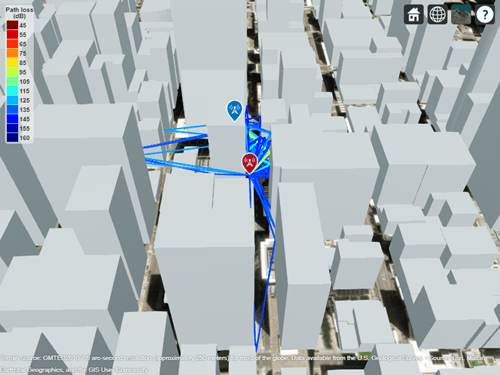

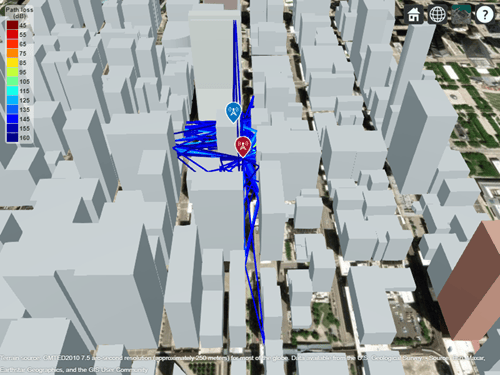

`MaxAbsolutePathLoss`

— Maximum absolute path loss in dB

`Inf`

(default) | positive numeric scalar

Maximum absolute path loss, in dB, specified as a positive numeric scalar. This
property enables you to discard propagation paths based on an absolute threshold. For
example, you can discard paths with more than 100 dB of path loss by specifying this
property as `100`

. The default is `Inf`

, which does
not discard propagation paths based on absolute threshold.

The `MaxAbsolutePathLoss`

and
`MaxRelativePathLoss`

properties work together. For a propagation
path with path loss `pl`

, the ray tracing model discards the path
when `pl`

is more than whichever is lower between
`MaxAbsolutePathLoss`

and `MaxRelativePathLoss`

+
`plsr`

, where `plsr`

is the path loss of the strongest
ray.

`MaxRelativePathLoss`

— Maximum relative path loss in dB

`40`

(default) | nonnegative numeric scalar

Maximum relative path loss, in dB, specified as a nonnegative numeric scalar. This
property enables you to discard propagation paths based on a threshold relative to the
strongest ray. The default is `40`

, which discards paths that are
more than 40 dB weaker than the strongest path.

The `MaxRelativePathLoss`

and
`MaxAbsolutePathLoss`

properties work together. For a propagation
path with path loss `pl`

, the ray tracing model discards the path
when `pl`

is more than whichever is lower between
`MaxAbsolutePathLoss`

and `MaxRelativePathLoss`

+
`plsr`

, where `plsr`

is the path loss of the strongest
ray.

`CoordinateSystem`

— Coordinate system of map and site location

`"geographic"`

(default) | `"cartesian"`

Coordinate system of the site location, specified as
`"geographic"`

or `"cartesian"`

. If you specify
`"geographic"`

, define material types by using the `BuildingsMaterial`

and `TerrainMaterial`

properties. If you specify `"cartesian"`

, define material types by
using the `SurfaceMaterial`

property.

**Data Types: **`string`

| `char`

### Buildings Material

`BuildingsMaterial`

— Surface material of geographic buildings

`"auto"`

(default) | `"concrete"`

| `"brick"`

| `"wood"`

| `"glass"`

| ...

Surface material of geographic buildings, specified as one of these values:

`"auto"`

— Use building materials derived from the OpenStreetMap^{®}file or geospatial table that specifies the scene. If the file or table does not specify materials, then use concrete for all the buildings. If the file or table specifies a material that the ray tracing analysis does not support, then use concrete instead of the unsupported material. When you import the file or table into Site Viewer, you can view the material names by querying the`Materials`

property of the Site Viewer object.*(since R2023b)*`"concrete"`

— Concrete`"brick"`

— Brick`"wood"`

— Wood`"glass"`

— Glass`"metal"`

— Metal`"marble"`

— Marble*(since R2024a)*`"plywood"`

— Plywood*(since R2024a)*`"perfect-reflector"`

— Perfect electrical conductor`"custom"`

— Custom material. Specify the real relative permittivity and the conductivity of the material by using the`BuildingsMaterialPermittivity`

and`BuildingsMaterialConductivity`

properties.

The model uses the material type to calculate path loss involving interactions with building surfaces. For more information, see ITU Permittivity and Conductivity Values for Common Materials.

#### Dependencies

To enable `BuildingsMaterial`

, the value of the `CoordinateSystem`

property must be `"geographic"`

.

**Data Types: **`char`

| `string`

`BuildingsMaterialPermittivity`

— Real relative permittivity of surface materials of buildings

`5.31`

(default) | nonnegative scalar

Real relative permittivity of the surface materials of the buildings, specified as a nonnegative scalar. Real relative permittivity is expressed as the real part of the ratio of complex absolute material permittivity to the absolute permittivity of vacuum. The model uses this value to calculate path loss involving interactions with building surfaces. The default value corresponds to concrete at 1.9 GHz.

#### Dependencies

To enable `BuildingsMaterialPermittivity`

, you must set the
`CoordinateSystem`

property to `"geographic"`

and the `BuildingsMaterial`

property to `"custom"`

.

**Data Types: **`double`

`BuildingsMaterialConductivity`

— Conductivity of surface materials of buildings in S/m

`0.0548`

(default) | nonnegative scalar

Conductivity of the surface materials of the buildings, specified as a nonnegative scalar in S/m. The model uses this value to calculate path loss involving interactions with building surfaces. The default value corresponds to concrete at 1.9 GHz.

#### Dependencies

To enable `BuildingsMaterialConductivity`

, you must set the
`CoordinateSystem`

property to `"geographic"`

and the `BuildingsMaterial`

property to `"custom"`

.

**Data Types: **`double`

### Terrain Material

`TerrainMaterial`

— Surface material of geographic terrain

`"concrete"`

(default) | `"brick"`

| `"water"`

| `"vegetation"`

| `"loam"`

| ...

Surface material of the geographic terrain, specified as one of these values:

`"concrete"`

— Concrete`"brick"`

— Brick`"water"`

— Water`"vegetation"`

— Vegetation`"loam"`

— Loam`"marble"`

— Marble*(since R2024a)*`"perfect-reflector"`

— Perfect electrical conductor`"custom"`

— Custom material. Specify the real relative permittivity and the conductivity of the material by using the`TerrainMaterialPermittivity`

and`TerrainMaterialConductivity`

properties.

The model uses the material type to calculate path loss involving interactions with terrain surfaces. For more information, see ITU Permittivity and Conductivity Values for Common Materials.

#### Dependencies

To enable `TerrainMaterial`

, you must set the `CoordinateSystem`

property to `"geographic"`

.

**Data Types: **`char`

| `string`

`TerrainMaterialPermittivity`

— Real relative permittivity of terrain material

`5.31`

(default) | nonnegative scalar

Real relative permittivity of the terrain material, specified as a nonnegative scalar. Real relative permittivity is expressed as the real part of the ratio of complex absolute material permittivity to the absolute permittivity of vacuum. The model uses this value to calculate path loss involving interactions with terrain surfaces. The default value corresponds to concrete at 1.9 GHz.

#### Dependencies

To enable `TerrainMaterialPermittivity`

, you must set the
`CoordinateSystem`

property to `"geographic"`

and the `TerrainMaterial`

property to `"custom"`

.

**Data Types: **`double`

`TerrainMaterialConductivity`

— Conductivity of terrain material in S/m

`0.0548`

(default) | nonnegative scalar

Conductivity of the terrain material, specified as a nonnegative scalar in S/m. The model uses this value to calculate path loss involving interactions with terrain surfaces. The default value corresponds to concrete at 1.9 GHz.

#### Dependencies

To enable `TerrainMaterialConductivity`

, you must set the
`CoordinateSystem`

property to `"geographic"`

and the `TerrainMaterial`

property to `"custom"`

.

**Data Types: **`double`

### Surface Material

`SurfaceMaterial`

— Surface material of Cartesian map surface

`"auto"`

(default) | `"concrete"`

| `"plasterboard"`

| `"ceilingboard"`

| `"chipboard"`

| ...

Surface material of Cartesian map surface, specified as one of these values:

`"auto"`

— Use surface materials derived from the file that specifies the scene. For glTF™ files, use materials derived from the file. If the file does not specify materials, or if the file specifies a material that the ray tracing analysis does not support, then use concrete instead of the absent or unsupported material. For STL files and triangulation objects, use concrete. When you import the file into Site Viewer, you can view the material names by querying the`Materials`

property of the Site Viewer object.*(since R2023b)*`"concrete"`

— Concrete`"plasterboard"`

— Plasterboard`"ceilingboard"`

— Ceiling board`"chipboard"`

— Chipboard`"floorboard"`

— Floorboard`"brick"`

— Brick`"wood"`

— Wood`"glass"`

— Glass`"metal"`

— Metal`"marble"`

— Marble*(since R2024a)*`"plywood"`

— Plywood*(since R2024a)*`"water"`

— Water`"vegetation"`

— Vegetation`"loam"`

— Loam`"perfect-reflector"`

— Perfect electrical conductor`"custom"`

— Custom material. Specify the real relative permittivity and the conductivity of the material by using the`SurfaceMaterialPermittivity`

and`SurfaceMaterialConductivity`

properties.

The model uses the material type to calculate path loss involving interactions with surfaces. For more information, see ITU Permittivity and Conductivity Values for Common Materials.

#### Dependencies

To enable `SurfaceMaterial`

, you must set the `CoordinateSystem`

property to `"cartesian"`

.

**Data Types: **`char`

| `string`

`SurfaceMaterialPermittivity`

— Real relative permittivity of surface material

`5.31`

(default) | nonnegative scalar

Real relative permittivity of the surface material, specified as a nonnegative scalar. Real relative permittivity is expressed as the real part of the ratio of complex absolute material permittivity to the absolute permittivity of vacuum. The model uses this value to calculate path loss involving interactions with surfaces. The default value corresponds to concrete at 1.9 GHz.

#### Dependencies

To enable `SurfaceMaterialPermittivity`

, you must set the
`CoordinateSystem`

property to `"cartesian"`

and the `SurfaceMaterial`

property to `"custom"`

.

**Data Types: **`double`

`SurfaceMaterialConductivity`

— Conductivity of surface material in S/m

`0.0548`

(default) | nonnegative scalar

Conductivity of the surface material, specified as a nonnegative scalar in S/m. The model uses this value to calculate path loss involving interactions with surfaces. The default value corresponds to concrete at 1.9 GHz.

#### Dependencies

To enable `SurfaceMaterialConductivity`

, you must set the
`CoordinateSystem`

property to `"cartesian"`

and the `SurfaceMaterial`

property to `"custom"`

.

**Data Types: **`double`

## Examples

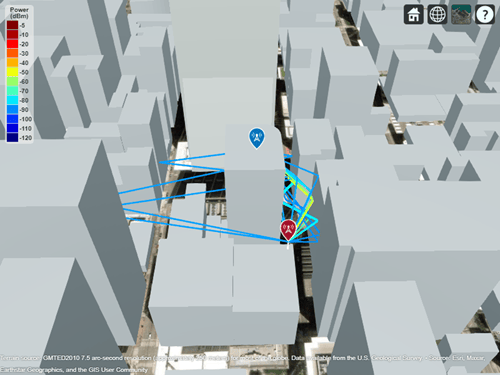

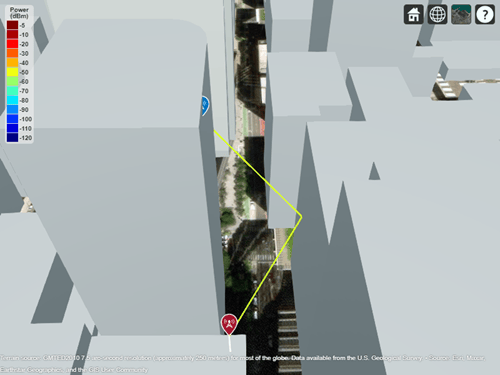

### Model Propagation Paths Using SBR and Image Methods

Show reflected propagation paths in Chicago by using the SBR and image methods.

Create a Site Viewer with buildings in Chicago. For more information about the OpenStreetMap® file, see [1].

`viewer = siteviewer(Buildings="chicago.osm");`

Create a transmitter site on a building and a receiver site near another building.

tx = txsite(Latitude=41.8800, ... Longitude=-87.6295, ... TransmitterFrequency=2.5e9); show(tx) rx = rxsite(Latitude=41.8813452, ... Longitude=-87.629771, ... AntennaHeight=30); show(rx)

Create a ray tracing propagation model, which MATLAB® represents using a `RayTracing`

object. Configure the model to use the image method and to calculate paths with up to one reflection. Then, display the propagation paths.

pm = propagationModel("raytracing",Method="image", ... MaxNumReflections=1); raytrace(tx,rx,pm)

For this ray tracing model, there is one propagation path from the transmitter to the receiver.

Update the ray tracing model to use the SBR method and to calculate paths with up to two reflections and up to one diffraction. Display the propagation paths.

```
pm.Method = "sbr";
pm.MaxNumReflections = 2;
pm.MaxNumDiffractions = 1;
raytrace(tx,rx,pm)
```

The updated ray tracing model shows more propagation paths from the transmitter to the receiver.

**Appendix**

[1] The OpenStreetMap file is downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

### Model Coverage Using Ray Tracing

Launch Site Viewer with buildings in Chicago. For more information about the OpenStreetMap® file, see [1].

`viewer = siteviewer(Buildings="chicago.osm");`

Create a transmitter site on a building and a receiver site near another building.

tx = txsite(Latitude=41.8800, ... Longitude=-87.6295, ... TransmitterFrequency=2.5e9); show(tx)

Create a ray tracing propagation model, which MATLAB® represents using a `RayTracing`

object. Configure the model to find paths with up to `2`

surface reflections and up to `1`

edge diffraction. By default, the model uses the SBR method.

pm = propagationModel("raytracing", ... MaxNumReflections=2,MaxNumDiffractions=1);

Display the coverage map.

coverage(tx,pm,SignalStrengths=-100:5)

**Appendix**

[1] The OpenStreetMap file is downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

### Discard Paths Based on Path Loss

Ray tracing models enable you to discard propagation paths based on path loss thresholds.

Specify a threshold relative to the strongest propagation path by using the

`MaxRelativePathLoss`

property.Specify an absolute threshold by using the

`MaxAbsolutePathLoss`

property.

Create a Site Viewer with buildings in Chicago. For more information about the OpenStreetMap® file, see [1].

`viewer = siteviewer(Buildings="chicago.osm");`

Create a transmitter site on a building and a receiver site near another building.

tx = txsite(Latitude=41.8800, ... Longitude=-87.6295, ... TransmitterFrequency=2.5e9); show(tx) rx = rxsite(Latitude=41.8813452, ... Longitude=-87.629771, ... AntennaHeight=30); show(rx)

Create a ray tracing propagation model, which MATLAB represents using a `RayTracing`

object. Configure the model to find paths with up to `2`

surface reflections and up to `1`

edge diffraction. By default, the model uses the SBR method.

pm = propagationModel("raytracing", ... MaxNumReflections=2, ... MaxNumDiffractions=1);

Perform the ray tracing analysis. By default, the model discard paths that are more than 40 dB weaker than the strongest path.

`raytrace(tx,rx,pm,Type="pathloss")`

**Discard Paths Based on Relative Path Loss**

Discard paths that are more than 50 dB weaker than the strongest path by changing the `MaxRelativePathLoss`

property of the `RayTracing`

object. Then, perform the ray tracing analysis again.

```
pm.MaxRelativePathLoss = 50;
raytrace(tx,rx,pm,Type="pathloss")
```

To avoid discarding propagation paths, set the `MaxRelativePathLoss`

property to `Inf`

.

```
pm.MaxRelativePathLoss = Inf;
raytrace(tx,rx,pm,Type="pathloss")
```

**Discard Paths Based on Absolute Path Loss**

Discard paths with more than `115`

dB of path loss by setting the `MaxAbsolutePathLoss`

property of the `RayTracing`

object.

```
pm.MaxAbsolutePathLoss = 115;
raytrace(tx,rx,pm,Type="pathloss")
```

**Appendix**

[1] The OpenStreetMap file is downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

## More About

### Shooting and Bouncing Rays Method

The shooting and bouncing rays (SBR) method finds an approximate number of propagation paths with exact geometric accuracy. You can use this method to find paths with up to 10 path reflections.

The computational complexity of the SBR method increases linearly with the number of reflections and exponentially with the number of diffractions. The SBR method is generally faster than the image method.

This figure illustrates the SBR method for calculating propagation paths from a transmitter, *Tx*, to a receiver, *Rx*.

The SBR method launches many rays from a geodesic sphere centered at *Tx*. The geodesic sphere enables the model to launch rays that are approximately uniformly spaced.

Then, the method traces every ray from *Tx* and can model
different types of interactions between the rays and surrounding objects, such as
reflections, diffractions, refractions, and scattering. Note that the current implementation
of the SBR method considers only reflections and edge diffractions.

When a ray hits a flat surface, shown as

*R*, the ray reflects based on the law of reflection.When a ray hits an edge, shown as

*D*, the ray spawns many diffracted rays based on the law of diffraction [5][6]. Each diffracted ray has the same angle with the diffracting edge as the incident ray. The diffraction point then becomes a new launching point and the SBR method traces the diffracted rays in the same way as the rays launched from*Tx*. A continuum of diffracted rays forms a cone around the diffracting edge, which is commonly known as a*Keller cone*[6].

For each launched ray, the SBR method surrounds *Rx* with a sphere, called a reception sphere, with a radius that is proportional to the distance the ray travels and the average number of degrees between the launched rays. If the ray intersects the sphere, then the model considers the ray a valid path from *Tx* to *Rx*. The SBR method corrects the valid paths so that the paths have exact geometric accuracy.

When you increase the number of rays by decreasing the number of degrees between rays, the reception sphere becomes smaller. As a result, in some cases, launching more rays results in fewer or different paths. This situation is more likely to occur with custom 3-D scenarios created from STL files or triangulation objects than with scenarios that are automatically generated from OpenStreetMap buildings and terrain data.

The SBR method finds paths using double-precision floating-point computations.

### Image Method

The image method finds an exact number of propagation paths with exact geometric accuracy. You can use this method to find paths with up to 2 path reflections. The computational complexity of the image method increases exponentially with the number of reflections.

This figure illustrates the image method for calculating the propagation path of a single
reflection ray for the same transmitter and receiver as the SBR method. The image method
locates the image of *Tx* with respect to a planar reflection surface,
*Tx'*. Then, the method connects *Tx'* and
*Rx* with a line segment. If the line segment intersects the planar
reflection surface, shown as *R* in the figure, then a valid path from
*Tx* to *Rx* exists. The method determines paths with
multiple reflections by recursively extending these steps. The image method finds paths
using single-precision floating-point computations.

### ITU Permittivity and Conductivity Values for Common Materials

International Telecommunication Union Recommendations (ITU-R) P.2040-3 [3] and ITU-R P.527-5 through ITU-R P.527-6 [4] present methods, equations, and values used to calculate real relative permittivity, conductivity, and complex relative permittivity for common materials.

For information about the values computed for building materials specified in ITU-R P.2040, see

`buildingMaterialPermittivity`

.For information about the values computed for terrain materials specified in ITU-R P.527, see

`earthSurfacePermittivity`

.

## References

[1] Yun, Zhengqing, and Magdy F. Iskander. “Ray Tracing for Radio Propagation Modeling: Principles and Applications.” *IEEE Access* 3 (2015): 1089–1100. https://doi.org/10.1109/ACCESS.2015.2453991.

[2] Schaubach, K.R., N.J. Davis, and T.S. Rappaport. “A Ray Tracing Method for Predicting Path Loss and Delay Spread in Microcellular Environments.” In *[1992 Proceedings] Vehicular Technology Society 42nd VTS Conference - Frontiers of Technology*, 932–35. Denver, CO, USA: IEEE, 1992. https://doi.org/10.1109/VETEC.1992.245274.

[3] International
Telecommunications Union Radiocommunication Sector. *Effects of Building Materials and
Structures on Radiowave Propagation Above About 100MHz.* Recommendation P.2040.
ITU-R, approved August 23, 2023. https://www.itu.int/rec/R-REC-P.2040/en.

[4] International
Telecommunications Union Radiocommunication Sector. *Electrical Characteristics of the
Surface of the Earth*. Recommendation P.527. ITU-R, approved September 27, 2021.
https://www.itu.int/rec/R-REC-P.527/en.

[5] International Telecommunications Union Radiocommunication
Sector. *Propagation by diffraction*. Recommendation P.526-15. ITU-R,
approved October 21, 2019. https://www.itu.int/rec/R-REC-P.526/en.

[6] Keller, Joseph B. “Geometrical Theory of Diffraction.” *Journal of the Optical Society of America* 52, no. 2 (February 1, 1962): 116. https://doi.org/10.1364/JOSA.52.000116.

## Version History

**Introduced in R2019b**

### R2024a: Ray tracing models support marble and plywood materials

Specify the buildings, surface, or terrain material as marble by setting the
`BuildingsMaterial`

, `SurfaceMaterial`

, or
`TerrainMaterial`

property to `"marble"`

.

Specify the buildings or surface material as plywood by setting the
`BuildingsMaterial`

or `SurfaceMaterial`

property to
`"plywood"`

.

### R2023b: `BuildingsMaterial`

, `SurfaceMaterial`

, `SurfaceMaterialPermittivity`

, and
`SurfaceMaterialConductivity`

properties have new defaults

The default value of the `BuildingsMaterial`

and
`SurfaceMaterial`

properties of the `RayTracing`

propagation model object is `"auto"`

. Previously, the default value of the
`BuildingsMaterial`

property was `"concrete"`

and the
default value of the `SurfaceMaterial`

property was
`"plasterboard"`

.

In addition, the default values of the `SurfaceMaterialPermittivity`

and `SurfaceMaterialConductivity`

properties of the
`RayTracing`

propagation model object are now `5.31`

and
`0.0548`

, respectively. In previous releases, the default values were
`2.94`

and `0.0183`

, respectively.

### R2023a: Ray tracing models discard paths based on path loss

`RayTracing`

objects enable you to discard propagation paths based on
path loss thresholds. To specify the thresholds, set the
`MaxAbsolutePathLoss`

and `MaxRelativePathLoss`

properties of the object.

The default value of the `MaxRelativePathLoss`

property is
`40`

. As a result, code from previous releases that does not specify a
`MaxRelativePathLoss`

value can be affected in these ways:

The

`raytrace`

function can return fewer`comm.Ray`

objects in R2023a compared to previous releases.The

`sigstrength`

,`coverage`

,`sinr`

, and`link`

functions can return different values in R2023a compared to previous releases.The

`pathloss`

function can return different path loss values in R2023a compared to previous releases.

To avoid discarding propagation paths based on relative path loss thresholds, set the
`MaxRelativePathLoss`

property of the ray tracing object to
`Inf`

.

### R2022b: Customize spacing of launched rays for ray tracing with SBR method

When performing ray tracing using the SBR method, you can customize the spacing of
launched rays by specifying the `AngularSeparation`

property of the
`RayTracing`

object as a numeric value in degrees. In previous releases,
the `AngularSeparation`

property supported only the options
`"high"`

, `"medium"`

, and
`"low"`

.

### R2022b: SBR method calculates propagation paths with exact geometric accuracy

When you find propagation paths using the SBR method, MATLAB corrects the results so that the geometric accuracy of each path is exact. In previous releases, the paths have approximate geometric accuracy.

### R2021b: Default modeling method is shooting and bouncing rays method

Starting in R2021b, when you create a propagation model using the syntax
`propagationModel("raytracing")`

, MATLAB returns a `RayTracing`

model with the
`Method`

value set to `"sbr"`

and two reflections
(instead of `"image"`

and one reflection, as in previous releases).

To create ray tracing propagation models that use the image method, use the syntax
`propagationModel("raytracing","Method","image")`

.

## See Also

### Functions

`propagationModel`

|`raytrace`

|`coverage`

|`sigstrength`

|`buildingMaterialPermittivity`

|`earthSurfacePermittivity`

### Objects

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
