QPSK Modulator Baseband

Modulate using quadrature phase shift keying method

Library

PM in Digital Baseband sublibrary of Modulation

•

Description

The QPSK Modulator Baseband block modulates using the quadrature phase shift keying method. The output is a baseband representation of the modulated signal.

Integer-Valued Signals and Binary-Valued Signals

If you set the Input type parameter to Integer, then valid input values are 0, 1, 2, and 3. When you set Constellation ordering to Binary for input m the output symbol is

exp(jθ + jπm/2)

where θ represents the Phase offset parameter (see the following figure for Gray constellation ordering). In this case, the block accepts a scalar or column vector signal.

If you set the Input type parameter to Bit, then the input contains pairs of binary values. For this configuration, the block accepts column vectors with even lengths. When you set the Phase offset parameter to $$\frac{\Pi }{4}$$, then the block uses one of the signal constellations in the following figure, depending on whether you set the Constellation ordering parameter to Binary or Gray.

In the previous figure, the most significant bit (i.e. the left-most bit), is the first bit input to the block. For additional information about Gray mapping, see the M-PSK Modulator Baseband help page.

Dialog Box

Input type

Indicates whether the input consists of integers or pairs of bits.

Constellation ordering

Determines how the block maps each pair of input bits or input integers to constellation symbols.

Phase offset (rad)

The phase of the zeroth point of the signal constellation.

View Constellation

Click View Constellation on the block mask to visualize a signal constellation for the specified block parameters. Before viewing a constellation, apply the parameter settings. For more information, see View Constellation of Modulator Block.

Output data type

Output data type, specified as double, single, fixdt(1,16), fixdt(1,16, 0), Inherit via back propagation, or <data type expression>.

Setting this parameter to

• fixdt(1,16), fixdt(1,16.0), or <data type expression> enables parameters in which you can further specify details.

• Inherit via back propagation sets the output data type and scaling to match the following block.

The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click Show data type assistant . For more information, see Specify Data Types Using Data Type Assistant (Simulink).

Supported Data Types

Port	Supported Data Types
Input	Double-precision floating point Single-precision floating point Boolean when Input type is Bit 8-, 16-, and 32-bit signed integers 8-, 16-, and 32-bit unsigned integers ufix(1) when Input type is Bit ufix(2) when Input type is Integer
Output	Double-precision floating point Single-precision floating point Signed fixed point

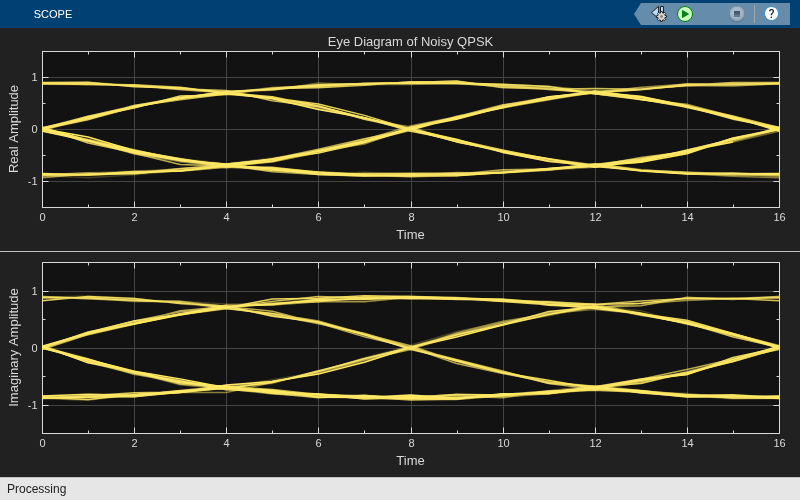

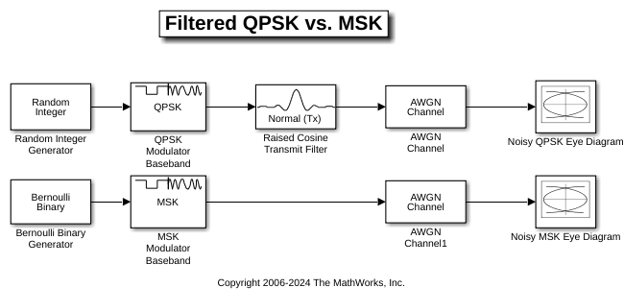

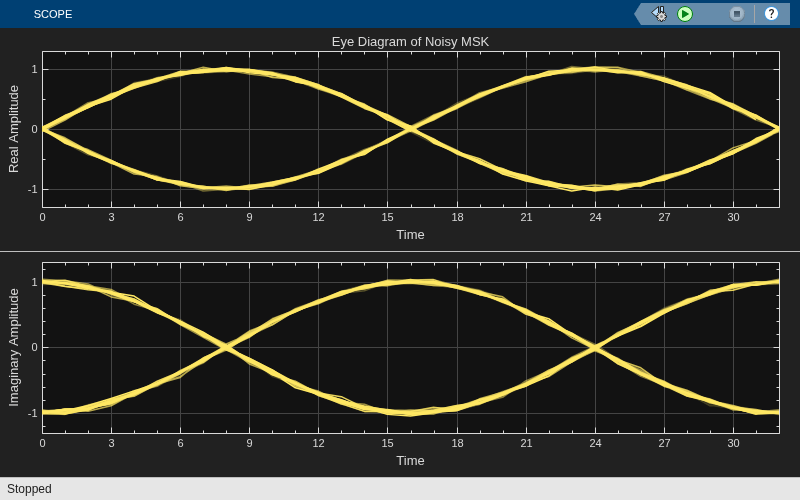

Examples

Demodulate Noisy QPSK Signal

Modulate and demodulate a noisy QPSK signal.

Use the Open model button to open the QPSK demodulation model.

Run the simulation. The results are saved to the base workspace, where the variable ErrorVec is a 1-by-3 row vector. The BER is found in the first element.

Display the error statistics. For the Eb/No provided, 4.3 dB, the resultant BER is approximately 0.01. Your results may vary slightly.

ans =

    0.0104

Increase the Eb/No to 7 dB. Rerun the simulation, and observe that the BER has decreased.

ans =

   7.0000e-04

Pair Block

QPSK Demodulator Baseband

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).

Version History

Introduced before R2006a
