Powertrain
R2026bPowertrain systems include propulsion, drivetrain, and transmission subsystems. To configure the drivetrain subsystem, you can use the limited slip or open differential blocks. The propulsion blocks include mapped motor, compression-ignition (CI) engine, and spark-ignition (SI) engine blocks. For the transmission subsystem, you can use the ideal fixed gear transmission block.
Blocks
 | Active Differential | Spur or planetary active differential gear |
 | Limited Slip Differential | Limited differential as a planetary bevel gear |
 | Open Differential | Differential as a planetary bevel gear |
 | Rotational Inertia | Ideal mechanical rotational inertia |
 | Split Torsional Compliance | Split torsional coupler |
 | Torsional Compliance | Parallel spring-damper |
 | Mapped Motor | Mapped motor and drive electronics operating in torque-control mode |
 | Mapped CI Engine | Compression-ignition engine model using lookup tables |
 | Mapped SI Engine | Spark-ignition engine model using lookup tables |
 | Simple Engine | Simplified engine model using lookup tables |
 | Ideal Fixed Gear Transmission | Ideal fixed gear transmission without clutch or synchronization |
 | Transfer Case | Differential as a planetary bevel gear |
 | Two-Way Connection | Two-way connector port for subsystem |
 | Gearbox | Ideal rotational gearbox |
Topics
- Engine Calibration Maps
The Mapped CI Engine and Mapped SI Engine blocks models use calibration maps developed with the Model-Based Calibration Toolbox™ and measured engine performance data.
- Resize Mapped Motor
Resize mapped motors using the Virtual Vehicle Composer app.
Featured Examples

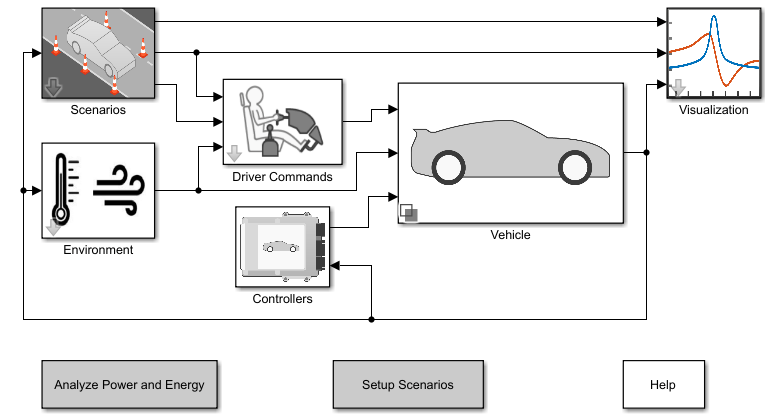

Deploy Virtual Vehicle Composer Model to Speedgoat Real-Time Target Machine
Deploy a VVC model to a Speedgoat Real-Time Target Machine.
Calibrate Mapped CI Engine Using Data
Use the Virtual Vehicle Composer to calibrate mapped CI engines from imported data.
Calibrate Mapped SI Engine Using Data
Use the Virtual Vehicle Composer to calibrate mapped SI engines from imported data.
Calibrate Mapped Electric Motors Using Data
Use the Virtual Vehicle Composer to calibrate mapped electric motors from imported data.
Calibrate Mapped DC-to-DC Converters Using Data
Use the Virtual Vehicle Composer to calibrate mapped DC-to-DC converters from imported data.

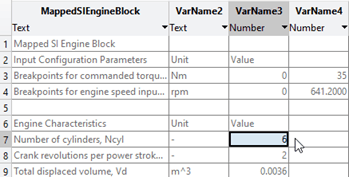

Read and Write Block Parameters to Excel
Read data and write Mapped SI Engine block parameters to an Excel® data file.
