# tsne

t-Distributed Stochastic Neighbor Embedding

## Description

modifies
the embeddings using options specified by one or more name-value pair
arguments.`Y`

= tsne(`X`

,`Name,Value`

)

## Examples

### Visualize Fisher Iris Data

The Fisher iris data set has four-dimensional measurements of irises, and corresponding classification into species. Visualize this data by reducing the dimension using `tsne`

.

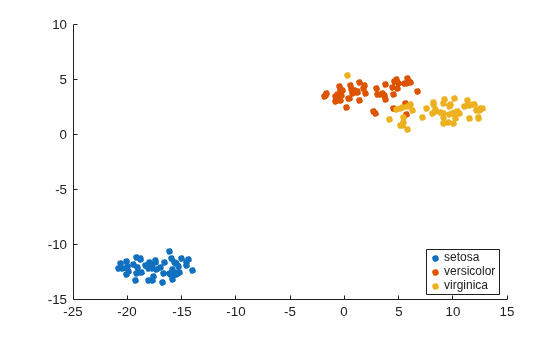

load fisheriris rng default % for reproducibility Y = tsne(meas); gscatter(Y(:,1),Y(:,2),species)

### Compare Distance Metrics

Use various distance metrics to try to obtain a better separation between species in the Fisher iris data.

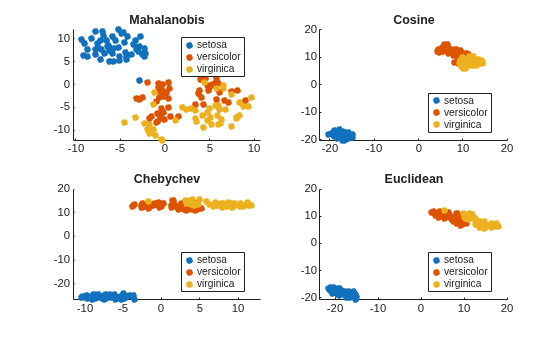

load fisheriris rng('default') % for reproducibility Y = tsne(meas,'Algorithm','exact','Distance','mahalanobis'); subplot(2,2,1) gscatter(Y(:,1),Y(:,2),species) title('Mahalanobis') rng('default') % for fair comparison Y = tsne(meas,'Algorithm','exact','Distance','cosine'); subplot(2,2,2) gscatter(Y(:,1),Y(:,2),species) title('Cosine') rng('default') % for fair comparison Y = tsne(meas,'Algorithm','exact','Distance','chebychev'); subplot(2,2,3) gscatter(Y(:,1),Y(:,2),species) title('Chebychev') rng('default') % for fair comparison Y = tsne(meas,'Algorithm','exact','Distance','euclidean'); subplot(2,2,4) gscatter(Y(:,1),Y(:,2),species) title('Euclidean')

In this case, the cosine, Chebychev, and Euclidean distance metrics give reasonably good separation of clusters. But the Mahalanobis distance metric does not give a good separation.

### Plot Results with `NaN`

Input Data

`tsne`

removes input data rows that contain any `NaN`

entries. Therefore, you must remove any such rows from your classification data before plotting.

For example, change a few random entries in the Fisher iris data to `NaN`

.

load fisheriris rng default % for reproducibility meas(rand(size(meas)) < 0.05) = NaN;

Embed the four-dimensional data into two dimensions using `tsne`

.

Y = tsne(meas,'Algorithm','exact');

Warning: Rows with NaN missing values in X or 'InitialY' values are removed.

Determine how many rows were eliminated from the embedding.

length(species)-length(Y)

ans = 22

Prepare to plot the result by locating the rows of `meas`

that have no `NaN`

values.

goodrows = not(any(isnan(meas),2));

Plot the results using only the rows of `species`

that correspond to rows of `meas`

with no `NaN`

values.

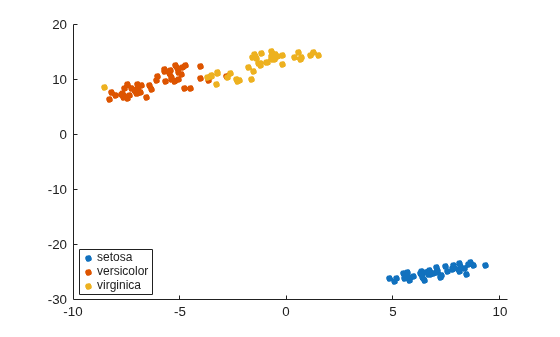

gscatter(Y(:,1),Y(:,2),species(goodrows))

### Compare t-SNE Loss

Find both 2-D and 3-D embeddings of the Fisher iris data, and compare the loss for each embedding. It is likely that the loss is lower for a 3-D embedding, because this embedding has more freedom to match the original data.

load fisheriris rng default % for reproducibility [Y,loss] = tsne(meas,'Algorithm','exact'); rng default % for fair comparison [Y2,loss2] = tsne(meas,'Algorithm','exact','NumDimensions',3); fprintf('2-D embedding has loss %g, and 3-D embedding has loss %g.\n',loss,loss2)

2-D embedding has loss 0.1255, and 3-D embedding has loss 0.0980872.

As expected, the 3-D embedding has lower loss.

View the embeddings. Use RGB colors `[1 0 0]`

, `[0 1 0]`

, and `[0 0 1]`

.

For the 3-D plot, convert the species to numeric values using the `categorical`

command, then convert the numeric values to RGB colors using the `sparse`

function as follows. If `v`

is a vector of positive integers 1, 2, or 3, corresponding to the species data, then the command

`sparse(1:numel(v),v,ones(size(v)))`

is a sparse matrix whose rows are the RGB colors of the species.

```

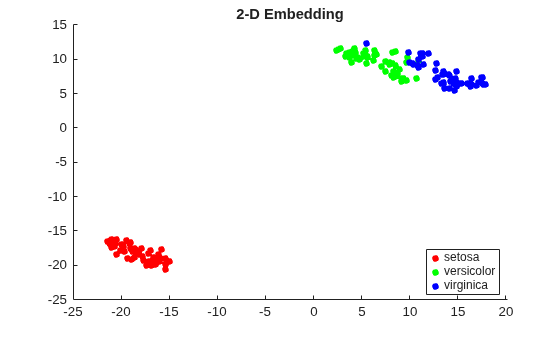

gscatter(Y(:,1),Y(:,2),species,eye(3))
title('2-D Embedding')
```

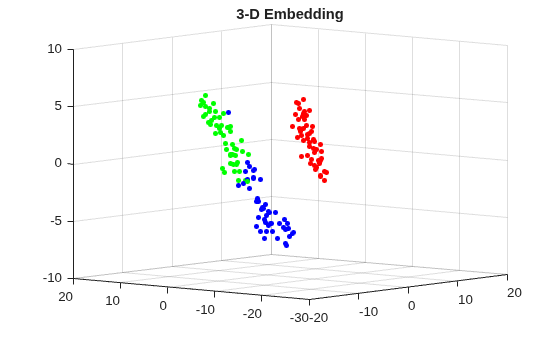

figure v = double(categorical(species)); c = full(sparse(1:numel(v),v,ones(size(v)),numel(v),3)); scatter3(Y2(:,1),Y2(:,2),Y2(:,3),15,c,'filled') title('3-D Embedding') view(-50,8)

## Input Arguments

`X`

— Data points

`n`

-by-`m`

matrix

Data points, specified as an `n`

-by-`m`

matrix,
where each row is one `m`

-dimensional point.

`tsne`

removes rows of `X`

that
contain any `NaN`

values before creating an embedding.
See Plot Results with NaN Input Data.

**Data Types: **`single`

| `double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **```
Y =
tsne(X,'Algorithm','Exact','NumPCAComponents',50)
```

**Algorithm Control**

`Algorithm`

— `tsne`

algorithm

`'barneshut'`

(default) | `'exact'`

`tsne`

algorithm, specified as `'barneshut'`

or `'exact'`

.
The `'exact'`

algorithm optimizes the Kullback-Leibler
divergence of distributions between the original space and the embedded
space. The `'barneshut'`

algorithm performs an approximate
optimization that is faster and uses less memory when the number of
data rows is large.

**Note**

For the `'barneshut'`

algorithm, `tsne`

uses `knnsearch`

to find the nearest neighbors.

**Example: **`'exact'`

`CacheSize`

— Size of Gram matrix in megabytes

`1e3`

(default) | positive scalar | `"maximal"`

Size of the Gram matrix in megabytes, specified as a positive scalar or
`"maximal"`

. The `tsne`

function can use
`CacheSize`

only when the `Distance`

name-value
argument begins with `fast`

.

If you set `CacheSize`

to `"maximal"`

,
`tsne`

tries to allocate enough memory for an entire
intermediate matrix whose size is `M`

-by-`M`

, where
`M`

is the number of rows of the input data `X`

.
The cache size does not have to be large enough for an entire intermediate matrix, but
must be at least large enough to hold an `M`

-by-1 vector. Otherwise,
`tsne`

uses the standard algorithm for computing Euclidean
distances.

If the value of the `Distance`

argument begins with
`fast`

, and the value of `CacheSize`

is too large
or `"maximal"`

, `tsne`

might try to allocate
a Gram matrix that exceeds the available memory. In this case, MATLAB^{®} issues an error.

**Example: **`CacheSize="maximal"`

**Data Types: **`double`

| `char`

| `string`

`Distance`

— Distance metric

`'euclidean'`

(default) | `'seuclidean'`

| `'fasteuclidean'`

| `'fastseuclidean'`

| `'cityblock'`

| `'chebychev'`

| `'minkowski'`

| `'mahalanobis'`

| `'cosine'`

| `'correlation'`

| `'spearman'`

| `'hamming'`

| `'jaccard'`

| function handle

Distance metric, specified as one of the following:

`'euclidean'`

— Euclidean distance.`'seuclidean'`

— Standardized Euclidean distance. Each coordinate difference between the rows in`X`

and the query matrix is scaled by dividing by the corresponding element of the standard deviation computed from`S = std(X,'omitnan')`

.`'fasteuclidean'`

— Euclidean distance computed by using an alternative algorithm that saves time when the number of predictors is at least 10. In some cases, this faster algorithm can reduce accuracy. Algorithms starting with`'fast'`

do not support sparse data. For details, see Algorithms.`'fastseuclidean'`

— Standardized Euclidean distance computed by using an alternative algorithm that saves time when the number of predictors is at least 10. In some cases, this faster algorithm can reduce accuracy. Algorithms starting with`'fast'`

do not support sparse data. For details, see Algorithms.`'cityblock'`

— City block distance.`'chebychev'`

— Chebychev distance, which is the maximum coordinate difference.`'minkowski'`

— Minkowski distance with exponent 2. This distance is the same as the Euclidean distance.`'mahalanobis'`

— Mahalanobis distance, computed using the positive definite covariance matrix`cov(X,'omitrows')`

.`'cosine'`

— One minus the cosine of the included angle between observations (treated as vectors).`'correlation'`

— One minus the sample linear correlation between observations (treated as sequences of values).`'spearman'`

— One minus the sample Spearman's rank correlation between observations (treated as sequences of values).`'hamming'`

— Hamming distance, which is the percentage of coordinates that differ.`'jaccard'`

— One minus the Jaccard coefficient, which is the percentage of nonzero coordinates that differ.Custom distance function — A distance function specified using

`@`

(for example,`@distfun`

). For details, see More About.

In all cases, `tsne`

uses squared pairwise
distances to calculate the Gaussian kernel in the joint distribution
of `X`

.

**Example: **`'mahalanobis'`

**Data Types: **`char`

| `string`

| `function_handle`

`Exaggeration`

— Size of natural clusters in data

`4`

(default) | scalar value `1`

or greater

Size of natural clusters in data, specified as a scalar value `1`

or
greater.

A large exaggeration makes `tsne`

learn larger
joint probabilities of `Y`

and creates relatively
more space between clusters in `Y`

. `tsne`

uses
exaggeration in the first 99 optimization iterations.

If the value of Kullback-Leibler divergence increases in the early stage of the optimization, try reducing the exaggeration. See tsne Settings.

**Example: **`10`

**Data Types: **`single`

| `double`

`NumDimensions`

— Dimension of the output `Y`

`2`

(default) | positive integer

Dimension of the output `Y`

, specified as
a positive integer. Generally, set `NumDimensions`

to `2`

or `3`

.

**Example: **`3`

**Data Types: **`single`

| `double`

`NumPCAComponents`

— PCA dimension reduction

`0`

(default) | nonnegative integer

PCA dimension reduction, specified as a nonnegative integer.
Before `tsne`

embeds the high-dimensional data,
it first reduces the dimensionality of the data to `NumPCAComponents`

using
the `pca`

function. When `NumPCAComponents`

is `0`

, `tsne`

does
not use PCA.

**Example: **`50`

**Data Types: **`single`

| `double`

`Perplexity`

— Effective number of local neighbors of each point

`30`

(default) | positive scalar

Effective number of local neighbors of each point, specified as a positive scalar. See t-SNE Algorithm.

Larger perplexity causes `tsne`

to use more
points as nearest neighbors. Use a larger value of `Perplexity`

for
a large dataset. Typical `Perplexity`

values are
from `5`

to `50`

. In the Barnes-Hut
algorithm, `tsne`

uses `min(3*Perplexity,N-1)`

as
the number of nearest neighbors. See tsne Settings.

**Example: **`10`

**Data Types: **`single`

| `double`

`Standardize`

— Flag to normalize input data

`false`

(default) | `true`

Flag to normalize input data, specified as
`false`

or
`true`

. When the value is
`true`

, `tsne`

centers and scales each column of
`X`

by first subtracting its
mean, and then dividing by its standard
deviation.

When features in `X`

are
on different scales, set
`'Standardize'`

to
`true`

. The learning process is
based on nearest neighbors, so features with large
scales can override the contribution of features
with small scales.

**Example: **`true`

**Data Types: **`logical`

**Optimization Control**

`InitialY`

— Initial embedded points

`1e-4*randn(N,NumDimensions)`

(default) | `n`

-by-`NumDimensions`

real
matrix

Initial embedded points, specified as an `n`

-by-`NumDimensions`

real
matrix, where `n`

is the number of rows of `X`

.
The `tsne`

optimization algorithm uses these points
as initial values.

**Data Types: **`single`

| `double`

`LearnRate`

— Learning rate for optimization process

`500`

(default) | positive scalar

Learning rate for optimization process, specified as a positive
scalar. Typically, set values from `100`

through `1000`

.

When `LearnRate`

is too small, `tsne`

can
converge to a poor local minimum. When `LearnRate`

is
too large, the optimization can initially have the Kullback-Leibler
divergence increase rather than decrease. See tsne Settings.

**Example: **`1000`

**Data Types: **`single`

| `double`

`NumPrint`

— Iterative display frequency

`20`

(default) | positive integer

Iterative display frequency, specified as a positive integer.
When the `Verbose`

name-value pair is not `0`

, `tsne`

returns
iterative display after every `NumPrint`

iterations.
If the `Options`

name-value pair contains a nonempty `'OutputFcn'`

entry,
then output functions run after every `NumPrint`

iterations.

**Example: **`20`

**Data Types: **`single`

| `double`

`Options`

— Optimization options

structure containing the fields
`'MaxIter'`

,
`'OutputFcn'`

, and
`'TolFun'`

Optimization options, specified as a structure containing the
fields `'MaxIter'`

, `'OutputFcn'`

,
and `'TolFun'`

. Create `'Options'`

using `statset`

or `struct`

.

`'MaxIter'`

— Positive integer specifying the maximum number of optimization iterations. Default:`1000`

.`'OutputFcn'`

— Function handle or cell array of function handles specifying one or more functions to call after every`NumPrint`

optimization iterations. For syntax details, see t-SNE Output Function. Default:`[]`

.`'TolFun'`

— Stopping criterion for the optimization. The optimization exits when the norm of the gradient of the Kullback-Leibler divergence is less than`'TolFun'`

. Default:`1e-10`

.

**Example: **`options = statset('MaxIter',500)`

**Data Types: **`struct`

`Theta`

— Barnes-Hut tradeoff parameter

`0.5`

(default) | scalar from 0 through 1

Barnes-Hut tradeoff parameter, specified as a scalar from 0
through 1. Higher values give a faster but less accurate optimization.
Applies only when `Algorithm`

is `'barneshut'`

.

**Example: **`0.1`

**Data Types: **`single`

| `double`

`Verbose`

— Iterative display

`0`

(default) | `1`

| `2`

Iterative display, specified as `0`

, `1`

,
or `2`

. When `Verbose`

is not `0`

, `tsne`

prints
a summary table of the Kullback-Leibler divergence and the norm of
its gradient every `NumPrint`

iterations.

When `Verbose`

is `2`

, `tsne`

also
prints the variances of Gaussian kernels. `tsne`

uses
these kernels in its computation of the joint probability of `X`

.
If you see a large difference in the scales of the minimum and maximum
variances, you can sometimes get more suitable results by rescaling `X`

.

**Example: **`2`

**Data Types: **`single`

| `double`

## Output Arguments

`Y`

— Embedded points

`n`

-by-`NumDimensions`

matrix

Embedded points, returned as an `n`

-by-`NumDimensions`

matrix.
Each row represents one embedded point. `n`

is the
number of rows of data `X`

that do not contain
any `NaN`

entries. See Plot Results with NaN Input Data.

`loss`

— Kullback-Leibler divergence

nonnegative scalar

Kullback-Leibler divergence between modeled input and output distributions, returned as a nonnegative scalar. For details, see t-SNE Algorithm.

## More About

### Custom Distance Function

The syntax of a custom distance function is as follows.

`function D2 = distfun(ZI,ZJ)`

`tsne`

passes `ZI`

and `ZJ`

to
your function, and your function computes the distance.

`ZI`

is a 1-by-*n*vector containing a single row from`X`

.`ZJ`

is an*m*-by-*n*matrix containing multiple rows of`X`

.

Your function returns `D2`

, which is an *m*-by-1
vector of distances. The *j*th element of `D2`

is
the distance between the observations `ZI`

and `ZJ(j,:)`

.

**Tip**

If your data are not sparse, then usually the built-in distance functions are faster than a function handle.

## Algorithms

`tsne`

constructs a set of embedded points
in a low-dimensional space whose relative similarities mimic those
of the original high-dimensional points. The embedded points show
the clustering in the original data.

Roughly, the algorithm models the original points as coming
from a Gaussian distribution, and the embedded points as coming from
a Student’s *t* distribution. The algorithm
tries to minimize the Kullback-Leibler divergence between these two
distributions by moving the embedded points.

For details, see t-SNE.

### Fast Euclidean Distance Algorithm

The values of the `Distance`

argument that begin `fast`

(such as `'fasteuclidean'`

and `'fastseuclidean'`

)
calculate Euclidean distances using an algorithm that uses extra memory to save
computational time. This algorithm is named "Euclidean Distance Matrix Trick" in Albanie
[1] and elsewhere. Internal
testing shows that this algorithm saves time when the number of predictors is at least 10.
Algorithms starting with `'fast'`

do not support sparse data.

To find the matrix D of distances between all the points
*x _{i}* and

*x*, where each

_{j}*x*has

_{i}*n*variables, the algorithm computes distance using the final line in the following equations:

$$\begin{array}{c}{D}_{i,j}^{2}=\Vert {x}_{i}-{x}_{j}{\Vert}^{2}\\ ={(}^{{x}_{i}}({x}_{i}-{x}_{j})\\ =\Vert {x}_{i}{\Vert}^{2}-2{x}_{i}^{T}{x}_{j}+\Vert {x}_{j}{\Vert}^{2}.\end{array}$$

The matrix $${x}_{i}^{T}{x}_{j}$$ in the last line of the equations is called the *Gram
matrix*. Computing the set of squared distances is faster, but slightly less
numerically stable, when you compute and use the Gram matrix instead of computing the
squared distances by squaring and summing. For a discussion, see Albanie [1].

To store the Gram matrix, the software uses a cache with the default size of
`1e3`

megabytes. You can set the cache size using the
`CacheSize`

name-value argument. If the value of
`CacheSize`

is too large or `"maximal"`

,
`tsne`

might try to allocate a Gram matrix that exceeds the
available memory. In this case, MATLAB issues an error.

## References

[1] Albanie, Samuel. *Euclidean Distance Matrix Trick.* June, 2019. Available at https://www.robots.ox.ac.uk/%7Ealbanie/notes/Euclidean_distance_trick.pdf.

## Version History

**Introduced in R2017a**

### R2023a: Fast Euclidean distance using a cache

The `'fasteuclidean'`

and
`'fastseuclidean'`

distance metrics accelerate the computation of
Euclidean distances by using a cache and a different algorithm (see Algorithms). Set
the size of the cache using the `CacheSize`

name-value argument.

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
