Examine Labeled Signal Set

Load into the MATLAB® Workspace the MAT-file you created in the Label Signal Attributes, Regions of Interest, and Points example. Verify that the labeled signal set contains the definitions that you added using Signal Labeler.

load Whale_Songs

labelDefinitionsSummary(whalesongs)

ans=3×9 table
      LabelName        LabelType     LabelDataType     Categories     ValidationFunction    DefaultValue             Sublabels             Tag            Description
    ______________    ___________    _____________    ____________    __________________    ____________    ___________________________    ___    ____________________________

    "WhaleType"       "attribute"    "categorical"    {3x1 string}       {["N/A"   ]}       {0x0 double}    {0x0 double               }    ""     "Whale type"
    "MoanRegions"     "roi"          "logical"        {["N/A"   ]}       {0x0 double}       {0x0 double}    {0x0 double               }    ""     "Regions where moans occur"
    "TrillRegions"    "roi"          "logical"        {["N/A"   ]}       {0x0 double}       {0x0 double}    {1x1 signalLabelDefinition}    ""     "Regions where trills occur"

Verify that TrillPeaks is a sublabel of TrillRegions.

labelDefinitionsHierarchy(whalesongs)

ans =
    'WhaleType
       Sublabels: []
     MoanRegions
       Sublabels: []
     TrillRegions
       Sublabels: TrillPeaks
     '

Retrieve the second member of the set. Retrieve the names of the timetable variables.

song = getSignal(whalesongs,2);

summary(song)

RowTimes:

    Time: 76579x1 duration
        Values:
            Min           0 sec
            Median        9.5722 sec
            Max           19.144 sec
            TimeStep      0.00025 sec

Variables:

    whale2: 76579x1 double

        Values:

            Min       -0.37326
            Median           0
            Max        0.37914

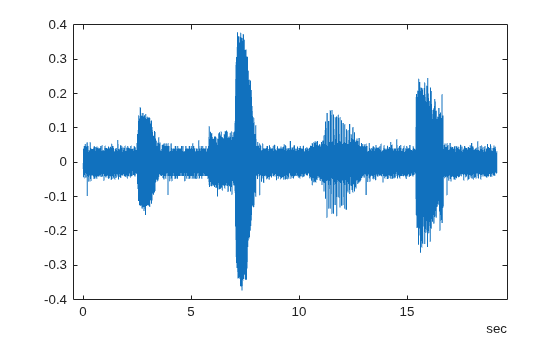

Plot the signal.

t = song.Time;
sng = song.whale2;

plot(t,sng)

Visualize Labeled Regions

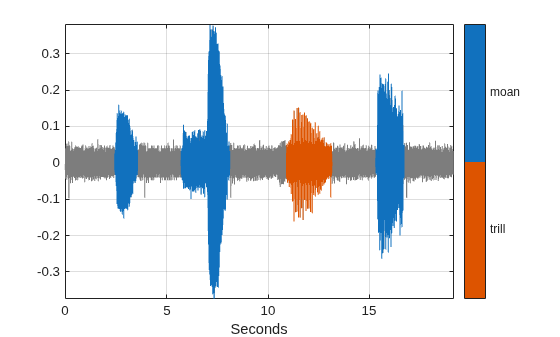

Use a signalMask object to display and identify the regions of interest that you labeled. For better display, change the label values from logical to categorical.

mvals = getLabelValues(whalesongs,2,'MoanRegions');
mvals.Value = categorical(repmat("moan",size(mvals,1),1));

tvals = getLabelValues(whalesongs,2,'TrillRegions');
tvals.Value = categorical(repmat("trill",size(tvals,1),1));

msk = signalMask([mvals;tvals],'SampleRate',1/seconds(t(2)-t(1)));

plotsigroi(msk,sng)

Visualize Labeled Points

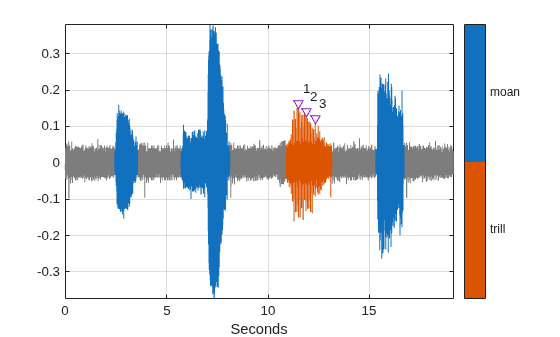

Display and identify the trill peaks that you labeled.

pk = getLabelValues(whalesongs,2,{'TrillRegions','TrillPeaks'});

locs  = zeros(size(pk,1),1);
for kj = 1:length(locs)
    locs(kj) = find(seconds(t) == pk.Location(kj));
end

hold on
plot(seconds(t(locs)),sng(locs)+0.01,'v')
text(seconds(t(locs))+0.2,sng(locs)+0.05,int2str(cell2mat(pk.Value)))
hold off
