Visualize and compare multiple signals and spectra
The Signal Analyzer app is an interactive tool for visualizing, preprocessing, measuring, analyzing, and comparing signals in the time domain, in the frequency domain, and in the time-frequency domain. Using the app, you can:
Easily access all the signals in the MATLAB® workspace

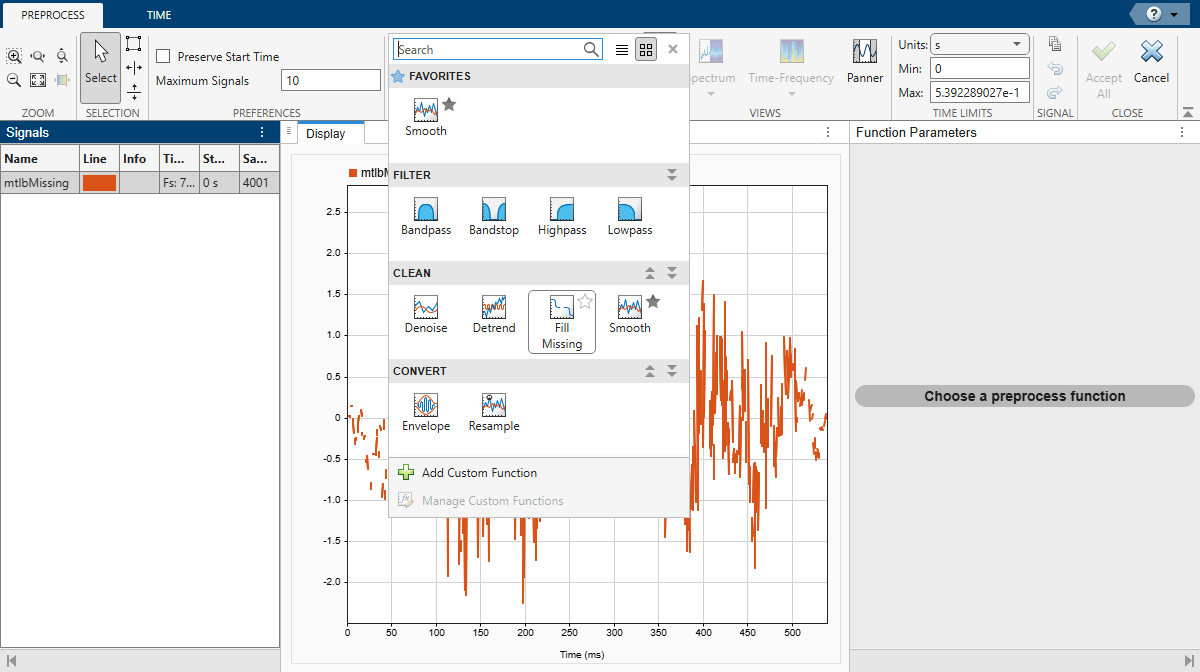

Smooth, filter, resample, detrend, denoise, duplicate, extract, rename, and edit signals without leaving the app
Add and apply custom preprocessing functions

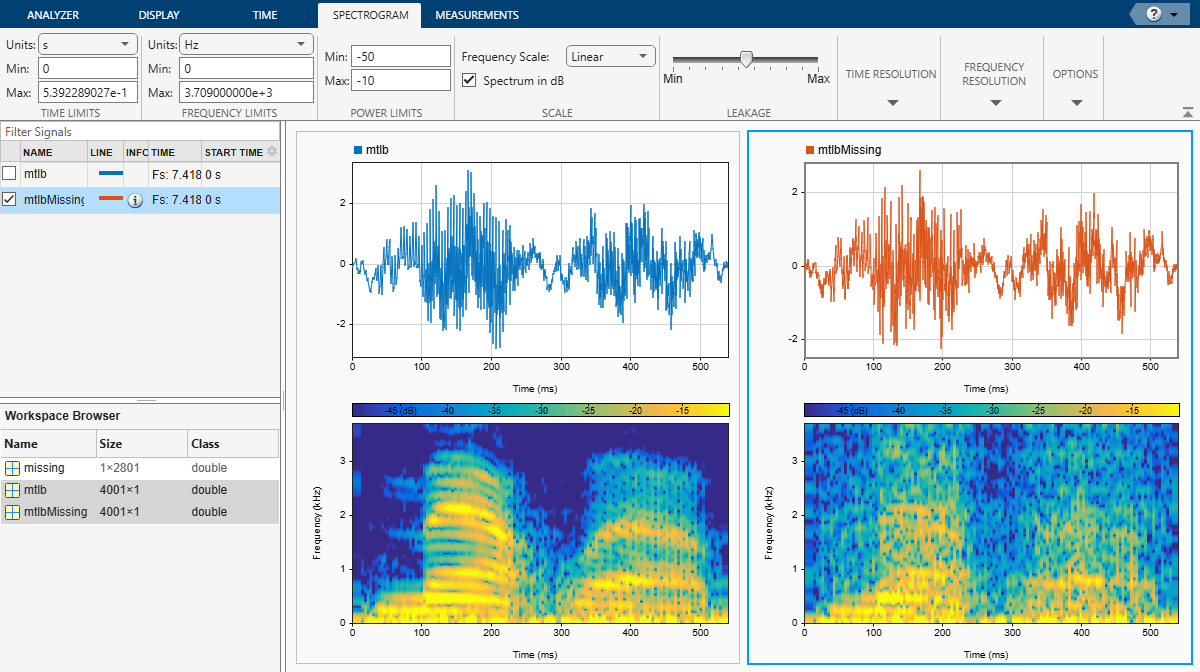

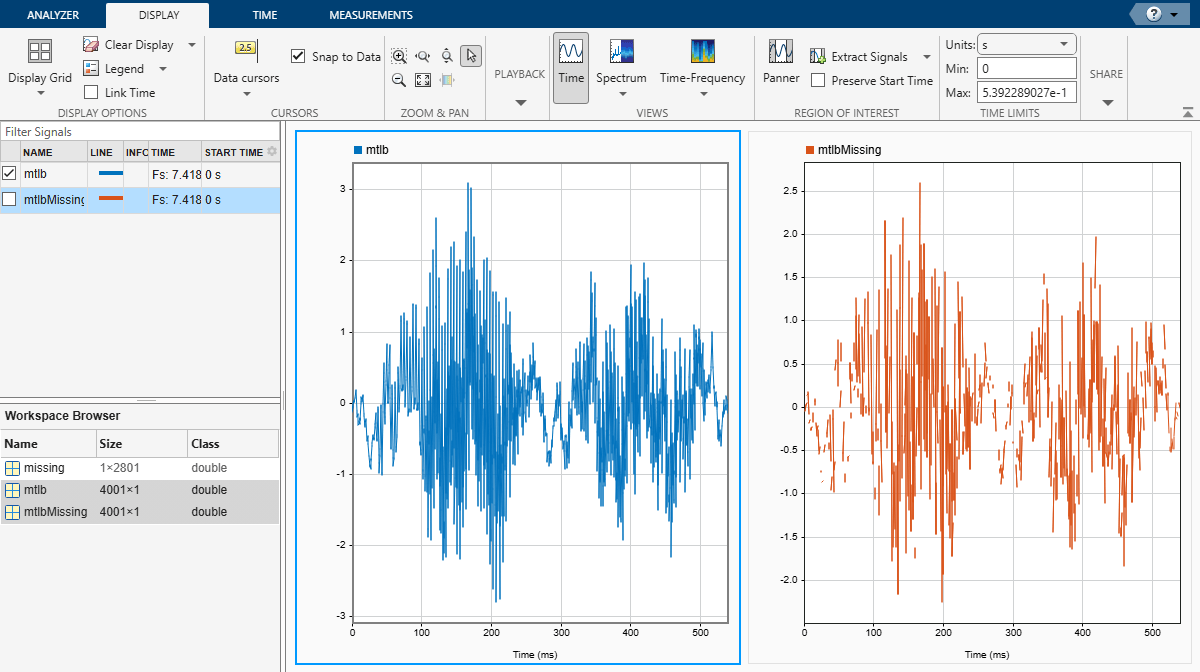

Visualize and compare multiple waveform, spectrum, persistence, spectrogram, and scalogram representations of signals simultaneously
Measure data and signal statistics

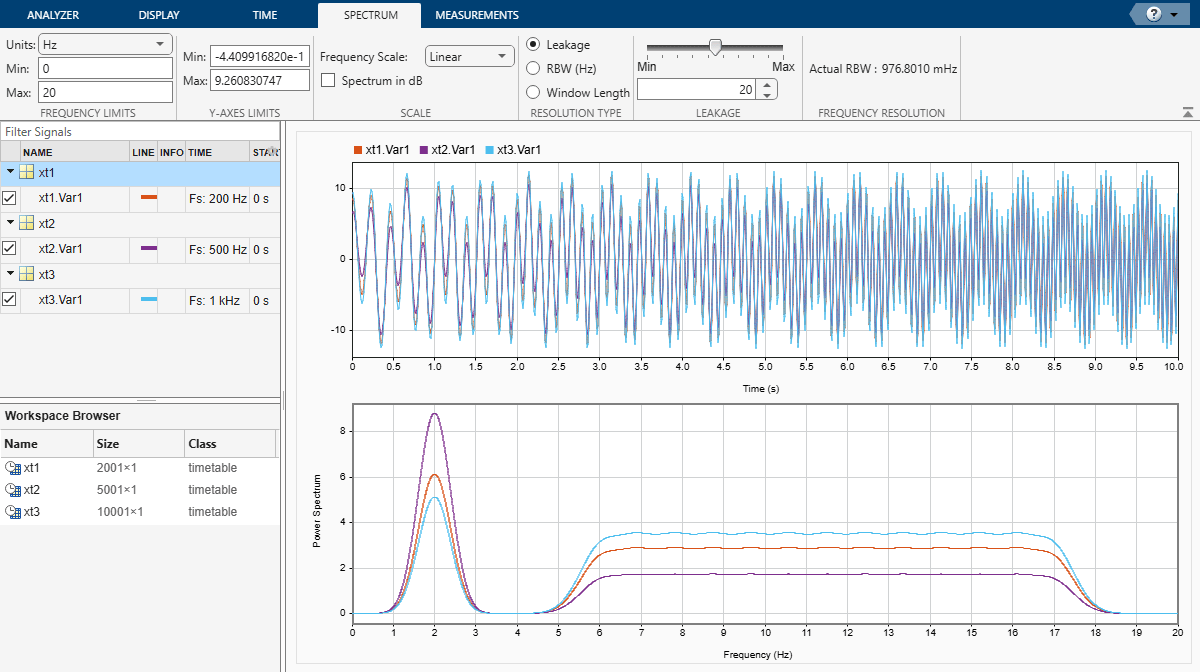

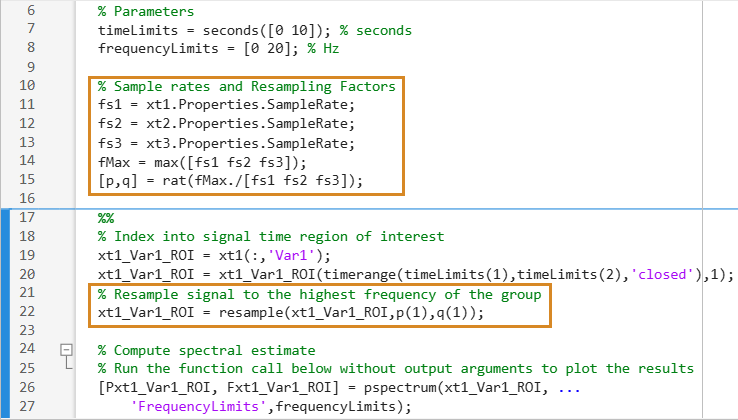

The Signal Analyzer app provides a way to work with many signals of varying durations at the same time and in the same view.
For more information, see Using Signal Analyzer App.
You need a Wavelet Toolbox™ license to use the scalogram view and to apply wavelet denoising to signals.
Open the Signal Analyzer App
MATLAB Toolstrip: On the Apps tab, under Signal Processing and Communications, click the app icon.
MATLAB command prompt: Enter
Resolve Tones by Varying Window Leakage
You can adjust the spectral leakage of the analysis window to resolve sinusoids in Signal Analyzer.
Generate a two-channel signal sampled at 100 Hz for 2 seconds.
The first channel consists of a 20 Hz tone and a 21 Hz tone. Both tones have unit amplitude.
The second channel also has two tones. One tone has unit amplitude and a frequency of 20 Hz. The other tone has an amplitude of 1/100 and a frequency of 30 Hz.
fs = 100; t = (0:1/fs:2-1/fs)'; x = sin(2*pi*[20 20].*t)+[1 1/100].*sin(2*pi*[21 30].*t);
Embed the signal in white noise. Specify a signal-to-noise ratio of 40 dB.
x = x + randn(size(x)).*std(x)/db2mag(40);

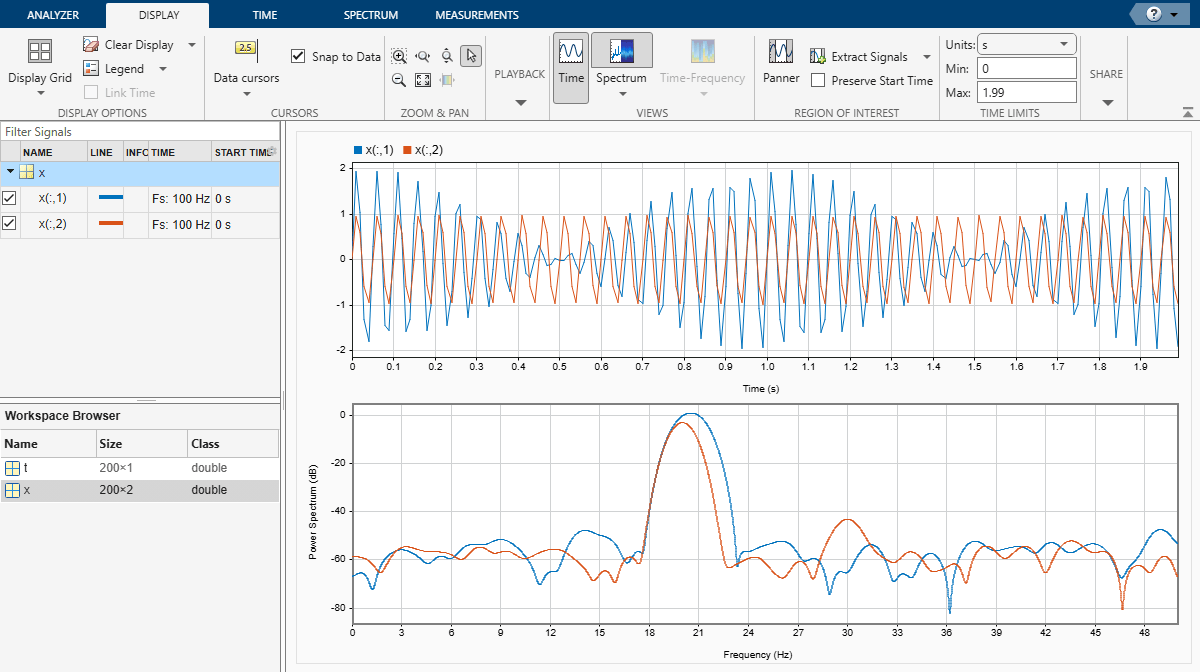

Open Signal Analyzer and plot the signal. On the Analyzer tab, with the signal selected in the Signal table, click Time Values and select
Sample Rate and Start Time. Specify Sample Rate as
fs Hz and Start Time as
0 s. On the Display tab, click Spectrum to add a spectral plot to the display.

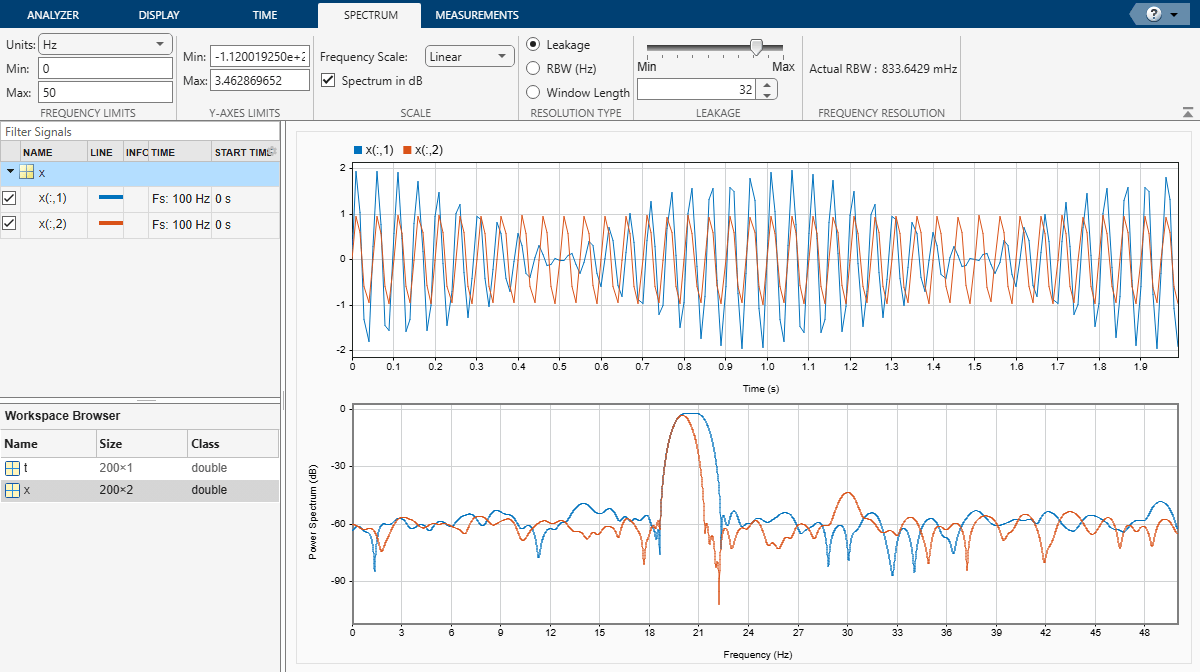

Click the Spectrum tab. The slider that controls the spectral leakage is in the middle position, corresponding to a resolution bandwidth of about 1.28 Hz. The two tones in the first channel are not resolved. The 30 Hz tone in the second channel is visible, despite being much weaker than the other one.
Increase the leakage so that the resolution bandwidth is approximately 0.83 Hz. The weak tone in the second channel is clearly resolved.
Move the slider to the maximum value. The resolution bandwidth is approximately 0.5 Hz. The two tones in the first channel are resolved. The weak tone in the second channel is masked by the large window sidelobes.

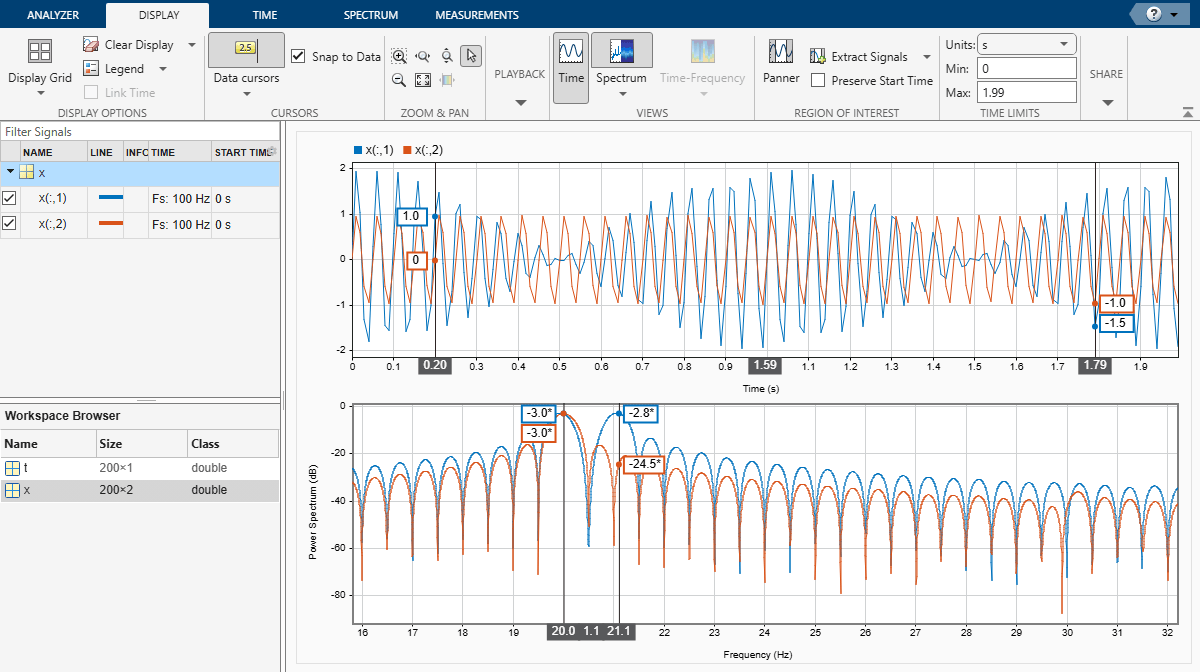

Click the Display tab. Use the horizontal zoom to magnify the frequency axis. Add two cursors to the display and drag the frequency-domain cursors to estimate the frequencies of the tones.
Compute Signal Spectrum Using Different Windows
Read an audio recording of an electronic toothbrush into MATLAB®. The signal is sampled at 48 kHz. The toothbrush turns on at about 1.75 seconds and stays on for approximately 2 seconds.
[y,fs] = audioread("toothbrush.m4a");
Open Signal Analyzer and drag the signal from the Workspace Browser to the Signal table. Add time information to the signal by selecting it in the Signal table and clicking Time Values on the Analyzer tab. Select
Sample Rate and Start Time and enter
fs for the sample rate.

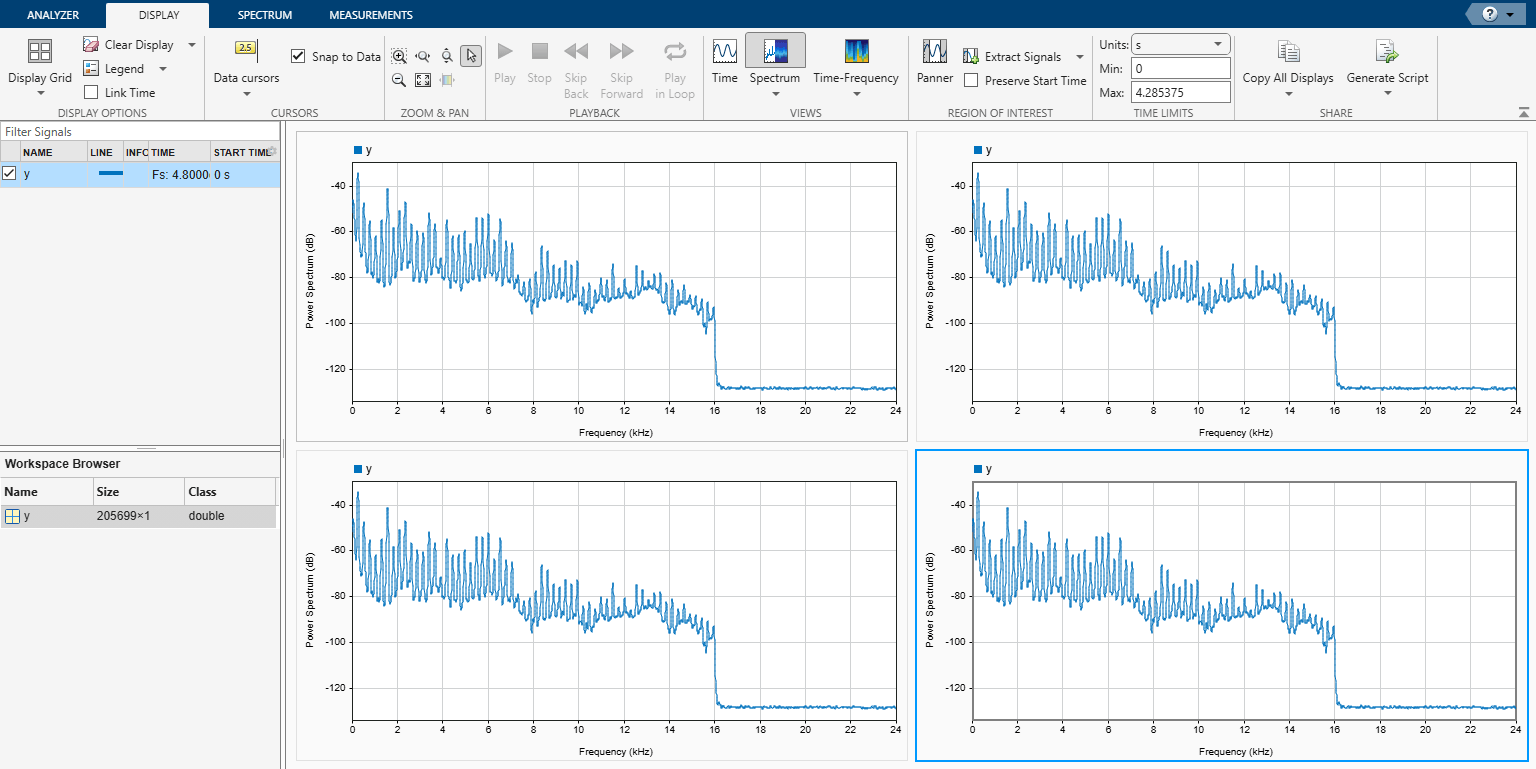

On the Display tab, click Display Grid to create a two-by-two grid of displays. Select each display, click Spectrum to add a spectrum view, and click Time to remove the time view. Drag the signal to all four displays.

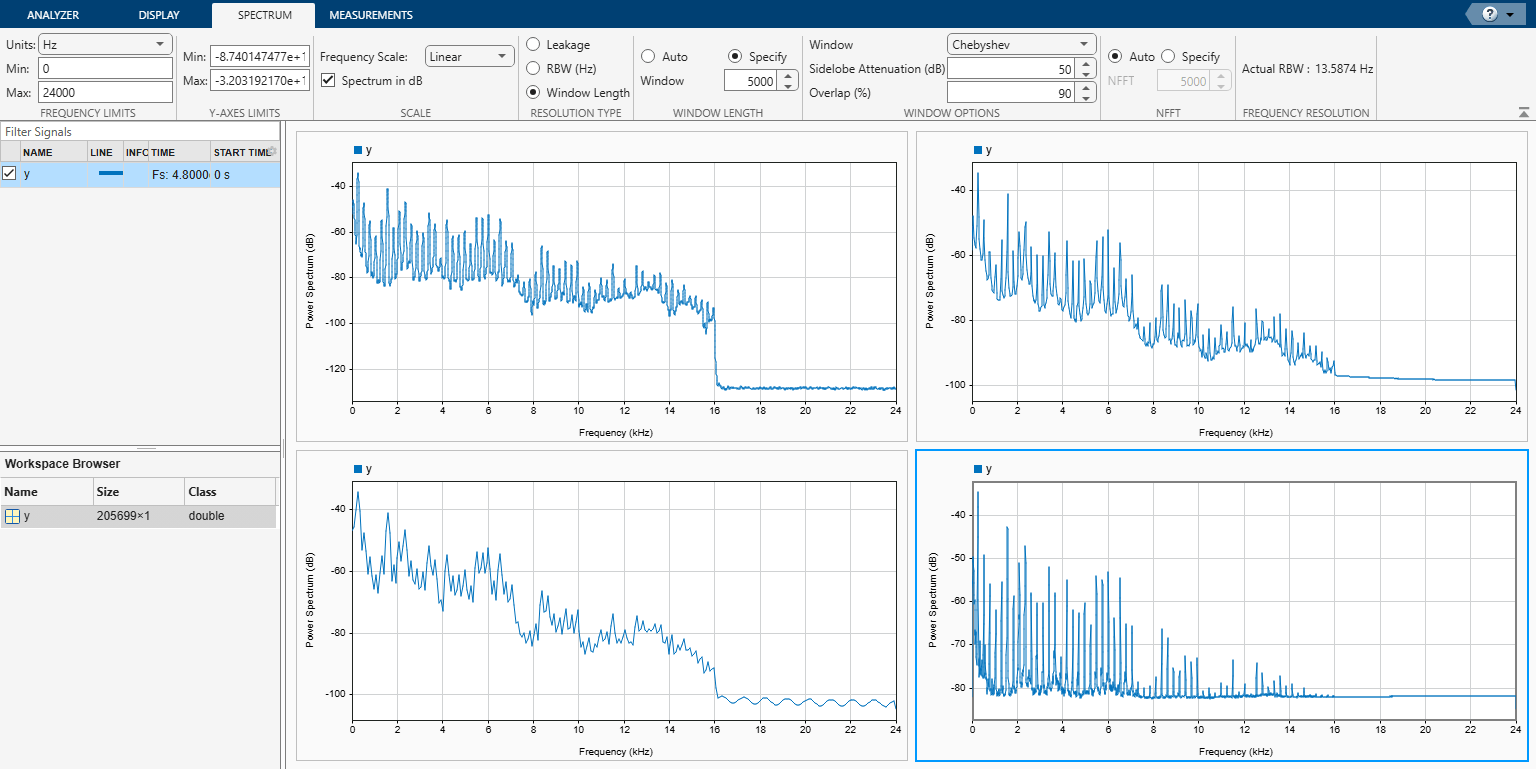

Click the Spectrum tab to modify the spectrum view in each display.
Click the top left display to select it. Move the Leakage slider until you get a leakage value of 32.
Click the top right display to select it. On the Resolution Type section, select Window Length. On the Window Length section, select Specify and specify a window length of 1500 samples. On the Window Options section, choose a
Rectangularwindow and specify an overlap percentage of 20.
Click the bottom left display to select it. On the Resolution Type section, select Window Length. On the Window Length section, select Specify and specify a window length of 500 samples. On the Window Options section, choose a
Hammingwindow and specify an overlap percentage of 50. On the NFFT section, specify 550 discrete Fourier transform points.
Click the bottom right display to select it. On the Resolution Type section, select Window Length. On the Window Length section, select Specify and specify a window length of 5000 samples. On the Window Options section, choose a
Chebyshevwindow and specify a sidelobe attenuation of 50 dB and an overlap percentage of 90.
You can see that some views show higher resolution but higher leakage, while other views have lower leakage but at the expense of resolution.
- Extract Voices from Music Signal
- Modulation and Demodulation Using Complex Envelope
- Find and Track Ridges Using Reassigned Spectrogram
- Declip Saturated Signals Using Your Own Function
- Compute Envelope Spectrum of Vibration Signal
- Find Delay Between Correlated Signals
- Find Interference Using Persistence Spectrum
- Denoise Noisy Doppler Signal
- Resample and Filter a Nonuniformly Sampled Signal
- Extract Regions of Interest from Whale Song
signalAnalyzer opens the Signal Analyzer
signalAnalyzer( opens the
Signal Analyzer app and imports and plots the signal
sig. If the app is already open, then it plots
sig in the current display. If
already plotted but has changed, then the function call updates the plot.
sig can be a variable in the workspace or a MATLAB expression.
sig can be:
See Data Types Supported by Signal Analyzer for more details.
By default, the app plots the signal as a function of sample index. If you provide time information, or if the signal has inherent time information, then the app plots the signal as a function of time.
N signal vectors or matrices and plots them in the current
display. The app does not support importing signals with inherent time information
and signals without inherent time information in the same function call.
specifies a sample rate,
fs, as a positive scalar expressed in
Hz. The app uses the sample rate to plot one or more signals against time, assuming
a start time of zero. You can specify a sample rate for signals with no inherent
specifies a sample time,
ts, as a positive scalar expressed in
seconds. The app uses the sample time to plot one or more signals against time,
assuming a start time of zero. You can specify a sample time for signals with no
inherent time information.
specifies a signal start time,
st, as a scalar expressed in
seconds. If you do not specify a sample rate or sample time, then the app assumes a
sample rate of 1 Hz. You can specify a start time for signals with no inherent
specifies a vector,
tv, with time values corresponding to the
tv can be a real numeric vector with values
expressed in seconds.
tv can also be a
duration array. The values in
tv must be unique and cannot be
they need not be uniformly spaced. All input signals must have the same length as
tv. You can specify a vector of time values for signals
with no inherent time information.
Filtering and scalogram view do not support nonuniformly sampled signals.
Version HistoryIntroduced in R2016a
R2023b: Compute and compare more types of spectra
Enjoy more flexibility when computing spectra in Signal Analyzer. Control the window length, the number of discrete Fourier transform points, and the resolution bandwidth.
R2023a: Find and annotate signal peaks
Perform peak measurements for time-domain signals. View signal peak values in the Measurements table and as annotated markers on the display.
R2020a: Label button removed from Signal Analyzer
Signal Analyzer no longer opens Signal Labeler, which is now available as an app. If you want to label signals, open Signal Labeler from the MATLAB Toolstrip or the Command Window.
