# interp

Interpolation — increase sample rate by integer factor

## Syntax

``y = interp(x,r)``
``y = interp(x,r,n,cutoff)``
``[y,b] = interp(x,r,n,cutoff)``

## Description

example

````y = interp(x,r)` increases the sample rate of `x`, the input signal, by a factor of `r`.```
````y = interp(x,r,n,cutoff)` specifies two additional values: `n` is half the number of original sample values used to interpolate the expanded signal.`cutoff` is the normalized cutoff frequency of the input signal, specified as a fraction of the Nyquist frequency. ```
````[y,b] = interp(x,r,n,cutoff)` also returns a vector, `b`, with the filter coefficients used for the interpolation.```

## Examples

collapse all

Create a sinusoidal signal sampled at 1 kHz. Interpolate it by a factor of four.

```t = 0:1/1e3:1; x = sin(2*pi*30*t) + sin(2*pi*60*t); y = interp(x,4);```

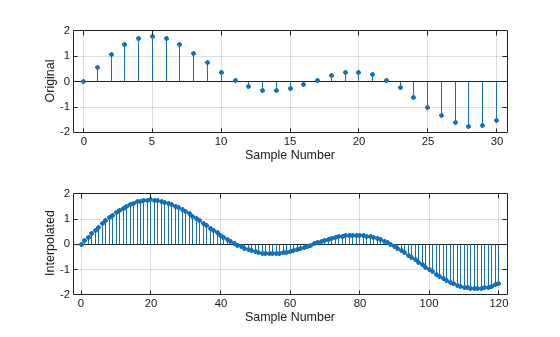

Plot the original and interpolated signals.

```subplot(2,1,1) stem(0:30,x(1:31),'filled','MarkerSize',3) grid on xlabel('Sample Number') ylabel('Original') subplot(2,1,2) stem(0:120,y(1:121),'filled','MarkerSize',3) grid on xlabel('Sample Number') ylabel('Interpolated')```

## Input Arguments

collapse all

Input signal, specified as a vector.

Data Types: `double` | `single`

Interpolation factor, specified as a positive integer.

Data Types: `double` | `single`

Half the number of input samples used for interpolation, specified as a positive integer. For best results, use `n` no larger than 10. The lowpass interpolation filter has length 2 × `n` × `r` + 1.

Data Types: `double` | `single`

Normalized cutoff frequency of the input signal, specified as a positive real scalar not greater than 1 that represents a fraction of the Nyquist frequency. A value of 1 means that the signal occupies the full Nyquist interval.

Data Types: `double` | `single`

## Output Arguments

collapse all

Interpolated signal, returned as a vector. `y` is `r` times as long as the original input, `x`.

Data Types: `double` | `single`

Lowpass interpolation filter coefficients, returned as a column vector.

Data Types: `double` | `single`

## Algorithms

Interpolation increases the original sample rate of a sequence to a higher rate. It is the opposite of decimation. `interp` inserts zeros into the original signal and then applies a lowpass interpolating filter to the expanded sequence. The function uses the lowpass interpolation algorithm 8.1 described in [1]:

1. Expand the input vector to the correct length by inserting 0s between the original data values.

2. Design a special symmetric FIR filter that allows the original data to pass through unchanged and interpolates to minimize the mean-square error between the interpolated points and their ideal values. The filter used by `interp` is the same as the filter returned by `intfilt`.

3. Apply the filter to the expanded input vector to produce the output.

## References

[1] Digital Signal Processing Committee of the IEEE Acoustics, Speech, and Signal Processing Society, eds. Programs for Digital Signal Processing. New York: IEEE Press, 1979.

[2] Oetken, G., Thomas W. Parks, and H. W. Schüssler. “New results in the design of digital interpolators.” IEEE® Transactions on Acoustics, Speech, and Signal Processing. Vol. ASSP-23, No. 3, June 1975, pp. 301–309.

## Version History

Introduced before R2006a
