interp1

1-D data interpolation (table lookup)

Syntax

vq = interp1(x,v,xq)

vq = interp1(x,v,xq,method)

vq = interp1(x,v,xq,method,extrapolation)

vq = interp1(v,xq)

vq = interp1(v,xq,method)

vq = interp1(v,xq,method,extrapolation)

pp = interp1(x,v,method,'pp')

Description

vq = interp1(x,v,xq) returns interpolated values of a 1-D function at specific query points. By default, interp1 uses linear interpolation. Vector x contains the sample points, and v contains the corresponding values, v(x). Vector xq contains the coordinates of the query points.

If you have multiple sets of data that are sampled at the same point coordinates, then you can pass v as an array. Each column of array v contains a different set of 1-D sample values.

vq = interp1(x,v,xq,method) specifies an alternative interpolation method: 'linear', 'nearest', 'next', 'previous', 'pchip', 'cubic', 'v5cubic', 'makima', or 'spline'. The default method is 'linear'.

vq = interp1(x,v,xq,method,extrapolation) specifies a strategy for evaluating points that lie outside the domain of x. Set extrapolation to 'extrap' when you want to use the method algorithm for extrapolation. Alternatively, you can specify a scalar value, in which case, interp1 returns that value for all points outside the domain of x.

vq = interp1(v,xq) returns interpolated values and assumes a default set of sample point coordinates. The default points are the sequence of numbers from 1 to n, where n depends on the shape of v:

• When v is a vector, the default points are 1:length(v).

• When v is an array, the default points are 1:size(v,1).

Use this syntax when you are not concerned about the absolute distances between points.

vq = interp1(v,xq,method) specifies any of the alternative interpolation methods and uses the default sample points.

vq = interp1(v,xq,method,extrapolation) specifies an extrapolation strategy and uses the default sample points.

pp = interp1(x,v,method,'pp') returns the piecewise polynomial form of v(x) using the method algorithm.

Note

This syntax is not recommended. Use griddedInterpolant instead.

Examples

Interpolation of Coarsely Sampled Sine Function

Define the sample points, x, and corresponding sample values, v.

x = 0:pi/4:2*pi;
v = sin(x);

Define the query points to be a finer sampling over the range of x.

xq = 0:pi/16:2*pi;

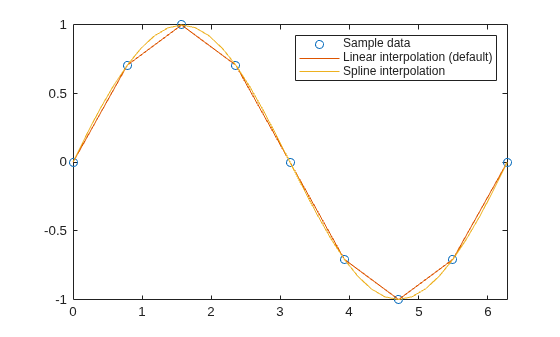

Interpolate the function at the query points and plot the result.

figure
vq1 = interp1(x,v,xq);
plot(x,v,'o',xq,vq1,':.');
xlim([0 2*pi]);
title('(Default) Linear Interpolation');

Now evaluate v at the same points using the 'spline' method.

figure
vq2 = interp1(x,v,xq,'spline');
plot(x,v,'o',xq,vq2,':.');
xlim([0 2*pi]);
title('Spline Interpolation');

Interpolation Without Specifying Points

Define a set of function values.

v = [0  1.41  2  1.41  0  -1.41  -2  -1.41 0];

Define a set of query points that fall between the default points, 1:9. In this case, the default points are 1:9 because v contains 9 values.

xq = 1.5:8.5;

Evaluate v at xq.

vq = interp1(v,xq);

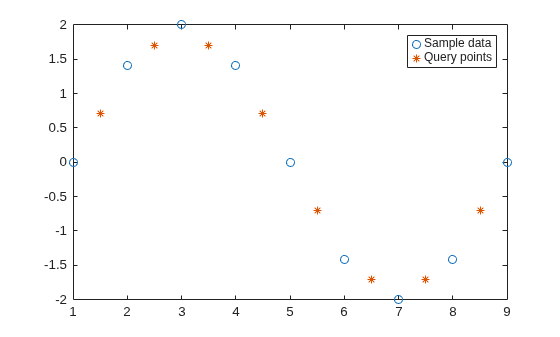

Plot the result.

figure
plot((1:9),v,'o',xq,vq,'*');
legend('v','vq');

Interpolation of Complex Values

Define a set of sample points.

x = 1:10;

Define the values of the function, $$v(x)=5x+x^{2}i$$, at the sample points.

v = (5*x)+(x.^2*1i);

Define the query points to be a finer sampling over the range of x.

xq = 1:0.25:10;

Interpolate v at the query points.

vq = interp1(x,v,xq);

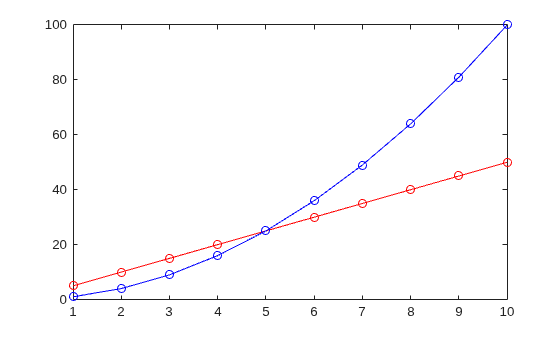

Plot the real part of the result in red and the imaginary part in blue.

figure
plot(x,real(v),'*r',xq,real(vq),'-r');
hold on
plot(x,imag(v),'*b',xq,imag(vq),'-b');

Interpolation of Dates and Times

Interpolate time-stamped data points.

Consider a data set containing temperature readings that are measured every four hours. Create a table with one day's worth of data and plot the data.

x = (datetime(2016,1,1):hours(4):datetime(2016,1,2))';
x.Format = 'MMM dd, HH:mm';
T = [31 25 24 41 43 33 31]';
WeatherData = table(x,T,'VariableNames',{'Time','Temperature'})

WeatherData=7×2 table
        Time         Temperature
    _____________    ___________

    Jan 01, 00:00        31
    Jan 01, 04:00        25
    Jan 01, 08:00        24
    Jan 01, 12:00        41
    Jan 01, 16:00        43
    Jan 01, 20:00        33
    Jan 02, 00:00        31

plot(WeatherData.Time, WeatherData.Temperature, 'o')

Interpolate the data set to predict the temperature reading during each minute of the day. Since the data is periodic, use the 'spline' interpolation method.

xq = (datetime(2016,1,1):minutes(1):datetime(2016,1,2))';
V = interp1(WeatherData.Time, WeatherData.Temperature, xq, 'spline');

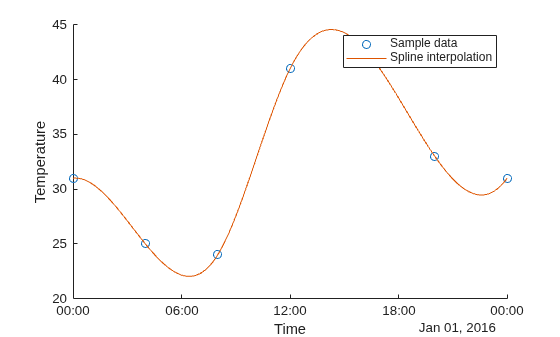

Plot the interpolated points.

hold on
plot(xq,V,'r')

Extrapolation Using Two Different Methods

Define the sample points, x, and corresponding sample values, v.

x = [1 2 3 4 5];
v = [12 16 31 10 6];

Specify the query points, xq, that extend beyond the domain of x.

xq = [0 0.5 1.5 5.5 6];

Evaluate v at xq using the 'pchip' method.

vq1 = interp1(x,v,xq,'pchip')

vq1 = 1×5

   19.3684   13.6316   13.2105    7.4800   12.5600

Next, evaluate v at xq using the 'linear' method.

vq2 = interp1(x,v,xq,'linear')

vq2 = 1×5

   NaN   NaN    14   NaN   NaN

Now, use the 'linear' method with the 'extrap' option.

vq3 = interp1(x,v,xq,'linear','extrap')

vq3 = 1×5

     8    10    14     4     2

'pchip' extrapolates by default, but 'linear' does not.

Designate Constant Value for All Queries Outside the Domain of x

Define the sample points, x, and corresponding sample values, v.

x = [-3 -2 -1 0 1 2 3];
v = 3*x.^2;

Specify the query points, xq, that extend beyond the domain of x.

xq = [-4 -2.5 -0.5 0.5 2.5 4];

Now evaluate v at xq using the 'pchip' method and assign any values outside the domain of x to the value, 27.

vq = interp1(x,v,xq,'pchip',27)

vq = 1×6

   27.0000   18.6562    0.9375    0.9375   18.6562   27.0000

Interpolate Multiple Sets of Data in One Pass

Define the sample points.

x = (-5:5)';

Sample three different parabolic functions at the points defined in x.

v1 = x.^2;
v2 = 2*x.^2 + 2;
v3 = 3*x.^2 + 4;

Create matrix v, whose columns are the vectors, v1, v2, and v3.

v = [v1 v2 v3];

Define a set of query points, xq, to be a finer sampling over the range of x.

xq = -5:0.1:5;

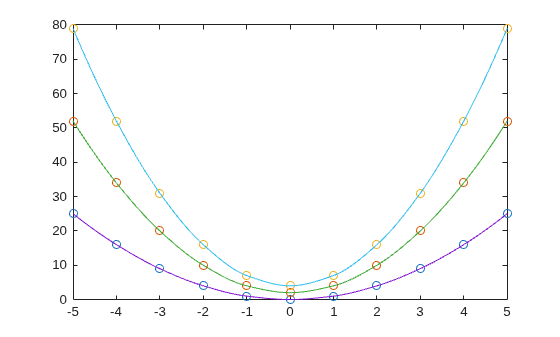

Evaluate all three functions at xq and plot the results.

vq = interp1(x,v,xq,'pchip');
figure
plot(x,v,'o',xq,vq);

h = gca;
h.XTick = -5:5;

The circles in the plot represent v, and the solid lines represent vq.

Input Arguments

x — Sample points

vector

Sample points, specified as a row or column vector of real numbers. The values in x must be distinct. The length of x must conform to one of the following requirements:

• If v is a vector, then length(x) must equal length(v).

• If v is an array, then length(x) must equal size(v,1).

Example: [1 2 3 4 5 6 7 8 9 10]

Example: 1:10

Example: [3 7 11 15 19 23 27 31]'

Data Types: single | double | duration | datetime

v — Sample values

vector | matrix | array

Sample values, specified as a vector, matrix, or array of real or complex numbers. If v is a matrix or an array, then each column contains a separate set of 1-D values.

If v contains complex numbers, then interp1 interpolates the real and imaginary parts separately.

Example: rand(1,10)

Example: rand(10,1)

Example: rand(10,3)

Data Types: single | double | duration | datetime
Complex Number Support: Yes

xq — Query points

scalar | vector | matrix | array

Query points, specified as a scalar, vector, matrix, or array of real numbers.

Example: 5

Example: 1:0.05:10

Example: (1:0.05:10)'

Example: [0 1 2 7.5 10]

Data Types: single | double | duration | datetime

method — Interpolation method

'linear' (default) | 'nearest' | 'next' | 'previous' | 'pchip' | 'cubic' | 'v5cubic' | 'makima' | 'spline'

Interpolation method, specified as one of the options in this table.

Method	Description	Continuity	Comments
'linear'	Linear interpolation. The interpolated value at a query point is based on linear interpolation of the values at neighboring grid points in each respective dimension. This is the default interpolation method.	C0	Requires at least 2 points Requires more memory and computation time than nearest neighbor
'nearest'	Nearest neighbor interpolation. The interpolated value at a query point is the value at the nearest sample grid point.	Discontinuous	Requires at least 2 points Modest memory requirements Fastest computation time
'next'	Next neighbor interpolation. The interpolated value at a query point is the value at the next sample grid point.	Discontinuous	Requires at least 2 points Same memory requirements and computation time as 'nearest'
'previous'	Previous neighbor interpolation. The interpolated value at a query point is the value at the previous sample grid point.	Discontinuous	Requires at least 2 points Same memory requirements and computation time as 'nearest'
'pchip'	Shape-preserving piecewise cubic interpolation. The interpolated value at a query point is based on a shape-preserving piecewise cubic interpolation of the values at neighboring grid points.	C1	Requires at least 4 points Requires more memory and computation time than 'linear'
'cubic'	Cubic convolution used in MATLAB® 5.	C1	Requires at least 3 points Points must be uniformly spaced This method falls back to 'spline' interpolation for irregularly-spaced data Similar memory requirements and computation time as 'pchip'
'v5cubic'	Same as 'cubic'.	C1
'makima'	Modified Akima cubic Hermite interpolation. The interpolated value at a query point is based on a piecewise function of polynomials with degree at most three. The Akima formula is modified to avoid overshoots.	C1	Requires at least 2 points Produces fewer undulations than 'spline', but does not flatten as aggressively as 'pchip' Computation is more expensive than 'pchip', but typically less than 'spline' Memory requirements are similar to those of 'spline'
'spline'	Spline interpolation using not-a-knot end conditions. The interpolated value at a query point is based on a cubic interpolation of the values at neighboring grid points in each respective dimension.	C2	Requires at least 4 points, falling back to linear or quadratic interpolation if 2 or 3 points are supplied, respectively Requires more memory and computation time than 'pchip'

extrapolation — Extrapolation strategy

'extrap' | scalar value

Extrapolation strategy, specified as 'extrap' or a real scalar value.

• Specify 'extrap' when you want interp1 to evaluate points outside the domain using the same method it uses for interpolation.

• Specify a scalar value when you want interp1 to return a specific constant value for points outside the domain.

The default behavior depends on the input arguments:

• If you specify the 'pchip', 'spline', or 'makima' interpolation methods, then the default behavior is 'extrap'.

• All other interpolation methods return NaN by default for query points outside the domain.

Example: 'extrap'

Example: 5

Data Types: char | string | single | double

Output Arguments

vq — Interpolated values

scalar | vector | matrix | array

Interpolated values, returned as a scalar, vector, matrix, or array. The size of vq depends on the shape of v and xq.

Shape of v	Shape of xq	Size of Vq	Example
Vector	Vector	size(xq)	If size(v) = [1 100] and size(xq) = [1 500], then size(vq) = [1 500].
Vector	Matrix or N-D Array	size(xq)	If size(v) = [1 100] and size(xq) = [50 30], then size(vq) = [50 30].
Matrix or N-D Array	Vector	[length(xq) size(v,2),...,size(v,n)]	If size(v) = [100 3] and size(xq) = [1 500], then size(vq) = [500 3].
Matrix or N-D Array	Matrix or N-D Array	[size(xq,1),...,size(xq,n),... size(v,2),...,size(v,m)]	If size(v) = [4 5 6] and size(xq) = [2 3 7], then size(vq) = [2 3 7 5 6].

pp — Piecewise polynomial

structure

Piecewise polynomial, returned as a structure that you can pass to the ppval function for evaluation.

More About

Akima and Spline Interpolation

The Akima algorithm for one-dimensional interpolation, described in [1] and [2], performs cubic interpolation to produce piecewise polynomials with continuous first-order derivatives (C1). The algorithm preserves the slope and avoids undulations in flat regions. A flat region occurs whenever there are three or more consecutive collinear points, which the algorithm connects with a straight line. To ensure that the region between two data points is flat, insert an additional data point between those two points.

When two flat regions with different slopes meet, the modification made to the original Akima algorithm gives more weight to the side where the slope is closer to zero. This modification gives priority to the side that is closer to horizontal, which is more intuitive and avoids the overshoot. (The original Akima algorithm gives equal weights to the points on both sides, thus evenly dividing the undulation.)

The spline algorithm, on the other hand, performs cubic interpolation to produce piecewise polynomials with continuous second-order derivatives (C2). The result is comparable to a regular polynomial interpolation, but is less susceptible to heavy oscillation between data points for high degrees. Still, this method can be susceptible to overshoots and oscillations between data points.

Compared to the spline algorithm, the Akima algorithm produces fewer undulations and is better suited to deal with quick changes between flat regions. This difference is illustrated below using test data that connects multiple flat regions.

References

[1] Akima, Hiroshi. "A new method of interpolation and smooth curve fitting based on local procedures." Journal of the ACM (JACM) , 17.4, 1970, pp. 589-602.

[2] Akima, Hiroshi. "A method of bivariate interpolation and smooth surface fitting based on local procedures." Communications of the ACM , 17.1, 1974, pp. 18-20.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• The input argument x (sample points) must be strictly increasing or strictly decreasing. Indices are not reordered.

• If the input argument v (sample values) is a variable-length vector (1-by-: or :-by-1), then the shape of the output vq matches the shape in MATLAB.

  If the input argument v is variable-size, is not a variable-length vector, and becomes a row vector at run time, then an error occurs.

• If the sample values or query points contain Inf or -Inf, the output of the generated code might not match the output in MATLAB.

• If the input argument xq (query points) is variable-size, is not a variable-length vector, and becomes a row or column vector at run time, then an error occurs.

• See Variable-Sizing Restrictions for Code Generation of Toolbox Functions (MATLAB Coder).

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• The input argument x (sample points) must be strictly increasing or strictly decreasing. Indices are not reordered.

• If the input argument v (sample values) is a variable-length vector (1-by-: or :-by-1), then the shape of the output vq matches the shape in MATLAB.

  If the input argument v is variable-size, is not a variable-length vector, and becomes a row vector at run time, then an error occurs.

• If the input argument xq (query points) is variable-size, is not a variable-length vector, and becomes a row or column vector at run time, then an error occurs.

• See Variable-Sizing Restrictions for Code Generation of Toolbox Functions (MATLAB Coder).

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The interp1 function supports GPU array input with these usage notes and limitations:

• The interpolation methods 'pchip' and 'makima' are not supported.

• The 'spline' interpolation method is not supported for sample values v containing NaN.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced before R2006a

R2020b: 'cubic' method of interp1 performs cubic convolution

In R2020b, the 'cubic' interpolation method of interp1 performs cubic convolution. The 'v5cubic' and 'cubic' interpolation methods now perform the same type of interpolation, which is consistent with the behavior of interp2, interp3, and interpn. The cubic convolution interpolation method is intended for uniformly-spaced data, and it falls back to 'spline' interpolation for irregularly-spaced data.

In previous releases, 'cubic' was the same as 'pchip', and only 'v5cubic' performed cubic convolution.
