hideAll

Hide all graphics in satellite scenario viewer

Since R2021a

collapse all in page

Syntax

hideAll(viewer)

Description

hideAll(viewer) hides all graphics in the specified satellite scenario viewer.

example

Examples

collapse all

Open Live Script

Create a satellite scenario object.

sc = satelliteScenario;

Add satellites to the scenario.

tleFile = "leoSatelliteConstellation.tle";
sats = satellite(sc,tleFile);

Add a hundred ground stations to the scenario.

latitudes = linspace(-90,90,100);            % degrees
longitudes = linspace(-180,180,100);         % degrees
gss = groundStation(sc,latitudes,longitudes);

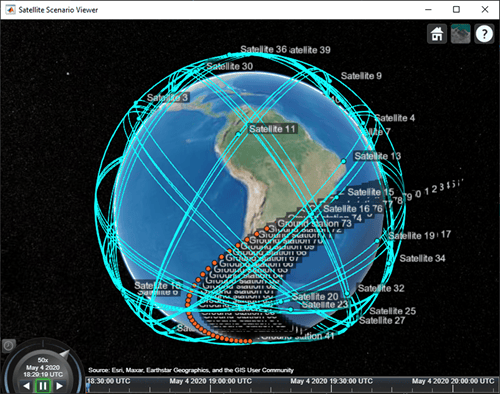

Visualize the scenario using the Satellite Scenario Viewer.

v = satelliteScenarioViewer(sc);

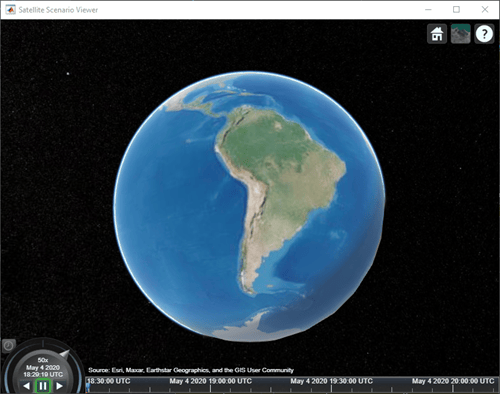

Hide all graphics in the viewer.

hideAll(v);

Input Arguments

collapse all

Satellite Scenario Viewer, specified as a scalar satelliteScenarioViewer object.1

Version History

Introduced in R2021a

See Also

Objects

Functions

Topics

1 Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks®.
