camtarget

Set camera target for Satellite Scenario Viewer

Since R2021a

Syntax

camtarget(viewer,target)

Description

camtarget(viewer,target) focuses the camera on the input satellite or ground station. The camera follows target. You can reset the camera target by using camtarget with a different satellite or ground station or by double-clicking anywhere in the map.

Examples

Set Camera Target to Satellite

Create a satellite scenario object.

sc = satelliteScenario;

Add a satellite to the scenario.

semiMajorAxis = 10000000;                             % meters
eccentricity = 0;
inclination = 0;                                      % degrees
rightAscensionOfAscendingNode = 0;                    % degrees
argumentOfPeriapsis = 0;                              % degrees
trueAnomaly = 0;                                      % degrees
sat = satellite(sc,semiMajorAxis,eccentricity, ...
      inclination,rightAscensionOfAscendingNode, ...
      argumentOfPeriapsis,trueAnomaly);

Launch the Satellite Scenario Viewer.

v = satelliteScenarioViewer(sc);

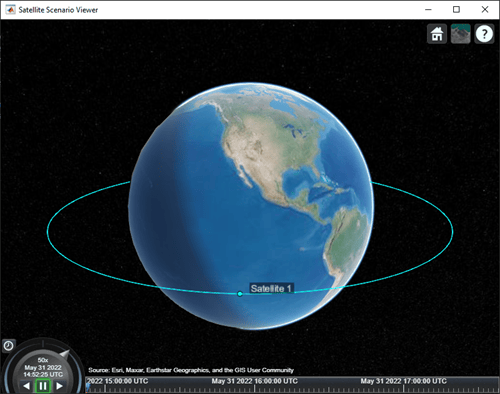

Play the scenario in the viewer.

play(sc,"Viewer",v);

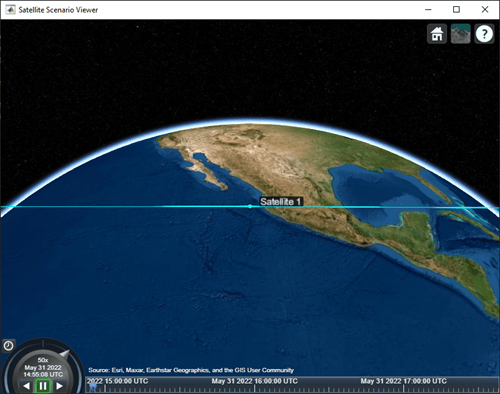

Set the camera target to the satellite.

camtarget(v,sat);

Input Arguments

viewer — Satellite Scenario Viewer

satelliteScenarioViewer object

Satellite Scenario Viewer, specified as a scalar satelliteScenarioViewer object.¹

target — Camera target

Satellite object | GroundStation object

Camera target, specified as a scalar Satellite or GroundStation object.

Version History

Introduced in R2021a
