showAll

Show all graphics in viewer

Since R2021a

Description

showAll(viewer) shows all graphics in the specified satellite scenario viewer.

example

Examples

collapse all

Create a satellite scenario object.

sc = satelliteScenario;

Specify not to automatically show scenario entities in an open Satellite Scenario Viewer.

sc.AutoShow = false;

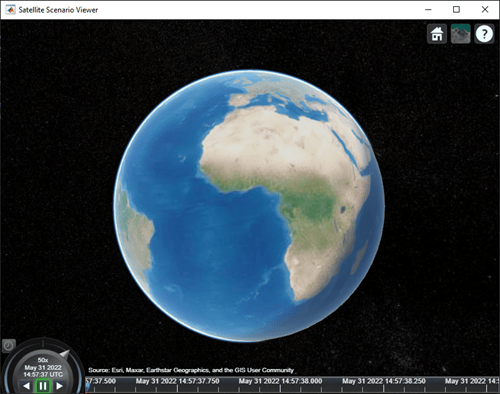

Launch the Satellite Scenario Viewer.

v = satelliteScenarioViewer(sc);

Add a constellation of satellites to the scenario.

tleFile = "leoSatelliteConstellation.tle";
sat = satellite(sc,tleFile);

Add a ground station to the scenario.

gs = groundStation(sc);

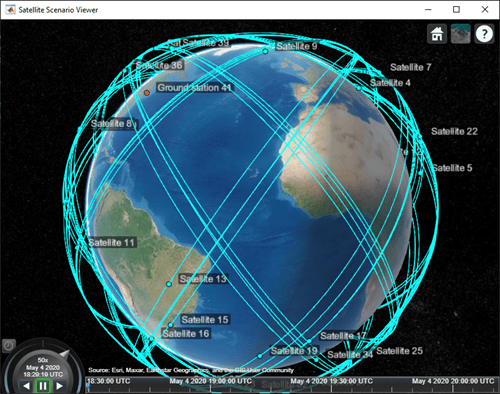

Visualize the satellite scenario objects using the Satellite Scenario Viewer.

showAll(v);

Input Arguments

collapse all

Satellite Scenario Viewer, specified as a scalar satelliteScenarioViewer object.1

Version History

Introduced in R2021a


1 Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks®.
