# Train DDPG Agent to Swing Up and Balance Pendulum with Image Observation

This example shows how to train a deep deterministic policy gradient (DDPG) agent to swing up and balance a pendulum with an image observation modeled in MATLAB®.

### Simple Pendulum with Image MATLAB Environment

The reinforcement learning environment for this example is a simple frictionless pendulum that initially hangs in a downward position. The training goal is to make the pendulum stand upright without falling over using minimal control effort.

For this environment:

• The upward balanced pendulum position is `0` radians, and the downward hanging position is `pi` radians.

• The torque action signal from the agent to the environment is from –2 to 2 N·m.

• The observations from the environment are an image indicating the location of the pendulum mass and the pendulum angular velocity.

• The reward ${\mathit{r}}_{\mathit{t}}$, provided at every time step, is

`${\mathit{r}}_{\mathit{t}}=-\left({{\theta }_{\mathit{t}}}^{2}+0.1{\stackrel{˙}{{\theta }_{\mathit{t}}}}^{2}+0.001{{\mathit{u}}_{\mathit{t}-1}}^{2}\right)$`

Here:

• ${\theta }_{\mathit{t}}$ is the angle of displacement from the upright position.

• $\stackrel{˙}{{\theta }_{\mathit{t}}}$ is the derivative of the displacement angle.

• ${\mathit{u}}_{\mathit{t}-1}$ is the control effort from the previous time step.

### Create Environment Interface

Create a predefined environment interface for the pendulum.

`env = rlPredefinedEnv('SimplePendulumWithImage-Continuous')`
```env = SimplePendlumWithImageContinuousAction with properties: Mass: 1 RodLength: 1 RodInertia: 0 Gravity: 9.8100 DampingRatio: 0 MaximumTorque: 2 Ts: 0.0500 State: [2x1 double] Q: [2x2 double] R: 1.0000e-03 ```

The interface has a continuous action space where the agent can apply a torque between –2 to 2 N·m.

Obtain the observation and action specification from the environment interface.

```obsInfo = getObservationInfo(env); actInfo = getActionInfo(env);```

Fix the random generator seed for reproducibility.

`rng(0)`

### Create DDPG Agent

A DDPG agent approximates the long-term reward, given observations and actions, using a critic value function representation. To create the critic, first create a deep convolutional neural network (CNN) with three inputs (the image, angular velocity, and action) and one output. For more information on creating representations, see Create Policy and Value Function Representations.

```hiddenLayerSize1 = 400; hiddenLayerSize2 = 300; imgPath = [ imageInputLayer(obsInfo(1).Dimension,'Normalization','none','Name',obsInfo(1).Name) convolution2dLayer(10,2,'Name','conv1','Stride',5,'Padding',0) reluLayer('Name','relu1') fullyConnectedLayer(2,'Name','fc1') concatenationLayer(3,2,'Name','cat1') fullyConnectedLayer(hiddenLayerSize1,'Name','fc2') reluLayer('Name','relu2') fullyConnectedLayer(hiddenLayerSize2,'Name','fc3') additionLayer(2,'Name','add') reluLayer('Name','relu3') fullyConnectedLayer(1,'Name','fc4') ]; dthetaPath = [ imageInputLayer(obsInfo(2).Dimension,'Normalization','none','Name',obsInfo(2).Name) fullyConnectedLayer(1,'Name','fc5','BiasLearnRateFactor',0,'Bias',0) ]; actPath =[ imageInputLayer(actInfo(1).Dimension,'Normalization','none','Name','action') fullyConnectedLayer(hiddenLayerSize2,'Name','fc6','BiasLearnRateFactor',0,'Bias',zeros(hiddenLayerSize2,1)) ]; criticNetwork = layerGraph(imgPath); criticNetwork = addLayers(criticNetwork,dthetaPath); criticNetwork = addLayers(criticNetwork,actPath); criticNetwork = connectLayers(criticNetwork,'fc5','cat1/in2'); criticNetwork = connectLayers(criticNetwork,'fc6','add/in2');```

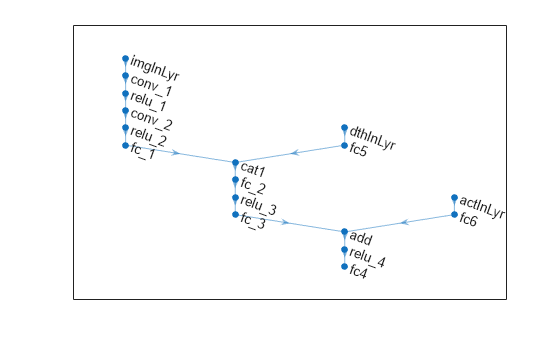

View the critic network configuration.

```figure plot(criticNetwork)``` Specify options for the critic representation using `rlRepresentationOptions`.

`criticOptions = rlRepresentationOptions('LearnRate',1e-03,'GradientThreshold',1);`

Uncomment the following line to use the GPU to accelerate training of the critic CNN. Using a GPU requires Parallel Computing Toolbox™ software and a CUDA® enabled NVIDIA® GPU with compute capability 3.0 or higher.

`% criticOptions.UseDevice = 'gpu';`

Create the critic representation using the specified neural network and options. You must also specify the action and observation info for the critic, which you obtain from the environment interface. For more information, see `rlQValueRepresentation`.

```critic = rlQValueRepresentation(criticNetwork,obsInfo,actInfo,... 'Observation',{'pendImage','angularRate'},'Action',{'action'},criticOptions);```

A DDPG agent decides which action to take given observations using an actor representation. To create the actor, first create a deep convolutional neural network (CNN) with two inputs (the image and angular velocity) and one output (the action).

Construct the actor in a similar manner to the critic.

```imgPath = [ imageInputLayer(obsInfo(1).Dimension,'Normalization','none','Name',obsInfo(1).Name) convolution2dLayer(10,2,'Name','conv1','Stride',5,'Padding',0) reluLayer('Name','relu1') fullyConnectedLayer(2,'Name','fc1') concatenationLayer(3,2,'Name','cat1') fullyConnectedLayer(hiddenLayerSize1,'Name','fc2') reluLayer('Name','relu2') fullyConnectedLayer(hiddenLayerSize2,'Name','fc3') reluLayer('Name','relu3') fullyConnectedLayer(1,'Name','fc4') tanhLayer('Name','tanh1') scalingLayer('Name','scale1','Scale',max(actInfo.UpperLimit)) ]; dthetaPath = [ imageInputLayer(obsInfo(2).Dimension,'Normalization','none','Name',obsInfo(2).Name) fullyConnectedLayer(1,'Name','fc5','BiasLearnRateFactor',0,'Bias',0) ]; actorNetwork = layerGraph(imgPath); actorNetwork = addLayers(actorNetwork,dthetaPath); actorNetwork = connectLayers(actorNetwork,'fc5','cat1/in2'); actorOptions = rlRepresentationOptions('LearnRate',1e-04,'GradientThreshold',1);```

Uncomment the following line to use the GPU to accelerate training of the actor CNN.

`% actorOptions.UseDevice = 'gpu';`

Create the actor representation using the specified neural network and options. For more information, see `rlDeterministicActorRepresentation`.

`actor = rlDeterministicActorRepresentation(actorNetwork,obsInfo,actInfo,'Observation',{'pendImage','angularRate'},'Action',{'scale1'},actorOptions);`

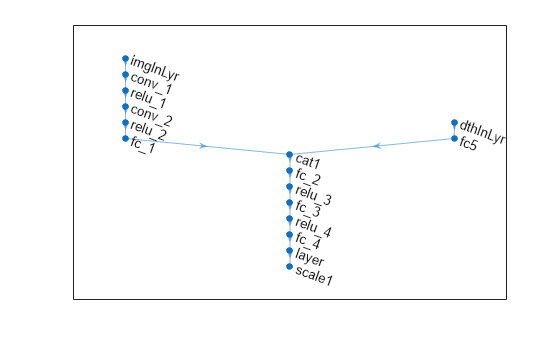

View the actor network configuration.

```figure plot(actorNetwork)``` To create the DDPG agent, first specify the DDPG agent options using `rlDDPGAgentOptions`.

```agentOptions = rlDDPGAgentOptions(... 'SampleTime',env.Ts,... 'TargetSmoothFactor',1e-3,... 'ExperienceBufferLength',1e6,... 'DiscountFactor',0.99,... 'MiniBatchSize',128); agentOptions.NoiseOptions.Variance = 0.6; agentOptions.NoiseOptions.VarianceDecayRate = 1e-6;```

Then create the agent using the specified actor representation, critic representation, and agent options. For more information, see `rlDDPGAgent`.

`agent = rlDDPGAgent(actor,critic,agentOptions);`

### Train Agent

To train the agent, first specify the training options. For this example, use the following options.

• Run each training for at most 5000 episodes, with each episode lasting at most 400 time steps.

• Display the training progress in the Episode Manager dialog box (set the `Plots` option).

• Stop training when the agent receives a moving average cumulative reward greater than -740 over ten consecutive episodes. At this point, the agent can quickly balance the pendulum in the upright position using minimal control effort.

For more information, see `rlTrainingOptions`.

```maxepisodes = 5000; maxsteps = 400; trainingOptions = rlTrainingOptions(... 'MaxEpisodes',maxepisodes,... 'MaxStepsPerEpisode',maxsteps,... 'Plots','training-progress',... 'StopTrainingCriteria','AverageReward',... 'StopTrainingValue',-740);```

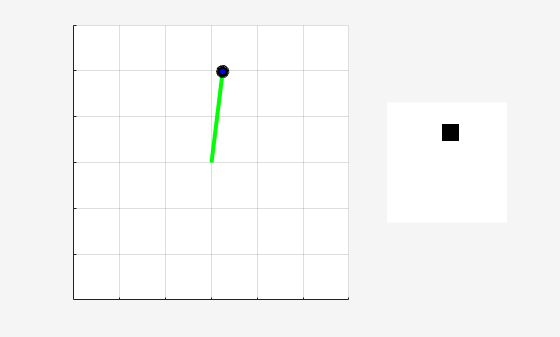

You can visualize the pendulum by using the `plot` function during training or simulation.

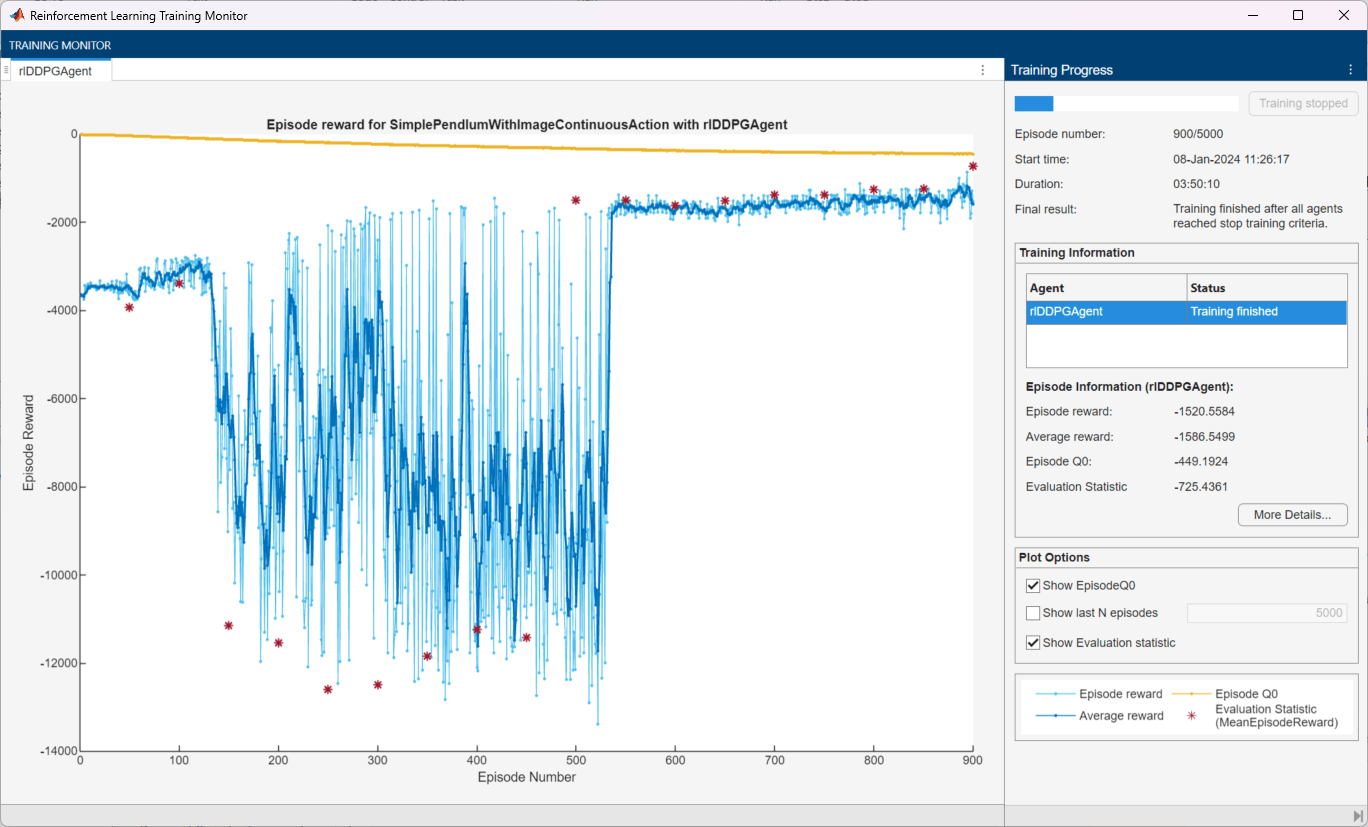

`plot(env)` Train the agent using the `train` function. Training this agent is a computationally intensive process that takes several hours to complete. To save time while running this example, load a pretrained agent by setting `doTraining` to `false`. To train the agent yourself, set `doTraining` to `true`.

```doTraining = false; if doTraining % Train the agent. trainingStats = train(agent,env,trainingOptions); else % Load pretrained agent for the example. load('SimplePendulumWithImageDDPG.mat','agent') end``` ### Simulate DDPG Agent

To validate the performance of the trained agent, simulate it within the pendulum environment. For more information on agent simulation, see `rlSimulationOptions` and `sim`.

```simOptions = rlSimulationOptions('MaxSteps',500); experience = sim(env,agent,simOptions);```
