inldnl

Integral nonlinearity (INL) and differential nonlinearity (DNL) of data converters

Syntax

s = inldnl(analog,digital,range,type)

s = inldnl(___,Name,Value)

Description

s = inldnl(analog,digital,range,type) calculates the integral nonlinearity (INL) and differential nonlinearity (DNL) errors of ADCs and DACs. The function calculates INL and DNL using the analog and digital input output data and the nominal analog dynamic range of the converter. The function can calculate INL and DNL either using the endpoint method, or the best fit method, or using both methods.

The inldnl function only analyzes converters with a finite number of bits. That means ADCs must have saturation and quantization. The function ignores any digital value pairs that contain NaN values.

s = inldnl(___,Name,Value) calculates the INL and DNL errors of ADCs and DACs using one or more name-value pair arguments in addition to the input arguments in the previous syntax. Enclose each argument name in quotes. Unspecified arguments take default values.

Note

Initial conditions and other anomalous data can cause this function to behave erratically. This function can analyze nonmonotonic converters, but it cannot handle multiple distinct occurrences of the same code in one transfer function.

Examples

Calculate INL and DNL of DAC

Load the digital input and the analog output of a DAC from MAT-files.

load 'digital.mat'
load 'analog.mat'

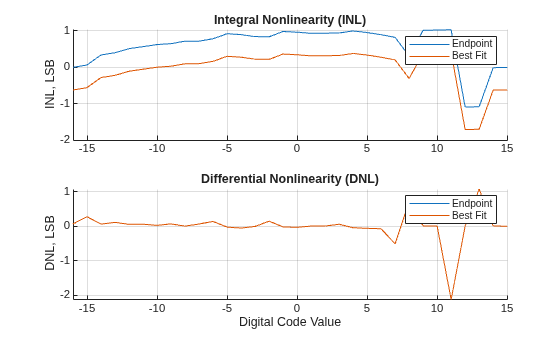

The nominal analog dynamic range of the DAC is [-1,1]. Turn on plotting for the output converter threshold. Calculate INL and DNL using both best fit and endpoint methods.

inldnl(a,d,[-1 1],'DAC','GenPlotData','on','INLMethod','All','DNLMethod','All')

ans = struct with fields:
                Type: 'DAC'
               NBits: 5
                 LSB: 0.0625
        MissingCodes: [0x1 double]
               Codes: [1x32 double]
    IdealCodeCenters: [1x32 double]
         CodeCenters: [1x32 double]
       CodeCenterStD: [1x32 double]
         EndpointINL: [1x32 double]
          BestFitINL: [1x32 double]
         EndpointDNL: [1x32 double]
          BestFitDNL: [1x32 double]
         BestFitPoly: [0.0652 0.1293]
         OffsetError: 0.8562
           GainError: 1.5393
       GainErrorUnit: 'LSB'
           TCNominal: [32x2 double]
          TCMeasured: [32x2 double]

Input Arguments

analog — Analog input to or output from device

vector

• If the device under test (DUT) is an ADC, analog input to the ADC, specified as a vector.

• If the DUT is a DAC, analog output from the DAC, specified as a vector.

Data Types: double

digital — Digital output from or input to device

integer vector

• If the device under test (DUT) is an ADC, digital output from the ADC, specified as a vector of integers.

• If the DUT is a DAC, digital input to the DAC, specified as a vector with integer values.

Data Types: fi | single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

range — Nominal analog dynamic range of device

2-element vector

Nominal analog dynamic range of the ADC or DAC, specified as a 2-element vector.

Data Types: double

type — Type of device

Auto | ADC | DAC

Type of the device under test, specified as Auto, ADC, or DAC. The type determines whether to analyze the data as an ADC or DAC.

If The type is set to Auto and if the transfer function is discrete, the inldnl function analyzes the data as a DAC. The transfer function is considered as discrete if the analog data is less than half of the digital code width for each digital code.

If The type is set to Auto and if the transfer function is continuous, the inldnl function analyzes the data as an ADC.

Data Types: string

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: inldnl(a,d,[-1 1],'DAC', 'INLMethod', 'All', 'DNLMethod','All') calculates the INL and DNL of a DAC using both endpoint and best fit method.

'OffsetErrorUnit' — Unit of reported offset error

LSB (default) | %FS | FS | All

Unit of reported offset error, specified as LSB (least significant bit), %FS (percentage full scale), FS (full scale), or all.

Data Types: string

'GainErrorUnit' — Unit of reported gain error

LSB (default) | %FS | FS | All

Unit of reported gain error, specified as LSB (least significant bit), %FS (percentage full scale), FS (full scale), or all.

Data Types: string

'GenPlotData' — Send output data vectors to output data structure

off (default) | on

Send the output data vectors of the inldnl function to the output data structure s, specified as off or on. If GenPlotData is set to on, the output data structure contains the output data vectors. The output data vectors can then be picked up by the DAC DC measurement, DAC Testbench, ADC DC Measurement, or ADC Testbench blocks to plot the DC analysis results.

Data Types: string

'INLMethod' — Method to calculate INL

Endpoint (default) | BestFit | All

Method to calculate INL, specified as Endpoint, BestFit, or all.

• If INLMethod is set to Enpoint, the inldnl function compares each threshold's position to the threshold position of an ideal converter, as determined by a line from the first code transition to the last code transition.

• If INLMethod is set to BestFit, the inldnl function first takes the best linear fit of the ADC or DAC transfer curve. Then the function proceeds to calculate the INL using the same steps as the Enpoint method.

Data Types: string

'DNLMethod' — Method to calculate DNL

Endpoint (default) | BestFit | All

Method to calculate DNL, specified as Endpoint, BestFit, or all.

• If DNLMethod is set to Enpoint, the inldnl function compares each threshold's position to the threshold position of an ideal converter, as determined by a line from the first code transition to the last code transition to find the INL. The DNL is calculated from the difference between the elements of the INL vector.

• If DNLMethod is set to BestFit, the inldnl function first takes the best linear fit of the ADC or DAC transfer curve. Then the function proceeds to calculate the DNL using the same steps as the Enpoint method.

Data Types: string

'AbsoluteError' — Return absolute error and full scale DNL for testing

off (default) | on

Return absolute error and full scale DNL for testing, specified as on or off. Absolute error is the total uncompensated error including offset error, gain error, and nonlinearities. In simulation, to specifically test that the measurements match the impairments, absolute error can be used instead of INL. This is because absolute error describes the entire transfer curve in a single vector.

Data Types: string

Output Arguments

s — Output device information

structure

Output information of the inldnl function, returned as a structure. The output contains information about the device under test in these fields:

Name	Values	Description	Data Types
Type	ADC or DAC	Type of the device under test (DUT)	string
Nbits	positive real integer	Resolution of the ADC or DAC DUT	double
LSB	positive real scalar	Least significant bit value of the DUT. LSB is the smallest level the ADC can convert or the smallest increment of the DAC output.	double
MissingCodes	vector	Missing codes in DUT.	double
Codes	column vector	Digital code	double
IdealCodeCenters	column vector	Ideal code center of the digital code	double
CodeCenters	column vector	Calculated code center of the digital code	double
CodeCenterStD	column vector	Standard deviation of the code center from the ideal value	double
EndpointINL	column vector	INL using Endpoint method	double
BestFitINL	column vector	INL using BestFit method	double
EndPointDNL	column vector	DNL using Endpoint method	double
BestFitDNL	column vector	DNL using BestFit method	double
BestFitPoly	vector	Polynomial describing the best fit using standard curve-fitting technique.	double
OffsetError	real scalar	Offset error of DUT	double
GainError	real scalar	Gain error of DUT	double
OffsetErrorUnit	LSB, %FS, or FS	Unit of reported offset error	string
GainErrorUnit	LSB, %FS, or FS	Unit of reported gain error	string
TCNominal	vector	Nominal transfer curve of the DUT	double
TCMeasured	vector	Measured transfer curve of the DUT	double

If you do not assign an output variable, the inldnl function also plots the transfer function of the device under test in the active figure.

Data Types: struct

More About

Offset Error

Offset error represents the offset of the DAC transfer function curve from it ideal value at a single point. For more information, see Measuring Offset and Gain Errors in ADC.

Gain Error

Gain error represents the deviation of the slope of the DAC transfer function curve from its ideal value. For more information, see Measuring Offset and Gain Errors in ADC.

INL Error

Integral nonlinearity (INL) error, also termed as relative accuracy, is the maximum deviation of the measured transfer function from a straight line. The straight line can either be a best fit using standard curve-fitting technique, or be drawn between the endpoints of the actual transfer function after gain adjustment.

The best fit method gives a better prediction of distortion in AC applications, and a lower value of linearity error. The endpoint method is mostly used in the measurement applications of data converters, since the error budget depends on actual deviation from the ideal transfer function.

DNL Error

Differential nonlinearity (DNL) is the deviation from the ideal difference (1 LSB) between analog input levels that trigger any two successive digital output levels. The DNL error is the maximum value of DNL found at any transition.
