medicalVolume
Description
A medicalVolume
object stores the voxel data and spatial
referencing information for a medical image volume contained in a single DICOM, NIfTI, or NRRD
file, or in a directory of DICOM files. The medicalVolume
object specifies
the mapping between the intrinsic image coordinate system, the patient coordinate system, and
the anatomical planes. The medicalVolume
object and its object functions
provide a standardized interface for accessing voxel data, spatial referencing, and intensity
scaling information.
Creation
Syntax
Description
creates a medVol
= medicalVolume(dirname
)medicalVolume
object for the image volume contained in a
multifile DICOM series in the directory dirname
.
creates a medVol
= medicalVolume(filenames
)medicalVolume
object for the image volume stored in the single
DICOM, NIfTI, or NRRD file or list of DICOM files specified by
filenames
.
creates a medVol
= medicalVolume(sourceTable
)medicalVolume
object for the image volume listed in
sourceTable
. The table must contain only one row that specifies the
metadata for a DICOM volume.
creates a medVol
= medicalVolume(sourceTable
,rowname
)medicalVolume
object for the image volume listed in the row
rowname
of sourceTable
. Use this syntax to
specify one row of a multirow table by name or by numeric index.
creates a medVol
= medicalVolume(imds
)medicalVolume
object for the image volume specified by the
image datastore object imds
.
creates a medVol
= medicalVolume(voxels
,VolumeGeometry
)medicalVolume
by directly specifying the Voxels and
VolumeGeometry properties.
Input Arguments
Name of the directory containing the medical image volume data, specified as a
string scalar or a character vector. Specify dirname
as the name
of a directory containing multiple DICOM files corresponding to one image
volume.
Name of the file or files containing the medical image volume data, specified as a
string scalar, character vector, or string array. Specify
filenames
as a single DICOM, NIfTI, or NRRD file or as a list
of DICOM files corresponding to one image volume.
Collection of DICOM file metadata, specified as a table returned by the dicomCollection
function.
Name or index of table row, specified as a string scalar, character vector, or
positive integer. Specify rowname
as a string scalar or character
vector to specify a row of sourceTable
by name. Specify
rowname
as a positive integer to specify a row by its numeric
index.
Datastore specifying a list of DICOM files containing medical image volume data,
specified as an ImageDataStore
object. The list of files must
correspond to one medical image volume.
Properties
Image voxel values, specified as an
m-by-n-by-p numeric array or
an N-D numeric array. The first three dimensions of
Voxels
correspond to the spatial dimensions of the patient
coordinate system.
For DICOM files, medicalVolume
rescales the intensity values using
the RescaleIntercept
and RescaleSlope
metadata
attributes, if they are present in the file. Additionally,
medicalVolume
converts DICOM intensities of data type
uint16
to data type int16
or
single
.
If the
RescaleSlope
attribute value is unspecified or an integer, thenmedicalVolume
converts the intensity values fromuint16
toint16
.If the
RescaleSlope
attribute value is fractional, thenmedicalVolume
converts the intensity values fromuint16
tosingle
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| logical
Spatial referencing information, specified as a medicalref3d
object. The coordinates and distances specified by VolumeGeometry
are in the units specified by the SpatialUnits
property, if
available in the file
metadata.
Real-world spatial units, specified as a string scalar or a character vector. If the
data source is a DICOM file, then the SpatialUnits
value is
"mm"
(millimeters). If the data source is a NIfTI or NRRD file, the
object extracts the spatial units from the SpaceUnits
or
spaceunits
metadata attribute, respectively, if present in the
file.
Data Types: string
This property is read-only.
Distances between voxel centers in each dimension, specified as a 1-by-3 numeric
vector. The values of VoxelSpacing
are in the units specified by
the SpatialUnits
property. If
VolumeGeometry.IsAffine
is false
, then the
object calculates the spacing for each dimension as the average spacing across all
slices.
Data Types: double
This property is read-only.
Slice plane with the greatest spatial resolution, specified as one of these values:
"coronal"
— Coronal plane."sagittal"
— Sagittal plane."transverse"
— Transverse plane."mixed"
— Image volume slices are not parallel. This value occurs when theIsMixed
property of theVolumeGeometry
object istrue
."oblique"
— Image slices are not aligned with the anatomical axes."unknown"
— Mapping between image coordinate system and anatomical axes is unknown. This value occurs when thePatientCoordinateSystem
property of theVolumeGeometry
object is"unknown"
.
Data Types: string
This property is read-only.
Number of slices in the coronal direction, specified as a numeric scalar or empty
array. NumCoronalSlices
is empty in these cases:
PatientCoordinateSystem
property of theVolumeGeometry
object is"unknown"
.Image volume is oblique.
Image volume contains a temporal dimension with multiple slices at each spatial location.
Data Types: double
This property is read-only.
Number of slices in the sagittal direction, specified as a numeric scalar or empty
array. NumSagittalSlices
is empty in these cases:
PatientCoordinateSystem
property of theVolumeGeometry
object is"unknown"
.Image volume is oblique.
Image volume contains a temporal dimension with multiple slices at each spatial location.
Data Types: double
This property is read-only.
Number of slices in the transverse direction, specified as a numeric scalar or empty
array. NumTransverseSlices
is empty in these cases:
PatientCoordinateSystem
property of theVolumeGeometry
object is"unknown"
.Image volume is oblique.
Image volume contains a temporal dimension with multiple slices at each spatial location.
Data Types: double
This property is read-only.
Mapping between voxel data dimensions and anatomical planes, specified as a 1-by-3
string array. If the spatial referencing for the volume is defined, then
PlaneMapping
contains the strings
"transverse"
, "coronal"
, and
"sagittal"
. For example, if the first element of
PlaneMapping
is "coronal"
, then moving along
the first dimension of Voxels
corresponds to moving between slices
in the coronal plane.
If the PatientCoordinateSystem
property of the
VolumeGeometry
object is "unknown"
, or if the
volume is oblique, the values of PlaneMapping
are
"unknown"
or "oblique"
, respectively.
Example:
["transverse","coronal","sagittal"]
Data Types: string
Since R2025a
This property is read-only.
Mapping between the voxel data dimensions and anatomical axes directions, specified
as a 1-by-3 string array. If the Orientation
property value is "coronal"
,
"saggital"
, or "transverse"
, then
DataDimensionMeaning
contains one option from each of these pairs
of strings:
"left"
and"right"
"inferior"
and"superior"
"posterior"
and"anterior"
In this case, each string maps the corresponding dimension of the voxel
data to an anatomical axis and defines the positive direction for that axis. For
example, if the first element of DataDimensionMeaning
is
"anterior"
, then increasing the row indices of
Voxels
corresponds to moving anteriorly through the patient in
the coronal plane.
If the Orientation
property is "unknown"
,
"mixed"
, or "oblique"
, all values of
DataDimensionMeaning
are "unknown"
,
"mixed"
, or "oblique"
, respectively.
Example: ["left" "posterior" "inferior"]
Data Types: string
This property is read-only.
Unit vector normal to the first slice of the image volume, specified as a 1-by-3
numeric vector. The first slice of the volume corresponds to the points stored in
Voxels
(:,:,1)
.
Data Types: double
This property is read-only.
Imaging modality used to capture the image volume data, specified as a string
scalar. The modality is extracted from the file metadata, if present. Common values
include, but are not limited to, "CT"
for computed tomography,
"MR"
for magnetic resonance, "NM"
for nuclear
medicine, and "US"
for ultrasound. If the modality is not specified
in the file metadata, the default value is "unknown"
.
Data Types: string
This property is read-only.
Center of the display range window for each slice, specified as a numeric scalar or
as a p-by-1 numeric vector, where p is the number
of slices in the image volume along the third dimension. If
WindowCenters
is a scalar, the value defines the window center
for the overall volume. If WindowCenters
is a vector, each element
defines the window center for the corresponding slice. The object extracts the
WindowCenters
property value from the file metadata, if
available. If the display window metadata is not available, then
WindowCenters
is
empty.
Data Types: double
This property is read-only.
Width of display window of each slice, specified as a numeric scalar or as a
p-by-1 numeric vector, where p is the number of
slices in the image volume along the third dimension. If
WindowWidths
is a scalar, the value defines the window width for
the overall volume. If WindowWidths
is a vector, each element
defines the window width for the corresponding slice. The object extracts the
WindowWidths
property value from the file metadata, if available.
If the display window metadata is not available, then WindowWidths
is
empty.
Data Types: double
Object Functions
extractSlice | Extract voxels and spatial details for one slice of medical volume |
replaceSlice | Replace voxel values for one slice of medical volume |
resample | Resample medical image volume in different patient coordinate system |
reposition | Update position of medical volume in patient coordinates |
updateOrientation | Update slice orientation of medical volume voxels |
sliceCorners | Extract coordinates of corner voxels for one slice of medical volume |
sliceLimits | Extract X-, Y-, Z-limits for one slice of medical volume |
volshow | Display medical volume in patient coordinates |
montage | Display medical image slices or frames as montage in patient coordinates |
write | Write affine medical volume data to NIfTI file |
Examples
Create a medical volume object using a chest CT volume saved as a directory of DICOM files. The volume is part of a data set containing three CT volumes. The size of the entire data set is approximately 81 MB. Download the data set from the MathWorks® website, then unzip the folder.
zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeDICOMData.zip"); filepath = fileparts(zipFile); unzip(zipFile,filepath)
Specify the directory of DICOM files for the first CT volume in the data set.
dataFolder = fullfile(filepath,"MedicalVolumeDICOMData","LungCT01");
Create a medical volume object for the CT volume.
medVol = medicalVolume(dataFolder)
medVol = medicalVolume with properties: Voxels: [512×512×88 int16] VolumeGeometry: [1×1 medicalref3d] SpatialUnits: "mm" Orientation: "transverse" VoxelSpacing: [0.7285 0.7285 2.5000] NormalVector: [0 0 1] NumCoronalSlices: 512 NumSagittalSlices: 512 NumTransverseSlices: 88 PlaneMapping: ["sagittal" "coronal" "transverse"] Modality: "CT" WindowCenters: [88×1 double] WindowWidths: [88×1 double]
Create a medical volume object using a CT chest volume from the Medical Segmentation Decathlon data set [1]. Download the MedicalVolumNIfTIData.zip
file from the MathWorks website, then unzip the file. The file contains two CT chest volumes and corresponding label images, stored in the NIfTI file format. The size of the data file is approximately 76 MB.
zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeNIfTIData.zip"); filepath = fileparts(zipFile); unzip(zipFile,filepath) dataFolder = fullfile(filepath,"MedicalVolumeNIfTIData");
Specify the file name of the first CT volume.
filePath = fullfile(dataFolder,"lung_027.nii.gz");
Create a medical volume object for the CT volume.
medVol = medicalVolume(filePath)
medVol = medicalVolume with properties: Voxels: [512×512×264 single] VolumeGeometry: [1×1 medicalref3d] SpatialUnits: "mm" Orientation: "transverse" VoxelSpacing: [0.8594 0.8594 1.2453] NormalVector: [0 0 -1] NumCoronalSlices: 512 NumSagittalSlices: 512 NumTransverseSlices: 264 PlaneMapping: ["sagittal" "coronal" "transverse"] Modality: "unknown" WindowCenters: 0 WindowWidths: 0
[1] Medical Segmentation Decathlon. "Lung." Tasks. Accessed May 10, 2018. http://medicaldecathlon.com/.
The Medical Segmentation Decathlon data set is provided under the CC-BY-SA 4.0 license. All warranties and representations are disclaimed. See the license for details.
Create a medical volume object using a chest CT volume saved as a directory of DICOM files. The volume is part of a data set containing three CT volumes. The size of the entire data set is approximately 81 MB. Download the data set from the MathWorks website, then unzip the folder.
zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeDICOMData.zip"); filepath = fileparts(zipFile); unzip(zipFile,filepath)
Specify the directory of DICOM files for the first CT volume in the data set.
dataFolder = fullfile(filepath,"MedicalVolumeDICOMData","LungCT01");
Gather the details about the DICOM files in the dataFolder
directory into a table by using the dicomCollection
function. The files belong to one CT volume series, so the table has one row.
sourceTable = dicomCollection(dataFolder);
Create a medical volume object for the CT volume by specifying the single-row DICOM collection table.
medVol = medicalVolume(sourceTable)
medVol = medicalVolume with properties: Voxels: [512×512×88 int16] VolumeGeometry: [1×1 medicalref3d] SpatialUnits: "mm" Orientation: "transverse" VoxelSpacing: [0.7285 0.7285 2.5000] NormalVector: [0 0 1] NumCoronalSlices: 512 NumSagittalSlices: 512 NumTransverseSlices: 88 PlaneMapping: ["sagittal" "coronal" "transverse"] Modality: "CT" WindowCenters: [88×1 double] WindowWidths: [88×1 double]
Create a medical volume object using a data set containing three chest CT scans. Each CT scan is saved as a directory of DICOM files. The size of the data set is approximately 81 MB. Download the data set from the MathWorks website, then unzip the folder.
zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeDICOMData.zip"); filepath = fileparts(zipFile); unzip(zipFile,filepath) dataFolder = fullfile(filepath,"MedicalVolumeDICOMData");
Gather the details about the DICOM files in the dataFolder
directory into a table by using the dicomCollection
function. The table contains three rows, each corresponding to one of three CT DICOM series.
sourceTable = dicomCollection(dataFolder);
Create a medical volume object for the second CT volume by specifying the DICOM collection table and a numeric row index.
medVol = medicalVolume(sourceTable,2)
medVol = medicalVolume with properties: Voxels: [512×512×88 int16] VolumeGeometry: [1×1 medicalref3d] SpatialUnits: "mm" Orientation: "transverse" VoxelSpacing: [0.7617 0.7617 2.5000] NormalVector: [0 0 1] NumCoronalSlices: 512 NumSagittalSlices: 512 NumTransverseSlices: 88 PlaneMapping: ["sagittal" "coronal" "transverse"] Modality: "CT" WindowCenters: [88×1 double] WindowWidths: [88×1 double]
Create a medical volume object using a chest CT volume saved as a directory of DICOM files. The volume is part of a data set containing three CT volumes. The size of the entire data set is approximately 81 MB. Download the data set from the MathWorks website, then unzip the folder.
zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeDICOMData.zip"); filepath = fileparts(zipFile); unzip(zipFile,filepath)
Specify the directory of DICOM files for the first CT volume in the data set.
dataFolder = fullfile(filepath,"MedicalVolumeDICOMData","LungCT01");
Create an image datastore containing the DICOM files in the dataFolder
directory. Specify a custom read function to read the DICOM files.
dicomds = imageDatastore(dataFolder, ... FileExtensions=".dcm",ReadFcn=@(x) dicomread(x));
Create a medical volume object for the CT volume.
medVol = medicalVolume(dicomds)
medVol = medicalVolume with properties: Voxels: [512×512×88 int16] VolumeGeometry: [1×1 medicalref3d] SpatialUnits: "mm" Orientation: "transverse" VoxelSpacing: [0.7285 0.7285 2.5000] NormalVector: [0 0 1] NumCoronalSlices: 512 NumSagittalSlices: 512 NumTransverseSlices: 88 PlaneMapping: ["sagittal" "coronal" "transverse"] Modality: "CT" WindowCenters: [88×1 double] WindowWidths: [88×1 double]
Create a medical volume object using a chest CT volume saved as a directory of DICOM files. The volume is part of a data set containing three CT volumes. The size of the entire data set is approximately 81 MB. Download the data set from the MathWorks website, then unzip the folder.
zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeDICOMData.zip"); filepath = fileparts(zipFile); unzip(zipFile,filepath)
Specify the directory of DICOM files for the first CT volume in the data set.
dataFolder = fullfile(filepath,"MedicalVolumeDICOMData","LungCT01");
Create a medical volume object for the CT volume.
medVol = medicalVolume(dataFolder);
The Voxels
property contains the intensity values of each voxel. The VolumeGeometry
property contains a medicalref3d
object defining the spatial referencing for the image volume.
V = medVol.Voxels; R = medVol.VolumeGeometry;
Modify the voxel data by applying a 3-D Gaussian filter.
sigma = 2; filterV = imgaussfilt3(V,sigma);
Create a new medicalVolume
object that contains the smoothed voxel values. To maintain the same spatial referencing as the original volume, specify the original medicalref3d
object R
.
medVolFiltered = medicalVolume(filterV,R);
Run this code to download a data set from the MathWorks® website and unzip the downloaded folder. The data set contains three CT volumes that are each saved as a directory of DICOM files. The size of the entire data set is approximately 81 MB.
zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeDICOMData.zip"); filepath = fileparts(zipFile); unzip(zipFile,filepath)
The folder dataFolder
contains the downloaded scan used by this example, LungCT01
.
dataFolder = fullfile(filepath,"MedicalVolumeDICOMData","LungCT01");
Create a medical image volume object that contains the image data and spatial referencing information for the CT volume. The Orientation
property indicates that the primary slice direction is "transverse"
.
medVol = medicalVolume(dataFolder)
medVol = medicalVolume with properties: Voxels: [512×512×88 int16] VolumeGeometry: [1×1 medicalref3d] SpatialUnits: "mm" Orientation: "transverse" VoxelSpacing: [0.7285 0.7285 2.5000] NormalVector: [0 0 1] NumCoronalSlices: 512 NumSagittalSlices: 512 NumTransverseSlices: 88 PlaneMapping: ["sagittal" "coronal" "transverse"] Modality: "CT" WindowCenters: [88×1 double] WindowWidths: [88×1 double]

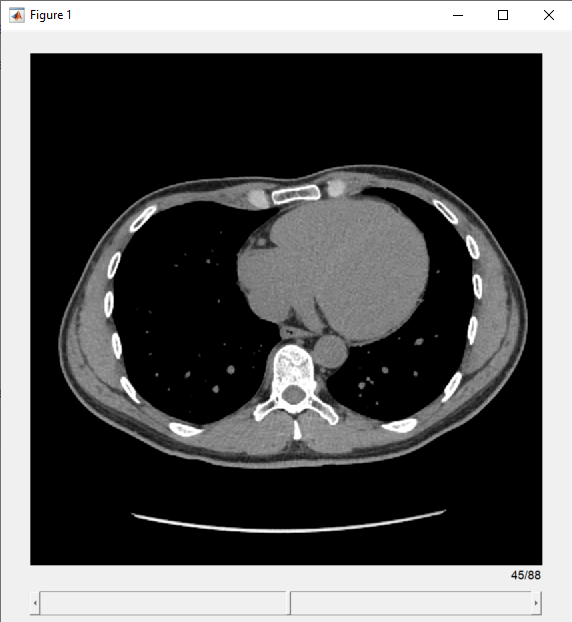

View the transverse slices of the volume in the slice viewer. By default, the viewer uses the properties of medVol
to scale anisotropic voxels, set the intensity display range, and orient slices. The viewer opens on the center slice. Use the scroll bar to navigate to other slices.
sv = sliceViewer(medVol,Parent=figure)
sv = sliceViewer with properties: SliceDirection: [0 0 1] SliceNumber: 45 Parent: [1×1 Panel] Colormap: [256×3 double] DisplayRange: [-160 240] ScaleFactors: [1 1 1] DisplayRangeInteraction: 'on'
Since R2024a
Read the voxels of an MRI volume from a TIFF file using the tiffreadVolume
function.
voxels = tiffreadVolume("mri.tif");
Create a medicalref3d
object containing the volume geometry using only the volume size of the MRI volume.
volGeometry = medicalref3d(size(voxels))
volGeometry = medicalref3d with properties: VolumeSize: [128 128 27] Position: [27×3 double] VoxelDistances: {[1 0 0] [0 1 0] [0 0 1]} PatientCoordinateSystem: "Unknown" PixelSpacing: [1 1] IsAffine: 1 IsAxesAligned: 1 IsMixed: 0
Specify a patient coordinate system for visualization.
volGeometry.PatientCoordinateSystem = "LPS+";
Create a medicalVolume
object using the voxel data and the volume geometry.
medVol = medicalVolume(voxels,volGeometry)
medVol = medicalVolume with properties: Voxels: [128×128×27 uint8] VolumeGeometry: [1×1 medicalref3d] SpatialUnits: "unknown" Orientation: "transverse" VoxelSpacing: [1 1 1] NormalVector: [0 0 1] NumCoronalSlices: 128 NumSagittalSlices: 128 NumTransverseSlices: 27 PlaneMapping: ["sagittal" "coronal" "transverse"] DataDimensionMeaning: ["left" "posterior" "superior"] Modality: "unknown" WindowCenters: [] WindowWidths: []

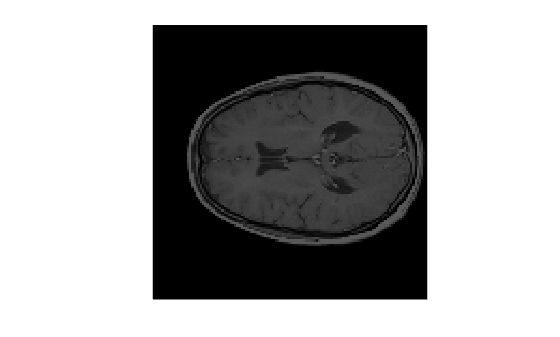

Visualize a slice of the medical volume.
slice = extractSlice(medVol,15,"transverse");
figure
imshow(slice)
Version History
Introduced in R2022bThe new DataDimensionMeaning
property specifies the mapping between
the voxel data dimensions, defined by rows, slices, and columns, and anatomical axes.
When reading DICOM files, the medicalVolume
object converts intensity
values of data type uint16
to data type int16
or
single
. If the DICOM file specifies the
RescaleIntercept
and RescaleSlope
metadata
attributes, medicalVolume
converts the values before rescaling them. By
converting unsigned uint16
values to signed values before rescaling, the
new behavior preserves the full data range of the rescaled intensities, including negative values.
If the
RescaleSlope
attribute value is unspecified or an integer, thenmedicalVolume
converts the intensities fromuint16
toint16
.If the
RescaleSlope
attribute value is fractional, thenmedicalVolume
converts the intensities fromuint16
tosingle
.
In R2022b, medicalVolume
stored intensity values as the same
data type as in the DICOM file. For DICOM files that stored intensities as data type
uint16
, medicalVolume
limited rescaled values to the
range [0, 216-1], and set all negative intensities to
0
before storing them in the Voxels
property.
See Also
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
