contourf

Filled 2-D contour plot

•

Syntax

contourf(Z)

contourf(X,Y,Z)

contourf(___,levels)

contourf(___,LineSpec)

contourf(___,Name,Value)

contourf(ax,___)

M = contourf(___)

[M,c] = contourf(___)

Description

contourf(Z) creates a filled contour plot containing the isolines of matrix Z, where Z contains height values on the x-y plane. MATLAB^® automatically selects the contour lines to display. The column and row indices of Z are the x and y coordinates in the plane, respectively.

contourf(X,Y,Z) specifies the x and y coordinates for the values in Z.

contourf(___,levels) specifies the contour lines to display as the last argument in any of the previous syntaxes. Specify levels as a scalar value n to display the contour lines at n automatically chosen levels (heights). To draw the contour lines at specific heights, specify levels as a vector of monotonically increasing values. To draw the contours at one height (k), specify levels as a two-element row vector [k k].

contourf(___,LineSpec) specifies the style and color of the contour lines.

contourf(___,Name,Value) specifies additional options for the contour plot using one or more name-value pair arguments. Specify the options after all other input arguments. For a list of properties, see Contour Properties.

contourf(ax,___) displays the contour plot in the target axes. Specify the axes as the first argument in any of the previous syntaxes.

M = contourf(___) returns the contour matrix M, which contains the (x, y) coordinates of the vertices at each level.

[M,c] = contourf(___) returns the contour matrix and the contour object c. Use c to set properties after displaying the contour plot.

Examples

Contours of Peaks Function

Define Z as a function of two variables. In this case, call the peaks function to create Z. Then display a filled contour plot of Z, letting MATLAB® choose the contour levels.

Z = peaks;
contourf(Z)

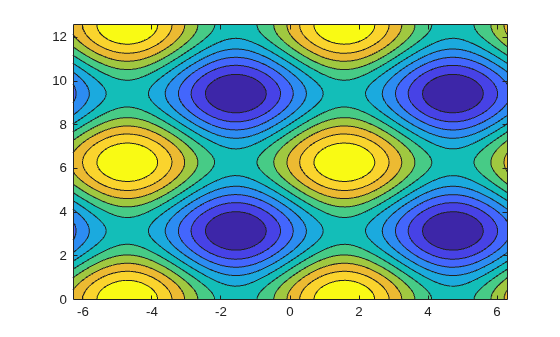

Contours at Ten Levels

Define Z as a function of two variables, X and Y. Then display contours at 10 levels of Z.

x = linspace(-2*pi,2*pi);
y = linspace(0,4*pi);
[X,Y] = meshgrid(x,y);
Z = sin(X) + cos(Y);
contourf(X,Y,Z,10)

Contours at Specific Levels with Labels

Define Z as a function of X and Y. In this case, call the peaks function to create X, Y, and Z. Then display contours at levels 2 and 3.

The white region corresponds to the heights less than 2. The purple region corresponds to heights between 2 and 3. And the yellow region corresponds to heights that are greater than 3.

[X,Y,Z] = peaks(50);
contourf(X,Y,Z,[2 3],'ShowText','on')

Labels with Specific Number of Decimal Places and Units

Since R2022b

Create a contour plot that displays labels with one digit after the decimal point followed by the letter m. Specify a partially transparent fill color by setting the FaceAlpha property to 0.25.

contourf(peaks,[-4 0 2],"ShowText",true,"LabelFormat","%0.1f m", ...
    "FaceAlpha",0.25)

Labels in Different Units

Since R2022b

You can specify a function to format the labels when you need to calculate values. For example, you can define a function to calculate the label values in different units.

Define this function in a program file called mylabelfun.m. The function converts the input from meters to feet and returns a string vector containing each value in meters with the equivalent value in feet in parentheses.

function labels = mylabelfun(vals)
feetPerMeter = 3.28084;
feet = round(vals.*feetPerMeter);
labels = vals + " m (" + feet + " ft)";
labels(vals == 0) = "0 m";
end

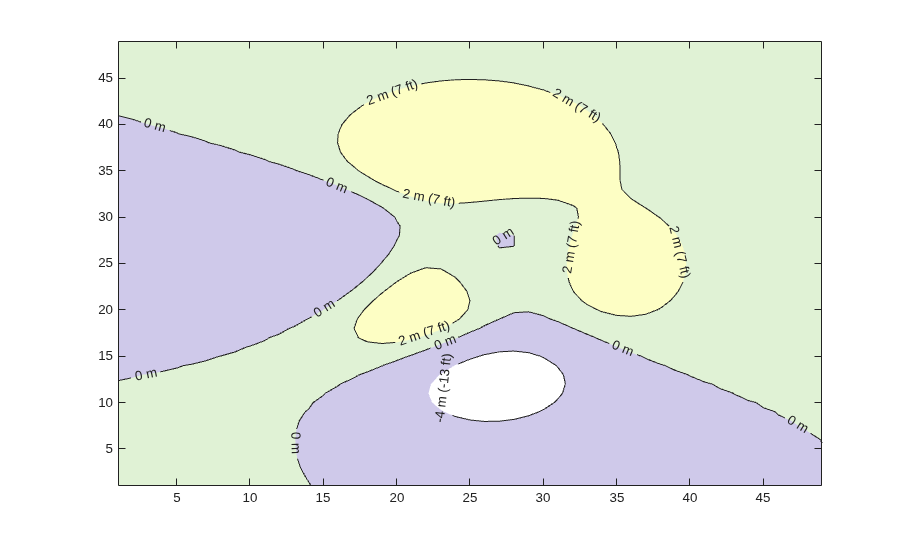

Next, create a contour plot and specify the LabelFormat property as a handle to mylabelfun. Specify a partially transparent fill color by setting the FaceAlpha value to 0.25.

contourf(peaks,[-4 0 2],"ShowText",true,"LabelFormat",@mylabelfun, ...
    "FaceAlpha",0.25)

Contours at One Level

Define Z as a function of X and Y. In this case, call the peaks function to create X, Y, and Z. Then display contours at Z = 2.

[X,Y,Z] = peaks;
contourf(X,Y,Z,[2 2])

Dashed Contour Lines

Create a contour plot, and specify the dashed line style.

[X,Y,Z] = peaks;
contourf(X,Y,Z,'--')

Custom Line Width

Create a filled contour plot. Make the contour lines thicker by setting the LineWidth property to 3.

Z = peaks;
[M,c] = contourf(Z);
c.LineWidth = 3;

Contours Over Discontinuous Surface

Insert NaN values wherever there are discontinuities on a surface. The contourf function does not draw contour lines in those regions.

Define matrix Z as a sampling of the peaks function. Replace all values in column 26 with NaN values. Then plot the contours of the modified Z matrix.

Z = peaks;
Z(:,26) = NaN;
contourf(Z)

Input Arguments

X — x-coordinates

matrix | vector

x-coordinates, specified as a matrix the same size as Z, or as a vector with length n, where [m,n] = size(Z). The default value of X is the vector (1:n).

When X is a matrix, the values must be strictly increasing or decreasing along one dimension and remain constant along the other dimension. The dimension that varies must be the opposite of the dimension that varies in Y. You can use the meshgrid function to create X and Y matrices.

When X is a vector, the values must be strictly increasing or decreasing.

Example: X = 1:10

Example: X = [1 2 3; 1 2 3; 1 2 3]

Example: [X,Y] = meshgrid(1:10)

The XData property of the Contour object stores the x-coordinates.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Y — y-coordinates

matrix | vector

y-coordinates, specified as a matrix the same size as Z, or as a vector with length m, where [m,n] = size(Z). The default value of Y is the vector (1:m).

When Y is a matrix, the values must be strictly increasing or decreasing along one dimension and remain constant along the other dimension. The dimension that varies must be the opposite of the dimension that varies in X. You can use the meshgrid function to create the X and Y matrices.

When Y is a vector, the values must be strictly increasing or decreasing.

Example: Y = 1:10

Example: Y = [1 1 1; 2 2 2; 3 3 3]

Example: [X,Y] = meshgrid(1:10)

The YData property of the Contour object stores the y-coordinates.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Z — z-coordinates

matrix

z-coordinates, specified as a matrix. This matrix must have at least two rows and two columns, and it must contain at least two different values.

Example: Z = peaks(20)

The ZData property of the Contour object stores the z-coordinates.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

levels — Levels

scalar | vector

Contour levels, specified as a scalar whole number or a vector. Use this argument to control the number and location of the contour lines. When you do not specify the levels, the contourf function chooses the levels automatically.

• To draw contour lines at n automatically chosen heights, specify levels as the scalar value n.

• To draw the contour lines at specific heights, specify levels as a vector of monotonically increasing values.

• To draw contour lines at a single height k, specify levels as a two-element row vector [k k].

The contourf function uses the current colormap to fill the spaces between the levels in the plot. The first color fills the space between the lowest level and the level above it. The last color corresponds to Z-values that are greater than the highest level in the plot. If Z contains values that are smaller than the lowest level displayed in the plot, the region between the lowest level and the smallest Z-value is white.

Example: contourf(peaks,10) draws contour lines at 10 automatically chosen heights on the peaks function.

Example: contourf(peaks,[-4 0 4]) draws contour lines at 3 specific heights on the peaks function: -4, 0, and 4.

Example: contourf(peaks,[3 3]) draws contour lines to show where the height of the peaks function is 3.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

LineSpec — Line style and color

character vector | string scalar

Line style and color, specified as a character vector or string scalar containing characters and symbols. The characters and symbols can appear in any order. You can specify the line style, line color, or both. Marker symbols such as 'o' are ignored.

Example: '--g' is a green dashed line.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line

Color Name	Short Name	Appearance
'red'	'r'
'green'	'g'
'blue'	'b'
'cyan'	'c'
'magenta'	'm'
'yellow'	'y'
'black'	'k'
'white'	'w'

ax — Target axes

Axes object

Target axes, specified as an Axes object. If you do not specify the axes, then contourf plots into the current axes.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: contourf(Z,'ShowText','on') displays the contour line labels.

Note

The properties listed here are only a subset. For a complete list, see Contour Properties.

ShowText — Contour line labels

'off' (default) | on/off logical value

Contour line labels, specified as 'on' or 'off', or as numeric or logical 1 (true) or 0 (false). A value of 'on' is equivalent to true, and 'off' is equivalent to false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

• 'on' — Display the height values along the contour lines.

• 'off' — Do not label the contour lines.

LineWidth — Line Width

0.5 (default) | positive value

Contour line width, specified as a positive value in points. One point equals 1/72 inch.

LabelSpacing — Label spacing

144 (default) | scalar

Label spacing along the contour lines, specified as a scalar value in points, where one point is 1/72 inch. Use this property to control the number of contour labels along the contour lines. Smaller values produce more labels.

You must set the ShowText property to 'on' for the LabelSpacing property to have an effect.

If you use the clabel function to display the labels, then the LabelSpacing property has no effect and the plot displays one label per line.

Output Arguments

M — Contour matrix

matrix

Contour matrix, returned as a two-row matrix of following form.

Z1, x1,1, x1,2, ..., x1,N1, Z2, x2,1, x2,2, ..., x2,N2, Z3, ...
N1, y1,1, y1,2, ..., y1,N1, N2, y2,1, y2,2, ..., y2,N2, N3, ...

The columns of the matrix define the contour lines. Each contour line starts with a column containing Z and N values:

• Zi — The height of the i^th contour line

• Ni — The number of vertices in the i^th contour line

• (x_ij, y_ij) — The coordinates of the vertices for the i^th contour line, where j ranges from 1 to Ni

c — Contour object

Contour object

Contour object. Use this object to set properties after displaying the contour plot.

Extended Capabilities

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The contourf function supports GPU array input with these usage notes and limitations:

• This function accepts GPU arrays, but does not run on a GPU.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

Usage notes and limitations:

• This function operates on distributed arrays, but executes in the client MATLAB.

For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced before R2006a
