This example shows how to change the colors used in a filled contour plot.

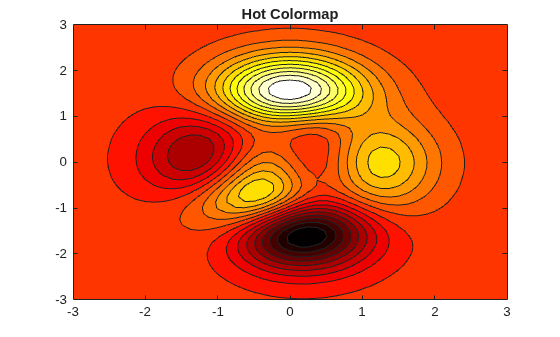

Set the colors for the filled contour plot by changing the colormap. Pass the predefined colormap name,
hot, to the
[X,Y,Z] = peaks; figure contourf(X,Y,Z,20) colormap(hot) title('Hot Colormap')

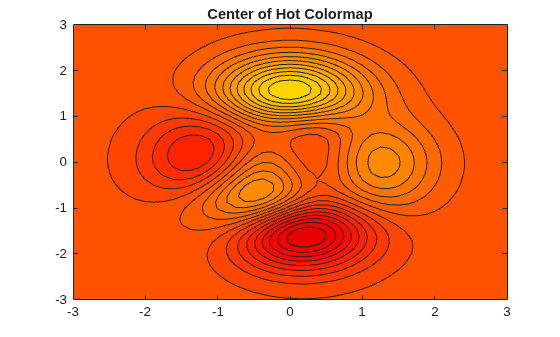

Use only the colors in the center of the
hot colormap by setting the color axis scaling to a range much larger than the range of values in matrix
caxis function controls the mapping of data values into the colormap. Use this function to set the color axis scaling.
caxis([-20,20]) title('Center of Hot Colormap')
