vehicle
Add vehicle to driving scenario
Description
adds a
vc
= vehicle(scenario
)Vehicle
object, vc
, to the driving scenario,
scenario
. The vehicle has default property values.
Vehicles are a specialized type of actor cuboid (box-shaped) object that has four wheels. For more details about how vehicles are defined, see Actor and Vehicle Positions and Dimensions.
sets vehicle properties using one or more name-value pairs. For example, you can set the
position, velocity, dimensions, orientation, and wheelbase of the vehicle. You can also set
a time for the vehicle to spawn or despawn in the scenario.vc
= vehicle(scenario
,Name,Value
)
Note
You can configure the vehicles in a driving scenario to spawn and despawn, and then
import the associated drivingScenario
object into the Driving Scenario
Designer app. The app considers the first vehicle created in the driving
scenario to be the ego vehicle and does not allow the ego vehicle to either spawn or
despawn in the scenario.
Examples
Create Driving Scenario with Multiple Actors and Roads
Create a driving scenario containing a curved road, two straight roads, and two actors: a car and a bicycle. Both actors move along the road for 60 seconds.
Create the driving scenario object.
scenario = drivingScenario('SampleTime',0.1','StopTime',60);
Create the curved road using road center points following the arc of a circle with an 800-meter radius. The arc starts at 0°, ends at 90°, and is sampled at 5° increments.
angs = [0:5:90]'; R = 800; roadcenters = R*[cosd(angs) sind(angs) zeros(size(angs))]; roadwidth = 10; cr = road(scenario,roadcenters,roadwidth);
Add two straight roads with the default width, using road center points at each end. To the first straight road add barriers on both road edges.
roadcenters = [700 0 0; 100 0 0]; sr1 = road(scenario,roadcenters); barrier(scenario,sr1) barrier(scenario,sr1,'RoadEdge','left') roadcenters = [400 400 0; 0 0 0]; road(scenario,roadcenters);
Get the road boundaries.
rbdry = roadBoundaries(scenario);
Add a car and a bicycle to the scenario. Position the car at the beginning of the first straight road.
car = vehicle(scenario,'ClassID',1,'Position',[700 0 0], ... 'Length',3,'Width',2,'Height',1.6);
Position the bicycle farther down the road.
bicycle = actor(scenario,'ClassID',3,'Position',[706 376 0]', ... 'Length',2,'Width',0.45,'Height',1.5);
Plot the scenario.
plot(scenario,'Centerline','on','RoadCenters','on'); title('Scenario');
Display the actor poses and profiles.
allActorPoses = actorPoses(scenario)
allActorPoses=242×1 struct array with fields:
ActorID
Position
Velocity
Roll
Pitch
Yaw
AngularVelocity
allActorProfiles = actorProfiles(scenario)
allActorProfiles=242×1 struct array with fields:
ActorID
ClassID
Length
Width
Height
OriginOffset
MeshVertices
MeshFaces
RCSPattern
RCSAzimuthAngles
RCSElevationAngles
Because there are barriers in this scenario, and each barrier segment is considered an actor, actorPoses
and actorProfiles
functions return the poses of all stationary and non-stationary actors. To only obtain the poses and profiles of non-stationary actors such as vehicles and bicycles, first obtain their corresponding actor IDs using the scenario.Actors.ActorID
property.
movableActorIDs = [scenario.Actors.ActorID];
Then, use those IDs to filter only non-stationary actor poses and profiles.
movableActorPoseIndices = ismember([allActorPoses.ActorID],movableActorIDs); movableActorPoses = allActorPoses(movableActorPoseIndices)
movableActorPoses=2×1 struct array with fields:
ActorID
Position
Velocity
Roll
Pitch
Yaw
AngularVelocity
movableActorProfiles = allActorProfiles(movableActorPoseIndices)
movableActorProfiles=2×1 struct array with fields:
ActorID
ClassID
Length
Width
Height
OriginOffset
MeshVertices
MeshFaces
RCSPattern
RCSAzimuthAngles
RCSElevationAngles
Spawn and Despawn Vehicles in Scenario During Simulation
Create a driving scenario. Set the stop time for the scenario to 3 seconds.
scenario = drivingScenario('StopTime',3);
Add a two-lane road to the scenario.
roadCenters = [0 1 0; 53 1 0];
laneSpecification = lanespec([1 1]);
road(scenario,roadCenters,'Lanes',laneSpecification);
Add another road that intersects the first road at a right angle to form a T-shape.
roadCenters = [20.3 38.4 0; 20 3 0];
laneSpecification = lanespec(2);
road(scenario,roadCenters,'Lanes',laneSpecification)
ans = Road with properties: Name: "" RoadID: 2 RoadCenters: [2x3 double] RoadWidth: 7.3500 BankAngle: [2x1 double] Heading: [2x1 double]
Add the ego vehicle to the scenario and define its waypoints. Set the ego vehicle speed to 20 m/s and generate the trajectories for the ego vehicle.
egoVehicle = vehicle(scenario,'ClassID',1, ... 'Position',[1.5 2.5 0]); waypoints = [2 3 0; 13 3 0; 21 3 0; 31 3 0; 43 3 0; 47 3 0]; speed = 20; smoothTrajectory(egoVehicle,waypoints,speed)
Add a non-ego vehicle to the scenario. Set the non-ego vehicle to spawn and despawn two times during the simulation by specifying vectors for entry time and exit time. Notice that each entry time value is less than the corresponding exit time value.
nonEgovehicle1 = vehicle(scenario,'ClassID',1, ... 'Position',[22 30 0],'EntryTime',[0.2 1.4],'ExitTime',[1.0 2.0]);
Define the waypoints for the non-ego vehicle. Set the non-ego vehicle speed to 30 m/s and generate its trajectories.
waypoints = [22 35 0; 22 23 0; 22 13 0; 22 7 0; 18 -0.3 0; 12 -0.8 0; 5 -0.8 0]; speed = 30; smoothTrajectory(nonEgovehicle1,waypoints,speed)
Add another non-ego vehicle to the scenario. Set the second non-ego vehicle to spawn once during the simulation by specifying an entry time as a positive scalar. Since you do not specify an exit time, this vehicle will remain in the scenario until the scenario ends.
nonEgovehicle2 = vehicle(scenario,'ClassID',1, ... 'Position',[48 -1 0],'EntryTime',2);
Define the waypoints for the second non-ego vehicle. Set the vehicle speed to 50 m/s and generate its trajectories.
waypoints = [48 -1 0; 42 -1 0; 28 -1 0; 16 -1 0; 12 -1 0]; speed = 50; smoothTrajectory(nonEgovehicle2,waypoints,speed)
Create a custom figure window to plot the scenario.
fig = figure; set(fig,'Position',[0 0 600 600]) movegui(fig,'center') hViewPnl = uipanel(fig,'Position',[0 0 1 1],'Title','Vehicle Spawn and Despawn'); hPlt = axes(hViewPnl);

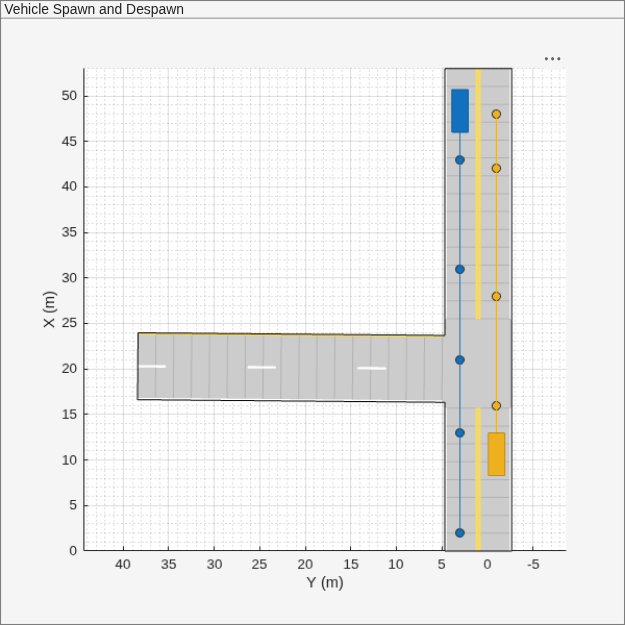

Plot the scenario and run the simulation. Observe how the non-ego vehicles spawn and despawn in the scenario while simulation is running.
plot(scenario,'Waypoints','on','Parent',hPlt) while advance(scenario) pause(0.1) end
Input Arguments
scenario
— Driving scenario
drivingScenario
object
Driving scenario, specified as a drivingScenario
object.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: vehicle('Length',2.2,'Width',0.6,'Height',1.5)
creates a
vehicle that has the dimensions of a motorcycle. Units are in meters.
ClassID
— Classification identifier
0
(default) | nonnegative integer
Classification identifier of actor, specified as the comma-separated pair consisting of 'ClassID'
and a nonnegative integer.
Specify ClassID
values to group together actors that have similar
dimensions, radar cross-section (RCS) patterns, or other properties. As a best practice,
before adding actors to a drivingScenario
object, determine the
actor classification scheme you want to use. Then, when creating the actors, specify the
ClassID
name-value pair to set classification identifiers
according to the actor classification scheme.
Suppose you want to create a scenario containing these actors:
Two cars, one of which is the ego vehicle
A truck
A bicycle
A jersey barrier along a road
The code shows a sample classification scheme for this scenario, where
1
refers to cars, 2
refers to trucks,
3
refers to bicycles and 5
refers to jersey
barriers. The cars have default vehicle properties. The truck and bicycle have the
dimensions of a typical truck and bicycle, respectively.
scenario = drivingScenario; ego = vehicle(scenario,'ClassID',1); car = vehicle(scenario,'ClassID',1); truck = vehicle(scenario,'ClassID',2,'Length',8.2,'Width',2.5,'Height',3.5); bicycle = actor(scenario,'ClassID',3,'Length',1.7,'Width',0.45,'Height',1.7); mainRoad = road(scenario,[0 0 0;10 0 0]); barrier(scenario,mainRoad,'ClassID',5);
The default ClassID
of 0
is reserved for an object of an unknown or unassigned class. If you plan to import drivingScenario
objects into the Driving Scenario Designer app, do not leave the ClassID
property of actors set to 0
. The app does not recognize a ClassID
of 0
for actors and returns an error. Instead, set ClassID
values of actors according to the actor classification scheme used in the app.
ClassID | Class Name |
---|---|
1 | Car |
2 | Truck |
3 | Bicycle |
4 | Pedestrian |
5 | Jersey Barrier |
6 | Guardrail |
Name
— Name of vehicle
""
(default) | character vector | string scalar
Name of the vehicle, specified as the comma-separated pair consisting of
'Name'
and a character vector or string scalar.
Example: 'Name','Vehicle1'
Example: "Name","Vehicle1"
Data Types: char
| string
EntryTime
— Entry time for vehicle to spawn
0
(default) | positive scalar
Entry time for a vehicle to spawn in the driving scenario, specified as the
comma-separated pair consisting of 'EntryTime'
and a positive
scalar or a vector of positive values. Units are in seconds, measured from the start
time of the scenario.
Specify this name-value pair argument to add or make a vehicle appear in the driving scenario at the specified time while the simulation is running.
To spawn a vehicle only once, specify entry time as a scalar.
To spawn a vehicle multiple times, specify entry time as a vector.
Arrange the elements of the vector in ascending order.
The length of the vector must match the length of the exit time vector.
If the vehicle has an associated exit time, then each entry time value must be less than the corresponding exit time value.
Each entry time value must be less than the stop time of the scenario. You can set the stop time for the scenario by specifying a value for the
'StopTime'
property of thedrivingScenario
object.
Example: 'EntryTime',2
Example: 'EntryTime',[2 4]
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
ExitTime
— Exit time for vehicle to despawn
Inf
(default) | positive scalar
Exit time for a vehicle to despawn from the driving scenario, specified as the
comma-separated pair consisting of 'ExitTime'
and a positive scalar
or a vector of positive values. Units are in seconds, measured from the start time of
the scenario.
Specify this name-value pair argument to remove or make a vehicle disappear from the scenario at a specified time while the simulation is running.
To despawn a vehicle only once, specify exit time as a scalar.
To despawn a vehicle multiple times, specify exit time as a vector.
Arrange the elements of the vector in ascending order.
The length of the vector must match the length of the entry time vector.
If the vehicle has an associated entry time, then each exit time value must be greater than the corresponding entry time value.
Each exit time value must be less than the stop time of the scenario. You can set the stop time for the scenario by specifying a value for the
'StopTime'
property of thedrivingScenario
object.
Example: 'ExitTime',3
Example: 'ExitTime',[3 6]
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
PlotColor
— Display color of vehicle
RGB triplet | hexadecimal color code | color name | short color name
Display color of vehicle, specified as the comma-separated pair consisting of
'PlotColor'
and an RGB triplet, hexadecimal color code, color
name, or short color name.
The vehicle appears in the specified color in all programmatic scenario
visualizations, including the plot
function, chasePlot
function, and plotting functions of birdsEyePlot
objects. If you import the scenario into the Driving Scenario
Designer app, then the vehicle appears in this color in all app
visualizations. If you import the scenario into Simulink®, then the vehicle appears in this color in the Bird's-Eye
Scope.
If you do not specify a color for the vehicle, the function assigns one based on
the default color order of Axes
objects. For more details, see the
ColorOrder
property for Axes
objects.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Position
— Position of vehicle center
[0 0 0]
(default) | [x
y
z] real-valued vector
Position of the rotational center of the vehicle, specified as the comma-separated
pair consisting of 'Position'
and an [x
y
z] real-valued vector.
The rotational center of a vehicle is the midpoint of its rear axle. The vehicle extends rearward by a distance equal to the rear overhang. The vehicle extends forward by a distance equal to the sum of the wheelbase and forward overhang. Units are in meters.
Example: [10;50;0]
Velocity
— Velocity of vehicle center
[0 0 0]
(default) | [vx
vy
vz] real-valued vector
Velocity (v) of the vehicle center in the
x-, y- and z-directions,
specified as the comma-separated pair consisting of 'Velocity'
and
a [vx
vy
vz] real-valued vector. The
'Position'
name-value pair specifies the vehicle center. Units
are in meters per second.
Example: [-4;7;10]
Yaw
— Yaw angle of vehicle
0
(default) | real scalar
Yaw angle of the vehicle, specified as the comma-separated pair consisting of
'Yaw'
and a real scalar. Yaw is the angle
of rotation of the vehicle around the z-axis. Yaw is
clockwise-positive when looking in the forward direction of the axis, which points up
from the ground. Therefore, when viewing vehicles from the top down, such as on a
bird's-eye plot, yaw is counterclockwise-positive. Angle values are wrapped to the
range [–180, 180]. Units are in degrees.
Example: -0.4
Pitch
— Pitch angle of vehicle
0
(default) | real scalar
Pitch angle of the vehicle, specified as the comma-separated pair consisting of
'Pitch'
and a real scalar. Pitch is the
angle of rotation of the vehicle around the y-axis and is
clockwise-positive when looking in the forward direction of the axis. Angle values are
wrapped to the range [–180, 180]. Units are in degrees.
Example: 5.8
Roll
— Roll angle of vehicle
0
(default) | real scalar
Roll angle of the vehicle, specified as the comma-separated pair consisting of
'Roll'
and a real scalar. Roll is the
angle of rotation of the vehicle around the x-axis and is
clockwise-positive when looking in the forward direction of the axis. Angle values are
wrapped to the range [–180, 180]. Units are in degrees.
Example: -10
AngularVelocity
— Angular velocity of vehicle
[0 0 0]
(default) | [ωx
ωy
ωz] real-valued vector
Angular velocity (ω) of the vehicle, in world coordinates,
specified as the comma-separated pair consisting of
'AngularVelocity'
and a
[ωx
ωy
ωz] real-valued vector. Units are in degrees
per second.
Example: [20 40 20]
Length
— Length of vehicle
4.7
(default) | positive real scalar
Length of the vehicle, specified as the comma-separated pair consisting of
'Length'
and a positive real scalar. Units are in meters.
In Vehicle
objects, this equation defines the
values of the Length
, FrontOverhang
,
Wheelbase
, and RearOverhang
properties:
Length = FrontOverhang + Wheelbase + RearOverhang
If you update the
Length
,RearOverhang
, orWheelbase
property, to maintain the equation, theVehicle
object increases or decreases theFrontOverhang
property and keeps the other properties constant.If you update the
FrontOverhang
property, to maintain this equation, theVehicle
object increases or decreases theWheelbase
property and keeps the other properties constant.
When setting both the FrontOverhang
and
RearOverhang
properties, to prevent the Vehicle
object
from overriding the FrontOverhang
value, set
RearOverhang
first, followed by FrontOverhang
. The
object calculates the new Wheelbase
property value automatically.
Example: 5.5
Width
— Width of vehicle
1.8
(default) | positive real scalar
Width of the vehicle, specified as the comma-separated pair consisting of
'Width'
and a positive real scalar. Units are in meters.
Example: 2.0
Height
— Height of vehicle
1.4
(default) | positive real scalar
Height of the vehicle, specified as the comma-separated pair consisting of
'Height'
and a positive real scalar. Units are in meters.
Example: 2.1
Mesh
— Extended object mesh
extendedObjectMesh
object
Extended object mesh, specified as an extendedObjectMesh
object.
RCSPattern
— Radar cross-section pattern of vehicle
[10 10; 10 10]
(default) | Q-by-P real-valued matrix
Radar cross-section (RCS) pattern of the vehicle, specified as the comma-separated
pair consisting of 'RCSPattern'
and a
Q-by-P real-valued matrix. RCS is a function
of the azimuth and elevation angles, where:
Q is the number of elevation angles specified by the
'RCSElevationAngles'
name-value pair.P is the number of azimuth angles specified by the
'RCSAzimuthAngles'
name-value pair.
Units are in decibels per square meter (dBsm).
Example: 5.8
RCSAzimuthAngles
— Azimuth angles of vehicle's RCS pattern
[-180 180]
(default) | P-element real-valued vector
Azimuth angles of the vehicle's RCS pattern, specified as the comma-separated pair
consisting of 'RCSAzimuthAngles'
and a P-element
real-valued vector. P is the number of azimuth angles. Values are
in the range [–180°, 180°].
Each element of RCSAzimuthAngles
defines the azimuth angle of
the corresponding column of the 'RCSPattern'
name-value pair.
Units are in degrees.
Example: [-90:90]
RCSElevationAngles
— Elevation angles of vehicle's RCS pattern
[-90 90]
(default) | Q-element real-valued vector
Elevation angles of the vehicle's RCS pattern, specified as the comma-separated
pair consisting of 'RCSElevationAngles'
and a
Q-element real-valued vector. Q is the number of
elevation angles. Values are in the range [–90°, 90°].
Each element of RCSElevationAngles
defines the elevation
angle of the corresponding row of the 'RCSPattern'
name-value
pair. Units are in degrees.
Example: [0:90]
FrontOverhang
— Front overhang of vehicle
0.9
(default) | real scalar
Front overhang of the vehicle, specified as the comma-separated pair consisting of
'FrontOverhang'
and a real scalar. The front overhang is the
distance that the vehicle extends beyond the front axle. If the vehicle does not
extend past the front axle, then the front overhang is negative. Units are in
meters.
In Vehicle
objects, this equation defines the
values of the Length
, FrontOverhang
,
Wheelbase
, and RearOverhang
properties:
Length = FrontOverhang + Wheelbase + RearOverhang
If you update the
Length
,RearOverhang
, orWheelbase
property, to maintain the equation, theVehicle
object increases or decreases theFrontOverhang
property and keeps the other properties constant.If you update the
FrontOverhang
property, to maintain this equation, theVehicle
object increases or decreases theWheelbase
property and keeps the other properties constant.
When setting both the FrontOverhang
and
RearOverhang
properties, to prevent the Vehicle
object
from overriding the FrontOverhang
value, set
RearOverhang
first, followed by FrontOverhang
. The
object calculates the new Wheelbase
property value automatically.
Example: 0.37
RearOverhang
— Rear overhang of vehicle
1.0
(default) | real scalar
Rear overhang of the vehicle, specified as the comma-separated pair consisting of
'RearOverhang'
and a real scalar. The rear overhang is the
distance that the vehicle extends beyond the rear axle. If the vehicle does not extend
past the rear axle, then the rear overhang is negative. Negative rear overhang is
common in semitrailer trucks, where the cab of the truck does not overhang the rear
wheel. Units are in meters.
In Vehicle
objects, this equation defines the
values of the Length
, FrontOverhang
,
Wheelbase
, and RearOverhang
properties:
Length = FrontOverhang + Wheelbase + RearOverhang
If you update the
Length
,RearOverhang
, orWheelbase
property, to maintain the equation, theVehicle
object increases or decreases theFrontOverhang
property and keeps the other properties constant.If you update the
FrontOverhang
property, to maintain this equation, theVehicle
object increases or decreases theWheelbase
property and keeps the other properties constant.
When setting both the FrontOverhang
and
RearOverhang
properties, to prevent the Vehicle
object
from overriding the FrontOverhang
value, set
RearOverhang
first, followed by FrontOverhang
. The
object calculates the new Wheelbase
property value automatically.
Example: 0.32
Wheelbase
— Distance between vehicle axles
2.8
(default) | positive real scalar
Distance between the front and rear axles of a vehicle, specified as the
comma-separated pair consisting of 'Wheelbase'
and a positive real
scalar. Units are in meters.
In Vehicle
objects, this equation defines the
values of the Length
, FrontOverhang
,
Wheelbase
, and RearOverhang
properties:
Length = FrontOverhang + Wheelbase + RearOverhang
If you update the
Length
,RearOverhang
, orWheelbase
property, to maintain the equation, theVehicle
object increases or decreases theFrontOverhang
property and keeps the other properties constant.If you update the
FrontOverhang
property, to maintain this equation, theVehicle
object increases or decreases theWheelbase
property and keeps the other properties constant.
When setting both the FrontOverhang
and
RearOverhang
properties, to prevent the Vehicle
object
from overriding the FrontOverhang
value, set
RearOverhang
first, followed by FrontOverhang
. The
object calculates the new Wheelbase
property value automatically.
Example: 1.51
AssetPath
— Path to RoadRunner asset for export
string scalar
Path to the RoadRunner asset for export, specified as a string scalar. When you export the
driving scenario containing this vehicle to a RoadRunner scenario using the startRoadRunnerForScenario
function, the function maps the vehicle to the RoadRunner asset located at the path you specify. If you do not specify the
AssetPath
argument, the function uses the default asset path
mapping between the driving scenario vehicles and their corresponding RoadRunner scenario assets based on ClassID
as illustrated in
this table:
Driving Scenario Class ID | Driving Scenario Actor Type | RoadRunner Asset |
---|---|---|
1 | Car | Assets/Vehicles/ADT Vehicles/SK_Sedan.fbx |
2 | Box Truck | Assets/Vehicles/ADT Vehicles/SK_BoxTruck.fbx |
3 | Bicycle | Assets/Vehicles/Cuboid.rrvehicle |
4 | Pedestrian | Assets/Characters/Citizen_Male.rrchar |
All other class IDs | All other custom dynamic actors | Assets/Vehicles/Cuboid.rrvehicle |
Example: "Assets/Vehicles/PickupTruck.fbx"
AssetType
— Type of 3-D display asset
string scalar
Type of 3-D display asset, specified as a string scalar. When you create a high-fidelity 3-D plot of the driving scenario using the plotSim3d
function, the function maps the vehicle to the 3-D display asset you specify. You can specify any of these 3-D display assets for the AssetType
value for your vehicle:
"Cuboid"
"Sedan"
"MuscleCar"
"Hatchback"
"SportUtilityVehicle"
"SmallPickupTruck"
"BoxTruck"
"Bicyclist"
"MalePedestrian"
"FemalePedestrian"
"Barrier"
If you do not specify the AssetType
argument, the function uses the
default asset path mapping between the driving scenario vehicles and their
corresponding 3-D display assets based on ClassID
as illustrated in
this table:
Driving Scenario Class ID | Driving Scenario Actor Type | 3-D Display Asset |
---|---|---|
1 | Car | Sedan |
2 | Box Truck | BoxTruck |
3 | Bicycle | Bicyclist |
4 | Pedestrian | MalePedestrian |
5 | Barrier | Barrier |
All other class IDs | All other custom dynamic actors | Cuboid |
Example: "MuscleCar"
Output Arguments
vc
— Driving scenario vehicle
Vehicle
object
Driving scenario vehicle, returned as a Vehicle
object belonging to
the driving scenario specified in scenario
.
You can modify the Vehicle
object by changing its property values.
The property names correspond to the name-value pair arguments used to create the
object.
The only property that you cannot modify is ActorID
, which is a
positive integer indicating the unique, scenario-defined ID of the vehicle.
To specify and visualize vehicle motion, use these functions:
trajectory | Create actor or vehicle trajectory in driving scenario |
smoothTrajectory | Create smooth, jerk-limited actor or vehicle trajectory in driving scenario |
chasePlot | Ego-centric projective perspective plot |
To get information about vehicle characteristics, use these functions:
actorPoses | Positions, velocities, and orientations of actors in driving scenario |
actorProfiles | Physical and radar characteristics of actors in driving scenario |
targetOutlines | Outlines of targets viewed by actor |
targetPoses | Target positions and orientations relative to ego vehicle |
driving.scenario.targetsToEgo | Convert target actor poses from world coordinates of scenario to ego vehicle coordinates |
driving.scenario.targetsToScenario | Convert target actor poses from ego vehicle coordinates to world coordinates of scenario |
To get information about the roads and lanes that the vehicle is on, use these functions:
roadBoundaries | Get road boundaries |
driving.scenario.roadBoundariesToEgo | Convert road boundaries to ego vehicle coordinates |
currentLane | Get current lane of actor |
laneBoundaries | Get lane boundaries of actor lane |
laneMarkingVertices | Lane marking vertices and faces in driving scenario |
roadMesh | Mesh representation of an actor's nearest roads in driving scenario. |
More About
Actor and Vehicle Positions and Dimensions
In driving scenarios, an actor is a cuboid (box-shaped) object with a specific length, width, and height. Actors also have a radar cross-section (RCS) pattern, specified in dBsm, which you can refine by setting angular azimuth and elevation coordinates. The position of an actor is defined as the center of its bottom face. This center point is used as the actor's rotational center, its point of contact with the ground, and its origin in its local coordinate system. In this coordinate system:
The X-axis points forward from the actor.
The Y-axis points left from the actor.
The Z-axis points up from the ground.
Roll, pitch, and yaw are clockwise-positive when looking in the forward direction of the X-, Y-, and Z-axes, respectively.
A vehicle is an actor that moves on wheels. Vehicles have three extra properties that govern the placement of their front and rear axle.
Wheelbase — Distance between the front and rear axles
Front overhang — Distance between the front of the vehicle and the front axle
Rear overhang — Distance between the rear axle and the rear of the vehicle
Unlike other types of actors, the position of a vehicle is defined by the point on the ground that is below the center of its rear axle. This point corresponds to the natural center of rotation of the vehicle. As with nonvehicle actors, this point is the origin in the local coordinate system of the vehicle, where:
The X-axis points forward from the vehicle.
The Y-axis points left from the vehicle.
The Z-axis points up from the ground.
Roll, pitch, and yaw are clockwise-positive when looking in the forward direction of the X-, Y-, and Z-axes, respectively.
This table shows a list of common actors and their dimensions. To specify these values in Actor
and Vehicle
objects, set the corresponding properties shown.
Actor Classification | Actor Object | Actor Properties | ||||||
---|---|---|---|---|---|---|---|---|
Length | Width | Height | FrontOverhang | RearOverhang | Wheelbase | RCSPattern | ||
Pedestrian | Actor | 0.24 m | 0.45 m | 1.7 m | N/A | N/A | N/A | –8 dBsm |
Car | Vehicle | 4.7 m | 1.8 m | 1.4 m | 0.9 m | 1.0 m | 2.8 m | 10 dBsm |
Motorcycle | Vehicle | 2.2 m | 0.6 m | 1.5 m | 0.37 m | 0.32 m | 1.51 m | 0 dBsm |
Version History
Introduced in R2017a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
