Powertrain Reference Applications

Internal combustion engine, hybrid, and electric vehicle reference applications

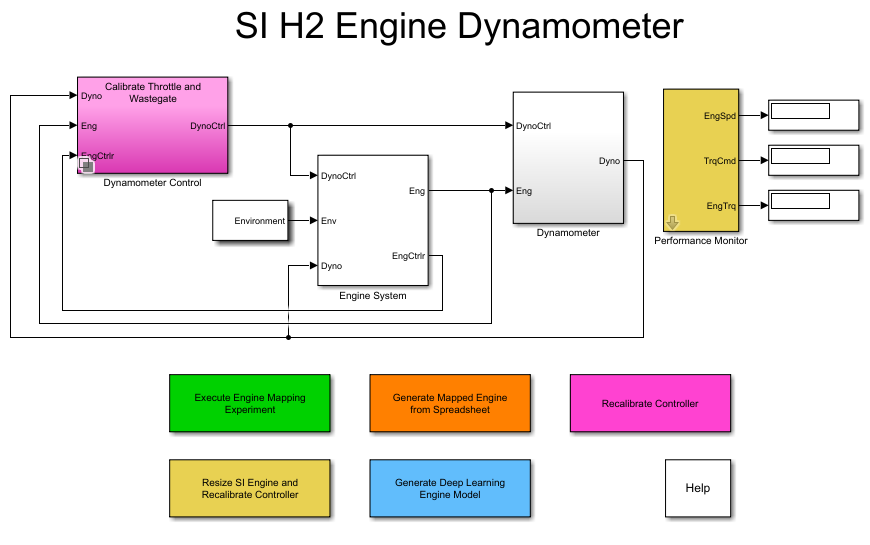

The reference applications are fully assembled models of automotive powertrains, including spark-ignition (SI), compression-ignition (CI), hybrid, and electric systems. For design tradeoff analysis and component sizing, control parameter optimization, and hardware-in-the-loop (HIL) testing, start with one of the vehicle reference applications. Before integration with the vehicle model for CI or SI engine and controller calibration, validation, and optimization start with one of the internal combustion engine dynamometer reference applications.

Functions

expand all

autoblks.pwr.PlantInfoAnalyze powertrain power and energy
dispSignalSummaryDisplay powertrain subsystem energy analysis
dispSysSummaryDisplay powertrain system efficiency
findChildSysPowertrain subsystem energy analysis
histogramEffDisplay powertrain subsystem efficiency histogram
runRun powertrain energy and power analysis
sdiSummaryDisplay Simulation Data Inspector plots of powertrain energy and power
xlsSysSummaryWrite powertrain energy analysis to spreadsheet
addLoggedDataAdd logged data
isEnrgyBalancedLogical flag for energy conservation
loggingOffTurn signal logging off
loggingOnTurn signal logging on

Topics

Internal Combustion Engine Reference Application Projects

Use these reference application projects as a starting point for your own internal combustion engine vehicle models.

Hybrid and Electric Vehicle Reference Application Projects

Use these reference application projects as a starting point for your own hybrid and electric vehicle models.

Analyze Power and Energy

Evaluate and report energy and power losses at the component- and system-level.

Generate Mapped CI Engine from a Spreadsheet

Use the engine dynamometer reference application to generate parameters for the Mapped CI Engine block.

Generate Mapped SI Engine from a Spreadsheet

Use the engine dynamometer reference application to generate parameters for the Mapped SI Engine block.

Generate a Deep Learning SI Engine Model

Use the engine dynamometer reference application to generate a deep learning SI engine model.

Resize the CI Engine

Resize the compression-ignition (CI) engines using the dynamometer reference application.

Resize the SI Engine

Resize the spark-ignition (SI) engines using the dynamometer reference application.
