horzcat

Horizontal concatenation of two sensing dictionaries

Since R2022a

collapse all in page

    Syntax

    Anew = horzcat(A,B)
    Anew = [A,B]

    Description

    Anew = horzcat(A,B) creates a custom sensing dictionary by appending the columns in B after the columns in A. The dictionaries A and B must have the same number of rows.

    example

    Anew = [A,B] is equivalent to Anew = horzcat(A,B).

    Examples

    collapse all

    Open Live Script

    Create two sensing dictionaries of size 100-by-100. Set the basis type of one dictionary to 'dct' and to 'walsh' for the other dictionary.

    A = sensingDictionary(Type={'dct'});
B = sensingDictionary(Type={'walsh'});

    Concatenate the two sensing dictionaries.

    C = [A B]
    C =
  sensingDictionary with properties:

                Type: {'dct'  'walsh'}
                Name: {''  ''}
               Level: [0 0]
    CustomDictionary: []
                Size: [100 200]

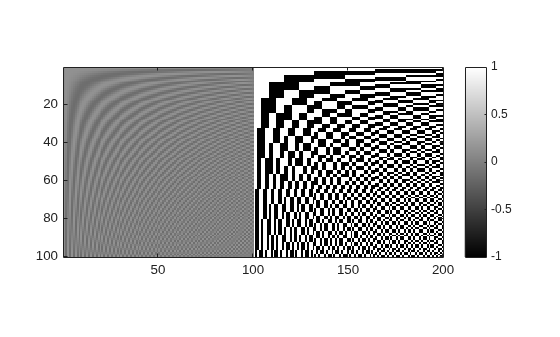

    Extract the entire matrix from sensing dictionary C. Visualize the matrix.

    Cmat = subdict(C,1:C.Size(1),1:C.Size(2));
imagesc(Cmat)
axis equal
axis tight
colorbar
colormap gray

    Figure contains an axes object. The axes object contains an object of type image.

    Input Arguments

    collapse all

    Sensing dictionary, specified as a sensingDictionary object.

    Sensing dictionary, specified as a sensingDictionary object.

    Data Types: single | double
    Complex Number Support: Yes

    Output Arguments

    collapse all

    Sensing dictionary, returned as a sensingDictionary object. Depending on A and B, Anew has the following properties:

    • sensingDictionary A, matrix B:

      • Anew.Type = {A.type,'custom'}

      • Anew.CustomDictionary = [A.CustomDictionary B]

    • sensingDictionary A, sensingDictionary B:

      • Anew.Type = {A.Type,B.Type}

      • Anew.CustomDictionary = [A.CustomDictionary B.CustomDictionary]

    Version History

    Introduced in R2022a
