# depo2ind

Node depth-position to node index

## Syntax

``n = depo2ind(ord,[d,p])``

## Description

`depo2ind` is a tree-management utility.

example

````n = depo2ind(ord,[d,p])` returns, for a tree of order `ord`, the indices `n` of the nodes whose depths and positions are encoded within `d` and `p`.The nodes are numbered from left to right and from top to bottom. The root index is 0.```

## Examples

collapse all

Create a binary tree of depth 3.

```ord = 2; t = ntree(ord,3);```

Merge the nodes of indices 4 and 5. Plot the tree.

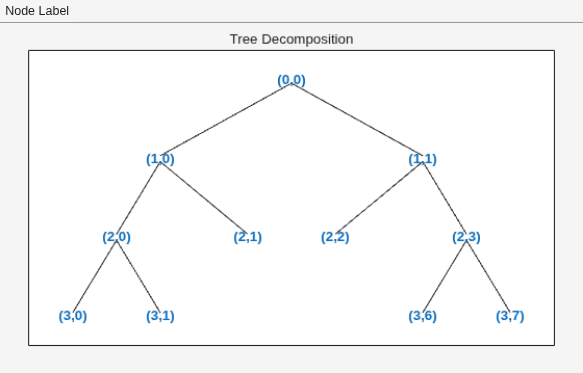

```t = nodejoin(t,5); t = nodejoin(t,4); plot(t)```

Use the `allnodes` function to obtain the depth-position of the tree nodes.

`aln_depo = allnodes(t,"deppos");`

Convert every depth-position to a node index.

```aln_ind = depo2ind(ord,aln_depo); [aln_depo aln_ind]```
```ans = 11×3 0 0 0 1 0 1 1 1 2 2 0 3 2 1 4 2 2 5 2 3 6 3 0 7 3 1 8 3 6 13 ⋮ ```

## Input Arguments

collapse all

Order of a tree, specified as a positive integer.

Example: A binary tree is a tree of order 2.

Depths and positions (at those depths) for nodes in a tree of order `ord`, specified as a pair of column vectors with nonnegative integer entries. The vectors `d` and `p` must have the same length.

The values of depths D and positions P must be such that D ≥0 and 0≤ P`ord`D-1.

## Output Arguments

collapse all

Node indices, returned as a column vector with nonnegative integer entries.

The values of the indices N are such that 0 ≤ N < (`ord`max(`d`)+1-1)/(`ord`–1), where `d` are the depths.

Note

For a column vector `X`, we have ```depo2ind(ord,X) = X```.

## Version History

Introduced before R2006a
