bundleAdjustmentMotion

Adjust collection of 3-D points and camera poses using motion-only bundle adjustment

Since R2020a

Syntax

refinedPose = bundleAdjustmentMotion(xyzPoints,imagePoints,absolutePose,intrinsics)

[refinedPose,reprojectionErrors] = bundleAdjustmentMotion(___)

[___] = bundleAdjustmentMotion(___,Name,Value)

Description

refinedPose = bundleAdjustmentMotion(xyzPoints,imagePoints,absolutePose,intrinsics) returns the refined absolute camera pose that minimizes reprojection errors.

The motion-only refinement procedure is a special case of the Levenberg-Marquardt algorithm for bundle adjustment with 3-D points fixed during optimization. The 3-D points and the camera pose are placed in the same world coordinate system.

[refinedPose,reprojectionErrors] = bundleAdjustmentMotion(___) additionally returns an N-element vector containing the mean reprojection error for each 3-D world point using the arguments from the previous syntax.

[___] = bundleAdjustmentMotion(___,Name,Value) uses additional options specified by one or more name-value arguments. Unspecified arguments have default values.

Examples

Refine Absolute Camera Pose

Load data for initialization into the workspace.

data = load("globeMotionOnlyBA.mat");

Refine the absolute camera poses.

refinedPose = bundleAdjustmentMotion(data.xyzPoints,data.imagePoints,data.absPose,data.intrinsics);

Display the 3-D world points.

pcshow(data.xyzPoints,AxesVisibility="on",VerticalAxis="y",VerticalAxisDir="down",MarkerSize=45);
hold on

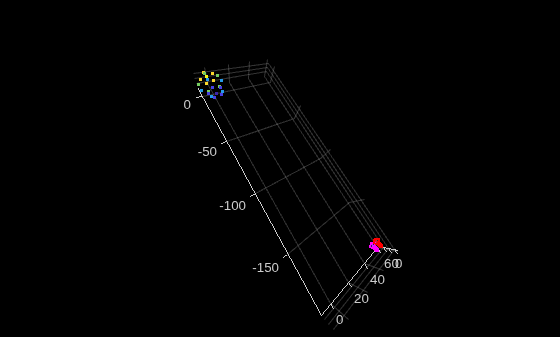

Plot the absolute camera poses before and after refinement.

plotCamera(AbsolutePose=data.absPose,Color="r",Size=2);
plotCamera(AbsolutePose=refinedPose,Color="m",Size=2);

Input Arguments

xyzPoints — Unrefined 3-D points

M-by-3 matrix

Unrefined 3-D points, specified as an M-by-3 matrix of [x,y,z] locations.

Data Types: single | double

imagePoints — Image points

M-by-2 matrix | M-element feature point array

Image points, specified as an M-by-2 matrix or an M-element Point Feature Types array.

absolutePose — Absolute camera pose

rigidtform3d object

Absolute camera pose, specified as a rigidtform3d object.

intrinsics — Camera intrinsics

cameraIntrinsics object

Camera intrinsics, specified as a cameraIntrinsics object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: "MaxIterations",50

MaxIterations — Maximum number of iterations

50 (default) | positive integer

Maximum number of iterations before the Levenberg-Marquardt algorithm stops, specified as a positive integer.

AbsoluteTolerance — Absolute termination tolerance

1.0 (default) | positive scalar

Absolute termination tolerance of the mean squared reprojection error in pixels, specified as a positive scalar.

RelativeTolerance — Relative termination tolerance

1e-5 (default) | positive scalar

Relative termination tolerance of the reduction in reprojection error between iterations, specified as a positive scalar.

PointsUndistorted — Flag to indicate lens distortion

false (default) | true

Flag to indicate lens distortion, specified as false or true. When you set PointsUndistorted to false, the 2-D points in pointTracks must be from images with lens distortion. To use undistorted points, use the undistortImage function first, then set PointsUndistorted to true.

Verbose — Display progress information

False (default) | true

Display progress information, specified as false or true.

Output Arguments

refinedPose — Refined absolute pose

rigidtform3d object

Refined absolute pose of the camera, returned as a rigidtform3d object.

reprojectionErrors — Reprojection errors

M-element vector

Reprojection errors, returned as an M-element vector. The function projects each world point back into each camera. Then in each image, the function calculates the reprojection error as the distance between the detected and the reprojected point. The reprojectionErrors vector contains the average reprojection error for each world point.

References

[1] Lourakis, Manolis I. A., and Antonis A. Argyros. "SBA: A Software Package for Generic Sparse Bundle Adjustment." ACM Transactions on Mathematical Software 36, no. 1 (March 2009): 2:1–2:30.

[2] Hartley, Richard, and Andrew Zisserman. Multiple View Geometry in Computer Vision. 2nd ed. Cambridge, UK ; New York: Cambridge University Press, 2003.

[3] Triggs, Bill, Philip F. McLauchlan, Richard I. Hartley, and Andrew W. Fitzgibbon. "Bundle Adjustment — A Modern Synthesis." In Proceedings of the International Workshop on Vision Algorithms, 298–372. Springer-Verlag, 1999.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

Supports code generation in only host target platforms.

Version History

Introduced in R2020a

R2022b: Supports premultiply geometric transformation convention

Starting in R2022b, most Computer Vision Toolbox™ functions create and perform geometric transformations using the premultiply convention. Accordingly, the bundleAdjustmentMotion function now supports specifying absolutePose as a rigidtform3d object, which uses the premultiply convention. Although you can still specify absolutePose as a rigid3d object, this object is not recommended because it uses the postmultiply convention. The bundleAdjustmentMotion function returns refinedPose as a geometric transformation object of the same type as absolutePose.

You can streamline your geometric transformation workflows by switching to the premultiply geometric transformation convention. For more information, see Migrate Geometric Transformations to Premultiply Convention.
