systemcomposer.view.View

Architecture view

Since R2021a

Description

A View object is used to manage architecture views for a System Composer™ model.

Creation

Create a view using the createView function.

objView = createView(objModel)

Properties

Name — Name of view

string

Name of view, specified as a string.

Example: "NewView"

Data Types: string

Root — Root element group

element group object

Root element group that defines view, specified as a systemcomposer.view.ElementGroup object.

Model — Architecture model

model object

Architecture model where view belongs, specified as a systemcomposer.arch.Model object.

UUID — Universal unique identifier

character vector

Universal unique identifier for view, specified as a character vector.

Example: '91d5de2c-b14c-4c76-a5d6-5dd0037c52df'

Data Types: char

Select — Selection query

constraint object

Selection query associated with view, specified as a systemcomposer.query.Constraint object.

GroupBy — Grouping criteria

string array of properties

Grouping criteria, specified as a string array of properties in the form "<profile>.<stereotype>.<property>".

Example: ["AutoProfile.MechanicalComponent.mass","AutoProfile.MechanicalComponent.cost"]

Color — Color of view

string

Color of view, specified as a string. The color can be the name "blue", "black", or "green", or it can be an RGB value encoded in a hexadecimal string: "#FF00FF" or "#DDDDDD". An invalid color results in an error.

Description — Description of view

string

Description of view, specified as a string.

Data Types: string

IncludeReferenceModels — Whether to include referenced models

true or 1 | false or 0

Whether to include referenced models, specified as a logical.

Example: included = get(objView,'IncludeReferenceModels')

Data Types: logical

Object Functions

modifyQuery	Modify architecture view query and property groupings
runQuery	Re-run architecture view query on model
removeQuery	Remove architecture view query
destroy	Remove model element

Examples

Create Architecture Views in System Composer with Keyless Entry System

Use a keyless entry system to programmatically create architecture views.

1. Import the package with queries.

import systemcomposer.query.*

2. Open the Simulink® project file for the Keyless Entry System.

scKeylessEntrySystem

3. Load the example model into System Composer™.

model = systemcomposer.loadModel("KeylessEntryArchitecture");

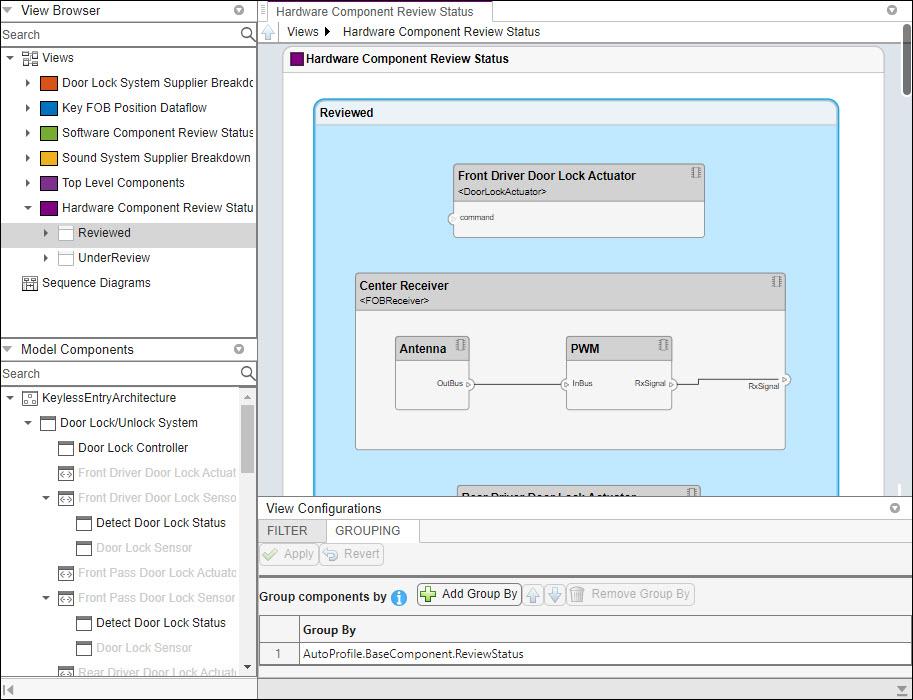

Example 1: Hardware Component Review Status View

Create a filtered view that selects all hardware components in the architecture model and groups them using the ReviewStatus property.

1. Construct a query to select all hardware components.

hwCompQuery = HasStereotype(IsStereotypeDerivedFrom("AutoProfile.HardwareComponent"));

2. Use the query to create a view.

model.createView("Hardware Component Review Status",...
 Select=hwCompQuery,...
 GroupBy={'AutoProfile.BaseComponent.ReviewStatus'},...
 IncludeReferenceModels=true,...
 Color="purple");

3. To open the Architecture Views Gallery the Views section, click Architecture Views.

model.openViews

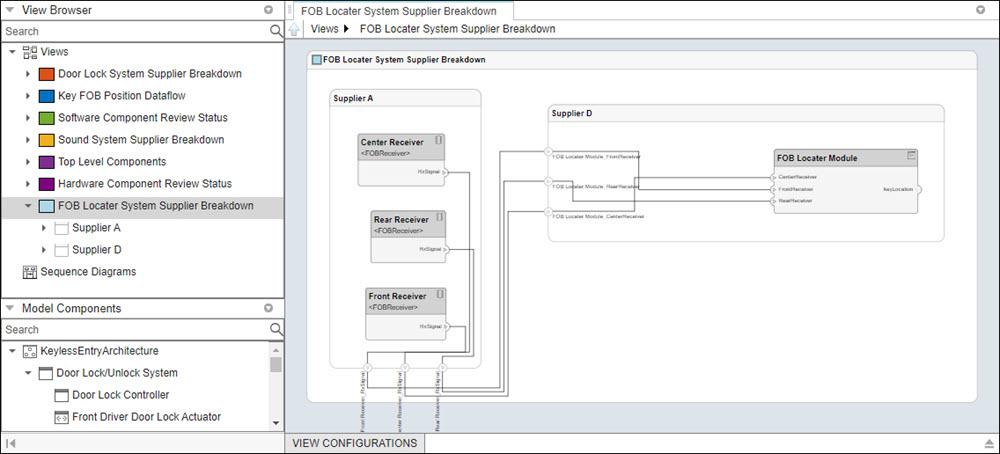

Example 2: FOB Locator System Supplier View

Create a freeform view that manually pulls the components from the FOB Locator System and groups them using existing and new view components for the suppliers. In this example, you will use element groups, groupings of components in a view, to programmatically populate a view.

1. Create a view architecture.

fobSupplierView = model.createView("FOB Locator System Supplier Breakdown",...
    Color="lightblue");

2. Add a subgroup called Supplier D. Add the FOB Locator Module to the view element subgroup.

supplierD = fobSupplierView.Root.createSubGroup("Supplier D");
supplierD.addElement("KeylessEntryArchitecture/FOB Locator System/FOB Locator Module");

3. Create a new subgroup for Supplier A.

supplierA = fobSupplierView.Root.createSubGroup("Supplier A");

4. Add each of the FOB Receivers to view element subgroup.

FOBLocatorSystem = model.lookup("Path","KeylessEntryArchitecture/FOB Locator System");

Find all the components which contain the name "Receiver".

receiverCompPaths = model.find(...
    contains(Property("Name"),"Receiver"),...
    FOBLocatorSystem.Architecture);

supplierA.addElement(receiverCompPaths)

5. Save the model.

model.save

More About

Definitions

Term	Definition	Application	More Information
view	A view shows a customizable subset of elements in a model. Views can be filtered based on stereotypes or names of components, ports, and interfaces, along with the name, type, or units of an interface element. Create views by adding elements manually. Views create a simplified way to work with complex architectures by focusing on certain parts of the architectural design.	You can use different types of views to represent the system. Switch between a component diagram, component hierarchy, or architecture hierarchy. For software architectures, you can switch to a class diagram view. A viewpoint represents a stakeholder perspective that specifies the contents of the view.	Modeling System Architecture of Keyless Entry System
element group	An element group is a grouping of components in a view.	Use element groups to programmatically populate a view.	Create Architecture Views Interactively Create Architectural Views Programmatically
query	A query is a specification that describes certain constraints or criteria to be satisfied by model elements.	Use queries to search elements with constraint criteria and to filter views.	Find Elements in Model Using Queries
component diagram	A component diagram represents a view with components, ports, and connectors based on how the model is structured.	Component diagrams allow you to programmatically or manually add and remove components from the view.	Inspect Components in Custom Architecture Views
hierarchy diagram	You can visualize a hierarchy diagram as a view with components, ports, reference types, component stereotypes, and stereotype properties.	There are two types of hierarchy diagrams: Component hierarchy diagrams display components in tree form with parents above children. In a component hierarchy view, each referenced model is represented as many times as it is used. Architecture hierarchy diagrams display unique component architecture types and their relationships using composition connections. In an architecture hierarchy view, each referenced model is represented only once.	Display Component Hierarchy and Architecture Hierarchy Using Views

Version History

Introduced in R2021a
