incrementalClassificationECOC

Multiclass classification model using binary learners for incremental learning

    Description

    The incrementalClassificationECOC function creates an incrementalClassificationECOC model object, which represents a multiclass error-correcting output codes (ECOC) classification model that uses binary learners for incremental learning.

    Unlike other Statistics and Machine Learning Toolbox™ model objects, incrementalClassificationECOC can be called directly. Also, you can specify learning options, such as performance metrics configurations and prior class probabilities, before fitting the model to data. After you create an incrementalClassificationECOC object, it is prepared for incremental learning.

    incrementalClassificationECOC is best suited for incremental learning. For a traditional approach to training a multiclass classification model (such as creating a model by fitting it to data, performing cross-validation, tuning hyperparameters, and so on), see fitcecoc.

    Creation

    You can create an incrementalClassificationECOC model object in several ways:

    • Call the function directly — Configure incremental learning options, or specify learner-specific options, by calling incrementalClassificationECOC directly. This approach is best when you do not have data yet or you want to start incremental learning immediately. You must specify the maximum number of classes or all class names expected in the response data during incremental learning.

    • Convert a traditionally trained model — To initialize a multiclass ECOC classification model for incremental learning using the model parameters of a trained model object (ClassificationECOC or CompactClassificationECOC), you can convert the traditionally trained model to an incrementalClassificationECOC model object by passing it to the incrementalLearner function.

    • Call an incremental learning functionfit, updateMetrics, and updateMetricsAndFit accept a configured incrementalClassificationECOC model object and data as input, and return an incrementalClassificationECOC model object updated with information learned from the input model and data.

    Description

    example

    Mdl = incrementalClassificationECOC(MaxNumClasses=maxNumClasses) returns a default incremental learning model object for multiclass ECOC classification, Mdl, where MaxNumClasses is the maximum number of classes expected in the response data during incremental learning. Properties of a default model contain placeholders for unknown model parameters. You must train a default model before you can track its performance or generate predictions from it.

    example

    Mdl = incrementalClassificationECOC(ClassNames=classNames) specifies all class names ClassNames expected in the response data during incremental learning, and sets the ClassNames property.

    example

    Mdl = incrementalClassificationECOC(___,Name=Value) uses either of the previous syntaxes to set properties and additional options using name-value arguments. For example, incrementalClassificationECOC(MaxNumClasses=5,Coding="onevsone",MetricsWarmupPeriod=100) sets the maximum number of classes expected in the response data to 5, specifies to use a one-versus-one coding design, and sets the metrics warm-up period to 100.

    Input Arguments

    expand all

    Maximum number of classes expected in the response data during incremental learning, specified as a positive integer.

    MaxNumClasses sets the number of class names in the ClassNames property.

    If you do not specify MaxNumClasses, you must specify the ClassNames argument.

    Example: MaxNumClasses=5

    Data Types: single | double

    All unique class labels expected in the response data during incremental learning, specified as a categorical, character, or string array; logical or numeric vector; or cell array of character vectors. ClassNames and the response data must have the same data type. This argument sets the ClassNames property.

    ClassNames specifies the order of any input or output argument dimension that corresponds to the class order. For example, set ClassNames to specify the column order of classification scores returned by predict.

    If you do not specify ClassNames, you must specify the MaxNumClasses argument. In that case, the software infers the ClassNames property from the data during incremental learning.

    Example: ClassNames=["virginica","setosa","versicolor"]

    Data Types: single | double | logical | string | char | cell | categorical

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: NumPredictors=4,Prior=[0.3 0.3 0.4] specifies the number of predictor variables as 4 and sets the prior class probability distribution to [0.3 0.3 0.4].

    Coding design name, specified as a numeric matrix or a value in this table.

    ValueNumber of Binary LearnersDescription
    "allpairs" and "onevsone"K(K – 1)/2For each binary learner, one class is positive, another is negative, and the software ignores the rest. This design exhausts all combinations of class pair assignments.
    "binarycomplete"2(K1)1This design partitions the classes into all binary combinations, and does not ignore any classes. For each binary learner, all class assignments are –1 and 1 with at least one positive class and one negative class in the assignment.
    "denserandom"Random, but approximately 10 log2KFor each binary learner, the software randomly assigns classes into positive or negative classes, with at least one of each type. For more details, see Random Coding Design Matrices.
    "onevsall"KFor each binary learner, one class is positive and the rest are negative. This design exhausts all combinations of positive class assignments.
    "ordinal"K – 1For the first binary learner, the first class is negative and the rest are positive. For the second binary learner, the first two classes are negative and the rest are positive, and so on.
    "sparserandom"Random, but approximately 15 log2KFor each binary learner, the software randomly assigns classes as positive or negative with probability 0.25 for each, and ignores classes with probability 0.5. For more details, see Random Coding Design Matrices.
    "ternarycomplete"(3K2(K+1)+1)/2This design partitions the classes into all ternary combinations. All class assignments are 0, –1, and 1 with at least one positive class and one negative class in each assignment.

    You can also specify a coding design using a custom coding matrix, which is a K-by-L matrix. Each row corresponds to a class and each column corresponds to a binary learner. The class order (rows) corresponds to the order in the ClassNames property. Create the matrix by following these guidelines:

    • Every element of the custom coding matrix must be –1, 0, or 1, and the value must correspond to a dichotomous class assignment. Consider Coding(i,j), the class that learner j assigns to observations in class i.

      ValueDichotomous Class Assignment
      –1Learner j assigns observations in class i to a negative class.
      0Before training, learner j removes observations in class i from the data set.
      1Learner j assigns observations in class i to a positive class.

    • Every column must contain at least one –1 and one 1.

    • For all column indices i,j where ij, Coding(:,i) cannot equal Coding(:,j), and Coding(:,i) cannot equal –Coding(:,j).

    • All rows of the custom coding matrix must be different.

    For more details on the form of custom coding design matrices, see Custom Coding Design Matrices.

    Example: Coding="ternarycomplete"

    Data Types: char | string | double | single | int16 | int32 | int64 | int8

    Model performance metrics to track during incremental learning, specified as "classiferror" (classification error, or misclassification error rate), a function handle (for example, @metricName), a structure array of function handles, or a cell vector of names, function handles, or structure arrays.

    When Mdl is warm (see IsWarm), updateMetrics and updateMetricsAndFit track performance metrics in the Metrics property of Mdl.

    To specify a custom function that returns a performance metric, use function handle notation. The function must have this form.

    metric = customMetric(C,S)

    • The output argument metric is an n-by-1 numeric vector, where each element is the loss of the corresponding observation in the data processed by the incremental learning functions during a learning cycle.

    • You specify the function name (here, customMetric).

    • C is an n-by-K logical matrix with rows indicating the class to which the corresponding observation belongs, where K is the number of classes. The column order corresponds to the class order in the ClassNames property. Create C by setting C(p,q) = 1, if observation p is in class q, for each observation in the specified data. Set the other element in row p to 0.

    • S is an n-by-K numeric matrix of predicted classification scores. S is similar to the NegLoss output of predict, where rows correspond to observations in the data and the column order corresponds to the class order in the ClassNames property. S(p,q) is the classification score of observation p being classified in class q.

    To specify multiple custom metrics and assign a custom name to each, use a structure array. To specify a combination of built-in and custom metrics, use a cell vector.

    updateMetrics and updateMetricsAndFit store specified metrics in a table in the Metrics property. The data type of Metrics determines the row names of the table.

    Metrics Value Data TypeDescription of Metrics Property Row NameExample
    String or character vectorName of corresponding built-in metricRow name for "classiferror" is "ClassificationError"
    Structure arrayField nameRow name for struct(Metric1=@customMetric1) is "Metric1"
    Function handle to function stored in a program fileName of functionRow name for @customMetric is "customMetric"
    Anonymous functionCustomMetric_j, where j is metric j in MetricsRow name for @(C,S)customMetric(C,S)... is CustomMetric_1

    For more details on performance metrics options, see Performance Metrics.

    Example: Metrics=struct(Metric1=@customMetric1,Metric2=@customMetric2)

    Example: Metrics={@customMetric1,@customMetric2,"classiferror",struct(Metric3=@customMetric3)}

    Data Types: char | string | struct | cell | function_handle

    Binary learner templates, specified as "linear", "kernel", an incremental learning object, a template object, or a cell array of supported incremental learning objects and template objects.

    • "linear" or "kernel" — Specify the Learners value as a string scalar or character vector to use the default linear learners or default kernel learners (default incrementalClassificationLinear or incrementalClassificationKernel objects, respectively).

    • Incremental learning object (incrementalClassificationLinear or incrementalClassificationKernel object) — Configure binary learner properties (both model-specific properties and incremental learning properties) when you create an incremental learning object, and pass the object to incrementalClassificationECOC as the Learners value.

    • Template object returned by the templateLinear, templateSVM, or templateKernel function — Configure model-specific properties when you create a template object, and pass the object to incrementalClassificationECOC as the Learners value. Use this approach to specify model properties with a template object and to use the default incremental learning options.

    • Cell array of supported incremental learning objects and template objects — Use this approach to customize each learner individually.

    You cannot specify the ClassNames (class names), Prior (prior class probabilities), and ScoreTransform (score transformation function) properties for an incrementalClassificationECOC object by using the binary learners. Instead, specify the properties by using the corresponding name-value arguments of incrementalClassificationECOC.

    Example: Learners="kernel"

    Flag for updating the metrics of binary learners, specified as logical 0 (false) or 1 (true).

    If the value is true, the software tracks the performance metrics of binary learners using the Metrics property of the binary learners, stored in the BinaryLearners property. For an example, see Configure Incremental Model to Track Performance Metrics for Model and Binary Learners.

    Example: UpdateBinaryLearnerMetrics=true

    Data Types: logical

    Properties

    expand all

    You can set most properties by using name-value argument syntax when you call incrementalClassificationECOC directly. You cannot set the properties BinaryLearners, CodingMatrix, CodingName, NumTrainingObservations, and IsWarm using name-value argument syntax with the arguments of the same names. However, you can set CodingMatrix and CodingName by using the Coding name-value argument, and you can set BinaryLearners by using the Learners name-value argument.

    You can set some properties when you call incrementalLearner to convert a traditionally trained model.

    Classification Model Parameters

    This property is read-only.

    Trained binary learners, specified as a cell array of incrementalClassificationLinear or incrementalClassificationKernel model objects. The number of binary learners depends on the coding design.

    The software trains BinaryLearner{j} according to the binary problem specified by CodingMatrix(:,j).

    The default BinaryLearners value depends on how you create the model:

    • If you convert a traditionally trained model (for example, TTMdl) to create Mdl, BinaryLearners contains incremental learners converted from the binary learners in TTMdl.

      When you train TTMdl, you must specify the Learners name-value argument of fitcecoc to use support vector machine (SVM) binary learner templates (templateSVM) or linear classification model binary learner templates (templateLinear).

    • Otherwise, the Learners name-value argument sets this property. The default value of the argument is "linear", which uses incrementalClassificationLinear model objects with SVM learners.

    Data Types: cell

    This property is read-only.

    Binary learner loss function, specified as a built-in loss function name or function handle. incrementalClassificationECOC stores the BinaryLoss value as a character vector or function handle.

    • This table describes the built-in functions, where yj is the class label for a particular binary learner (in the set {–1,1,0}), sj is the score for observation j, and g(yj,sj) is the binary loss formula.

      ValueDescriptionScore Domaing(yj,sj)
      "binodeviance"Binomial deviance(–∞,∞)log[1 + exp(–2yjsj)]/[2log(2)]
      "exponential"Exponential(–∞,∞)exp(–yjsj)/2
      "hamming"Hamming[0,1] or (–∞,∞)[1 – sign(yjsj)]/2
      "hinge"Hinge(–∞,∞)max(0,1 – yjsj)/2
      "linear"Linear(–∞,∞)(1 – yjsj)/2
      "logit"Logistic(–∞,∞)log[1 + exp(–yjsj)]/[2log(2)]
      "quadratic"Quadratic[0,1][1 – yj(2sj – 1)]2/2

      The software normalizes binary losses so that the loss is 0.5 when yj = 0. Also, the software calculates the mean binary loss for each class.

    • For a custom binary loss function, for example customFunction, specify its function handle BinaryLoss=@customFunction.

      customFunction has this form:

      bLoss = customFunction(M,s)

      • M is the K-by-B coding matrix stored in Mdl.CodingMatrix.

      • s is the 1-by-B row vector of classification scores.

      • bLoss is the classification loss. This scalar aggregates the binary losses for every learner in a particular class. For example, you can use the mean binary loss to aggregate the loss over the learners for each class.

      • K is the number of classes.

      • B is the number of binary learners.

      For an example of a custom binary loss function, see Predict Test-Sample Labels of ECOC Model Using Custom Binary Loss Function. This example is for a traditionally trained model. You can define a custom loss function for incremental learning as shown in the example.

    For more information, see Binary Loss.

    The default BinaryLoss value depends on how you create the model:

    • If you convert a traditionally trained model to create Mdl, BinaryLoss is specified by the corresponding property of the traditionally trained model. You can also specify the BinaryLoss value by using the BinaryLoss name-value argument of incrementalLearner.

    • Otherwise, the default value of BinaryLoss is "hinge".

    Data Types: char | string | function_handle

    This property is read-only.

    All unique class labels expected in the response data during incremental learning, specified as a categorical or character array, a logical or numeric vector, or a cell array of character vectors.

    You can set ClassNames in one of three ways:

    • If you specify the MaxNumClasses argument, the software infers the ClassNames property during incremental learning.

    • If you specify the ClassNames argument, incrementalClassificationECOC stores your specification in the ClassNames property. (The software treats string arrays as cell arrays of character vectors.)

    • If you convert a traditionally trained model to create Mdl, the ClassNames property is specified by the corresponding property of the traditionally trained model.

    Data Types: single | double | logical | char | string | cell | categorical

    This property is read-only.

    Class assignment codes for the binary learners, specified as a numeric matrix. CodingMatrix is a K-by-L matrix, where K is the number of classes and L is the number of binary learners.

    The elements of CodingMatrix are –1, 0, and 1, and the values correspond to dichotomous class assignments. This table describes how learner j assigns observations in class i to a dichotomous class corresponding to the value of CodingMatrix(i,j).

    ValueDichotomous Class Assignment
    –1Learner j assigns observations in class i to a negative class.
    0Before training, learner j removes observations in class i from the data set.
    1Learner j assigns observations in class i to a positive class.

    For details, see Coding Design.

    The default CodingMatrix value depends on how you create the model:

    • If you convert a traditionally trained model to create Mdl, CodingMatrix is specified by the corresponding property of the traditionally trained model.

    • Otherwise, the Coding name-value argument sets this property. The default value of the argument uses the one-versus-one coding design.

    Data Types: double | single | int8 | int16 | int32 | int64

    This property is read-only.

    Coding design name, specified as a character vector.

    The default CodingName value depends on how you create the model:

    • If you convert a full, traditionally trained model (ClassificationECOC) to create Mdl, CodingName is specified by the corresponding property of the traditionally trained model.

    • If you convert a compact, traditionally trained model (CompactClassificationECOC) to create Mdl, CodingName is "converted".

    • Otherwise, the Coding name-value argument sets this property. The default value of the argument is "onevsone". If you specify a custom coding matrix using Coding, CodingName is "custom".

    For details, see Coding Design.

    Data Types: char

    This property is read-only.

    Decoding scheme, specified as "lossweighted" or "lossbased". incrementalClassificationECOC stores the Decoding value as a character vector.

    The decoding scheme of an ECOC model specifies how the software aggregates the binary losses and determines the predicted class for each observation. The software supports two decoding schemes:

    • "lossweighted" — The predicted class of an observation corresponds to the class that produces the minimum sum of the binary losses over binary learners.

    • "lossbased" — The predicted class of an observation corresponds to the class that produces the minimum average of the binary losses over binary learners.

    For more information, see Binary Loss.

    The default Decoding value depends on how you create the model:

    • If you convert a traditionally trained model to create Mdl, the Decoding name-value argument of incrementalLearner sets this property. The default value of the argument is "lossweighted".

    • Otherwise, the default value of Decoding is "lossweighted".

    Data Types: char | string

    This property is read-only.

    Number of predictor variables, specified as a nonnegative numeric scalar.

    The default NumPredictors value depends on how you create the model:

    • If you convert a traditionally trained model to create Mdl, NumPredictors is specified by the corresponding property of the traditionally trained model.

    • If you create Mdl by calling incrementalClassificationECOC directly, you can specify NumPredictors by using name-value argument syntax. If you do not specify the value, then the default value is 0, and incremental fitting functions infer NumPredictors from the predictor data during training.

    Data Types: double

    This property is read-only.

    Number of observations fit to the incremental model Mdl, specified as a nonnegative numeric scalar. NumTrainingObservations increases when you pass Mdl and training data to fit or updateMetricsAndFit.

    Note

    If you convert a traditionally trained model to create Mdl, incrementalClassificationECOC does not add the number of observations fit to the traditionally trained model to NumTrainingObservations.

    Data Types: double

    This property is read-only.

    Prior class probabilities, specified as "empirical", "uniform", or a numeric vector. incrementalClassificationECOC stores the Prior value as a numeric vector.

    ValueDescription
    "empirical"Incremental learning functions infer prior class probabilities from the observed class relative frequencies in the response data during incremental training.
    "uniform"For each class, the prior probability is 1/K, where K is the number of classes.
    numeric vectorCustom, normalized prior probabilities. The order of the elements of Prior corresponds to the elements of the ClassNames property.

    The default Prior value depends on how you create the model:

    • If you convert a traditionally trained model to create Mdl, Prior is specified by the corresponding property of the traditionally trained model.

    • Otherwise, the default value is "empirical".

    Data Types: single | double | char | string

    This property is read-only.

    Score transformation function describing how incremental learning functions transform raw response values, specified as a character vector, string scalar, or function handle. incrementalClassificationECOC stores the ScoreTransform value as a character vector or function handle.

    This table describes the available built-in functions for score transformation.

    ValueDescription
    "doublelogit"1/(1 + e–2x)
    "invlogit"log(x / (1 – x))
    "ismax"Sets the score for the class with the largest score to 1, and sets the scores for all other classes to 0
    "logit"1/(1 + ex)
    "none" or "identity"x (no transformation)
    "sign"–1 for x < 0
    0 for x = 0
    1 for x > 0
    "symmetric"2x – 1
    "symmetricismax"Sets the score for the class with the largest score to 1, and sets the scores for all other classes to –1
    "symmetriclogit"2/(1 + ex) – 1

    For a MATLAB® function or a function that you define, enter its function handle; for example, ScoreTransform=@function, where:

    • function accepts an n-by-K matrix (the original scores) and returns a matrix of the same size (the transformed scores).

    • n is the number of observations, and row j of the matrix contains the class scores of observation j.

    • K is the number of classes numel(ClassNames), and column k is class ClassNames(k).

    The default ScoreTransform value depends on how you create the model:

    • If you convert a traditionally trained model to create Mdl, incrementalClassificationECOC is specified by the corresponding property of the traditionally trained model.

    • Otherwise, the default value is "none".

    Data Types: char | string | function_handle

    Performance Metrics Parameters

    Flag indicating whether the incremental model tracks performance metrics, specified as logical 0 (false) or 1 (true).

    The incremental model Mdl is warm (IsWarm becomes true) when incremental fitting functions perform both of these actions:

    • Fit the incremental model to MetricsWarmupPeriod observations.

    • Process MaxNumClasses classes or all class names specified by the ClassNames name-value argument.

    ValueDescription
    true or 1The incremental model Mdl is warm. Consequently, updateMetrics and updateMetricsAndFit track performance metrics in the Metrics property of Mdl.
    false or 0updateMetrics and updateMetricsAndFit do not track performance metrics.

    Data Types: logical

    This property is read-only.

    Model performance metrics updated during incremental learning by updateMetrics and updateMetricsAndFit, specified as a table with two columns and m rows, where m is the number of metrics specified by the Metrics name-value argument.

    The columns of Metrics are labeled Cumulative and Window.

    • Cumulative: Element j is the model performance, as measured by metric j, from the time the model became warm (IsWarm is 1).

    • Window: Element j is the model performance, as measured by metric j, evaluated over all observations within the window specified by the MetricsWindowSize property. The software updates Window after it processes MetricsWindowSize observations.

    Rows are labeled by the specified metrics. For details, see the Metrics name-value argument of incrementalLearner or incrementalClassificationECOC.

    Data Types: table

    This property is read-only.

    Number of observations the incremental model must be fit to before it tracks performance metrics in its Metrics property, specified as a nonnegative integer.

    The default MetricsWarmupPeriod value depends on how you create the model:

    • If you convert a traditionally trained model to create Mdl, the MetricsWarmupPeriod name-value argument of the incrementalLearner function sets this property. The default value of the argument is 0.

    • Otherwise, the default value is 1000.

    For more details, see Performance Metrics.

    Data Types: single | double

    This property is read-only.

    Number of observations to use to compute window performance metrics, specified as a positive integer.

    The default MetricsWindowSize value depends on how you create the model:

    • If you convert a traditionally trained model to create Mdl, the MetricsWindowSize name-value argument of the incrementalLearner function sets this property. The default value of the argument is 200.

    • Otherwise, the default value is 200.

    For more details on performance metrics options, see Performance Metrics.

    Data Types: single | double

    Object Functions

    fitTrain ECOC classification model for incremental learning
    updateMetricsAndFitUpdate performance metrics in ECOC incremental learning classification model given new data and train model
    updateMetricsUpdate performance metrics in ECOC incremental learning classification model given new data
    lossLoss of ECOC incremental learning classification model on batch of data
    predictPredict responses for new observations from ECOC incremental learning classification model
    perObservationLossPer observation classification error of model for incremental learning
    resetReset incremental classification model

    Examples

    collapse all

    To create an ECOC classification model for incremental learning, you must specify the maximum number of classes that you expect the model to process (MaxNumClasses name-value argument). As you fit the model to incoming batches of data by using an incremental fitting function, the model collects new classes in its ClassNames property. If the specified maximum number of classes is inaccurate, one of the following occurs:

    • Before an incremental fitting function processes the expected maximum number of classes, the model is cold. Consequently, the updateMetrics and updateMetricsAndFit functions do not measure performance metrics.

    • If the number of classes exceeds the maximum expected, the incremental fitting function issues an error.

    This example shows how to create an ECOC model for incremental learning when the only information you specify is the expected maximum number of classes in the data. Also, the example illustrates the consequences when incremental fitting functions process all expected classes early and late in the sample.

    For this example, consider training a device to predict whether a subject is sitting, standing, walking, running, or dancing based on biometric data measured on the subject. Therefore, the device has a maximum of 5 classes from which to choose.

    Process Expected Maximum Number of Classes Early in Sample

    Load the human activity data set. Randomly shuffle the data.

    load humanactivity
    n = numel(actid);
    rng(1) % For reproducibility
    idx = randsample(n,n);
    X = feat(idx,:);
    Y = actid(idx);

    For details on the data set, enter Description at the command line.

    Create an incremental ECOC model for multiclass learning. Specify a maximum of 5 classes in the data.

    MdlEarly = incrementalClassificationECOC(MaxNumClasses=5)
    MdlEarly =
      incrementalClassificationECOC

                IsWarm: 0
               Metrics: [1x2 table]
            ClassNames: [1x0 double]
        ScoreTransform: 'none'
        BinaryLearners: {10x1 cell}
            CodingName: 'onevsone'
              Decoding: 'lossweighted'


      Properties, Methods



    MdlEarly is an incrementalClassificationECOC model object. All its properties are read-only. MdlEarly must be fit to data before you can use it to perform any other operations.

    Display the coding design matrix.

    MdlEarly.CodingMatrix
    ans = 5×10

         1     1     1     1     0     0     0     0     0     0
        -1     0     0     0     1     1     1     0     0     0
         0    -1     0     0    -1     0     0     1     1     0
         0     0    -1     0     0    -1     0    -1     0     1
         0     0     0    -1     0     0    -1     0    -1    -1



    Each row of the coding design matrix corresponds to a class, and each column corresponds to a binary learner. For example, the first binary learner is for classes 1 and 2, and the fourth binary learner is for classes 1 and 5, where both learners assume class 1 as a positive class.

    Fit the incremental model to the training data by using the updateMetricsAndFit function. Simulate a data stream by processing chunks of 50 observations at a time. At each iteration:

    • Process 50 observations.

    • Overwrite the previous incremental model with a new one fitted to the incoming observations.

    • Store the first model coefficient of the first binary learner β11, the cumulative metrics, and the window metrics to see how they evolve during incremental learning.

    % Preallocation
    numObsPerChunk = 50;
    nchunk = floor(n/numObsPerChunk);
    mc = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]);
    beta11 = zeros(nchunk,1);

    % Incremental learning
    for j = 1:nchunk
        ibegin = min(n,numObsPerChunk*(j-1) + 1);
        iend = min(n,numObsPerChunk*j);
        idx = ibegin:iend;
        MdlEarly = updateMetricsAndFit(MdlEarly,X(idx,:),Y(idx));
        mc{j,:} = MdlEarly.Metrics{"ClassificationError",:};
        beta11(j) = MdlEarly.BinaryLearners{1}.Beta(1);
    end

    MdlEarly is an incrementalClassificationECOC model object trained on all the data in the stream. During incremental learning and after the model is warmed up, updateMetricsAndFit checks the performance of the model on the incoming observations, and then fits the model to those observations.

    To see how the performance metrics and β11 evolve during training, plot them on separate tiles.

    t = tiledlayout(2,1);
    nexttile
    plot(beta11)
    ylabel("\beta_{11}")
    xlim([0 nchunk])
    nexttile
    plot(mc.Variables)
    xlim([0 nchunk])
    ylabel("Classification Error")
    xline(MdlEarly.MetricsWarmupPeriod/numObsPerChunk,"--")
    legend(mc.Properties.VariableNames)
    xlabel(t,"Iteration")

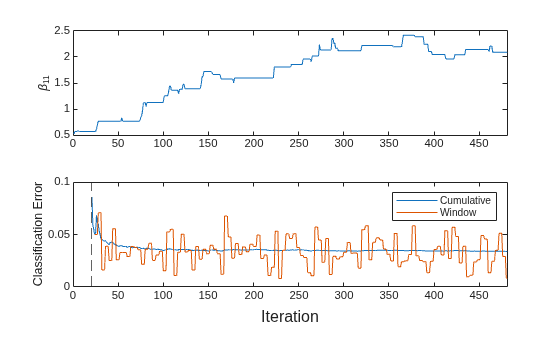

    Figure contains 2 axes objects. Axes object 1 contains an object of type line. Axes object 2 contains 3 objects of type line, constantline. These objects represent Cumulative, Window.

    The plots indicate that updateMetricsAndFit performs the following actions:

    • Fit β11 during all incremental learning iterations.

    • Compute the performance metrics after the metrics warm-up period (dashed vertical line) only.

    • Compute the cumulative metrics during each iteration.

    • Compute the window metrics after processing 200 observations (4 iterations).

    Process Expected Maximum Number of Classes Late in Sample

    Rearrange the data set so that only the last 5000 samples contain the observations labeled with class 5.

    Move all observations labeled with class 5 to the end of the sample.

    idx5 = Y == 5;
    Xnew = [X(~idx5,:); X(idx5,:)];
    Ynew = [Y(~idx5); Y(idx5)];
    sum(idx5)
    ans = 2653


    Shuffle the last 5000 samples.

    m = 5000;
    idx_shuffle = randsample(m,m);
    Xnew(end-m+1:end,:) = Xnew(end-m+idx_shuffle,:);
    Ynew(end-m+1:end) = Ynew(end-m+idx_shuffle);

    An ECOC model trains a binary learner only when an incoming chunk contains observations for the classes that the binary learner treats as either positive or negative. Therefore, when the labels in incoming data are not well distributed for all expected classes, a good practice is to choose a coding design that does not have zeros in the coding matrix so that the software trains all binary learners for every chunk.

    Create a new ECOC model for incremental learning. Specify the onevsall coding design. In this design, one class is positive and the rest are negative for each binary learner.

    MdlLate = incrementalClassificationECOC(MaxNumClasses=5,Coding="onevsall")
    MdlLate =
      incrementalClassificationECOC

                IsWarm: 0
               Metrics: [1x2 table]
            ClassNames: [1x0 double]
        ScoreTransform: 'none'
        BinaryLearners: {5x1 cell}
            CodingName: 'onevsall'
              Decoding: 'lossweighted'


      Properties, Methods



    Display the coding design matrix.

    MdlLate.CodingMatrix
    ans = 5×5

         1    -1    -1    -1    -1
        -1     1    -1    -1    -1
        -1    -1     1    -1    -1
        -1    -1    -1     1    -1
        -1    -1    -1    -1     1



    Fit the incremental model and plot the results. Store the first model coefficients of the first and fifth binary learners, β11 and β51.

    mcnew = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]);
    beta11new = zeros(nchunk,1);
    beta51new = zeros(nchunk,1);

    for j = 1:nchunk
        ibegin = min(n,numObsPerChunk*(j-1) + 1);
        iend   = min(n,numObsPerChunk*j);
        idx = ibegin:iend;
        MdlLate = updateMetricsAndFit(MdlLate,Xnew(idx,:),Ynew(idx));
        mcnew{j,:} = MdlLate.Metrics{"ClassificationError",:};
        beta11new(j) = MdlLate.BinaryLearners{1}.Beta(1);
        beta51new(j) = MdlLate.BinaryLearners{5}.Beta(1);
    end

    t = tiledlayout(3,1);
    nexttile
    plot(beta11new)
    xline(MdlLate.MetricsWarmupPeriod/numObsPerChunk,"--")
    xline((n-m)/numObsPerChunk,":")
    ylabel("\beta_{11}")
    xlim([0 nchunk])
    nexttile
    plot(beta51new)
    xline(MdlLate.MetricsWarmupPeriod/numObsPerChunk,"--")
    xline((n-m)/numObsPerChunk,":")
    ylabel("\beta_{51}")
    xlim([0 nchunk])
    nexttile
    plot(mcnew.Variables)
    xline(MdlLate.MetricsWarmupPeriod/numObsPerChunk,"--")
    xline((n-m)/numObsPerChunk,":")
    xlim([0 nchunk])
    ylabel("Classification Error")
    legend(mcnew.Properties.VariableNames,Location="best")
    xlabel(t,"Iteration")

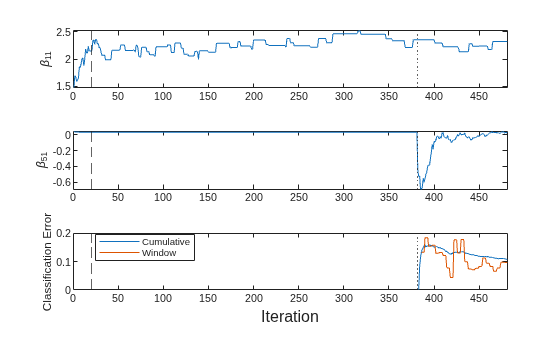

    Figure contains 3 axes objects. Axes object 1 contains 3 objects of type line, constantline. Axes object 2 contains 3 objects of type line, constantline. Axes object 3 contains 4 objects of type line, constantline. These objects represent Cumulative, Window.

    The updateMetricsAndFit function trains the model throughout incremental learning. However, β51 does not change significantly until an incoming chunk contains observations with the fifth class (the dotted vertical line). Also, the function starts tracking performance metrics only after the model is fit to the expected number of classes.

    Create an incremental ECOC model when you know all the class names in the data.

    Consider training a device to predict whether a subject is sitting, standing, walking, running, or dancing based on biometric data measured on the subject. The class names map 1 through 5 to an activity.

    Create an incremental ECOC model for multiclass learning. Specify the class names.

    classnames = 1:5;
    Mdl = incrementalClassificationECOC(ClassNames=classnames)
    Mdl =
      incrementalClassificationECOC

                IsWarm: 0
               Metrics: [1x2 table]
            ClassNames: [1 2 3 4 5]
        ScoreTransform: 'none'
        BinaryLearners: {10x1 cell}
            CodingName: 'onevsone'
              Decoding: 'lossweighted'


      Properties, Methods



    Mdl is an incrementalClassificationECOC model object. All its properties are read-only.

    Mdl must be fit to data before you can use it to perform any other operations.

    Load the human activity data set. Randomly shuffle the data.

    load humanactivity
    n = numel(actid);
    rng(1) % For reproducibility
    idx = randsample(n,n);
    X = feat(idx,:);
    Y = actid(idx);

    For details on the data set, enter Description at the command line.

    Fit the incremental model to the training data by using the updateMetricsAndFit function. Simulate a data stream by processing chunks of 50 observations at a time. At each iteration:

    • Process 50 observations.

    • Overwrite the previous incremental model with a new one fitted to the incoming observations.

    % Preallocation
    numObsPerChunk = 50;
    nchunk = floor(n/numObsPerChunk);

    % Incremental learning
    for j = 1:nchunk
        ibegin = min(n,numObsPerChunk*(j-1) + 1);
        iend   = min(n,numObsPerChunk*j);
        idx = ibegin:iend;
        Mdl = updateMetricsAndFit(Mdl,X(idx,:),Y(idx));
    end

    In addition to specifying the maximum number of classes, prepare an incremental ECOC learner by specifying a metrics warm-up period and a metrics window size.

    Load the human activity data set. Randomly shuffle the data. Orient the observations of the predictor data in columns.

    load humanactivity
    n = numel(actid);
    rng(1) % For reproducibility
    idx = randsample(n,n);
    X = feat(idx,:)';
    Y = actid(idx);

    For details on the data set, enter Description at the command line.

    Create an incremental ECOC model for multiclass learning. Configure the model as follows:

    • Set the maximum number of classes to 5.

    • Specify a metrics warm-up period of 5000 observations.

    • Specify a metrics window size of 500 observations.

    Mdl = incrementalClassificationECOC(MaxNumClasses=5, ...
        MetricsWarmupPeriod=5000,MetricsWindowSize=500)
    Mdl =
      incrementalClassificationECOC

                IsWarm: 0
               Metrics: [1x2 table]
            ClassNames: [1x0 double]
        ScoreTransform: 'none'
        BinaryLearners: {10x1 cell}
            CodingName: 'onevsone'
              Decoding: 'lossweighted'


      Properties, Methods



    Mdl is an incrementalClassificationECOC model object configured for incremental learning. By default, incrementalClassificationECOC uses classification error loss to measure the performance of the model.

    Fit the incremental model to the rest of the data by using the updateMetricsAndFit function. At each iteration:

    • Simulate a data stream by processing a chunk of 50 observations.

    • Overwrite the previous incremental model with a new one fitted to the incoming observations. Specify that the observations are oriented in columns

    • Store the first model coefficient of the first binary learner β11, the cumulative metrics, and the window metrics to see how they evolve during incremental learning.

    % Preallocation
    numObsPerChunk = 50;
    nchunk = floor(n/numObsPerChunk);
    ce = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]);
    beta11 = zeros(nchunk,1);

    % Incremental fitting
    for j = 1:nchunk
        ibegin = min(n,numObsPerChunk*(j-1) + 1);
        iend   = min(n,numObsPerChunk*j);
        idx = ibegin:iend;
        Mdl = updateMetricsAndFit(Mdl,X(:,idx),Y(idx),ObservationsIn="columns");
        ce{j,:} = Mdl.Metrics{"ClassificationError",:};
        beta11(j) = Mdl.BinaryLearners{1}.Beta(1);
    end

    Mdl is an incrementalClassificationECOC model object trained on all the data in the stream. During incremental learning and after the model is warmed up, updateMetricsAndFit checks the performance of the model on the incoming observations, and then fits the model to those observations.

    To see how the performance metrics and β11 evolve during training, plot them on separate tiles.

    t = tiledlayout(2,1);
    nexttile
    plot(beta11)
    ylabel("\beta_{11}")
    xlim([0 nchunk])
    xline(Mdl.MetricsWarmupPeriod/numObsPerChunk,"--")
    nexttile
    plot(ce.Variables)
    xlim([0 nchunk])
    ylabel("Classification Error")
    xline(Mdl.MetricsWarmupPeriod/numObsPerChunk,"--")
    legend(ce.Properties.VariableNames)
    xlabel(t,"Iteration")

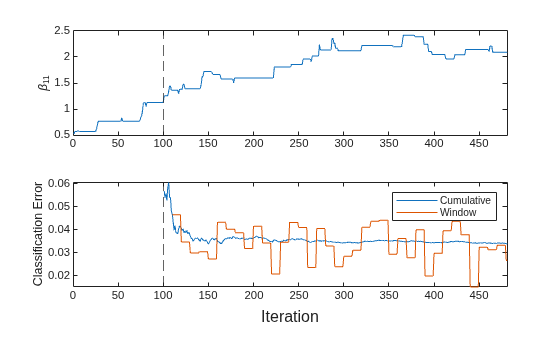

    Figure contains 2 axes objects. Axes object 1 contains 2 objects of type line, constantline. Axes object 2 contains 3 objects of type line, constantline. These objects represent Cumulative, Window.

    The plots indicate that updateMetricsAndFit performs the following actions:

    • Fit β11 during all incremental learning iterations.

    • Compute the performance metrics after the metrics warm-up period (dashed vertical line) only.

    • Compute the cumulative metrics during each iteration.

    • Compute the window metrics after processing 500 observations (10 iterations).

    Train an ECOC model for multiclass classification by using fitcecoc. Then, convert the model to an incremental learner, track its performance, and fit the model to streaming data. Carry over training options from traditional to incremental learning.

    Load and Preprocess Data

    Load the human activity data set. Randomly shuffle the data.

    load humanactivity
    rng(1) % For reproducibility
    n = numel(actid);
    idx = randsample(n,n);
    X = feat(idx,:);
    Y = actid(idx);

    For details on the data set, enter Description at the command line.

    Suppose that the data collected when the subject was stationary (Y <= 2) has double the quality than when the subject was moving. Create a weight variable that attributes 2 to observations collected from a stationary subject, and 1 to a moving subject.

    W = ones(n,1) + (Y <= 2);

    Train ECOC Model

    Fit an ECOC model for multiclass classification to a random sample of half the data.

    idxtt = randsample([true false],n,true);
    TTMdl = fitcecoc(X(idxtt,:),Y(idxtt),Weights=W(idxtt))
    TTMdl =
      ClassificationECOC
                 ResponseName: 'Y'
        CategoricalPredictors: []
                   ClassNames: [1 2 3 4 5]
               ScoreTransform: 'none'
               BinaryLearners: {10x1 cell}
                   CodingName: 'onevsone'


      Properties, Methods



    TTMdl is a ClassificationECOC model object representing a traditionally trained ECOC model.

    Convert Trained Model

    Convert the traditionally trained ECOC model to a model for incremental learning.

    IncrementalMdl = incrementalLearner(TTMdl)
    IncrementalMdl =
      incrementalClassificationECOC

                IsWarm: 1
               Metrics: [1x2 table]
            ClassNames: [1 2 3 4 5]
        ScoreTransform: 'none'
        BinaryLearners: {10x1 cell}
            CodingName: 'onevsone'
              Decoding: 'lossweighted'


      Properties, Methods



    IncrementalMdl is an incrementalClassificationECOC model object configured for incremental learning.

    Separately Track Performance Metrics and Fit Model

    Perform incremental learning on the rest of the data by using the updateMetrics and fit functions. Simulate a data stream by processing 50 observations at a time. At each iteration:

    1. Call updateMetrics to update the cumulative and window classification error of the model given the incoming chunk of observations. Overwrite the previous incremental model to update the Metrics property. Note that the function does not fit the model to the chunk of data—the chunk is "new" data for the model. Specify the observation weights.

    2. Call fit to fit the model to the incoming chunk of observations. Overwrite the previous incremental model to update the model parameters. Specify the observation weights.

    3. Store the classification error and first model coefficient of the first binary learner β11.

    % Preallocation
    idxil = ~idxtt;
    nil = sum(idxil);
    numObsPerChunk = 50;
    nchunk = floor(nil/numObsPerChunk);
    ec = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]);
    beta11 = [IncrementalMdl.BinaryLearners{1}.Beta(1); zeros(nchunk,1)];
    Xil = X(idxil,:);
    Yil = Y(idxil);
    Wil = W(idxil);

    % Incremental fitting
    for j = 1:nchunk
        ibegin = min(nil,numObsPerChunk*(j-1) + 1);
        iend   = min(nil,numObsPerChunk*j);
        idx = ibegin:iend;
        IncrementalMdl = updateMetrics(IncrementalMdl,Xil(idx,:),Yil(idx), ...
            Weights=Wil(idx));
        ec{j,:} = IncrementalMdl.Metrics{"ClassificationError",:};
        IncrementalMdl = fit(IncrementalMdl,Xil(idx,:),Yil(idx),Weights=Wil(idx));
        beta11(j+1) = IncrementalMdl.BinaryLearners{1}.Beta(1);
    end

    IncrementalMdl is an incrementalClassificationECOC model object trained on all the data in the stream.

    Alternatively, you can use updateMetricsAndFit to update the performance metrics of the model given a new chunk of data, and then fit the model to the data.

    Plot a trace plot of the performance metrics and estimated coefficient β11 on separate tiles.

    t = tiledlayout(2,1);
    nexttile
    plot(ec.Variables)
    xlim([0 nchunk])
    ylabel("Classification Error")
    legend(ec.Properties.VariableNames)
    nexttile
    plot(beta11)
    ylabel("\beta_{11}")
    xlim([0 nchunk])
    xlabel(t,"Iteration")

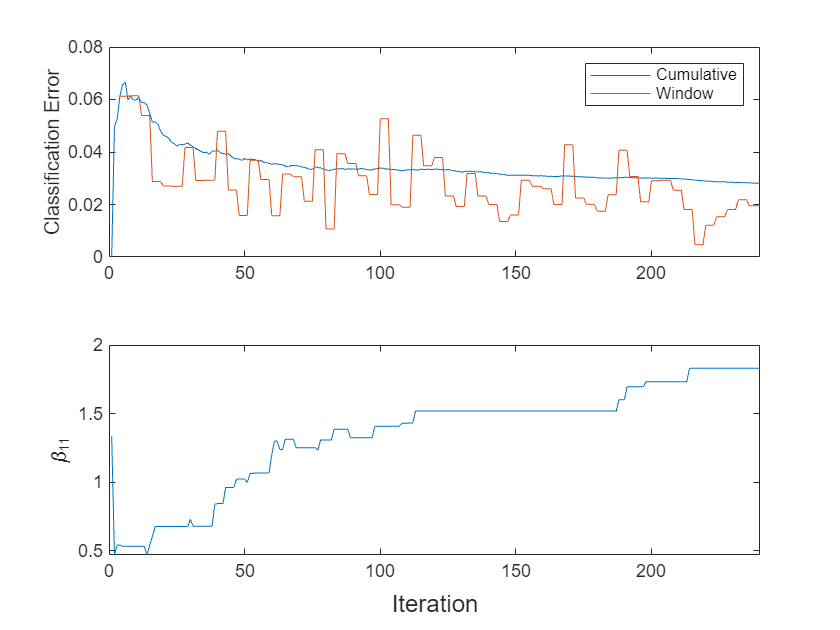

    Figure contains 2 axes objects. Axes object 1 contains 2 objects of type line. These objects represent Cumulative, Window. Axes object 2 contains an object of type line.

    The cumulative loss levels quickly and is stable, whereas the window loss jumps throughout the training.

    β11 changes abruptly at first, then gradually levels off as fit processes more chunks.

    Customize binary learners of an incrementalClassificationECOC model object by specifying the Learners name-value argument.

    First, configure binary learner properties by creating an incrementalClassificationLinear object. Set the linear classification model type (Learner) to logistic regression, and specify Standardize as true to standardize the predictor data.

    binaryMdl = incrementalClassificationLinear(Learner="logistic", ...
        Standardize=true)
    binaryMdl =
      incrementalClassificationLinear

                IsWarm: 0
               Metrics: [1x2 table]
            ClassNames: [1x0 double]
        ScoreTransform: 'logit'
                  Beta: [0x1 double]
                  Bias: 0
               Learner: 'logistic'


      Properties, Methods



    Create an incremental ECOC model for multiclass learning. Specify the number of classes in the data as five, and set the binary learner template (Learners) to binaryMdl.

    Mdl = incrementalClassificationECOC(MaxNumClasses=5,Learners=binaryMdl)
    Warning: 'ScoreTransform' property for binary learner 1 is discarded because the binary learner is used in an ECOC model.

    Mdl =
      incrementalClassificationECOC

                IsWarm: 0
               Metrics: [1x2 table]
            ClassNames: [1x0 double]
        ScoreTransform: 'none'
        BinaryLearners: {10x1 cell}
            CodingName: 'onevsone'
              Decoding: 'lossweighted'


      Properties, Methods



    The software displays a warning message that incrementalClassificationECOC does not use the ScoreTransform property in the binary learner. Because the software does not transform scores for each learner, incrementalClassificationECOC does not use the property. Instead, you can specify the score transformation function for incrementalClassificationECOC by using the ScoreTransform name-value argument of incrementalClassificationECOC.

    Display the BinaryLearners property in Mdl.

    Mdl.BinaryLearners
    ans=10×1 cell array
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}
        {1x1 incrementalClassificationLinear}



    By default, incrementalClassificationECOC uses the one-versus-one coding design, which requires 10 learners for five classes. Therefore, the BinaryLearners property contains 10 binary learners of type incrementalClassificationLinear.

    More About

    expand all

    Algorithms

    expand all

    References

    [1] Allwein, E., R. Schapire, and Y. Singer. “Reducing multiclass to binary: A unifying approach for margin classifiers.” Journal of Machine Learning Research. Vol. 1, 2000, pp. 113–141.

    [2] Escalera, S., O. Pujol, and P. Radeva. “On the decoding process in ternary error-correcting output codes.” IEEE Transactions on Pattern Analysis and Machine Intelligence. Vol. 32, Issue 7, 2010, pp. 120–134.

    [3] Escalera, S., O. Pujol, and P. Radeva. “Separability of ternary codes for sparse designs of error-correcting output codes.” Pattern Recog. Lett., Vol. 30, Issue 3, 2009, pp. 285–297.

    [4] Fürnkranz, Johannes. “Round Robin Classification.” J. Mach. Learn. Res., Vol. 2, 2002, pp. 721–747.

    [5] Kempka, Michał, Wojciech Kotłowski, and Manfred K. Warmuth. "Adaptive Scale-Invariant Online Algorithms for Learning Linear Models." Preprint, submitted February 10, 2019. https://arxiv.org/abs/1902.07528.

    Version History

    Introduced in R2022a
