FeatureTransformer

Generated feature transformations

    Description

    A FeatureTransformer object contains information about the feature transformations generated from a training data set. To better understand the generated features, you can use the describe object function. To apply the same training set feature transformations to a test set, you can use the transform object function.

    Creation

    Create a FeatureTransformer object by using the gencfeatures function.

    Properties

    expand all

    This property is read-only.

    Type of model, specified as 'classification'.

    This property is read-only.

    Expected learner type, specified as 'linear' or 'bag'. The software creates and selects new features assuming that they will be used to train a linear classifier or a bagged ensemble classifier, respectively.

    This property is read-only.

    Number of engineered features generated by gencfeatures and stored in FeatureTransformer, returned as a nonnegative scalar.

    Data Types: double

    This property is read-only.

    Number of original features kept by gencfeatures and stored in FeatureTransformer, returned as a nonnegative scalar.

    Data Types: double

    This property is read-only.

    Total number of features stored in FeatureTransformer, returned as a nonnegative scalar. TotalNumFeatures equals the sum of NumEngineeredFeatures and NumOriginalFeatures.

    Data Types: double

    Object Functions

    describeDescribe generated features
    transformTransform new data using generated features

    Examples

    collapse all

    Generate features from a table of predictor data by using gencfeatures. Inspect the generated features by using the describe object function.

    Read power outage data into the workspace as a table. Remove observations with missing values, and display the first few rows of the table.

    outages = readtable("outages.csv");
    Tbl = rmmissing(outages);
    head(Tbl)
    ans=8×6 table
           Region           OutageTime        Loss     Customers     RestorationTime            Cause
        _____________    ________________    ______    __________    ________________    ___________________

        {'SouthWest'}    2002-02-01 12:18    458.98    1.8202e+06    2002-02-07 16:50    {'winter storm'   }
        {'SouthEast'}    2003-02-07 21:15     289.4    1.4294e+05    2003-02-17 08:14    {'winter storm'   }
        {'West'     }    2004-04-06 05:44    434.81    3.4037e+05    2004-04-06 06:10    {'equipment fault'}
        {'MidWest'  }    2002-03-16 06:18    186.44    2.1275e+05    2002-03-18 23:23    {'severe storm'   }
        {'West'     }    2003-06-18 02:49         0             0    2003-06-18 10:54    {'attack'         }
        {'NorthEast'}    2003-07-16 16:23    239.93         49434    2003-07-17 01:12    {'fire'           }
        {'MidWest'  }    2004-09-27 11:09    286.72         66104    2004-09-27 16:37    {'equipment fault'}
        {'SouthEast'}    2004-09-05 17:48    73.387         36073    2004-09-05 20:46    {'equipment fault'}



    Some of the variables, such as OutageTime and RestorationTime, have data types that are not supported by classifier training functions like fitcensemble.

    Generate 25 features from the predictors in Tbl that can be used to train a bagged ensemble. Specify the Region table variable as the response.

    Transformer = gencfeatures(Tbl,"Region",25,"TargetLearner","bag")
    Transformer =
      FeatureTransformer with properties:

                         Type: 'classification'
                TargetLearner: 'bag'
        NumEngineeredFeatures: 22
          NumOriginalFeatures: 3
             TotalNumFeatures: 25



    The Transformer object contains the information about the generated features and the transformations used to create them.

    To better understand the generated features, use the describe object function.

    Info = describe(Transformer)
    Info=25×4 table
                                         Type        IsOriginal          InputVariables                                                            Transformations
                                      ___________    __________    ___________________________    _________________________________________________________________________________________________________________

        Loss                          Numeric          true        Loss                           ""
        Customers                     Numeric          true        Customers                      ""
        c(Cause)                      Categorical      true        Cause                          "Variable of type categorical converted from a cell data type"
        RestorationTime-OutageTime    Numeric          false       OutageTime, RestorationTime    "Elapsed time in seconds between OutageTime and RestorationTime"
        sdn(OutageTime)               Numeric          false       OutageTime                     "Serial date number from 01-Feb-2002 12:18:00"
        woe3(c(Cause))                Numeric          false       Cause                          "Variable of type categorical converted from a cell data type -> Weight of Evidence (positive class = SouthEast)"
        doy(OutageTime)               Numeric          false       OutageTime                     "Day of the year"
        year(OutageTime)              Numeric          false       OutageTime                     "Year"
        kmd1                          Numeric          false       Loss, Customers                "Euclidean distance to centroid 1 (kmeans clustering with k = 10)"
        kmd5                          Numeric          false       Loss, Customers                "Euclidean distance to centroid 5 (kmeans clustering with k = 10)"
        quarter(OutageTime)           Numeric          false       OutageTime                     "Quarter of the year"
        woe2(c(Cause))                Numeric          false       Cause                          "Variable of type categorical converted from a cell data type -> Weight of Evidence (positive class = NorthEast)"
        year(RestorationTime)         Numeric          false       RestorationTime                "Year"
        month(OutageTime)             Numeric          false       OutageTime                     "Month of the year"
        Loss.*Customers               Numeric          false       Loss, Customers                "Loss .* Customers"
        tods(OutageTime)              Numeric          false       OutageTime                     "Time of the day in seconds"
          ⋮



    The Info table indicates the following:

    • The first three generated features are original to Tbl, although the software converts the original Cause variable to a categorical variable c(Cause).

    • The OutageTime and RestorationTime variables are not included as generated features because they are datetime variables, which cannot be used to train a bagged ensemble model. However, the software derives many of the generated features from these variables, such as the fourth feature RestorationTime-OutageTime.

    • Some generated features are a combination of multiple transformations. For example, the software generates the sixth feature woe3(c(Cause)) by converting the Cause variable to a categorical variable and then calculating the Weight of Evidence values for the resulting variable.

    Train a linear classifier using only the numeric generated features returned by gencfeatures.

    Load the patients data set. Create a table from a subset of the variables.

    load patients
    Tbl = table(Age,Diastolic,Height,SelfAssessedHealthStatus, ...
        Smoker,Systolic,Weight,Gender);

    Partition the data into training and test sets. Use approximately 70% of the observations as training data, and 30% of the observations as test data. Partition the data using cvpartition.

    rng("default")
    c = cvpartition(Tbl.Gender,"Holdout",0.30);
    TrainTbl = Tbl(training(c),:);
    TestTbl = Tbl(test(c),:);

    Use the training data to generate 25 new features. Specify the minimum redundancy maximum relevance (MRMR) feature selection method for selecting new features.

    Transformer = gencfeatures(TrainTbl,"Gender",25, ...
        "FeatureSelectionMethod","mrmr")
    Transformer =
      FeatureTransformer with properties:

                         Type: 'classification'
                TargetLearner: 'linear'
        NumEngineeredFeatures: 24
          NumOriginalFeatures: 1
             TotalNumFeatures: 25



    Inspect the generated features.

    Info = describe(Transformer)
    Info=25×4 table
                                          Type        IsOriginal         InputVariables                                              Transformations
                                       ___________    __________    ________________________    __________________________________________________________________________________________

        c(SelfAssessedHealthStatus)    Categorical      true        SelfAssessedHealthStatus    "Variable of type categorical converted from a cell data type"
        eb5(Weight)                    Categorical      false       Weight                      "Equal-width binning (number of bins = 5)"
        zsc(sqrt(Systolic))            Numeric          false       Systolic                    "sqrt( ) -> Standardization with z-score (mean = 11.086, std = 0.29694)"
        zsc(sin(Systolic))             Numeric          false       Systolic                    "sin( ) -> Standardization with z-score (mean = -0.1303, std = 0.72575)"
        zsc(Systolic./Weight)          Numeric          false       Systolic, Weight            "Systolic ./ Weight -> Standardization with z-score (mean = 0.82662, std = 0.14555)"
        zsc(Age+Weight)                Numeric          false       Age, Weight                 "Age + Weight -> Standardization with z-score (mean = 191.1143, std = 28.6976)"
        zsc(Age./Weight)               Numeric          false       Age, Weight                 "Age ./ Weight -> Standardization with z-score (mean = 0.25424, std = 0.062486)"
        zsc(Diastolic.*Weight)         Numeric          false       Diastolic, Weight           "Diastolic .* Weight -> Standardization with z-score (mean = 12864.6857, std = 2731.1613)"
        q6(Height)                     Categorical      false       Height                      "Equiprobable binning (number of bins = 6)"
        zsc(Systolic+Weight)           Numeric          false       Systolic, Weight            "Systolic + Weight -> Standardization with z-score (mean = 276.1429, std = 28.7111)"
        zsc(Diastolic-Weight)          Numeric          false       Diastolic, Weight           "Diastolic - Weight -> Standardization with z-score (mean = -69.4286, std = 26.2411)"
        zsc(Age-Weight)                Numeric          false       Age, Weight                 "Age - Weight -> Standardization with z-score (mean = -115.2, std = 27.0113)"
        zsc(Height./Weight)            Numeric          false       Height, Weight              "Height ./ Weight -> Standardization with z-score (mean = 0.44797, std = 0.067992)"
        zsc(Height.*Weight)            Numeric          false       Height, Weight              "Height .* Weight -> Standardization with z-score (mean = 10291.0714, std = 2111.9071)"
        zsc(Diastolic+Weight)          Numeric          false       Diastolic, Weight           "Diastolic + Weight -> Standardization with z-score (mean = 236.8857, std = 29.2439)"
        zsc(Age.*Weight)               Numeric          false       Age, Weight                 "Age .* Weight -> Standardization with z-score (mean = 5836.5571, std = 1621.0685)"
          ⋮



    Transform the training and test sets, but retain only the numeric predictors.

    numericIdx = (Info.Type == "Numeric");
    NewTrainTbl = transform(Transformer,TrainTbl,numericIdx);
    NewTestTbl = transform(Transformer,TestTbl,numericIdx);

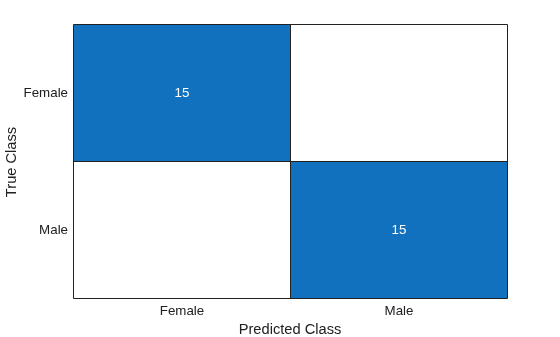

    Train a linear model using the transformed training data. Visualize the accuracy of the model's test set predictions by using a confusion matrix.

    Mdl = fitclinear(NewTrainTbl,TrainTbl.Gender);
    testLabels = predict(Mdl,NewTestTbl);
    confusionchart(TestTbl.Gender,testLabels)

    Introduced in R2021a
