Update the Firmware on Parrot Minidrone

Step 2 of 4 in Connect a Parrot Minidrone to a Windows System Using CSR 4.0 Bluetooth Dongle and CSR Bluetooth Drivers

Perform these steps to update the firmware:

1. Plug the battery in the minidrone to start it.

2. Launch MATLAB^®. Go to Add-Ons > Manage Add-Ons.



3. Click the Setup (Gear Icon).



4. In the Hardware Setup screen, select I have a CSR dongle and drivers and then click Next.

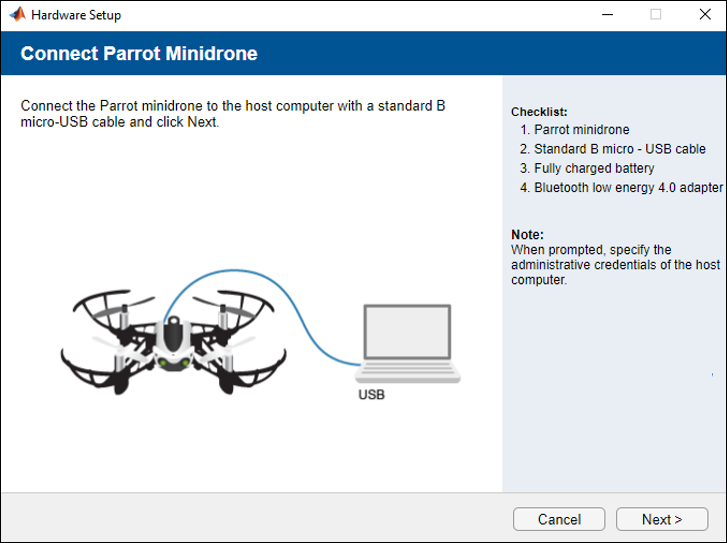

5. Complete the steps on the screen of Hardware Setup. Connect the minidrone using USB to the system:



6. The hardware should be directly detected as Parrot^® Mambo. If not, follow the steps on the right pane.



7. Follow the process on the next screen to ensure the LEDs continue to blink for 10 seconds. This ensures that the necessary firmware is flashed on the drone. Else, follow the instructions on the right side of the Hardware Screen.
