vco

Voltage-controlled oscillator

Description

example

y = vco(x,fc,fs) creates a signal that oscillates at a frequency determined by the real input vector or matrix x with sampling frequency fs. If x is a matrix, vco produces a matrix whose columns oscillate according to the columns of x.

example

y = vco(x,[Fmin Fmax],fs) scales the frequency modulation range so that ±1 values of x yield oscillations of Fmin Hz and Fmax Hz, respectively.

Examples

collapse all

Generate two seconds of a signal composed of a voltage-controlled oscillator (vco) and four Gaussian atoms. The instantaneous frequency is modulated by a chirp function. The sample rate is 14 kHz.

fs = 14000;
t = (0:1/fs:2)';

gaussFun = @(A,x,mu,f) exp(-(x-mu).^2/(2*0.01^2)).*sin(2*pi*f.*x)*A';
s = gaussFun([1 1 1 1],t,[0.2 0.5 1 1.75],[10 60 25 5]*100)/10;
x = vco(chirp(t+.1,0,t(end),3).*exp(-2*(t-1).^2),0.2*fs,fs);

s = s/10+x;

Plot the spectrogram of the generated signal. Specify 90% overlap and moderate spectral leakage.

pspectrum(s,fs,'spectrogram','OverlapPercent',90,'Leakage',0.5) Generate two seconds of a signal sampled at 10 kHz whose instantaneous frequency is a triangle function of time.

fs = 10000;
t = 0:1/fs:2;
x = vco(sawtooth(2*pi*t,0.75),[0.1 0.4]*fs,fs);

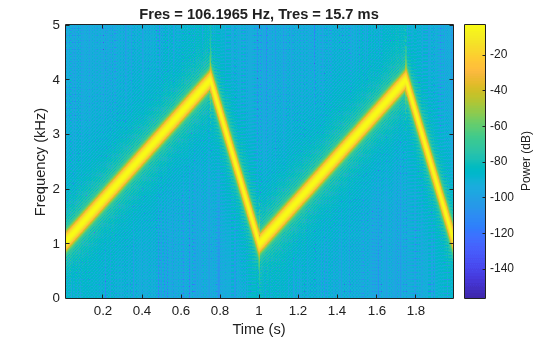

Plot the spectrogram of the generated signal. Specify the leakage as 0.80 and the overlap between adjoining segments as 95%.

pspectrum(x,fs,'spectrogram','Leakage',0.80,'OverlapPercent',95) Input Arguments

collapse all

Input data, specified as a real vector or real matrix. x ranges from –1 to 1, where x = –1 corresponds to 0 frequency output, x = 0 corresponds to fc, and x = 1 corresponds to 2*fc.

Carrier or reference frequency used to modulate the input signal, specified as a real positive scalar.

Frequency modulation range limits, specified as a real vector. For best results, Fmin and Fmax should be in the range 0 to fs/2.

Note

vco performs FM modulation using the modulate function.

Sample rate, specified as a positive scalar. The sample rate is the number of samples per unit time. If the unit of time is seconds, then the sample rate has units of Hz.

Output Arguments

collapse all

Oscillating output signal, returned as a real vector or real matrix. y is the same size as x and has amplitude equal to 1.
