Find and Track Ridges Using Reassigned Spectrogram

Load a datafile containing an echolocation pulse emitted by a big brown bat (Eptesicus fuscus) and measured with a sample rate of 7 microseconds. Create a MATLAB® timetable using the signal and the time information.

```load batsignal t = (0:length(batsignal)-1)*DT; sg = timetable(seconds(t)',batsignal);```

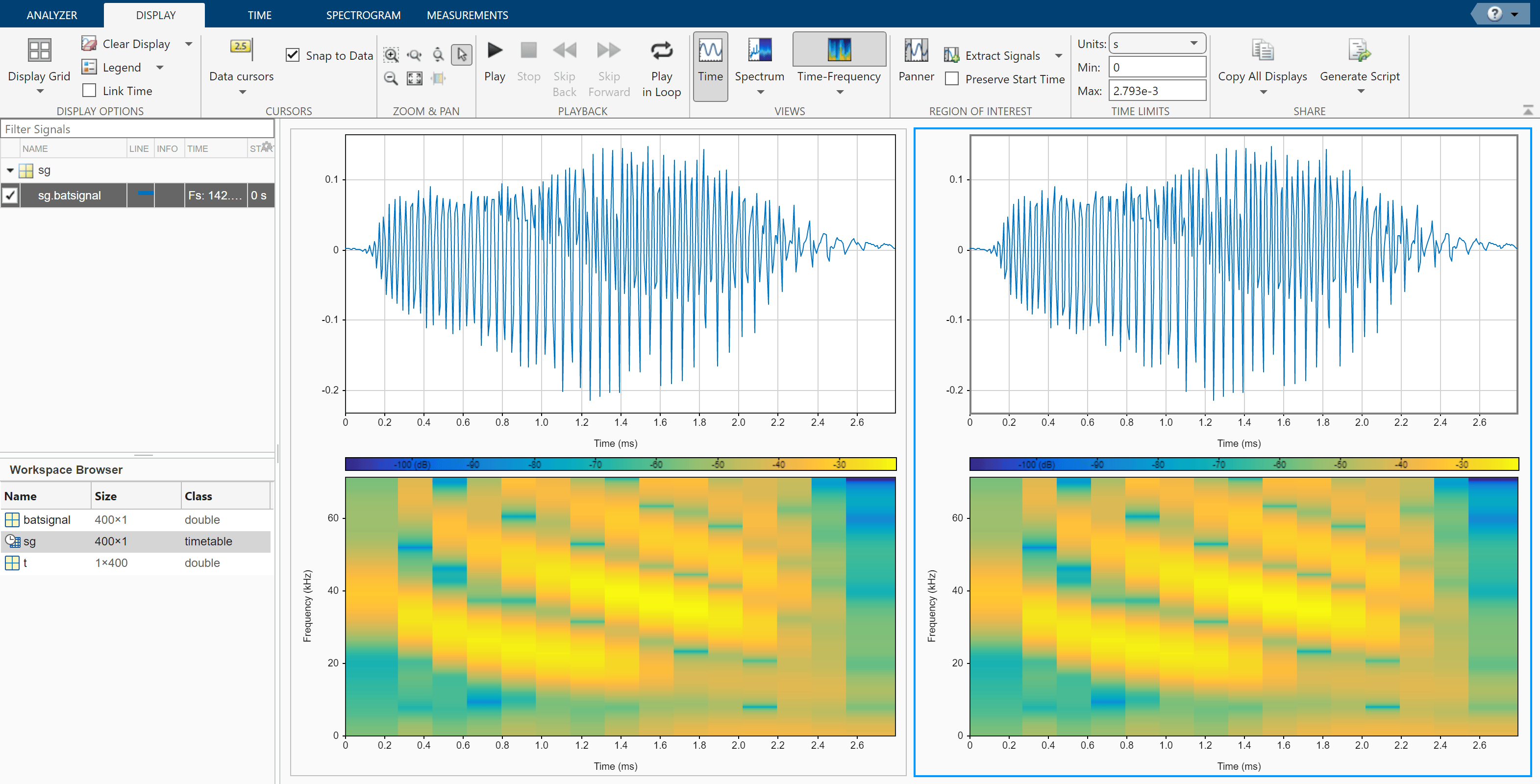

Open Signal Analyzer and drag the timetable from the Workspace Browser to the Signal table. Click Display Grid to create two side-by-side displays. Select each display and, in the Display tab, click Time-Frequency to add a spectrogram view.

Drag the timetable to both displays.

Select the Spectrogram tab. For each display:

• Set the power limits to –45 dB and –20 dB.

• Specify the time resolution as 280 microseconds and the overlap between adjoining segments as 85%.

• Use the Leakage slider to increase the leakage until the RBW is about 4.5 kHz.

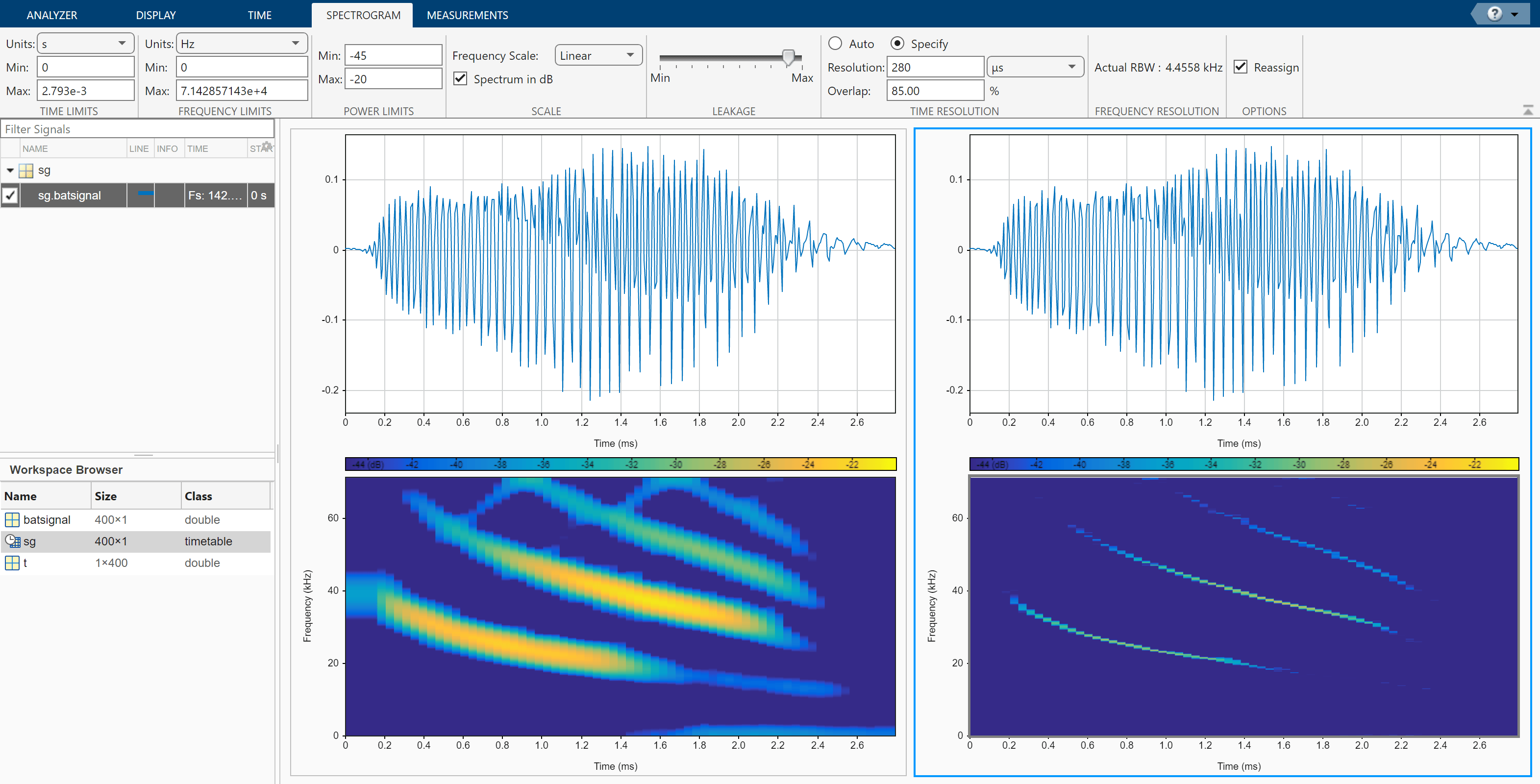

For the display at right, check Reassign.

The reassigned spectrogram clearly shows three time-frequency ridges. To track the ridges, select the display at right. On the Display tab, click Generate Script and select `Spectrogram Script`. The script appears in the Editor.

```% Compute spectrogram % Generated by MATLAB(R) 9.13 and Signal Processing Toolbox 9.1. % Generated on: 15-Jun-2022 12:02:38 % Parameters timeLimits = seconds([0 0.002793]); % seconds frequencyLimits = [0 71428.57]; % Hz leakage = 0.9; timeResolution = 0.00028; % seconds overlapPercent = 85; reassignFlag = true; %% % Index into signal time region of interest sg_batsignal_ROI = sg(:,'batsignal'); sg_batsignal_ROI = sg_batsignal_ROI(timerange(timeLimits(1),timeLimits(2),'closed'),1); % Compute spectral estimate % Run the function call below without output arguments to plot the results [P,F,T] = pspectrum(sg_batsignal_ROI, ... 'spectrogram', ... 'FrequencyLimits',frequencyLimits, ... 'Leakage',leakage, ... 'TimeResolution',timeResolution, ... 'OverlapPercent',overlapPercent, ... 'Reassign',reassignFlag);```

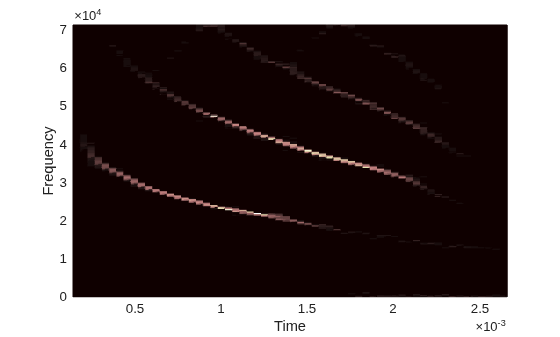

Run the script. Plot the reassigned spectrogram.

```mesh(seconds(T),F,P) xlabel("Time") ylabel("Frequency") axis tight view(2) colormap pink```

Use the `tfridge` function to track the ridges.

```[fridge,~,lridge] = tfridge(P,F,0.01,NumRidges=3,NumFrequencyBins=10); hold on plot3(seconds(T),fridge,P(lridge),":",linewidth=3) hold off```

Thanks to Curtis Condon, Ken White, and Al Feng of the Beckman Center at the University of Illinois for the bat data and permission to use it in this example.
