# si.MER

Reconstruct MER waveform and estimate MER statistical eye of nonlinear systems

*Since R2024b*

## Description

Use `si.MER`

to perform multiple edge response (MER) waveform
reconstruction and estimate the MER statistical eyes of nonlinear systems. You can define the
nonlinear system in one of two ways as a set of:

Exhaustive data patterns with the depth of

`Order`

+1, where`Order`

is the MER orderEffective step responses

## Creation

### Description

`mer = si.MER`

creates an object with reconstructed MER waveform
and estimates the statistical eye.

`mer = si.MER(Name=Value)`

sets properties using one or more
name-value arguments. For example, ```
mer =
si.MER(
```

creates an object with reconstructed MER waveform and estimates the statistical eye from
the input waveforms defined by `'Specification'`

='Wave',`'SourceWaves'`

='SourceWaves',`'SourceWavesPattern'`

='SourceWavesPattern')`'SourceWaves'`

and
`'SourceWavesPattern'`

.

## Properties

## Object Functions

`makeWave` | Create symbol pattern waveform |

`estimateStateye` | Generate statistical eye from effective step responses |

`validateWave` | Compare MER waveform to reference waveform |

`plotInputs` | Plot input waveforms and MER effective step responses |

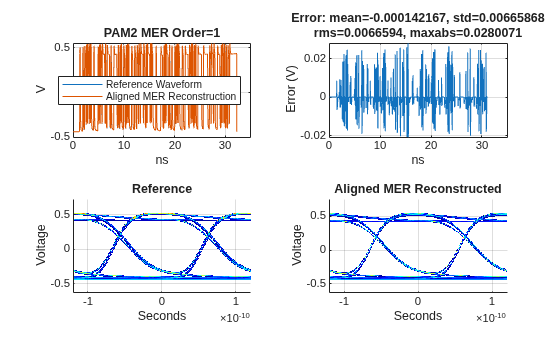

`plotValidation` | Plot reconstructed, reference, and error waveforms |

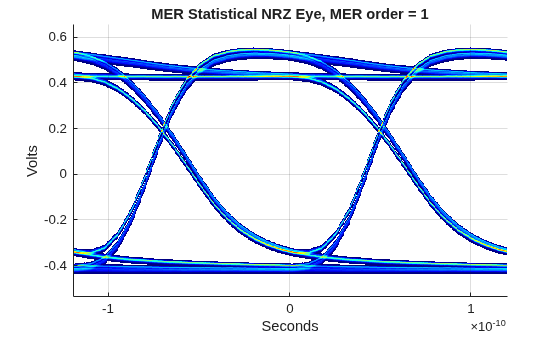

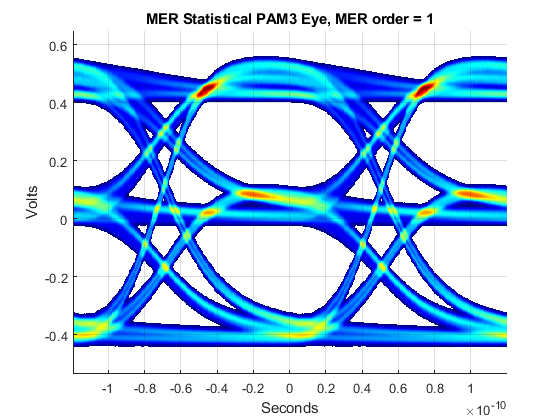

`plotStateye` | Plot statistical eye of reconstructed MER waveform |

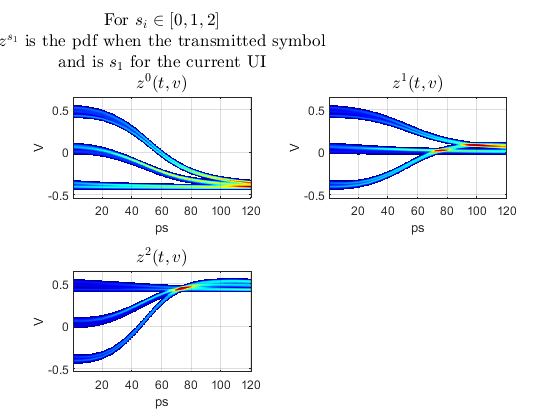

`plotPDFs` | Plot PDFs of MER waveforms |

## Examples

## References

[1] Chou, Chiu-Chih, Sheng-Yun Hsu,
and Tzong-Lin Wu. “Estimation Method for Statistical Eye Diagram in a Nonlinear Digital
Channel.” *IEEE Transactions on Electromagnetic
Compatibility* 57, no. 6 (December 2015): 1655–64.
https://doi.org/10.1109/TEMC.2015.2457928.

[2] Ren, JiHong, and Kyung Suk Oh.
"Multiple edge responses for fast and accurate system simulations." *IEEE
Transactions on Advanced Packaging* 31, no. 4 (2008): 741–748.

## Version History

**Introduced in R2024b**
