Statistical eye from pulse response
The statistical eye is generated by progressively accumulating the histogram of each
VH by perturbing the ideal cursor voltage by the
inter-symbol interference (ISI) voltages defined by the pulse response.
Load the pulse response column matrix from a file.
Use the nonreturn to zero (NRZ) modulation scheme.
modulation = 2;
Calculate the statistical eye.
[stateye,vh,th] = pulse2stateye(pulse,SamplesPerSymbol,modulation);

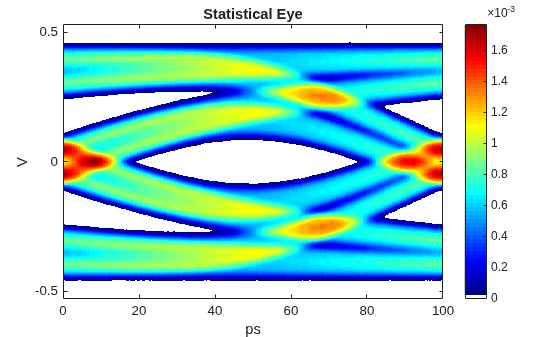

Visualize the statistical eye using a color map.
cmap = serdes.utilities.SignalIntegrityColorMap; figure, imagesc(th*SymbolTime*1e12,vh,stateye) colormap(cmap) colorbar axis('xy') xlabel('ps') ylabel('V') title('Statistical Eye')
P— Pulse response
Input pulse response, specified as a column matrix. The first column contains the primary pulse response and the subsequent columns (if any) contain the crosstalk pulse responses.
N— Number of samples per symbol
Number of samples per symbol, specified as a positive integer scalar.
M— Number of modulation levels
Number of modulation levels, specified as a positive integer scalar.
M defines the modulation scheme used in the statistical eye
M = 2, the modulation scheme is nonreturn to zero
M = 4, the modulation scheme is four-level pulse
amplitude modulation (PAM4).
S— Statistical eye matrix
Statistical eye of the pulse response
P, returned as a
VH— Voltage histogram bin centers
Vertical voltage histogram bin centers, returned as a vector.
TH— Time histogram bin centers
Horizontal time histogram bin centers, returned as a vector.
S1— Symbol transition histograms and crosstalk histogram
Symbol transition histograms and crosstalk histogram, returned as a 3-D
S1 is used to calculate the statistical eye
