current

Calculate and plot current distribution

Since R2021b

Syntax

current(rfpcbobject,frequency)

i = current(rfpcbobject,frequency)

[i,p] = current(rfpcbobject,frequency)

current(rfpcbobject,frequency,'dielectric')

i = current(rfpcbobject,frequency,'dielectric')

i = current(___,Name=Value)

Description

current(rfpcbobject,frequency) calculates and plots the absolute value of the current on the metal surface of a PCB component at the specified frequency.

i = current(rfpcbobject,frequency) calculates the x, y, z components of the current on the surface of a PCB component at a specified frequencies.

[i,p] = current(rfpcbobject,frequency) returns the current distribution and the points at which the current calculation was performed.

current(rfpcbobject,frequency,'dielectric') calculates and plots the absolute value of the current at the specified frequency on the dielectric surface of the PCB component.

i = current(rfpcbobject,frequency,'dielectric') calculates the x, y, z components of the current on the dielectric surface of a PCB component at the specified frequency.

i = current(___,Name=Value) calculates the current on the surface of a PCB component using additional name-value arguments.

Examples

Calculate Current Distribution on Rat-Race Coupler

Create a rat-race coupler with default properties.

coupler = couplerRatrace;

Set the excitation voltage and the phase angle at the ports of the coupler.

v = voltagePort(4)

v =
  voltagePort with properties:

         NumPorts: 4
      FeedVoltage: [1 0 0 0]
        FeedPhase: [0 0 0 0]
    PortImpedance: 50

v.FeedVoltage = [1 0 1 0]

v =
  voltagePort with properties:

         NumPorts: 4
      FeedVoltage: [1 0 1 0]
        FeedPhase: [0 0 0 0]
    PortImpedance: 50

v.FeedPhase = [90 0 270 0]

v =
  voltagePort with properties:

         NumPorts: 4
      FeedVoltage: [1 0 1 0]
        FeedPhase: [90 0 270 0]
    PortImpedance: 50

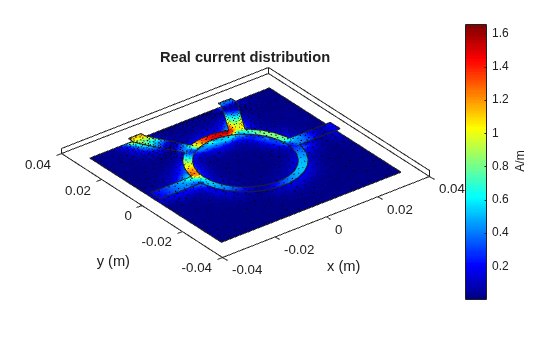

Calculate and plot the current on the coupler at 3 GHz.

figure
current(coupler,3e9,Excitation=v,Type='real',Direction='on')

Calculate Current Distribution on Spiral Inductor

Create a default spiral inductor.

inductor = spiralInductor;
show(inductor)

Calculate the current distribution on the inductor at 600 MHz.

[i,p] = current(inductor,600e6)

i = 3×242 complex

  -1.5922 + 2.4296i  -1.2993 + 2.0267i  -0.7940 + 1.0474i  -0.0003 + 0.0074i   0.0000 - 0.0067i  -1.6421 + 2.5516i   1.3974 - 1.9829i   0.1289 - 1.2235i   1.9091 - 2.4443i   0.1875 - 0.2615i   0.0022 - 0.0279i  -0.0005 + 0.0075i  -0.2745 + 0.5834i   2.3139 - 3.6287i   0.8341 - 1.3729i  -0.2731 + 0.5928i   2.3125 - 3.6056i   1.5493 - 2.2732i   2.8618 - 4.0426i   0.3477 - 0.6862i  11.3346 -14.1429i   1.3039 - 2.2525i   1.3067 - 2.3101i   2.6114 - 4.0805i   1.1166 - 1.5083i   0.1318 - 0.2257i   4.2366 - 8.0160i   3.2848 - 6.0731i   1.1301 - 1.9182i   0.8343 - 1.3677i   0.0171 - 0.2046i  -1.7151 + 2.7047i  -0.9376 + 1.4702i   0.0967 - 0.3237i  -2.3156 + 3.3929i   2.5015 - 3.3752i  -1.9228 + 3.0223i   0.2122 - 0.2979i   1.8457 - 3.0609i   0.7208 - 1.0432i   0.2664 - 0.3922i   0.2119 - 0.3029i   3.2053 - 5.9908i   2.5742 - 4.6861i   1.4204 - 2.4247i   1.0551 - 1.7422i   0.0632 - 0.2680i   0.0400 - 0.2262i  -1.8682 + 3.0825i   0.2679 - 0.4113i
  -0.0000 + 0.0054i   0.0351 - 0.0329i   0.2992 - 0.5272i   0.8438 - 1.2136i  -1.1188 + 1.8326i   0.5235 - 0.7679i  -1.5662 + 2.3464i   0.3373 - 0.3155i   0.8941 - 0.7089i  -0.1817 + 0.6249i  -0.5594 + 0.7645i   1.4625 - 2.3437i   0.8626 - 1.1220i  -0.8538 + 1.3218i  -0.2649 + 0.5924i   7.4823 -13.2073i  -0.2647 + 0.6176i   0.4969 - 0.6898i   0.0006 - 0.0062i   0.4961 - 0.6819i   0.3370 - 0.3108i  -0.5588 + 0.7562i   0.4627 - 0.7016i   0.4630 - 0.7074i   0.2141 - 0.2879i   2.9433 - 4.5851i   2.0563 - 3.1923i   3.0111 - 5.1251i   3.0144 - 5.1087i   1.5381 - 2.3267i   2.0508 - 3.2182i   0.0661 - 0.0482i   0.4555 - 0.6528i   1.4898 - 2.4223i   2.6556 - 3.5695i  -2.1619 + 3.1902i   0.0484 - 0.0259i  -1.5643 + 2.4677i   0.3030 - 0.4166i  -0.8247 + 1.5661i  -1.7360 + 2.8391i  -2.3962 + 3.8572i   1.9295 - 3.1066i   2.5635 - 4.4059i   2.5679 - 4.3954i   1.4762 - 2.3250i   1.8014 - 2.9370i   1.9238 - 3.1211i   0.0994 - 0.0801i  -2.2631 + 3.7958i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i

p = 3×242

   -0.0006    0.0009    0.0022    0.0025   -0.0025   -0.0023   -0.0022   -0.0016   -0.0023   -0.0023   -0.0019    0.0025    0.0023    0.0023    0.0018    0.0019    0.0019    0.0012         0    0.0016   -0.0019   -0.0009    0.0006    0.0011   -0.0002    0.0016    0.0017    0.0016    0.0016    0.0017    0.0016    0.0006    0.0015    0.0017   -0.0016   -0.0015   -0.0004   -0.0018   -0.0007   -0.0016   -0.0016   -0.0017    0.0012    0.0011    0.0011    0.0012    0.0012    0.0011    0.0004   -0.0012
    0.0026    0.0024    0.0024    0.0017    0.0009    0.0024    0.0024   -0.0019   -0.0017   -0.0005   -0.0024   -0.0017   -0.0008   -0.0024   -0.0014   -0.0008   -0.0021   -0.0022   -0.0026   -0.0024   -0.0021   -0.0022   -0.0021   -0.0019   -0.0018   -0.0018   -0.0001   -0.0002   -0.0007   -0.0012    0.0006    0.0018    0.0018    0.0012    0.0018    0.0018    0.0019    0.0008   -0.0014   -0.0012   -0.0003    0.0007   -0.0001   -0.0002   -0.0005   -0.0009    0.0009    0.0004    0.0013    0.0005
         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0         0

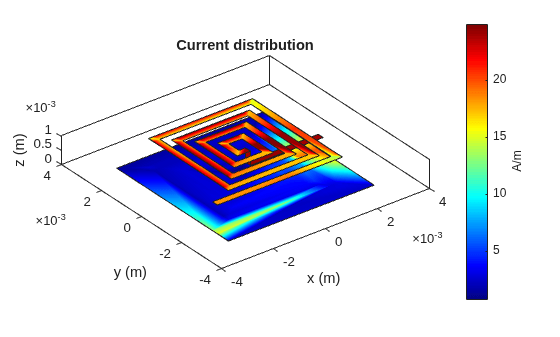

Plot the current distribution.

current(inductor,600e6)

Input Arguments

rfpcbobject — PCB component object

RF PCB object

PCB component object, specified as an RF PCB object. For a complete list of the PCB components, microstrip bends, and traces, see PCB Components Catalog and Custom Geometry and PCB Fabrication.

frequency — Frequency used to calculate current distribution

scalar

Frequency to calculate the current distribution, specified as a scalar in Hz.

Example: 70e6

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: scale=log10

Scale — Scale to visualize current distribution

linear (default) | string scalar | character vector

Scale to visualize the current distribution on the surface of the PCB component, specified as a string or a character vector. The string values are either 'linear', 'log', or 'log10' or as a function. You can specify any mathematical function such as log, log10, cos, or sin.

Data Types: char | function_handle

Slicer — Slicer to focus on desired portion of current plot

'on' | 'off'

Slicer to slice the current plot and focus on the desired portion, specified as 'on' or 'off'. Choosing 'on' adds the slicer panel to the current plot and choosing 'off' does not change the current plot.

Data Types: logical

Excitation — Excitation using voltage source

function handle

Excitation using as voltage source, specified function handle from the voltagePort function.

Data Types: char | function_handle

Type — Choose component of metal current

absolute (default) | real | imaginary

Choose the component to display of the metal current, specified as.absolute, real, or imaginary.

Data Types: char | function_handle

Direction — Visualize direction of vector when plotting metal current

off (default) | on

Visualize the direction of the vector when plotting metal current, specified as off or on.

Data Types: logical

Output Arguments

i — x, y, z components of current distribution

3-by-n complex matrix in A/m

x, y, z components of the current distribution, returned as a 3-by-n complex matrix in A/m. The value of the current is calculated on every triangle mesh on the surface of the PCB component.

p — Cartesian coordinates representing center of each triangle in mesh

3-by-n real matrix

Cartesian coordinates representing the center of each triangle in the mesh, returned as a 3-by-n real matrix.

Version History

Introduced in R2021b
