show

Display RF budget object in RF Budget Analyzer app

collapse all in page

    Syntax

    show(rfobj)

    Description

    show(rfobj) opens an RF Budget Analyzer app to display a clone of the rfbudget object.

    example

    Examples

    collapse all

    Open Script

    Create amplifier, modulator, rfelement, and nport objects for RF budget analysis.

    a = amplifier(Name="LNA",Gain=4);
m = modulator(ConverterType="Up",LO=100e6,Name="Mod");
r = rfelement(Gain=10,NF=3,OIP3=2);
n = nport("passive.s2p");

    Compute RF budget results for chain of 2-port elements at an input frequency of 2.1 GHz, an available input power of -30 dBm, and a bandwidth of 10 MHz.

    b = rfbudget([a m r n],2.1e9,-30,10e6);

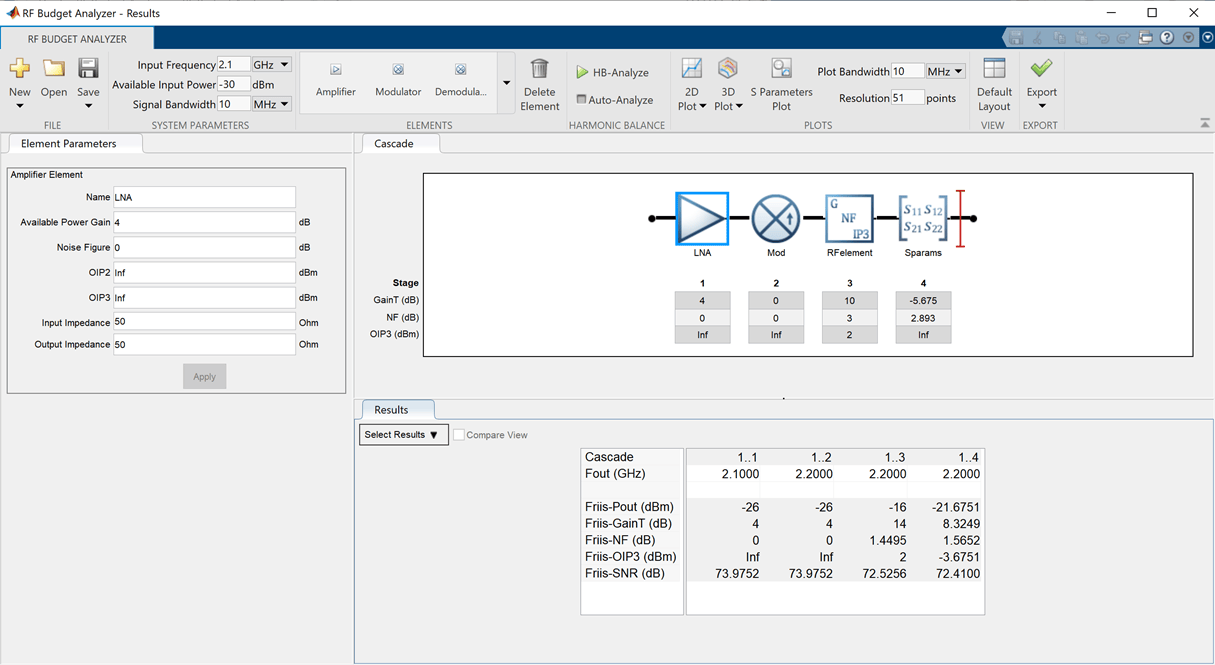

    To display the RF budget results for exploration in the RF Budget Analyzer app, type show(b) in command line.

    Input Arguments

    collapse all

    RF budget object, specified as a rfbudget object.

    Version History

    Introduced in R2017a
