rfantenna

Create antenna element modeled as transmitter and receiver

    Description

    Use the rfantenna object to create an antenna element that you can model as a transmitter or receiver. You can also use the rfantenna object to compute the effective isotropically radiated power (EIRP) in cascaded stages using the RF Budget Analyzer app.

    Creation

    Description

    ant = rfantenna creates a default RF antenna object with a gain of 1 dBi.

    example

    ant = rfantenna(Name=Value) sets the Properties of an rfantenna object using one or more name-value arguments. For example, ant = attenuator(Gain=10) creates an RF antenna object with a 10 dBi gain. Properties you do not specify retain their default values.

    Properties

    expand all

    Name of the RF antenna element, specified as a string scalar or a character vector.

    Example: rfantenna(Name='Antenna_20dB')

    Antenna gain, specified as a positive scalar in dBi. EIRP can be controlled by varying the gain of the antenna element.

    Example: rfantenna(Gain=20)

    Input impedance of the RF antenna element, specified as a positive scalar in ohms.

    Example: rfantenna(Z=20)

    Type of the antenna element, specified as Transmitter or Receiver.

    Example: rfantenna(Type='Receiver')

    EIRP value of the transmitting antenna that the receiver is tuned to, specified as a numerical scalar in dBm. You must set this property when you are designing a receiver antenna element.

    Example: rfantenna(TxEIRP=24)

    Loss encountered by a signal before reaching the receiver, specified as a positive scalar in dB.

    Example: rfantenna(PathLoss=2)

    This property is read-only.

    Number of input and output ports in RF antenna element, specified as a positive scalar.

    This property is read-only.

    Terminals of RF antenna, specified as a cell array.

    Object Functions

    sparametersCalculate S-parameters for RF data, network, circuit, and matching network objects

    Examples

    collapse all

    Create an amplifier with the gain of 4 dB.

    a = amplifier(Gain=4);

    Create a modulator with OIP3 of 13 dBm.

    m = modulator(OIP3=13);

    Create an n-port element using passive.s2p.

    n = nport('passive.s2p');

    Create an RF antenna with the gain of 10 dB.

    ant = rfantenna(Gain=10);

    Calculate the RF budget of a series of RF elements at the input frequency of 2.1 GHz, available input power of –30 dBm, and bandwidth of 10 MHz. EIRP is computed under Analyzed Results of the rfbudget object.

    b = rfbudget([a m n ant],2.1e9,-30,10e6)
    b =
      rfbudget with properties:

                   Elements: [1x4 rf.internal.rfbudget.Element]
             InputFrequency: 2.1 GHz
        AvailableInputPower: -30 dBm
            SignalBandwidth:  10 MHz
                     Solver: Friis
                 AutoUpdate: true

       Analysis Results
            OutputFrequency: (GHz) [  2.1    3.1      3.1      3.1]
                OutputPower: (dBm) [  -26    -26    -30.6    -30.6]
             TransducerGain: (dB)  [    4      4  -0.5995  -0.5995]
                         NF: (dB)  [    0      0    1.224    1.224]
                       IIP2: (dBm) []
                       OIP2: (dBm) []
                       IIP3: (dBm) [  Inf      9        9        9]
                       OIP3: (dBm) [  Inf     13      8.4      8.4]
                        SNR: (dB)  [73.98  73.98    72.75    72.75]
                       EIRP: (dBm) [-20.6]
                Directivity: (dBi) [   10]



    Design an RF receiver antenna element given a transmitting antenna with an EIRP value of –35 dBm and a pathloss of 2 dB.

    antR = rfantenna(Type ='Receiver',TxEIRP =-35,PathLoss=2);

    Create an amplifier with a gain of 4 dB.

    a = amplifier(Gain=4);

    Create a modulator with an OIP3 value of 13 dBm.

    m = modulator(OIP3=13);

    Create an n-port element using passive.s2p.

    n = nport('passive.s2p');

    Calculate the RF budget of a series of RF elements by tying this command at the command line with an input frequency of 2.1 GHz, an available input power of –30 dBm, and a bandwidth of 10 MHz.

    b = rfbudget([antR a m n],2.1e9,-30,10e6);

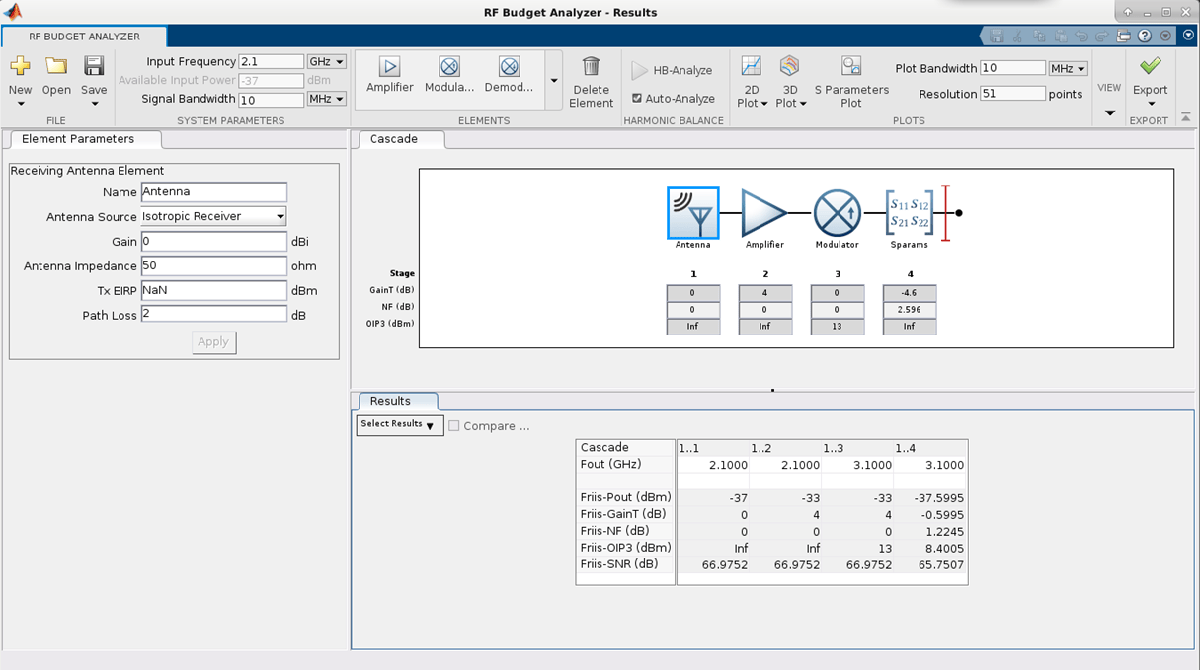

    Use the show command at the command line to visualize the RF budget chain in the RF Budget Analyzer app. To do further analysis on this chain using this app see RF Budget Analyzer.

    show(b)


    Introduced in R2021a
