farFieldBC
Description
Creation
Description
ffbc = farFieldBC(Name=Value)
creates a
farFieldBC
object and sets properties using one
or more name-value arguments. You must specify the thickness value. Specifying the
exponent and scaling values is optional.
Properties
Thickness
— Width of far field absorbing region
positive number
Width of the far field absorbing region, specified as a positive number. The solver uses an absorbing boundary condition for a harmonic analysis.
Data Types: double
Exponent
— Exponent defining attenuation rate
4 (default) | positive number
Exponent defining the attenuation rate of the waves entering the absorbing region, specified as a positive number. The solver uses an absorbing boundary condition for a harmonic analysis.
Data Types: double
Scaling
— Scaling parameter defining attenuation rate
5 (default) | positive number
Scaling parameter defining the attenuation rate of the waves entering the absorbing region, specified as a positive number. The solver uses an absorbing boundary condition for a harmonic analysis.
Data Types: double
Examples
Boundary Conditions for 2-D Harmonic Electromagnetic Analysis
Specify an absorbing boundary condition for an femodel
object representing a harmonic electromagnetic problem.
Create an femodel
object for solving a harmonic electromagnetic problem with an electric field type. Assign a geometry representing a 2-D plate with a hole to the model.
model = femodel(AnalysisType="electricHarmonic", ... Geometry="PlateHolePlanar.stl");

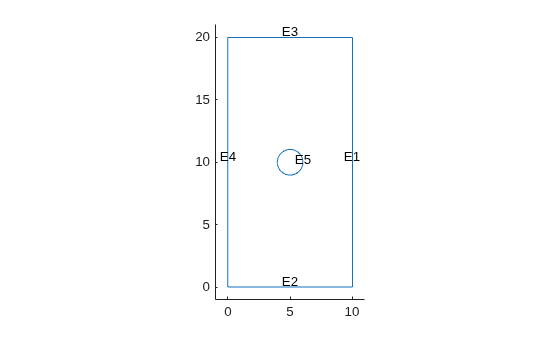

Plot the geometry with the edge labels.
pdegplot(model.Geometry,EdgeLabels="on");
xlim([-1 11])
ylim([-1 21])
Specify an electric field on the circular edge.
model.EdgeBC(5) = edgeBC(ElectricField=[10 0]); model.EdgeBC
ans = 1x5 edgeBC array Properties for analysis type: electricHarmonic Index ElectricField FarField 1 [] [] 2 [] [] 3 [] [] 4 [] [] 5 [10 0] [] Show all properties
Specify absorbing regions with a thickness of 2 on the edges of the rectangle. Use the default attenuation rate for the absorbing regions.
ffbc = farFieldBC(Thickness=2); model.EdgeBC(1:4) = edgeBC(FarField=ffbc); model.EdgeBC
ans = 1x5 edgeBC array Properties for analysis type: electricHarmonic Index ElectricField FarField 1 [] [1x1 farFieldBC] 2 [] [1x1 farFieldBC] 3 [] [1x1 farFieldBC] 4 [] [1x1 farFieldBC] 5 [10 0] [] Show all properties
Check the parameters of the absorbing region for edge 1.
model.EdgeBC(1).FarField
ans = farFieldBC with properties: Thickness: 2 Exponent: 4 Scaling: 5
Now specify the attenuation rate for the absorbing regions.
ffbc = farFieldBC(Thickness=2,Exponent=3,Scaling=100); model.EdgeBC(1:4) = edgeBC(FarField=ffbc); model.EdgeBC(1).FarField
ans = farFieldBC with properties: Thickness: 2 Exponent: 3 Scaling: 100
Boundary Conditions for 3-D Harmonic Electromagnetic Analysis
Specify an absorbing boundary condition for an femodel
object representing a harmonic electromagnetic problem.
Create an femodel
object for solving a harmonic electromagnetic problem with an electric field type. Assign a geometry representing a 3-D plate with a hole to the model.
model = femodel(AnalysisType="electricHarmonic", ... Geometry="PlateHoleSolid.stl");

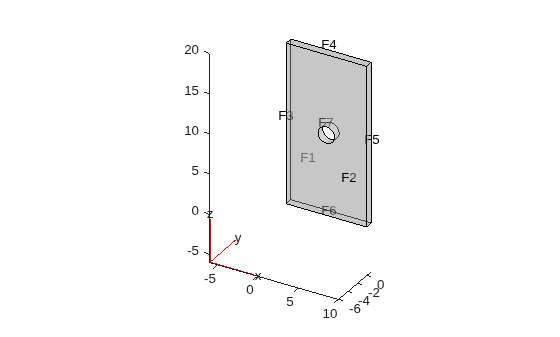

Plot the geometry with the face labels.
pdegplot(model.Geometry,FaceLabels="on", ... FaceAlpha=0.4);
Specify the electric field on the circular face.
model.FaceBC(7) = faceBC(ElectricField=[10 0 0]); model.FaceBC
ans = 1x7 faceBC array Properties for analysis type: electricHarmonic Index ElectricField FarField 1 [] [] 2 [] [] 3 [] [] 4 [] [] 5 [] [] 6 [] [] 7 [10 0 0] [] Show all properties
Specify absorbing regions with a thickness of 2 on the sides of the plate. Use the default attenuation rate for the absorbing regions.
ffbc = farFieldBC(Thickness=2); model.FaceBC(3:6) = faceBC(FarField=ffbc); model.FaceBC
ans = 1x7 faceBC array Properties for analysis type: electricHarmonic Index ElectricField FarField 1 [] [] 2 [] [] 3 [] [1x1 farFieldBC] 4 [] [1x1 farFieldBC] 5 [] [1x1 farFieldBC] 6 [] [1x1 farFieldBC] 7 [10 0 0] [] Show all properties
Check the parameters of the absorbing region for face 6.
model.FaceBC(6).FarField
ans = farFieldBC with properties: Thickness: 2 Exponent: 4 Scaling: 5
Now specify the attenuation rate for the absorbing regions.
ffbc = farFieldBC(Thickness=2,Exponent=3,Scaling=100); model.FaceBC(3:6) = faceBC(FarField=ffbc); model.FaceBC(6).FarField
ans = farFieldBC with properties: Thickness: 2 Exponent: 3 Scaling: 100
References
[1] Larson, M.G. and Bengzon, F. The Finite Element Method: Theory, Implementation, and Applications. Springer Berlin, Heidelberg, 2013.
