Use FFT2 on the GPU to Simulate Diffraction Patterns

R2026b
Open Live Script

This example uses Parallel Computing Toolbox™ to perform a two-dimensional Fast Fourier Transform (FFT) on a GPU.

In optics, you can use Fourier transform to approximate the far-field diffraction pattern produced by a plane wave incident on a small aperture [1]. These diffraction patterns are observed when a monochromatic light source passes through a small aperture, such as in Young's double-slit experiment.

You can speed up your code by running MATLAB® functions on a GPU. Many functions in MATLAB and other toolboxes run automatically on a GPU if you supply a gpuArray data argument. A gpuArray in MATLAB represents an array that is stored on the GPU.

Define Optical Mask

Before calculating the diffraction pattern, first define an optical with a small rectangular aperture.

Define a 2048-by-2048 mask. To ensure that all of the subsequent calculations are performed on the GPU, convert the mask to a gpuArray.

n = 2048;
x = -n/2:1:n/2-1;
[X,Y] = meshgrid(x);
X = gpuArray(X);
Y = gpuArray(Y);

Create a small rectangular aperture in the center of the mask.

aperture = (abs(X)<4) .* (abs(Y)<2);

Display the aperture.

figure
imagesc(aperture)
title("Rectangular Aperture")
axis("off","equal")
xlim([n/2-30 n/2+30])
ylim([n/2-30 n/2+30])

Simulate Diffraction Pattern

Simulate the effect of passing a plane wave through a small rectangular aperture. The two-dimensional Fourier transform describes the optical field in the far-field regime.

Calculate the two-dimensional Fourier transform using the fft2 function.

lightSource = double(aperture);
farFieldSignal = fft2(lightSource);

Calculate and display the far-field optical field from the magnitude squared of the light field. Use the fftshift to rearrange the output so that the zero-frequency component is at the center.

farFieldIntensity = abs(farFieldSignal).^2;

figure
imagesc(fftshift(farFieldIntensity))
axis("off","equal")

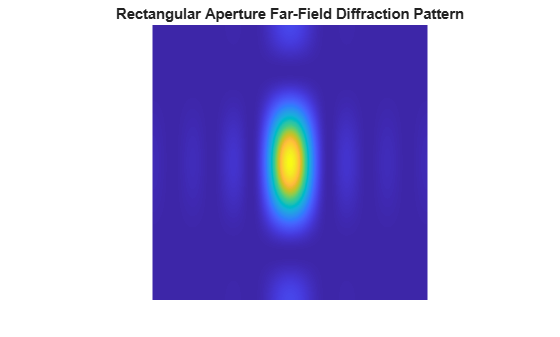

title("Rectangular Aperture Far-Field Diffraction Pattern")

Simulate Young's Double-Slit Experiment

One of the most famous experiments in optics is Young's double-slit experiment which shows light interference when an aperture comprises two parallel slits. A series of bright regions are visible where constructive interference takes place.

Define the aperture representing two slits.

aperture = ((abs(X)<=10).*(abs(X)>=8) ) .* (abs(Y)<20);

Display the aperture.

figure
imagesc(aperture)
title("Double Slit Arrangement")
axis("off","equal")
xlim([n/2-30 n/2+30])
ylim([n/2-30 n/2+30])

farFieldSignal = fft2(aperture);

Calculate and display the far-field optical field.

farfieldIntensity = abs(farFieldSignal).^2;
imagesc(fftshift(farfieldIntensity));
axis("equal");
axis("off");
title("Double Slit Far-Field Diffraction Pattern");

References

[1] Fowles, G. R. Introduction to Modern Optics. New York: Dover, 1989.
