Show occupancy map

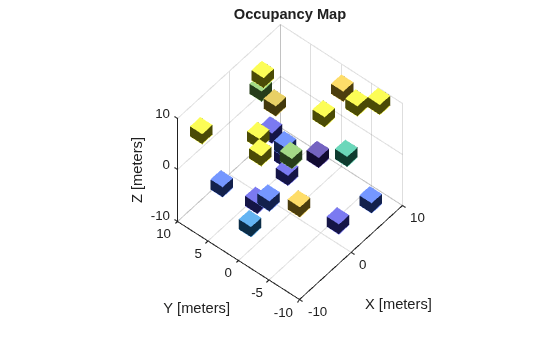

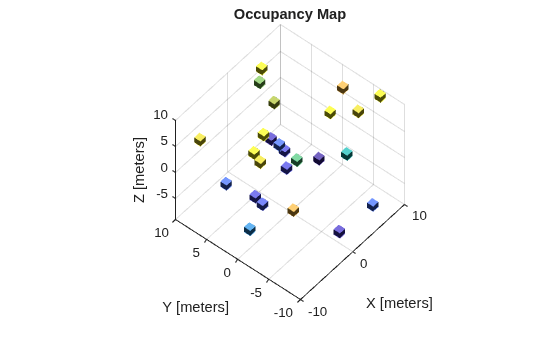

axes = show(map3D) displays the occupancy map, map3D, in the current axes, with the axes labels representing the world coordinates.

The function displays the 3-D environment using 3-D voxels for areas with occupancy values greater than the OccupiedThreshold property value specified in map3D. The color of the 3-D plot is strictly height-based.

show(map3D,"Parent",parent) displays the occupancy map in the axes handle specified by parent.

Input Arguments

collapse all

3-D occupancy map, specified as an occupancyMap3D object.

Axes used to plot the map, specified as either an Axes or UIAxes object. See axes or uiaxes.

Output Arguments

collapse all

Axes handle for map, returned as either an Axes or UIAxesobject. See axes or uiaxes.

Introduced in R2019b
