# solve

## Description

## Examples

### Solve ODE Problem at Specified Times

Create an `ode`

object to integrate the function `dydt = @(t,y) (1/2)*t^2`

. Specify the initial value of `dydt`

as `0`

.

F = ode(ODEFcn=@(t,y) (1/2)*t^2,InitialValue=0);

Integrate the `ode`

object by using the `solve`

method. Specify a vector of times using `linspace`

to evaluate the solution at specific time points in the interval `[0 5]`

.

t = linspace(0,5); S = solve(F,t)

S = ODEResults with properties: Time: [0 0.0505 0.1010 0.1515 0.2020 0.2525 0.3030 0.3535 0.4040 0.4545 0.5051 0.5556 0.6061 0.6566 0.7071 0.7576 0.8081 0.8586 0.9091 0.9596 1.0101 1.0606 1.1111 1.1616 1.2121 1.2626 1.3131 1.3636 1.4141 1.4646 1.5152 1.5657 ... ] (1x100 double) Solution: [0 2.1471e-05 1.7177e-04 5.7972e-04 0.0014 0.0027 0.0046 0.0074 0.0110 0.0157 0.0215 0.0286 0.0371 0.0472 0.0589 0.0725 0.0879 0.1055 0.1252 0.1473 0.1718 0.1988 0.2286 0.2612 0.2968 0.3355 0.3774 0.4226 0.4713 0.5237 ... ] (1x100 double)

Plot the results.

`plot(S.Time,S.Solution,"-o")`

Integrate the `ode`

object again, this time specifying time points in the interval `[-5 5]`

. Even though the initial value of `dydt`

is applied at `F.InitialTime=0`

by default, the `solve`

method can evaluate the solution before the initial time.

```
t2 = linspace(-5,5);
S2 = solve(F,t2);
plot(S2.Time,S2.Solution,"-o")
```

### Solve ODE over Time Interval

Create an `ode`

object to integrate this system of equations.

$$\begin{array}{l}{y}_{1}^{\prime}={y}_{2}\\ {y}_{2}^{\prime}=-{y}_{1}\end{array}$$

Specify initial values of ${\mathit{y}}_{1}=0$ and ${\mathit{y}}_{2}=1$.

F = ode(ODEFcn=@(t,y) [y(2); -y(1)],InitialValue=[0 1]);

Integrate the `ode`

object over the interval `[0 2*pi]`

by using the `solve`

method. Plot the results.

```

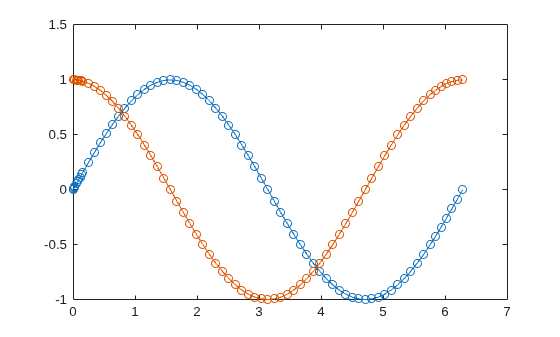

S = solve(F,0,2*pi);
plot(S.Time,S.Solution,"-o")
```

Integrate the `ode`

object again, this time specifying `Refine=6`

to generate additional solution points in each time step.

```
S2 = solve(F,0,2*pi,Refine=6);
plot(S2.Time,S2.Solution,"-o")
```

## Input Arguments

`F`

— ODE problem to solve

`ode`

object

ODE problem to solve, specified as an `ode`

object.

`t`

— Time points to compute solution

real vector

Time points to compute solution, specified as a vector with real elements. The
solver returns the solution evaluated at the given time points. However, the solver does
not step precisely to each point specified in `t`

. Instead, the solver
uses its own internal steps to compute the solution, and then evaluates the solution at
the requested points in `t`

. The solutions produced at the specified
points are of the same order of accuracy as the solutions computed at each internal
step.

The time points you specify in `t`

are not bound by the value of
the `InitialTime`

property of the `ode`

object
`F`

. You can specify time values before or after the value of
`InitialTime`

.

The solver uses the values in `t`

to calculate suitable values for
the `F.SolverOptions.InitialStep`

and
`F.SolverOptions.MaxStep`

options:

The specified time points give an indication of the scale for the problem, which can affect the value of

`InitialStep`

used by the solver. Therefore, specifying the initial and final time points of the interval with`t0,tf`

can lead to different integration results compared to specifying a vector of times.The solver uses the initial and final time points to calculate the maximum step size

`MaxStep`

. Therefore, changing the initial or final values in`t`

can cause the solver to use a different step sequence, which might change the solution.

**Example: **`S = solve(F,1:10)`

solves the ODE problem represented by
`F`

at the time points `1:10`

.

`t0,tf`

— Interval of integration

real scalars

Interval of integration, specified as two real scalars that indicate the initial
(`t0`

) and final (`tf`

) time points. The solver
returns the solution evaluated at each internal integration step within the specified
time interval.

The time points you specify in `t0`

and `tf`

are
not bound by the value of the `InitialTime`

property of the
`ode`

object `F`

. You can specify time values before
or after the value of `InitialTime`

.

The solver uses the initial and final time points to calculate the maximum step size
`F.SolverOptions.MaxStep`

. Therefore, changing
`t0`

or `tf`

can cause the solver to use a different
step sequence, which might change the solution.

**Example: **`S = solve(F,1,10)`

solves the ODE problem represented by
`F`

in the interval `[1 10]`

.

`N`

— Solution refinement factor

scalar integer

Solution refinement factor, specified as a scalar integer. The scalar specifies a factor by which the number of output points should increase in each step.

The default value of `N`

for most solvers is `1`

,
but `ode45`

uses a default value of `4`

, while
`ode78`

and `ode89`

use a default value of
`8`

. These solvers use a larger default value to compensate for their
tendency to take large steps.

If the refinement factor is

`1`

, then the solver returns solutions only at the end of each step.If the refinement factor is greater than

`1`

, then the solver subdivides each step into`N`

smaller intervals and returns solutions at each point.

The extra values produced by the refinement factor are computed by means of continuous extension formulas. The solvers use these specialized formulas to obtain accurate solutions between computed time steps without significant increase in computation time.

**Example: **`S = solve(F,1,10,Refine=5)`

solves the ODE problem
represented by `F`

in the interval `[1 10]`

and
returns `5`

points per time step.

## Output Arguments

`S`

— Computed solution

`ODEResults`

object

Computed solution, returned as an `ODEResults`

object.

## Version History

**Introduced in R2023b**

## See Also

`ode`

| `solutionFcn`

| `ODEResults`

| `odextend`
