layoutcoords
Syntax
Description
calculates the coordinates of the nodes of graph nodeCoords
= layoutcoords(G
)G
using an automatic
choice of layout method based on the structure of the graph.
[
also calculates the coordinates of the graph edges.nodeCoords
,edgeCoords
] = layoutcoords(G
)
[___] = layoutcoords(
specifies additional options using one or more namevalue arguments. Which namevalue
arguments are supported depends on the choice of layout method. For example,
G
,method
,Name=Value)layoutcoords(G,"force",Iterations=N)
specifies the number of iterations
to use in computing the force layout, and
layoutcoords(G,"layered",Sources=S)
uses a layered layout with source
nodes S
included in the first layer.
Examples
Automatic Layout Method
Create a graph with eight nodes and twelve edges.
s = [1 1 1 2 2 3 3 4 5 5 6 7]; t = [2 4 5 3 6 4 7 8 6 8 7 8]; G = graph(s,t)
G = graph with properties: Edges: [12x1 table] Nodes: [8x0 table]
Calculate the coordinates of the nodes and edges using an automatic choice of layout method.
[nodeCoords, edgeCoords] = layoutcoords(G)
nodeCoords = 8×2
0.0495 2.0789
0.0119 0.5215
1.5285 0.8917
1.5694 0.8184
1.5285 0.8917
1.5694 0.8184
0.0495 2.0789
0.0119 0.5215
edgeCoords=12×1 cell array
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
{2x2 double}
Layered Layout
Create a graph with 10 nodes and 12 edges.
s = [1 1 1 1 1 1 1 1 4 1 9 8]; t = [2 3 4 5 6 7 8 9 10 10 10 9]; g = graph(s,t)
g = graph with properties: Edges: [12x1 table] Nodes: [10x0 table]
Calculate the coordinates of the nodes and edges using a layered layout method. Specify Sources=1
to use the first node in the first layer.
[nodeCoords, edgeCoords] = layoutcoords(g,"layered",Sources=1)
nodeCoords = 10×2
5.0000 5.0000
1.0000 4.0000
2.0000 4.0000
4.0000 4.0000
7.0000 4.0000
8.0000 4.0000
9.0000 4.0000
4.5000 1.0000
5.0000 2.0000
4.5000 3.0000
edgeCoords=12×1 cell array
{ 2x2 double}
{ 2x2 double}
{ 2x2 double}
{ 2x2 double}
{ 2x2 double}
{ 2x2 double}
{41x2 double}
{31x2 double}
{21x2 double}
{ 2x2 double}
{ 2x2 double}
{ 2x2 double}

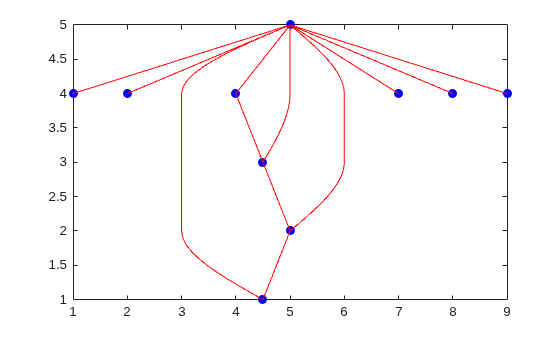

Plot the graph nodes and edges using the coordinates in nodeCoords
and edgeCoords
. Use a for
loop to plot the entries in edgeCoords
one at a time.
xn = nodeCoords(:,1); yn = nodeCoords(:,2); plot(xn,yn,"bo","MarkerFaceColor","b") hold on for k = 1:numedges(g) e = edgeCoords{k}; plot(e(:,1),e(:,2),"r") end hold off
Input Arguments
method
— Layout method
"auto"
(default)  "circle"
 "force"
 "layered"
 "subspace"
 "force3"
 "subspace3"
Layout method, specified as one of the options in the table. The table also lists compatible namevalue pairs to further refine each layout method.
Option  Description  LayoutSpecific NameValue Pairs

"auto" (default)  Automatic choice of layout method based on the size and structure of the graph.  —
"circle"  Circular layout. Places the graph nodes on a circle centered at the origin with radius 1.

"force"  Forcedirected layout [1]. Uses attractive forces between adjacent nodes and repulsive forces between distant nodes.

"layered"  Layered layout [2], [3], [4]. Places the graph nodes into a set of layers, revealing hierarchical structure. By default the layers progress downwards (the arrows of a directed acyclic graph point down).

"subspace"  Subspace embedding layout [5]. Plots the graph nodes in a highdimensional embedded subspace, and then projects the positions back into 2D. By default the subspace dimension is either 100 or the total number of nodes, whichever is smaller.

"force3"  3D forcedirected layout.

"subspace3"  3D subspace embedding layout.

Example: layoutcoords(G,"layered")
Example: layoutcoords(G,"force3","Iterations",10)
Example: layoutcoords(G,"subspace","Dimension",50)
NameValue Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Namevalue arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: layoutcoords(G,"subspace","Dimension",200)
Iterations
— Number of forcedirected layout iterations
100
(default)  positive scalar integer
Number of forcedirected layout iterations, specified as a positive scalar integer.
This option is available only when method
is
"force"
or "force3"
.
Example: layoutcoords(G,"force",Iterations=250)
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
WeightEffect
— Effect of edge weights on layout
"none"
(default)  "direct"
 "inverse"
Effect of edge weights on layout, specified as one of the values in this table. If
there are multiple edges between two nodes (as in a directed graph with an edge in
each direction, or a multigraph), then the weights are summed before computing
WeightEffect
.
This option is available only when method
is
"force"
or "force3"
.
Value  Description

 Edge weights do not affect the layout.
 Edge length is proportional to the edge weight,

 Edge length is inversely proportional to the edge weight,

Example: layoutcoords(G,"force",WeightEffect="inverse")
UseGravity
— Gravity toggle for layouts with multiple components
"off"
or false
(default)  "on"
or true
Gravity toggle for layouts with multiple components, specified as either
"off"
, "on"
, true
, or
false
. A value of "on"
is equivalent to
true
, and "off"
is equivalent to
false
.
By default, MATLAB^{®} lays out graphs with multiple components on a grid. The grid can obscure
the details of larger components since they are given the same amount of space as
smaller components. With UseGravity
set to "on"
or true
, multiple components are instead laid out radially around
the origin. This layout spreads out the components in a more natural way, and provides
more space for larger components.
This option is available only when method
is
"force"
or "force3"
.
Example: layoutcoords(G,"force",UseGravity=true)
Data Types: char
 logical
XStart
— Starting xcoordinates for nodes
vector
Starting xcoordinates for nodes, specified as a vector of node coordinates. Use
this option together with YStart
to specify 2D starting
coordinates (or with YStart
and ZStart
to
specify 3D starting coordinates) before iterations of the forcedirected algorithm
change the node positions.
This option is available only when method
is
"force"
or "force3"
.
Example: layoutcoords(G,"force",XStart=x,YStart=y)
Example: layoutcoords(G,"force3",XStart=x,YStart=y,ZStart=z)
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
YStart
— Starting ycoordinates for nodes
vector
Starting ycoordinates for nodes, specified as a vector of node coordinates. Use
this option together with XStart
to specify 2D starting
coordinates (or with XStart
and ZStart
to
specify 3D starting coordinates) before iterations of the forcedirected algorithm
change the node positions.
This option is available only when method
is
"force"
or "force3"
.
Example: layoutcoords(G,"force",XStart=x,YStart=y)
Example: layoutcoords(G,"force3",XStart=x,YStart=y,ZStart=z)
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
ZStart
— Starting zcoordinates for nodes
vector
Starting zcoordinates for nodes, specified as a vector of node coordinates. Use
this option together with XStart
and YStart
to
specify the starting x, y, and
z node coordinates before iterations of the forcedirected
algorithm change the node positions.
This option is available only when method
is
"force3"
.
Example: layoutcoords(G,"force3",XStart=x,YStart=y,ZStart=z)
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
Direction
— Direction of layers
"down"
(default)  "up"
 "left"
 "right"
Direction of layers, specified as either "down"
,
"up"
, "left"
or "right"
.
For directed acyclic (DAG) graphs, the arrows point in the indicated direction.
This option is available only when method
is
"layered"
.
Example: layoutcoords(G,"layered",Direction="up")
Sources
— Nodes to include in the first layer
node indices  node names
Nodes to include in the first layer, specified as one or more node indices or node names.
This table shows the different ways to refer to one or more nodes either by their numeric node indices or by their node names.
Form  Single Node  Multiple Nodes

Node index  Scalar Example:  Vector Example:
Node name  Character vector Example:  Cell array of character vectors Example:
String scalar Example:  String array Example:
This option is available only when method
is
"layered"
.
Example: layoutcoords(G,"layered",Sources=[1 3
5])
Sinks
— Nodes to include in the last layer
node indices  node names
Nodes to include in the last layer, specified as one or more node indices or node names.
This option is available only when method
is
"layered"
.
Example: layoutcoords(G,"layered",Sinks=[2 4 6])
AssignLayers
— Layer assignment method
"auto"
(default)  "asap"
 "alap"
Layer assignment method, specified as one of the options in this table.
Option  Description

"auto" (default)  Node assignment uses either "asap" or
"alap" , whichever is more compact.
"asap"  As soon as possible. Each node is assigned to the first possible layer, given the constraint that all its predecessors must be in earlier layers.
"alap"  As late as possible. Each node is assigned to the last possible layer, given the constraint that all its successors must be in later layers.
This option is available only when method
is
"layered"
.
Example: layoutcoords(G,"layered",AssignLayers="alap")
Dimension
— Dimension of embedded subspace
positive scalar integer
Dimension of embedded subspace, specified as a positive scalar integer.
The default integer value is
min([100, numnodes(G)])
.For the
"subspace"
layout, the integer must be greater than or equal to 2.For the
"subspace3"
layout, the integer must be greater than or equal to 3.In both cases, the integer must be less than the number of nodes.
This option is available only when method
is
"subspace"
or "subspace3"
.
Example: layoutcoords(G,"subspace",Dimension=d)
Example: layoutcoords(G,"subspace3",Dimension=d)
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
Center
— Center node in circular layout
node index  node name
Center node in circular layout, specified as one of the values in this table.
Value  Example

Scalar node index  1
Character vector node name  'A'
String scalar node name  "A"
This option is available only when method
is
"circle"
.
Example: layoutcoords(G,"circle",Center=3)
places node three at
the center.
Example: layoutcoords(G,"circle",Center="Node1")
places the node
named "Node1"
at the center.
Output Arguments
nodeCoords
— Node layout coordinates
matrix
Node layout coordinates, returned as a matrix with a number of rows equal to
numnodes(G)
. For 2D layouts the matrix has two columns, while for
3D layouts the matrix has three columns. Each row of the matrix gives the
x, y, and optionally
zcoordinates of each node in the layout.
edgeCoords
— Edge layout coordinates
cell array
Edge layout coordinates, returned as a cell array of size
numedges(G)
by1
. Each element of the cell array
contains a matrix giving the x, y, and
optionally zcoordinates of each point on the edge. Each edge has at
least two points.
References
[1] Fruchterman, T., and E. Reingold,. “Graph Drawing by Forcedirected Placement.” Software — Practice & Experience. Vol. 21 (11), 1991, pp. 1129–1164.
[2] Gansner, E., E. Koutsofios, S. North, and K.P Vo. “A Technique for Drawing Directed Graphs.” IEEE Transactions on Software Engineering. Vol.19, 1993, pp. 214–230.
[3] Barth, W., M. Juenger, and P. Mutzel. “Simple and Efficient Bilayer Cross Counting.” Journal of Graph Algorithms and Applications. Vol.8 (2), 2004, pp. 179–194.
[4] Brandes, U., and B. Koepf. “Fast and Simple Horizontal Coordinate Assignment.” LNCS. Vol. 2265, 2002, pp. 31–44.
[5] Y. Koren. “Drawing Graphs by Eigenvectors: Theory and Practice.” Computers and Mathematics with Applications. Vol. 49, 2005, pp. 1867–1888.
Version History
Introduced in R2024b
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
