cyclebasis

Fundamental cycle basis of graph

Description

example

cycles = cyclebasis(G) computes the fundamental cycle basis of an undirected graph. The output cycles is a cell array that indicates which nodes belong to each fundamental cycle.

example

[cycles,edgecycles] = cyclebasis(G) also returns the edges in each cycle. The output edgecycles is a cell array where edgecycles{k} gives the edges between the nodes in cycles{k}.

Examples

collapse all

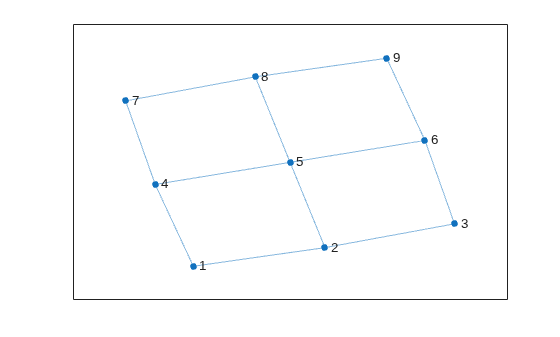

Create and plot an undirected graph.

s = [1 1 2 2 3 4 4 5 5 6 7 8];
t = [2 4 3 5 6 5 7 6 8 9 8 9];
G = graph(s,t);
plot(G)

Figure contains an axes. The axes contains an object of type graphplot.

Calculate which nodes are in each fundamental cycle.

cycles = cyclebasis(G)
cycles=4×1 cell array
    {[1 2 5 4]}
    {[2 3 6 5]}
    {[4 5 8 7]}
    {[5 6 9 8]}

Compute the nodes and edges in the fundamental cycles of a graph, visualize the fundamental cycles, and then use the fundamental cycles to find other cycles in the graph.

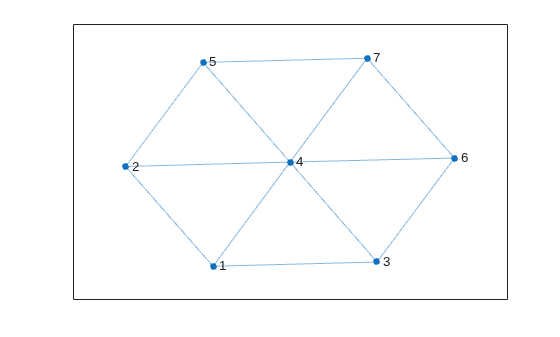

Create and plot an undirected graph.

s = [1 1 1 2 2 3 3 4 4 4 5 6];
t = [2 3 4 4 5 4 6 5 6 7 7 7];
G = graph(s,t);
plot(G);

Figure contains an axes. The axes contains an object of type graphplot.

Compute the fundamental cycle basis of the graph.

[cycles,edgecycles] = cyclebasis(G)
cycles=6×1 cell array
    {[1 2 4]}
    {[1 3 4]}
    {[2 4 5]}
    {[3 4 6]}
    {[4 5 7]}
    {[4 6 7]}

edgecycles=6×1 cell array
    {[  1 4 3]}
    {[  2 6 3]}
    {[  4 8 5]}
    {[  6 9 7]}
    {[8 11 10]}
    {[9 12 10]}

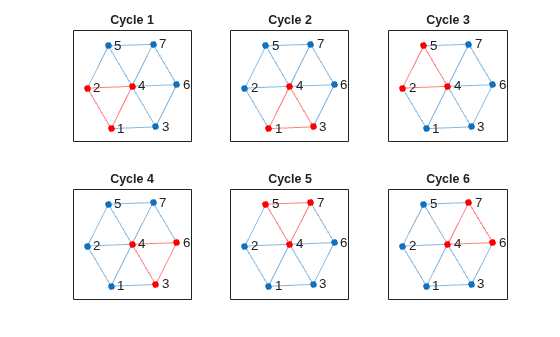

Highlight each of the fundamental cycles, using tiledlayout and nexttile to construct an array of subplots. For each subplot, first get the nodes of the corresponding cycle from cycles, and the edges from edgecycles. Then, plot the graph and highlight those nodes and edges.

tiledlayout flow
for k = 1:length(cycles)
    nexttile
    highlight(plot(G),cycles{k},'Edges',edgecycles{k},'EdgeColor','r','NodeColor','r')
    title("Cycle " + k)
end

Figure contains 6 axes. Axes 1 with title Cycle 1 contains an object of type graphplot. Axes 2 with title Cycle 2 contains an object of type graphplot. Axes 3 with title Cycle 3 contains an object of type graphplot. Axes 4 with title Cycle 4 contains an object of type graphplot. Axes 5 with title Cycle 5 contains an object of type graphplot. Axes 6 with title Cycle 6 contains an object of type graphplot.

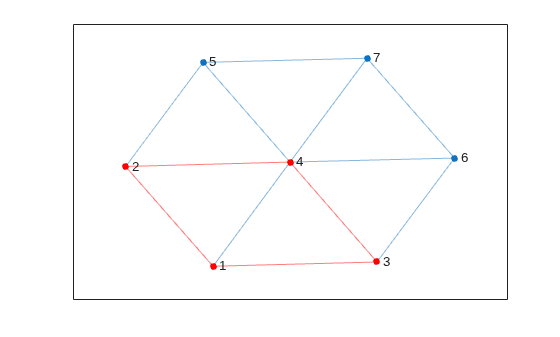

You can construct any other cycle in the graph by finding the symmetric difference between two or more fundamental cycles using the setxor function. For example, take the symmetric difference between the first two cycles and plot the resulting new cycle.

figure
new_cycle_edges = setxor(edgecycles{1},edgecycles{2});
highlight(plot(G),'Edges',new_cycle_edges,'EdgeColor','r','NodeColor','r')

Figure contains an axes. The axes contains an object of type graphplot.

While every cycle can be constructed by combining cycles from the cycle basis, not every combination of basis cycles forms a valid cycle.

Examine how the outputs of the cyclebasis and allcycles functions scale with the number of edges in a graph.

Create and plot a square grid graph with three nodes on each side of the square.

n = 5;
A = delsq(numgrid('S',n));
G = graph(A,'omitselfloops');
plot(G)

Figure contains an axes. The axes contains an object of type graphplot.

Compute all cycles in the graph using allcycles. Use the tiledlayout function to construct an array of subplots and highlight each cycle in a subplot. The results indicate there are a total of 13 cycles in the graph.

[cycles,edgecycles] = allcycles(G);
tiledlayout flow
for k = 1:length(cycles)
    nexttile
    highlight(plot(G),cycles{k},'Edges',edgecycles{k},'EdgeColor','r','NodeColor','r')
    title("Cycle " + k)
end

Figure contains 13 axes. Axes 1 with title Cycle 1 contains an object of type graphplot. Axes 2 with title Cycle 2 contains an object of type graphplot. Axes 3 with title Cycle 3 contains an object of type graphplot. Axes 4 with title Cycle 4 contains an object of type graphplot. Axes 5 with title Cycle 5 contains an object of type graphplot. Axes 6 with title Cycle 6 contains an object of type graphplot. Axes 7 with title Cycle 7 contains an object of type graphplot. Axes 8 with title Cycle 8 contains an object of type graphplot. Axes 9 with title Cycle 9 contains an object of type graphplot. Axes 10 with title Cycle 10 contains an object of type graphplot. Axes 11 with title Cycle 11 contains an object of type graphplot. Axes 12 with title Cycle 12 contains an object of type graphplot. Axes 13 with title Cycle 13 contains an object of type graphplot.

Some of these cycles can be seen as combinations of smaller cycles. The cyclebasis function returns a subset of the cycles that form a basis for all other cycles in the graph. Use cyclebasis to compute the fundamental cycle basis and highlight each fundamental cycle in a subplot. Even though there are 13 cycles in the graph, there are only four fundamental cycles.

[cycles,edgecycles] = cyclebasis(G);
tiledlayout flow
for k = 1:length(cycles)
    nexttile
    highlight(plot(G),cycles{k},'Edges',edgecycles{k},'EdgeColor','r','NodeColor','r')
    title("Cycle " + k)
end

Figure contains 4 axes. Axes 1 with title Cycle 1 contains an object of type graphplot. Axes 2 with title Cycle 2 contains an object of type graphplot. Axes 3 with title Cycle 3 contains an object of type graphplot. Axes 4 with title Cycle 4 contains an object of type graphplot.

Now, increase the number of nodes on each side of the square graph from three to four. This represents a small increase in the size of the graph.

n = 6;
A = delsq(numgrid('S',n));
G = graph(A,'omitselfloops');
figure
plot(G)

Figure contains an axes. The axes contains an object of type graphplot.

Use allcycles to compute all of the cycles in the new graph. For this graph there are over 200 cycles, which is too many to plot.

allcycles(G)
ans=213×1 cell array
    {[                       1 2 3 4 8 7 6 5]}
    {[                  1 2 3 4 8 7 6 10 9 5]}
    {[1 2 3 4 8 7 6 10 11 12 16 15 14 13 9 5]}
    {[      1 2 3 4 8 7 6 10 11 15 14 13 9 5]}
    {[            1 2 3 4 8 7 6 10 14 13 9 5]}
    {[                 1 2 3 4 8 7 11 10 6 5]}
    {[                 1 2 3 4 8 7 11 10 9 5]}
    {[           1 2 3 4 8 7 11 10 14 13 9 5]}
    {[     1 2 3 4 8 7 11 12 16 15 14 10 6 5]}
    {[     1 2 3 4 8 7 11 12 16 15 14 10 9 5]}
    {[     1 2 3 4 8 7 11 12 16 15 14 13 9 5]}
    {[1 2 3 4 8 7 11 12 16 15 14 13 9 10 6 5]}
    {[           1 2 3 4 8 7 11 15 14 10 6 5]}
    {[           1 2 3 4 8 7 11 15 14 10 9 5]}
    {[           1 2 3 4 8 7 11 15 14 13 9 5]}
    {[      1 2 3 4 8 7 11 15 14 13 9 10 6 5]}
      ⋮

Despite the large number of cycles in the graph, cyclebasis still returns a small number of fundamental cycles. Each of the cycles in the graph can be constructed using only nine fundamental cycles.

[cycles,edgecycles] = cyclebasis(G);
figure
tiledlayout flow
for k = 1:length(cycles)
    nexttile
    highlight(plot(G),cycles{k},'Edges',edgecycles{k},'EdgeColor','r','NodeColor','r')
    title("Cycle " + k)
end

Figure contains 9 axes. Axes 1 with title Cycle 1 contains an object of type graphplot. Axes 2 with title Cycle 2 contains an object of type graphplot. Axes 3 with title Cycle 3 contains an object of type graphplot. Axes 4 with title Cycle 4 contains an object of type graphplot. Axes 5 with title Cycle 5 contains an object of type graphplot. Axes 6 with title Cycle 6 contains an object of type graphplot. Axes 7 with title Cycle 7 contains an object of type graphplot. Axes 8 with title Cycle 8 contains an object of type graphplot. Axes 9 with title Cycle 9 contains an object of type graphplot.

The large increase in the number of cycles with only a small change in the size of the graph is typical for some graph structures. The number of cycles returned by allcycles can grow exponentially with the number of edges in the graph. However, the number of cycles returned by cyclebasis can, at most, grow linearly with the number of edges in the graph.

Input Arguments

collapse all

Input graph, specified as a graph object. Use graph to create an undirected graph object.

Example: G = graph(1,2)

Output Arguments

collapse all

Fundamental graph cycles, returned as a cell array. Each cell cycles{k} contains the nodes that belong to one of the fundamental cycles of G. Each cycle begins with the smallest node index. If G does not contain any cycles, then cycles is empty.

Every cycle in G is a combination of the fundamental cycles returned in cycles. If an edge is part of a cycle in G, then it is also part of at least one fundamental cycle in cycles.

The data type of the cells in cycles depends on whether the input graph contains node names:

  • If graph G does not have node names, then each cell cycles{k} is a numeric vector of node indices.

  • If graph G has node names, then each cell cycles{k} is a cell array of character vector node names.

Edges in each fundamental cycle, returned as a cell array. Each cell edgecycles{k} contains the edge indices for edges in cycle cycles{k}. If G does not contain any cycles, then edgecycles is empty.

More About

collapse all

Fundamental Cycle Basis

In undirected graphs, the fundamental cycle basis is a set of simple cycles that forms a basis for the cycle space of the graph. That is, any cycle in the graph can be constructed from the fundamental cycles. For an example, see Nodes and Edges in Fundamental Cycles.

The fundamental cycle basis of a graph is calculated from a minimum spanning tree of the graph. For each edge that is not in the minimum spanning tree, there exists one fundamental cycle which is composed of that edge, its end nodes, and the path in the minimum spanning tree that connects them.

The minimum spanning tree used in cyclebasis is generally different from the one returned by minspantree. It is chosen such that the cycles are short. However, cyclebasis is not guaranteed to return the shortest possible fundamental cycle basis.

Introduced in R2021a
