# allcycles

Find all cycles in graph

## Description

`[`

also returns the edges in each cycle. The output `cycles`

,`edgecycles`

] = allcycles(`G`

)`edgecycles`

is a cell
array where `edgecycles{k}`

gives the edges in the corresponding cycle,
`cycles{k}`

.

`[___] = allcycles(`

specifies additional options using one or more name-value arguments. You can use any of the
output argument combinations in previous syntaxes. For example, you can specify
`G`

,`Name,Value`

)`MaxNumCycles`

and a scalar to limit the number of cycles
returned.

## Examples

### All Cycles in Directed Graph

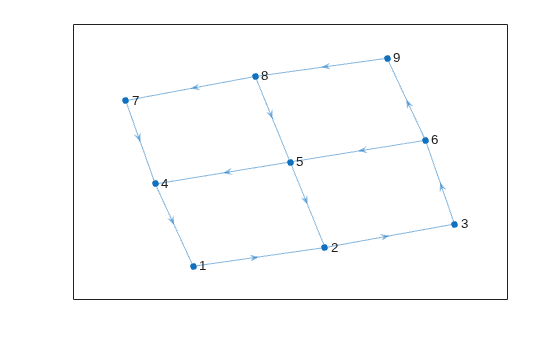

Create a directed graph with nine nodes. Plot the graph.

s = [1 2 3 6 5 5 4 6 9 8 8 7]; t = [2 3 6 5 2 4 1 9 8 5 7 4]; G = digraph(s,t); plot(G)

Calculate all cycles in the graph.

cycles = allcycles(G)

`cycles=`*5×1 cell array*
{[ 1 2 3 6 5 4]}
{[1 2 3 6 9 8 5 4]}
{[1 2 3 6 9 8 7 4]}
{[ 2 3 6 5]}
{[ 2 3 6 9 8 5]}

### Edges Contained in Cycles

The second output argument of `allcycles`

returns the edges that are contained in each cycle. This is particularly useful for multigraphs, where the edge index is required to uniquely identify the edges in each cycle.

Create a directed multigraph with eight nodes and 18 edges. Specify names for the nodes. Plot the graph with labeled nodes and edges.

s = [1 1 2 2 3 3 2 2 4 6 8 6 6 7 3 3 5 3]; t = [2 3 1 3 2 1 4 4 6 2 6 7 8 8 5 5 7 7]; names = {'A','B','C','D','E','F','G','H'}; G = digraph(s,t,[],names); p = plot(G,'EdgeLabel',1:numedges(G));

Calculate all cycles in the graph. Specify two output arguments to also return the edge indices for edges in each cycle.

[cycles,edgecycles] = allcycles(G);

View the nodes and edges in the fifth cycle.

cycles{5}

`ans = `*1x7 cell*
{'A'} {'C'} {'E'} {'G'} {'H'} {'F'} {'B'}

edgecycles{5}

`ans = `*1×7*
2 9 13 17 18 14 3

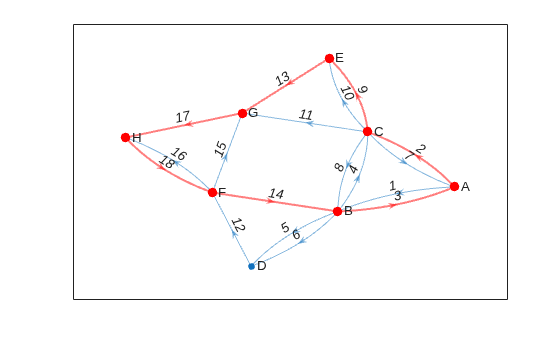

Highlight the nodes and edges in the fifth cycle.

highlight(p,'Edges',edgecycles{5},'EdgeColor','r','LineWidth',1.5,'NodeColor','r','MarkerSize',6)

### Limit Number of Cycles Returned

Use the `'MaxNumCycles'`

, `'MaxCycleLength'`

, and `'MinCycleLength'`

options to limit the number of cycles returned by `allcycles`

.

Create an adjacency matrix for a complete graph with 20 nodes. Create an undirected graph from the adjacency matrix, omitting self-loops.

```
A = ones(20);
G = graph(A,'omitselfloops');
```

Since all of the nodes in the graph are connected to all other nodes, there are a large number of cycles in the graph (more than `1.7e17`

). Therefore, it is not feasible to calculate all of the cycles since the results will not fit in memory. Instead, calculate the first 10 cycles.

`cycles1 = allcycles(G,'MaxNumCycles',10)`

`cycles1=`*10×1 cell array*
{[ 1 2 3]}
{[ 1 2 3 4]}
{[ 1 2 3 4 5]}
{[ 1 2 3 4 5 6]}
{[ 1 2 3 4 5 6 7]}
{[ 1 2 3 4 5 6 7 8]}
{[ 1 2 3 4 5 6 7 8 9]}
{[ 1 2 3 4 5 6 7 8 9 10]}
{[ 1 2 3 4 5 6 7 8 9 10 11]}
{[1 2 3 4 5 6 7 8 9 10 11 12]}

Now calculate the first 10 cycles that have a cycle length less than or equal to 3.

cycles2 = allcycles(G,'MaxNumCycles',10,'MaxCycleLength',3)

`cycles2=`*10×1 cell array*
{[ 1 2 3]}
{[ 1 2 4]}
{[ 1 2 5]}
{[ 1 2 6]}
{[ 1 2 7]}
{[ 1 2 8]}
{[ 1 2 9]}
{[1 2 10]}
{[1 2 11]}
{[1 2 12]}

Finally, calculate the first 10 cycles that have a cycle length greater than or equal to 4.

cycles3 = allcycles(G,'MaxNumCycles',10,'MinCycleLength',4)

`cycles3=`*10×1 cell array*
{[ 1 2 3 4]}
{[ 1 2 3 4 5]}
{[ 1 2 3 4 5 6]}
{[ 1 2 3 4 5 6 7]}
{[ 1 2 3 4 5 6 7 8]}
{[ 1 2 3 4 5 6 7 8 9]}
{[ 1 2 3 4 5 6 7 8 9 10]}
{[ 1 2 3 4 5 6 7 8 9 10 11]}
{[ 1 2 3 4 5 6 7 8 9 10 11 12]}
{[1 2 3 4 5 6 7 8 9 10 11 12 13]}

### Compare Fundamental Cycle Basis to Set of All Cycles

Examine how the outputs of the `cyclebasis`

and `allcycles`

functions scale with the number of edges in a graph.

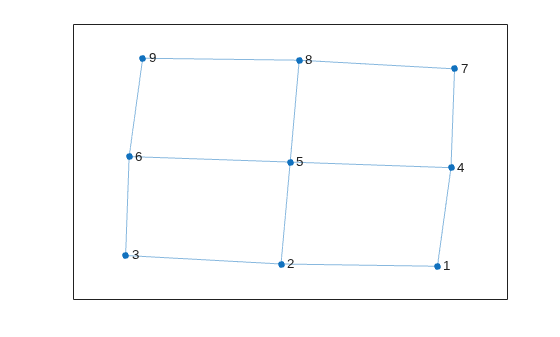

Create and plot a square grid graph with three nodes on each side of the square.

n = 5; A = delsq(numgrid('S',n)); G = graph(A,'omitselfloops'); plot(G)

Compute all cycles in the graph using `allcycles`

. Use the `tiledlayout`

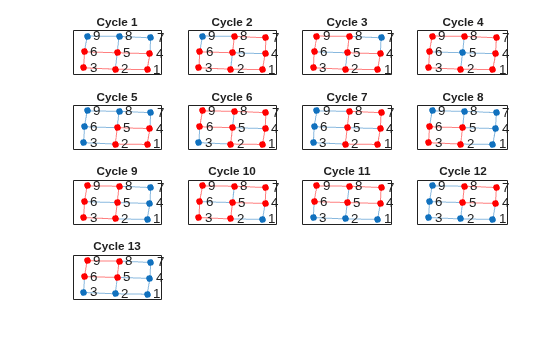

function to construct an array of subplots and highlight each cycle in a subplot. The results indicate there are a total of 13 cycles in the graph.

[cycles,edgecycles] = allcycles(G); tiledlayout flow for k = 1:length(cycles) nexttile highlight(plot(G),cycles{k},'Edges',edgecycles{k},'EdgeColor','r','NodeColor','r') title("Cycle " + k) end

Some of these cycles can be seen as combinations of smaller cycles. The `cyclebasis`

function returns a subset of the cycles that form a basis for all other cycles in the graph. Use `cyclebasis`

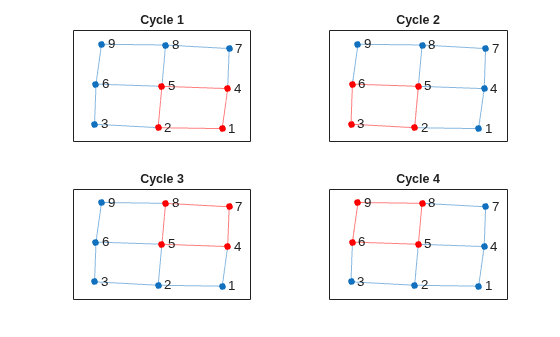

to compute the fundamental cycle basis and highlight each fundamental cycle in a subplot. Even though there are 13 cycles in the graph, there are only four fundamental cycles.

[cycles,edgecycles] = cyclebasis(G); tiledlayout flow for k = 1:length(cycles) nexttile highlight(plot(G),cycles{k},'Edges',edgecycles{k},'EdgeColor','r','NodeColor','r') title("Cycle " + k) end

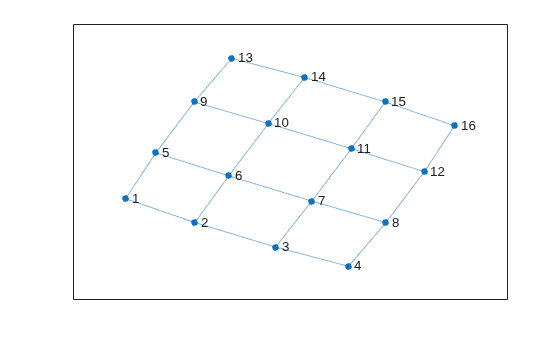

Now, increase the number of nodes on each side of the square graph from three to four. This represents a small increase in the size of the graph.

n = 6; A = delsq(numgrid('S',n)); G = graph(A,'omitselfloops'); figure plot(G)

Use `allcycles`

to compute all of the cycles in the new graph. For this graph there are over 200 cycles, which is too many to plot.

allcycles(G)

`ans=`*213×1 cell array*
{[ 1 2 3 4 8 7 6 5]}
{[ 1 2 3 4 8 7 6 10 9 5]}
{[1 2 3 4 8 7 6 10 11 12 16 15 14 13 9 5]}
{[ 1 2 3 4 8 7 6 10 11 15 14 13 9 5]}
{[ 1 2 3 4 8 7 6 10 14 13 9 5]}
{[ 1 2 3 4 8 7 11 10 6 5]}
{[ 1 2 3 4 8 7 11 10 9 5]}
{[ 1 2 3 4 8 7 11 10 14 13 9 5]}
{[ 1 2 3 4 8 7 11 12 16 15 14 10 6 5]}
{[ 1 2 3 4 8 7 11 12 16 15 14 10 9 5]}
{[ 1 2 3 4 8 7 11 12 16 15 14 13 9 5]}
{[1 2 3 4 8 7 11 12 16 15 14 13 9 10 6 5]}
{[ 1 2 3 4 8 7 11 15 14 10 6 5]}
{[ 1 2 3 4 8 7 11 15 14 10 9 5]}
{[ 1 2 3 4 8 7 11 15 14 13 9 5]}
{[ 1 2 3 4 8 7 11 15 14 13 9 10 6 5]}
⋮

Despite the large number of cycles in the graph, `cyclebasis`

still returns a small number of fundamental cycles. Each of the cycles in the graph can be constructed using only nine fundamental cycles.

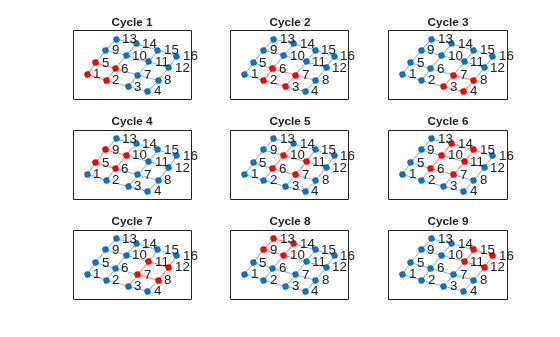

[cycles,edgecycles] = cyclebasis(G); figure tiledlayout flow for k = 1:length(cycles) nexttile highlight(plot(G),cycles{k},'Edges',edgecycles{k},'EdgeColor','r','NodeColor','r') title("Cycle " + k) end

The large increase in the number of cycles with only a small change in the size of the graph is typical for some graph structures. The number of cycles returned by `allcycles`

can grow exponentially with the number of edges in the graph. However, the number of cycles returned by `cyclebasis`

can, at most, grow linearly with the number of edges in the graph.

## Input Arguments

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`allcycles(G,'MaxNumCycles',100)`

returns only the first 100
cycles in the graph.

`MaxNumCycles`

— Maximum number of cycles

nonnegative integer scalar

Maximum number of cycles, specified as the comma-separated pair consisting of
`'MaxNumCycles'`

and a nonnegative integer scalar. This option is
useful when the number of cycles in a graph grows large enough to hit memory limits.
You can specify `MaxNumCycles`

to limit the number of cycles returned
by `allcycles`

so that the results fit within available
memory.

**Example: **`allcycles(G,'MaxNumCycles',100)`

`MaxCycleLength`

— Maximum cycle length

positive integer scalar

Maximum cycle length, specified as the comma-separated pair consisting of
`'MaxCycleLength'`

and a positive integer scalar. This option
filters the results returned by `allcycles`

so that no cycles with
length larger than the specified limit are returned. The length of a cycle is measured
by the number of edges in it, ignoring edge weights.

To find cycles with a range of lengths, specify both
`'MaxCycleLength'`

and `'MinCycleLength'`

. To find
cycles with an exact specified length, specify the same value for both
`'MaxCycleLength'`

and `'MinCycleLength'`

.

**Example: **`allcycles(G,'MaxCycleLength',4)`

returns cycles that
have a length less than or equal to 4.

**Example: **`allcycles(G,'MinCycleLength',3,'MaxCycleLength',5)`

returns cycles that have a length of 3, 4, or 5.

`MinCycleLength`

— Minimum cycle length

positive integer scalar

Minimum cycle length, specified as the comma-separated pair consisting of
`'MinCycleLength'`

and a positive integer scalar. This option
filters the results returned by `allcycles`

so that no cycles with
length smaller than the specified limit are returned. The length of a cycle is
measured by the number of edges in it, ignoring edge weights.

To find cycles with a range of lengths, specify both
`'MaxCycleLength'`

and `'MinCycleLength'`

. To find
cycles with an exact specified length, specify the same value for both
`'MaxCycleLength'`

and `'MinCycleLength'`

.

**Example: **`allcycles(G,'MinCycleLength',2)`

returns cycles that
have a length greater than or equal to 2.

**Example: **`allcycles(G,'MinCycleLength',3,'MaxCycleLength',5)`

returns cycles that have a length of 3, 4, or 5.

## Output Arguments

`cycles`

— Graph cycles

cell array

Graph cycles, returned as a cell array. Each element `cycles{k}`

contains the nodes that belong to one of the cycles in `G`

. Each cycle
begins with the node that has the smallest node index, and the cycles are returned in
lexicographical order. Cycles in undirected graphs are returned only once, following a
single direction. If `G`

does not contain any cycles, then
`cycles`

is empty.

The data type of the cells in `cycles`

depends on whether the input
graph contains node names:

If graph

`G`

does not have node names, then each element`cycles{k}`

is a numeric vector of node indices.If graph

`G`

has node names, then each element`cycles{k}`

is a cell array of character vector node names.

`edgecycles`

— Edges in each cycle

cell array

Edges in each cycle, returned as a cell array. Each element
`edgecycles{k}`

contains the edge indices for edges in the
corresponding cycle, `cycles{k}`

. If `G`

does not
contain any cycles, then `edgecycles`

is empty.

## More About

### Graph Cycles

A cycle exists in a graph when there is a nonempty path in which only
the first and last nodes are repeated. An example of a cycle is: (Node1 - Node2 - Node3 -
Node1). By convention, `allcycles`

does not return the last node in the
cycle since it is the same as the first.

A cycle cannot traverse the same edge twice. For example, the cycle (Node1 - Node2 - Node1) in an undirected graph only exists if there is more than one edge connecting Node1 and Node2. By this definition, self-loops count as cycles, though they cannot be part of a larger cycle.

## Tips

The number of cycles in a graph depends heavily on the structure of the graph. For some graph structures, the number of cycles can grow exponentially with the number of nodes. For example, a complete graph with 12 nodes given by

`G = graph(ones(12))`

contains nearly 60 million cycles. Use the`MaxNumCycles`

,`MaxCycleLength`

, and`MinCycleLength`

options to control the output of`allcycles`

in these cases.

## Version History

**Introduced in R2021a**
