atan2
Four-quadrant inverse tangent
Syntax
Description
P = atan2(
returns the
four-quadrant inverse
tangent (tan-1) of Y
,X
)Y
and
X
, which must be real. The atan2
function follows the convention that atan2(x,x)
returns
0
when x
is mathematically zero (either
0
or -0
).
Examples
Find Four-Quadrant Inverse Tangent of a Point
Find the four-quadrant inverse tangent of the point y = 4
, x = -3
.
atan2(4,-3)
ans = 2.2143
Convert Complex Number to Polar Coordinates
Convert 4 + 3i
into polar coordinates.
z = 4 + 3i; r = abs(z)
r = 5
theta = atan2(imag(z),real(z))
theta = 0.6435
The radius r
and the angle theta
are the polar coordinate representation of 4 + 3i
.
Alternatively, use angle
to calculate theta
.
theta = angle(z)
theta = 0.6435
Convert r
and theta
back into the original complex number.
z = r*exp(i*theta)
z = 4.0000 + 3.0000i

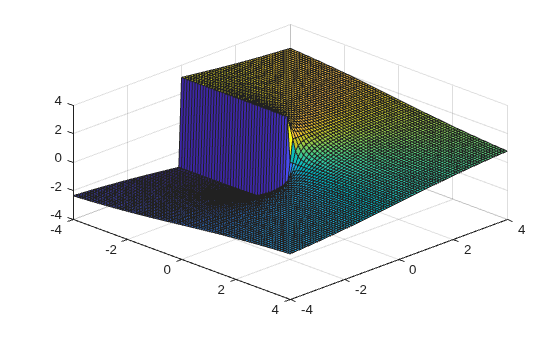

Plot Four-Quadrant Inverse Tangent
Plot atan2(Y,X)
for -4<Y<4
and -4<X<4
.
Define the interval to plot over.
[X,Y] = meshgrid(-4:0.1:4,-4:0.1:4);
Find atan2(Y,X)
over the interval.
P = atan2(Y,X);
Use surf
to generate a surface plot of the function. Note that plot
plots the discontinuity that exists at Y=0
for all X<0
.
surf(X,Y,P); view(45,45);
Input Arguments
Y
— y-coordinates
scalar | vector | matrix | multidimensional array | table | timetable
y-coordinates, specified as a scalar, vector, matrix, multidimensional
array, table, or timetable. Inputs Y
and
X
must either be the same size or have sizes that are
compatible (for example, Y
is an
M
-by-N
matrix and
X
is a scalar or
1
-by-N
row vector). For more
information, see Compatible Array Sizes for Basic Operations.
Data Types: single
| double
| table
| timetable
X
— x-coordinates
scalar | vector | matrix | multidimensional array | table | timetable
x-coordinates, specified as a scalar, vector, matrix, multidimensional
array, table, or timetable. Inputs Y
and
X
must either be the same size or have sizes that are
compatible (for example, Y
is an
M
-by-N
matrix and
X
is a scalar or
1
-by-N
row vector). For more
information, see Compatible Array Sizes for Basic Operations.
Data Types: single
| double
| table
| timetable
More About
Four-Quadrant Inverse Tangent
IEEE Compliance
For real inputs, atan2
has a few behaviors
that differ from those recommended in the IEEE®-754 Standard.
MATLAB® | IEEE | |
---|---|---|
atan2(0,-0) |
|
|
atan2(-0,-0) |
|
|
Extended Capabilities
Tall Arrays
Calculate with arrays that have more rows than fit in memory.
The
atan2
function fully supports tall arrays. For more information,
see Tall Arrays.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
If you use
atan2
with single type and double type operands, the generated code might not produce the same result as MATLAB. See Binary Element-Wise Operations with Single and Double Operands (MATLAB Coder).
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
Thread-Based Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The atan2
function
fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray
(Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006aR2023a: Perform calculations directly on tables and timetables
The atan2
function can calculate on all variables within a table or
timetable without indexing to access those variables. All variables must have data types
that support the calculation. For more information, see Direct Calculations on Tables and Timetables.
