# cmap2gray

Convert RGB colormap to grayscale colormap

Since R2020b

## Syntax

``newmap = cmap2gray(map)``

## Description

example

````newmap = cmap2gray(map)` converts the RGB colormap `map` into the equivalent grayscale colormap `newmap`. ```

## Examples

collapse all

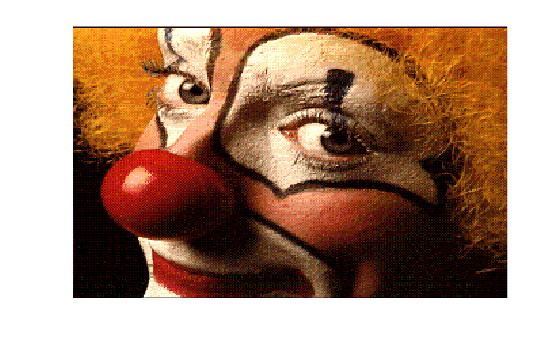

Load an indexed image with its colormap into the workspace. The `load` command returns a structure containing the image data and the colormap. View the image.

```indImage = load('clown.mat'); figure imshow(indImage.X,indImage.map)```

Convert the RGB colormap that came with the image into a grayscale colormap.

`newmap = cmap2gray(indImage.map);`

Display the image with the grayscale colormap.

```figure; imshow(indImage.X,newmap)```

## Input Arguments

collapse all

RGB colormap, specified as a c-by-3 numeric matrix with values in the range [0, 1]. Each row of `map` is a three-element RGB triplet that specifies the red, green, and blue components of a single color of the colormap.

If you have Parallel Computing Toolbox™ installed, `map` can also be a `gpuArray` object.

Data Types: `double`

## Output Arguments

collapse all

Grayscale colormap, returned as a c-by-3 numeric matrix with values in the range [0, 1]. The three columns of `newmap` are identical, so that each row specifies a single intensity value.

If you have Parallel Computing Toolbox installed, then `newmap` can also be a `gpuArray` object.

Data Types: `double`

## Algorithms

The `cmap2gray` function converts RGB values to grayscale values by forming a weighted sum of the R, G, and B components:

```0.298936021293775 * R + 0.587043074451121 * G + 114020904255103 * B ```

The coefficients used to calculate grayscale values in the `cmap2gray` function are identical to those used to calculate luminance (E'y) in Rec.ITU-R BT.601-7 after rounding to three decimal places. Rec.ITU-R BT.601-7 calculates E'y using this formula:

```0.299 * R + 0.587 * G + 0.114 * B ```

## Version History

Introduced in R2020b
